Description

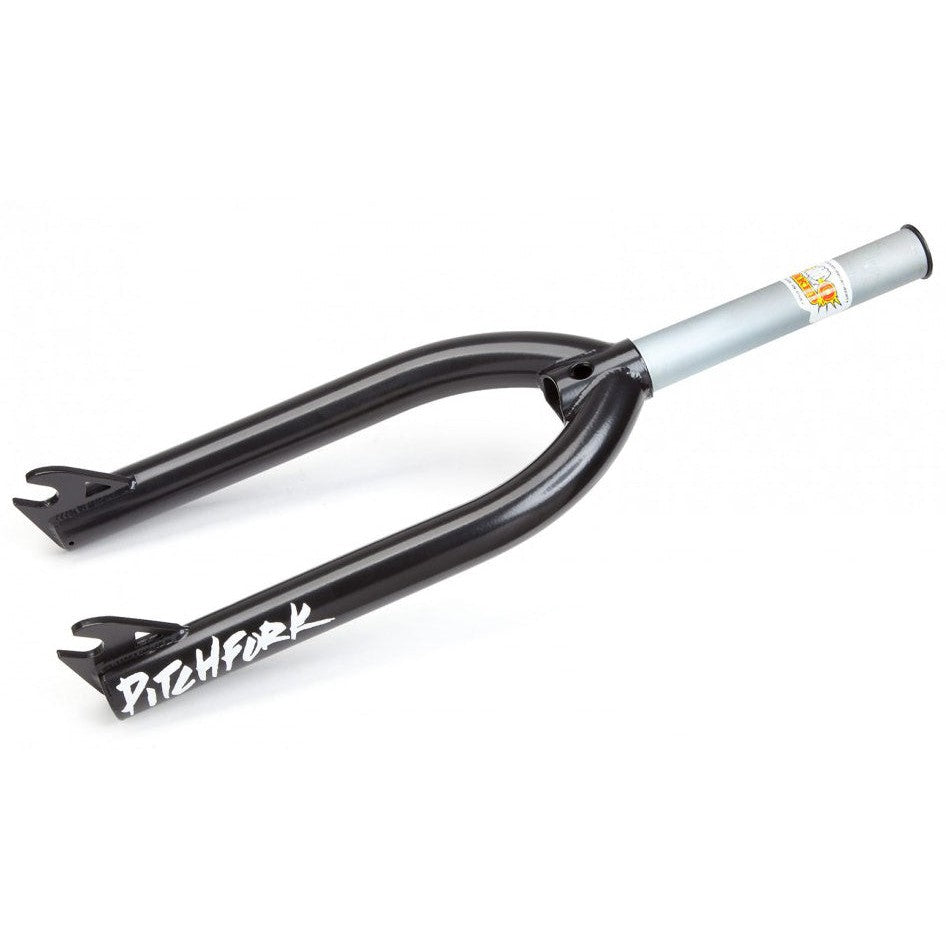

The OG S&M Pitchforks with14mm dropouts....

Features

The OG Pitchfork, 14mm dropouts. Laser cut 4130 chromoly dropouts sized for a 14mm front axle, so older and heavier duty hubs drop straight in.
Double butted 4130 chromoly legs. Butted where the load goes, which is how the fork stays at 0.98 kg while still taking hard landings.
One piece CNC-machined steerer. Machined from a single piece of 4130 chromoly with an extruded 6061 insert, 162mm long.
33mm offset, two crown heights. Axle to crown is 290.1mm for an 18" build and 315.5mm for a 20", so the same fork covers both.
M10 x 1.25 compression thread. A standard thread with a 6mm allen slot, so setting the front end up takes one tool.

Dropouts: Laser cut 4130 chromoly, 14mm
Steerer: 1 piece CNC-machined 4130 chromoly with extruded 6061 insert, 162mm
Fork offset: 33mm
Fork legs: Double butted 4130 chromoly
Axle size: 14mm
Weight: 2.17 lb (0.98 kg)
Note: Axle to crown 290.1mm (18") and 315.5mm (20"). Compression M10 x 1.25 thread with a 6mm allen slot. Heat treated.
