Highlights

  • USA made, still the benchmark
  • Double butted 4130 CrMo legs
  • One piece CNC machined steerer
  • 162mm steerer, 33mm offset

Description

The S&M Pitchfork has been around for years and it has stood the test of time. That is what makes it good: a classic BMX fork, 100% USA made, here in an 18 inch version to go with your Slam bars.

Double butted 4130 CrMo legs, laser cut 4130 CrMo dropouts and a one piece CNC machined 4130 CrMo steerer with an extruded 6061 insert, all 4Q baked post-weld. 162mm steerer, 33mm offset, 290.1mm axle to crown and 0.97 kg.

Features
  • USA made, still the benchmark. The Pitchfork has been in the S&M line for years and keeps holding up, which is why riders keep coming back to it.
  • Double butted 4130 CrMo legs. Butting puts the material where the loads are, so the fork stays strong without carrying weight you do not need.
  • One piece CNC machined steerer. Machined from 4130 CrMo with an extruded 6061 insert, so the most stressed part of the fork starts as one solid piece.
  • 162mm steerer, 33mm offset. Sized for 18 inch bikes with a 290.1mm axle to crown height, so the front end sits where it should.
  • 4Q baked post-weld. Heat treatment after welding keeps the laser cut dropouts and the welds around them tough under repeat landings, at 0.97 kg.

Specifications
  • Dropouts: Laser cut 4130 CrMo
  • Steerer: 162mm, one piece CNC machined 4130 CrMo with extruded 6061 insert
  • Steerer diameter: 1 1/8"
  • Fork offset: 33mm
  • Fork legs: Double butted 4130 CrMo, 4Q baked post-weld
  • Axle size: 3/8"
  • Wheel size: 18"
  • Weight: 0.97 kg
  • Made in: USA
  • Note: Axle to crown 290.1mm. Compression M10 x 1.25 thread with 6mm allen slot. Requires the standard bearing race included with your headset (the 26 gloss black has an integrated race).

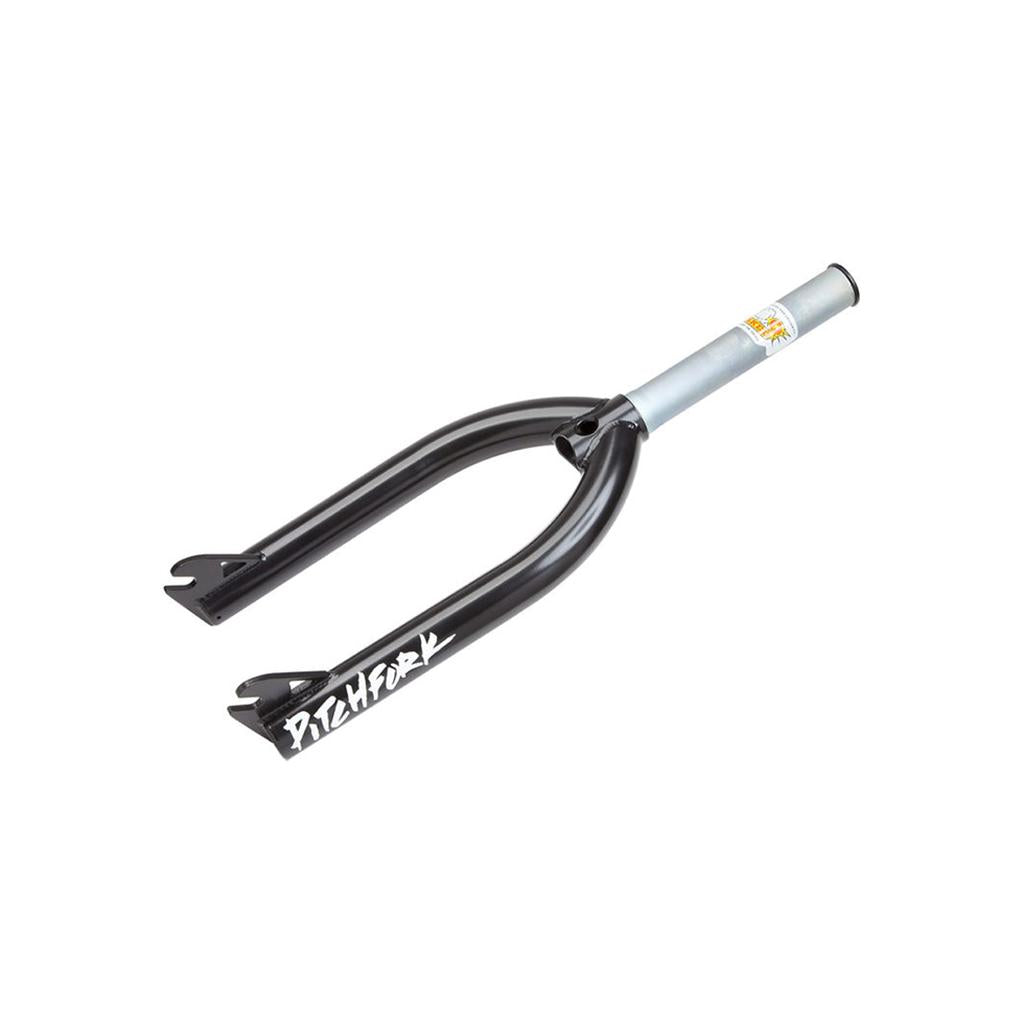

S&M Pitchfork 18 Inch Fork

Brand: S&M SKU:

$459.99 AUD

Or 4 payments of $114.99 AUD with

Colour - Black

Offset - 33mm

S&M Pitchfork 18 Inch Fork - Black / 33mm

$459.99 AUD

Price match request

$12.99 flat-rate shipping Australia-wide

Express from $21.99

Free in-store pickup - Brisbane

Availability

33mm
Black
Gloss Black

● In stock at LUXBMX ● With supplier ● Preorder ○ Sold out
