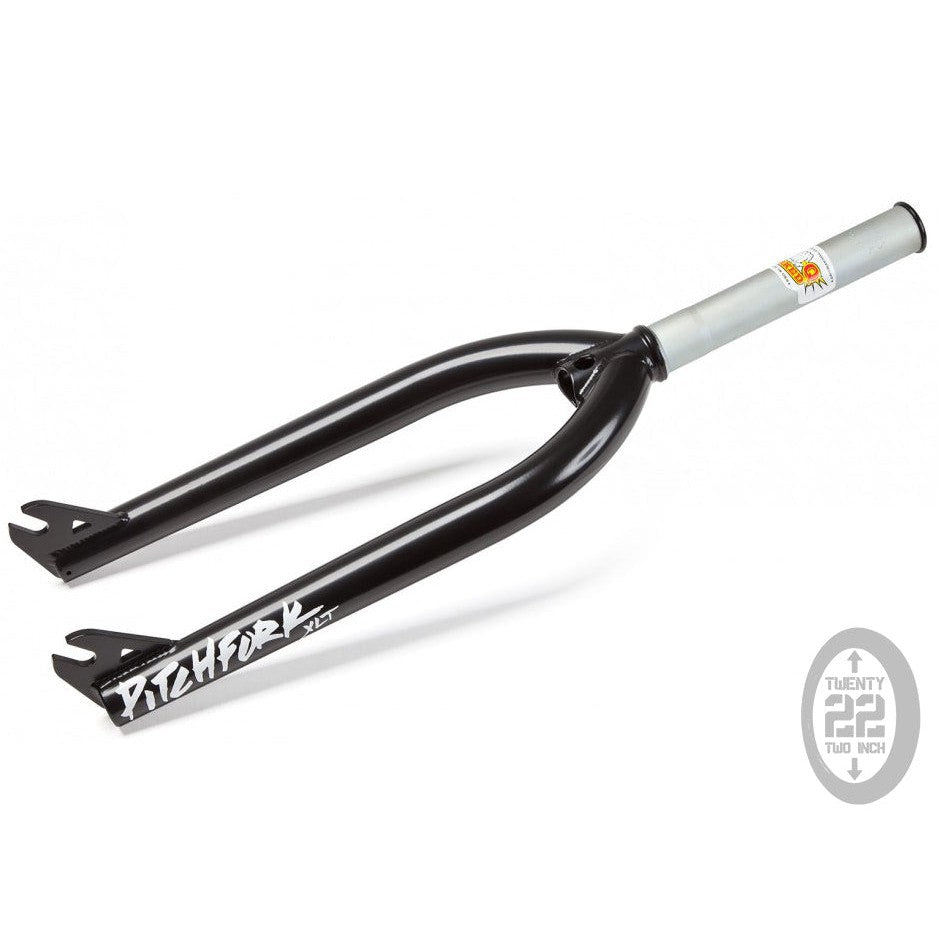

The SandM Pitchfork XLT 22 Inch forks are a modernised, tapered version of the iconic SandM Pitchforks. Perfect for your 22" build.

Modernised Pitchfork for 22 inch. A tapered version of the iconic Pitchfork with a 340.9mm axle to crown height built around a 22" wheel.
Double butted, tapered chromoly legs. Tapered 4130 legs trim weight off the front end and bring the fork in at 1.02 kg.

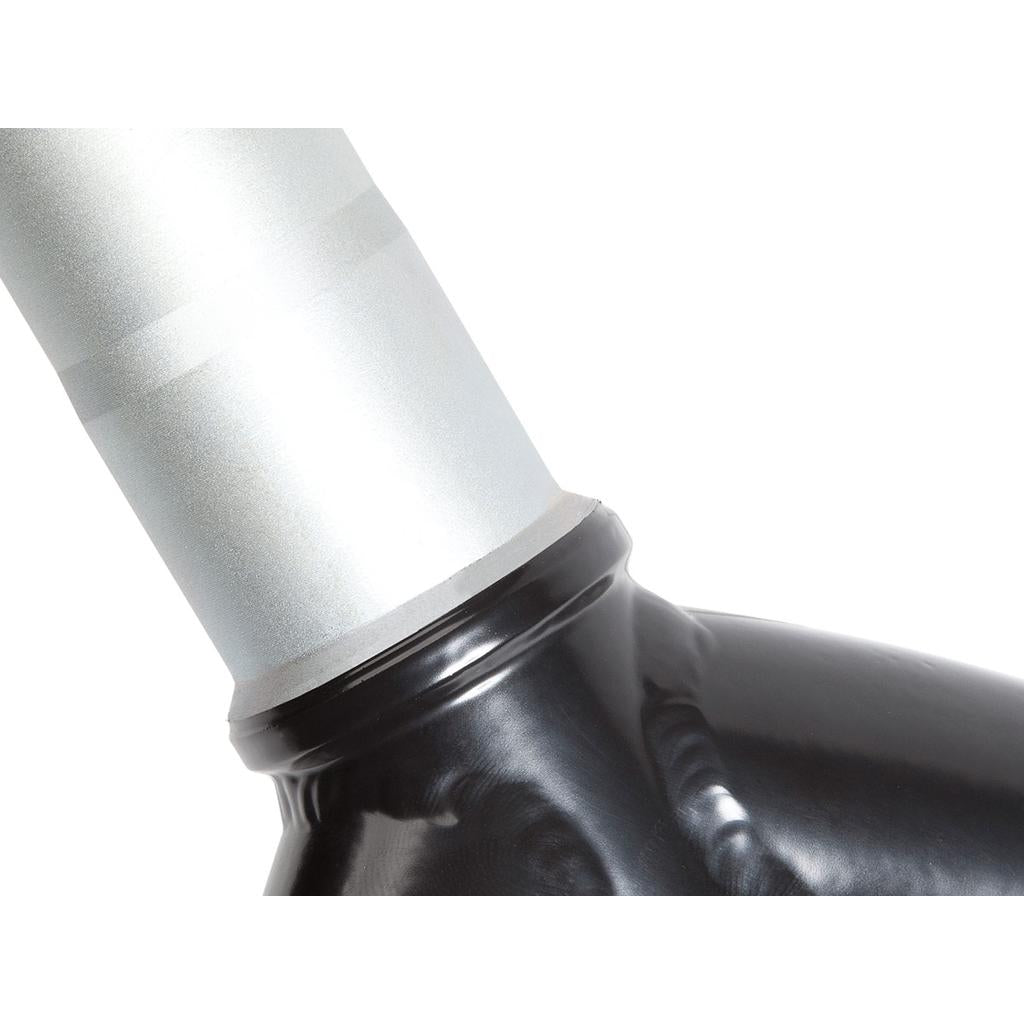

Integrated race steerer tube. One piece CNC-machined 4130 chromoly with an extruded 6061 insert and an integrated race, 166mm long.
Room for 2.4" tyres. Maximum clearance takes a 2.4" S&M tyre, so you can run a fat front without it rubbing.
4Q baked post-weld. Heat treated after welding, with laser cut 3/8" slot dropouts and the Pitchfork's 33mm offset.

Dropouts: Laser cut, 3/8" slot
Steerer: Integrated race, 1 piece CNC-machined 4130 chromoly with extruded 6061 insert, 166mm
Fork offset: 33mm
Fork legs: Double butted, tapered, 4130 chromoly
Axle size: 3/8"
Tyre clearance: Max 2.4" S&M tyre
Wheel size: 22"
Weight: 1.02 kg (22")
Note: Axle to crown 340.9mm (22"). Compression M24 x 1.5 thread with a 6mm allen slot. 4Q baked post-weld.
