Highlights

104 BCD machined spider
24mm hollow chromoly spindle
Arm lengths 140 to 170mm
Sealed euro bottom bracket included

Description

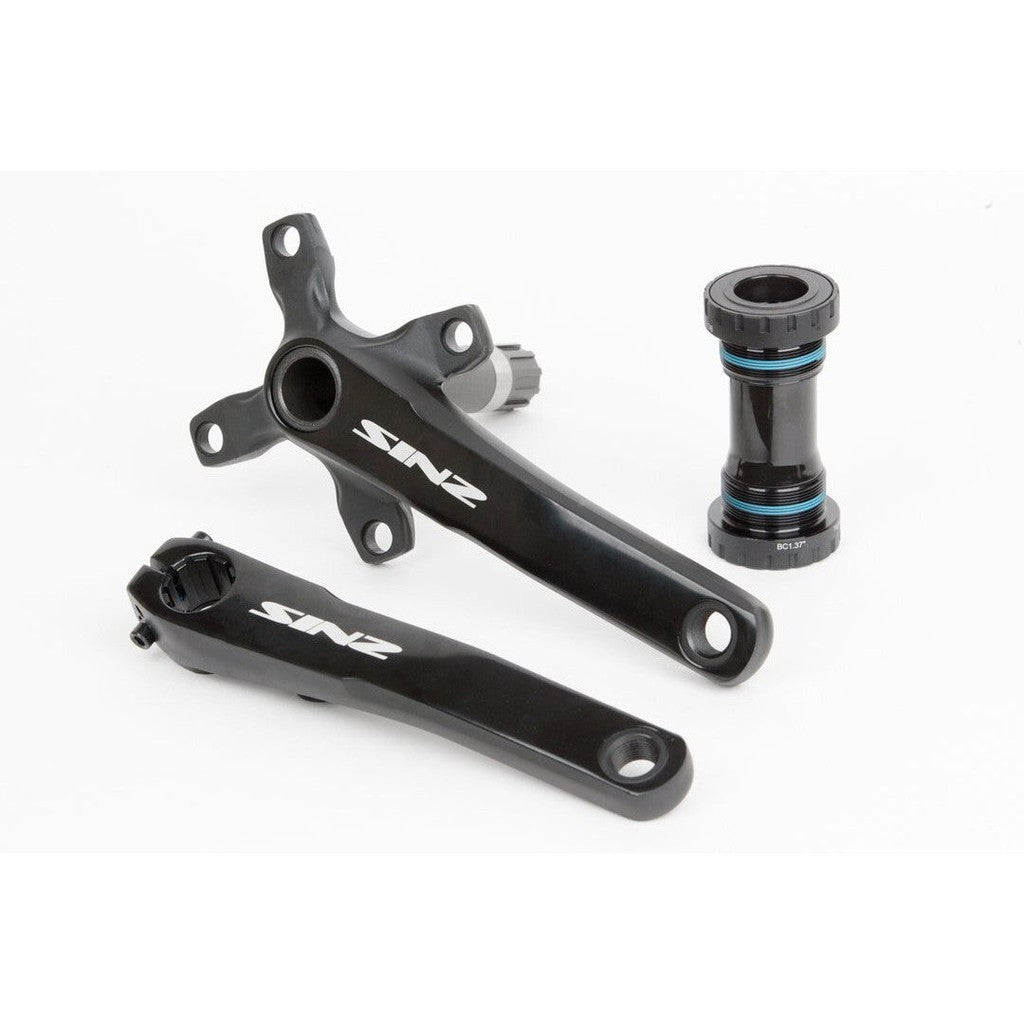

The Sinz MX3 is a three piece crank set built on forged 6061 alloy arms with a chromoly 10 splined 24mm hollow spindle, finished in sand blasted black anodising.

The spider is 104BCD with a machined sprocket interface, and a sealed euro threaded bottom bracket is included. Arm lengths run from 140mm to 170mm in 5mm increments, with the 170mm arms and BB weighing 27oz.

Features

104 BCD machined spider. A machined sprocket interface on a 104mm bolt circle, so it takes standard four bolt chainrings.
24mm hollow chromoly spindle. Ten splined and hollow, so it keeps the stiffness through the middle while cutting the weight.
Arm lengths 140 to 170mm. Steps of 5mm across the range, so you can match arm length to the rider rather than settling.
Sealed euro bottom bracket included. The sealed euro threaded BB comes with it, so the whole lot goes straight into a euro shell.
Forged 6061 alloy arms. Forged alloy arms in a sand blasted black anodised finish, so they look the part on any build.
