A group of different colored S&M ATF 20 Inch Frames on a white background.
An S&M ATF 20 Inch Frame on a white background.
An image of an S&M ATF 20 Inch Frame bike frame on a white background.
A silver bike frame with an S&M ATF 20 Inch Frame on a white background.
A blue S&M ATF 20 Inch Frame on a white background.
A bike frame with an S&M ATF 20 Inch Frame and a camouflage design.
A white S&M ATF 20 Inch Frame sitting on a white background.

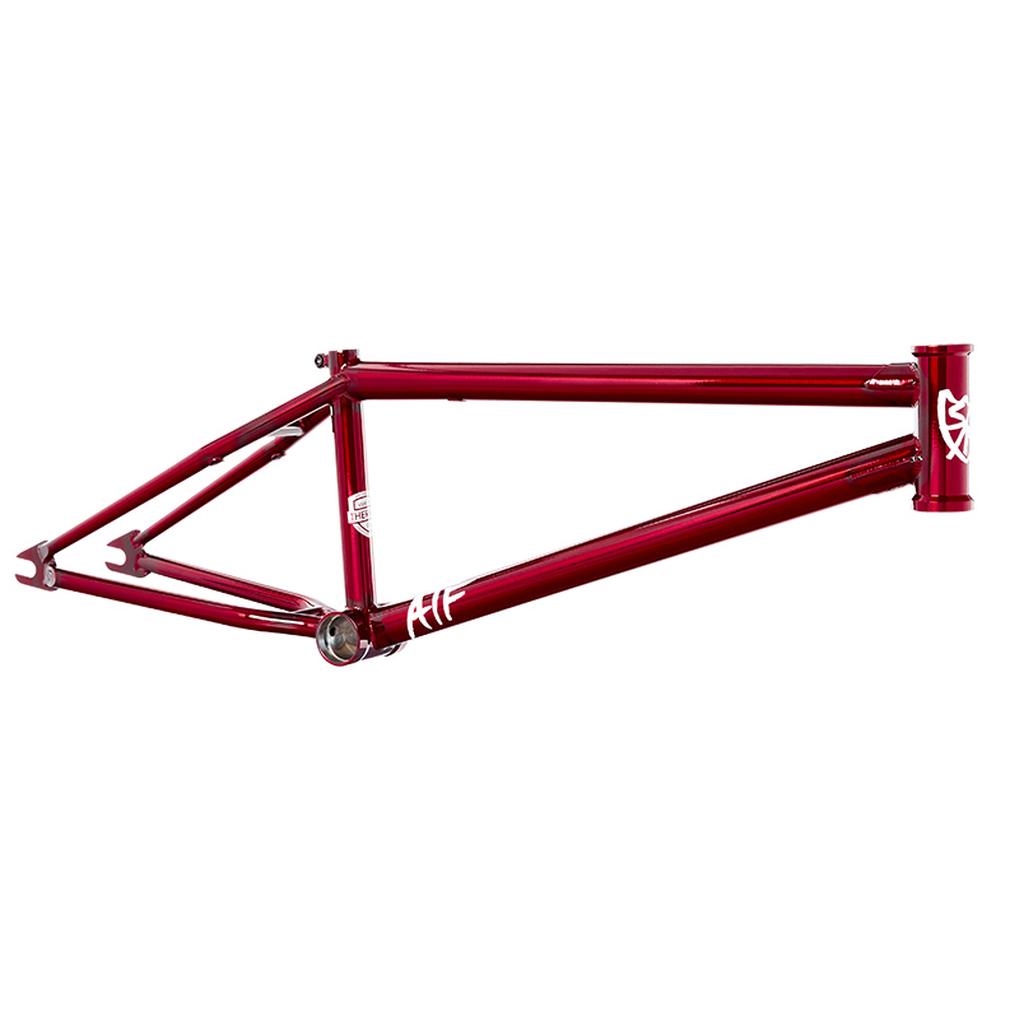

The S&M ATF 20 Inch Frame, made from durable chromoly, stands out against a plain white background with its red color. It showcases responsive geometry and features branding on the front and side, emphasizing its All Terrain capabilities.
Close-up of the shiny red S&M ATF 20 Inch BMX frame, featuring a white emblem on the front tube and "Thermal" label on the side, highlighting its robust chromoly construction.
The S&M ATF 20 Inch Frame, crafted with chromoly construction and BMX geometry, is presented in a glossy red finish. It features logos and is displayed without wheels or other components, offering a sleek and modern look.
The S&M ATF 20 Inch Frame, with its chromoly construction and minimalist design, is showcased on a white background in an elegant red color.
SMFR002-05-RED

Description

ATF stands for All Terrain Frame, and it truly is. Responsive geometry that works in the dirt, at the park or in the streets. The ATF is the foundation for many of the S&M team rider signature frames, as well as a go to for S&M employees.

Easy to ride, easy on the eyes: a modern classic. 100% chromoly construction with butted Thermal-X tubing, an integrated head tube and seat clamp, a mid BB and thread on 990 mounts. Made in the USA.

Features
  • Geometry that goes anywhere. Responsive angles that work in the dirt, at the park or in the streets, which is what All Terrain Frame means.
  • Butted Thermal-X chromoly tubing. 100% chromoly with butted tubes, keeping the strength where it is needed and the frame down to 2.12 kg.
  • Six top tube lengths. 20.5", 20.75", 21", 21.25", 21.5" and 22", so you can size the frame to the way you ride.
  • Adjustable 13.4" to 13.875" rear end. 14mm 4q-baked dropout slots give you room to set the back wheel where you want it.
  • Integrated head tube and clamp. An integrated 45°/45° 41.8mm head tube, integrated seat clamp and a mid BB with ez-out punch slots: fewer parts to chase up.

Specifications
  • Sizes: 20.5", 20.75", 21", 21.25", 21.5", 22" top tube
  • Chainstay: 13.4" to 13.875"
  • Head tube angle: 75°
  • Seat tube angle: 71°
  • Standover: 8.5"
  • Bottom bracket height: 11.7"
  • Bottom bracket: Mid, with ez-out punch slots
  • Material: 100% chromoly
  • Tubing: Butted Thermal-X
  • Dropouts: 14mm slot, 4q-baked, no gyro tabs
  • Brake mounts: Thread-on 990, mounts sold separately
  • Head tube: Integrated, 45°/45°, 41.8mm
  • Seat tube: 1" (25.4mm) seat post
  • Seat clamp: Integrated
  • Weight: 2.12 kg
  • Made in: USA

S&M ATF 20 Inch Frame

Brand: S&M SKU:

From

$1,299.99 AUD

 $1,599.99 AUD

Or 4 payments of $324.99 AUD with

Colour - Trans Red

Top Tube Length - 20.5

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
