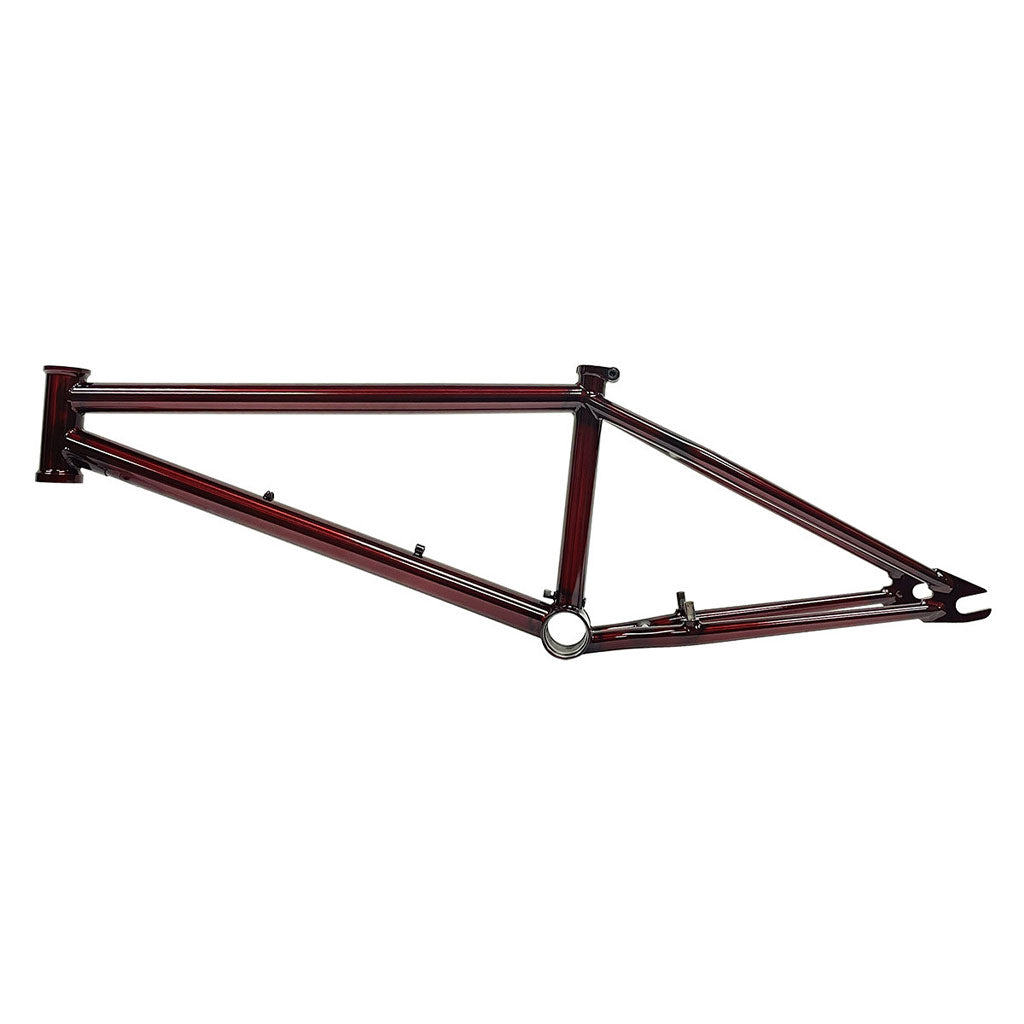

The S&M C.C.R. (Clint Reynolds) 14mm Dropout Frame pops with its vibrant red BMX design on a white background, accentuating the top tube, down tube, seat tube, and rear triangle.

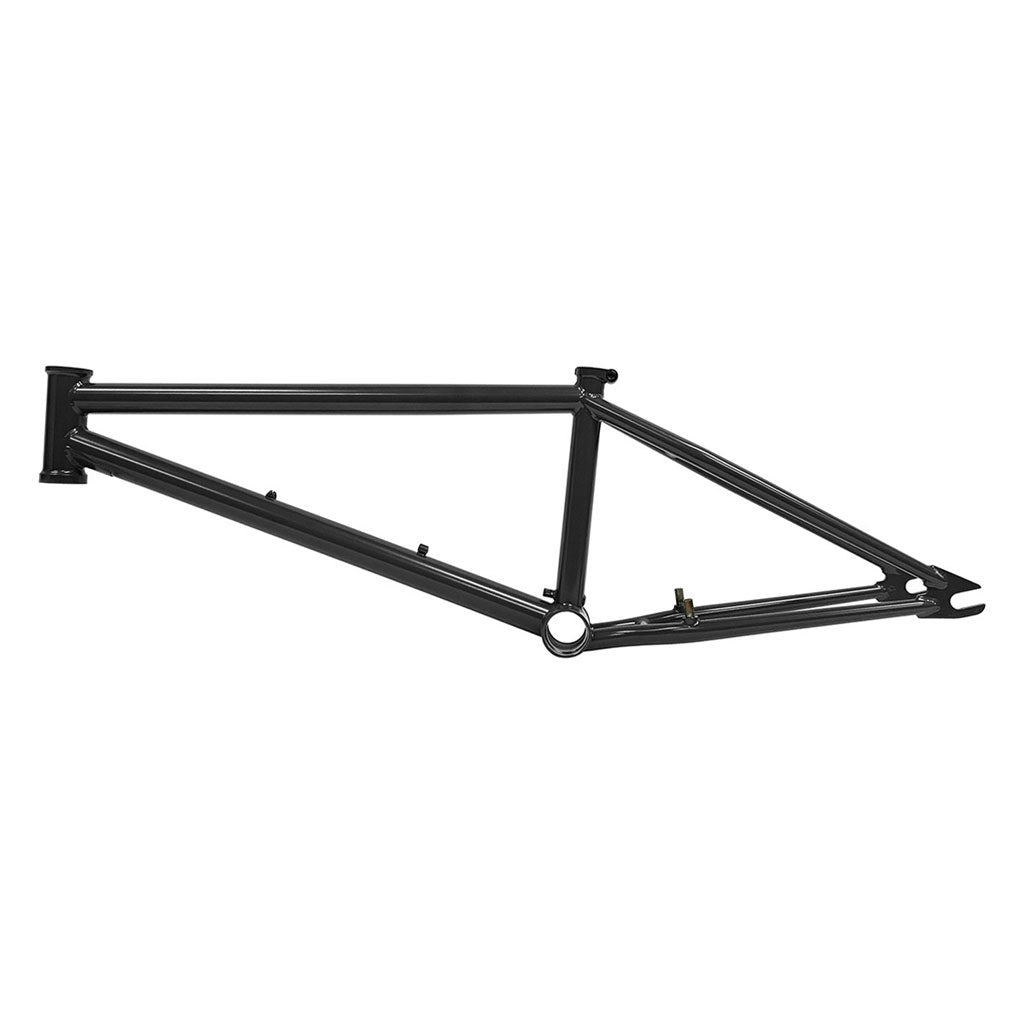

Profile view of the black S&M C.C.R. (Clint Reynolds) frame, highlighting its structure and construction details with the robust 14mm dropout.
The S&M C.C.R. 14mm Dropout Frame, a Clint Reynolds signature piece, impresses with its sleek green design against a white backdrop for optimal performance.

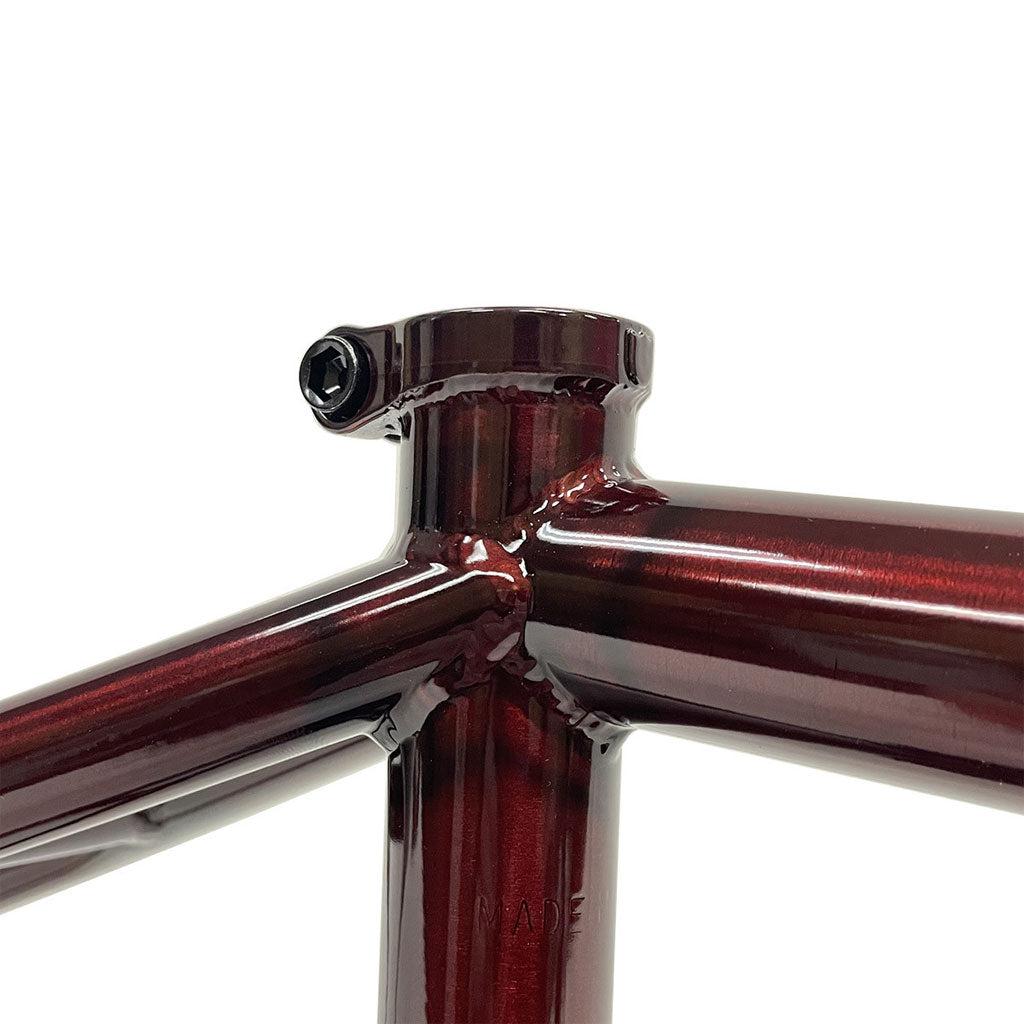

Close-up of a glossy red bicycle frame joint, featuring the S&M C.C.R. (Clint Reynolds) 14mm Dropout Frame, seamlessly connecting the top tube and seat tube with a mounting point.

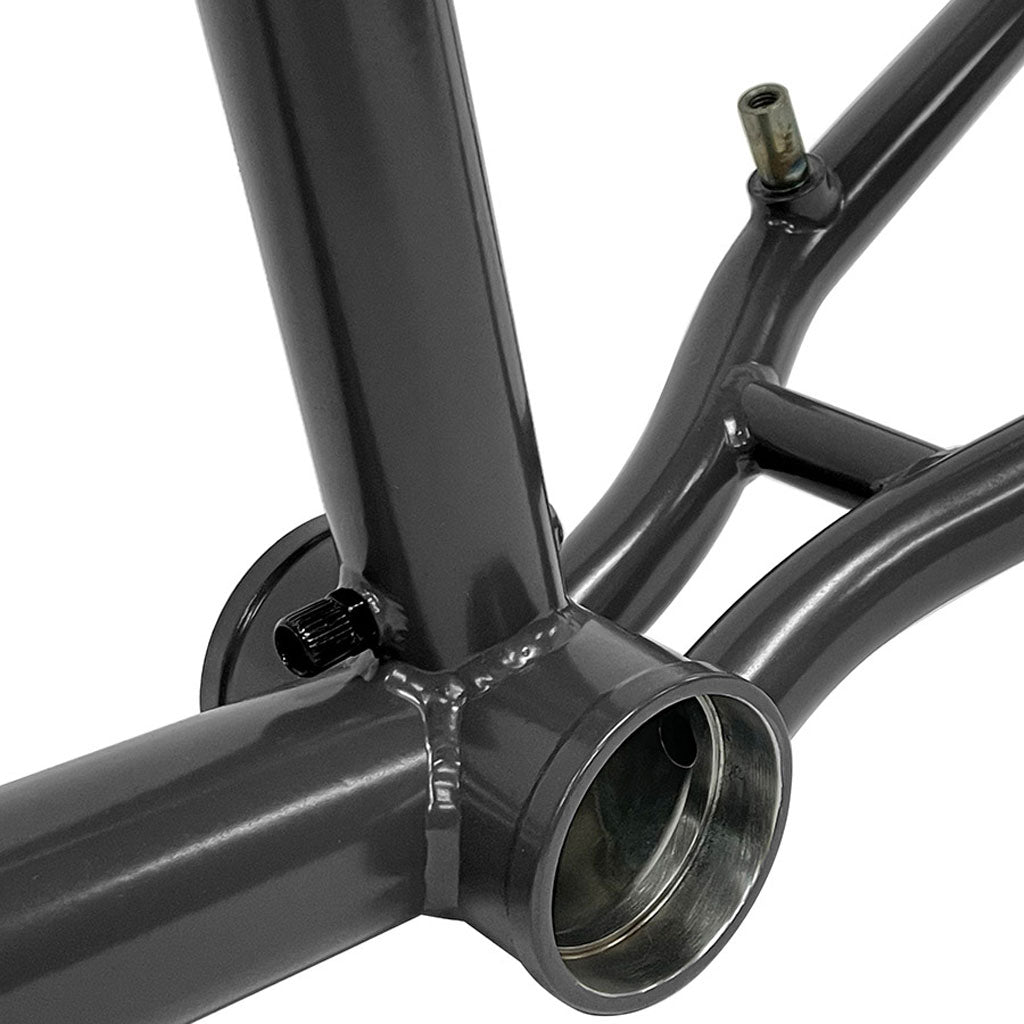

Close-up of the S&M C.C.R. 14mm Dropout Frame, showcasing intricate welds and dual-opening bottom bracket shell. Painted glossy gray, this frame embodies Clint Reynolds' signature precision in a sleek design.

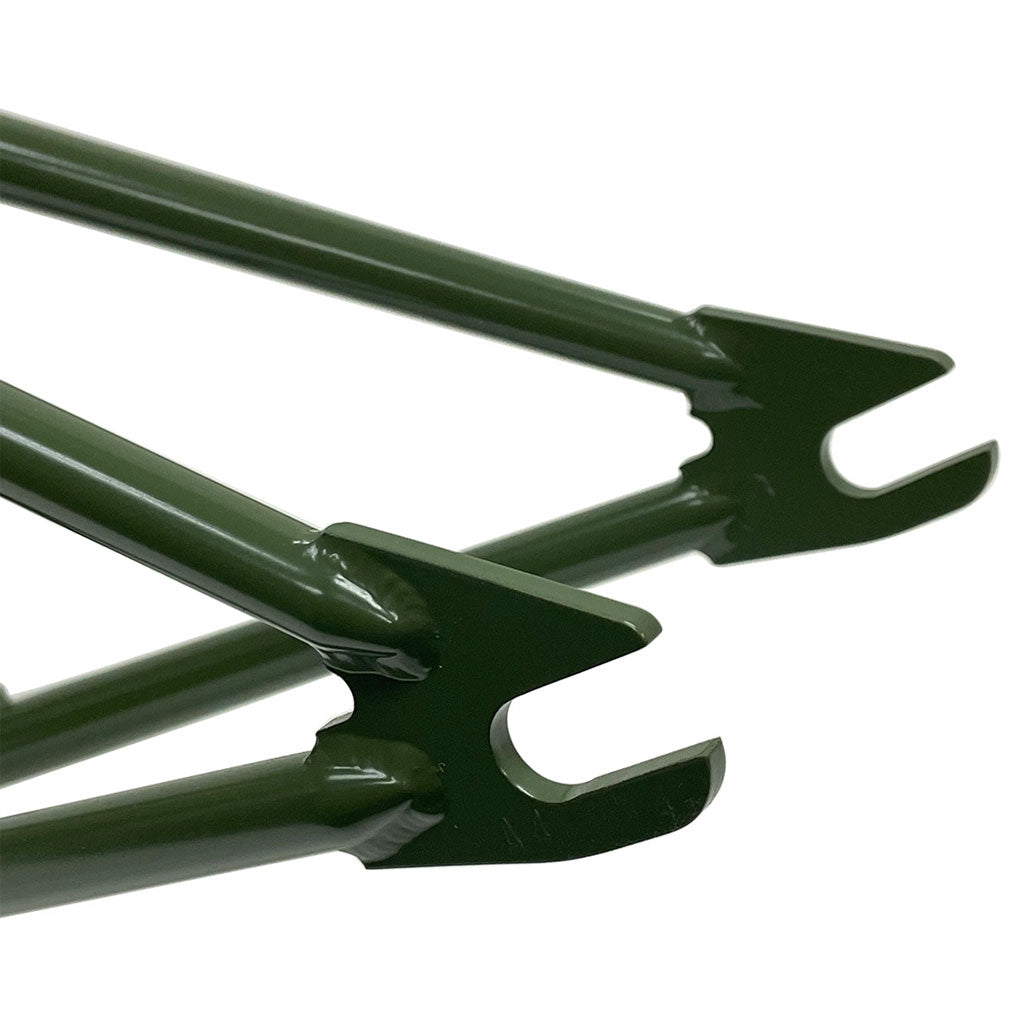

Close-up of green metal dropouts with open slots for 14mm wheel axles on the S&M C.C.R. (Clint Reynolds) 14mm Dropout Frame, inspired by Clint Reynolds' signature style.

Highlights

  • Clint Reynolds' signature sled
  • Now with 14mm dropouts
  • Two long top tube sizes
  • Welded chainstay brake mounts

Description

C.C.R. (Clint Reynolds) 14mm Dropout Frame
The Credence Clint Reynolds, AKA the C.C.R., is Clint Reynolds’ signature sled. Built in the USA to Clint’s preferences. Long and stable, lean and mean, ready to roast. Now with a 14mm dropout!

Features
  • Clint Reynolds' signature sled. The C.C.R. is built in the USA to Clint's own preferences: long and stable, lean and mean, ready to roast.
  • Now with 14mm dropouts. The rear end takes a 14mm axle, the bigger of the two common sizes, for riders who load the back end hard.
  • Two long top tube sizes. 21.25" and 21.5" with a 13.9" rear end, so the bike stays settled when you are moving quickly.
  • Welded chainstay brake mounts. The mounts are part of the frame, so a rear brake bolts straight on with nothing extra to buy or fit.
  • Integrated Campy style head tube. Runs an integrated headset with a mid bottom bracket, 11.6" bottom bracket height, 9" standover and roughly 2.4 kg all up.

Specifications
  • Sizes: 21.25" and 21.5" top tube
  • Chainstay: 13.9"
  • Head tube angle: 74.25°
  • Seat tube angle: 71°
  • Standover: 9"
  • Bottom bracket height: 11.6"
  • Bottom bracket: Mid
  • Dropouts: 14mm
  • Brake mounts: Welded on, chainstay
  • Head tube: Integrated, Campy style
  • Seat tube: 1" / 25.4mm seat post
  • Weight: 2.4 kg (approx)
  • Made in: USA

S&M C.C.R. (Clint Reynolds) 14mm Dropout Frame

Brand: S&M SKU:

$1,349.99 AUD

Or 4 payments of $337.49 AUD with

Colour - Burgundy

Top Tube Length - 21

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
