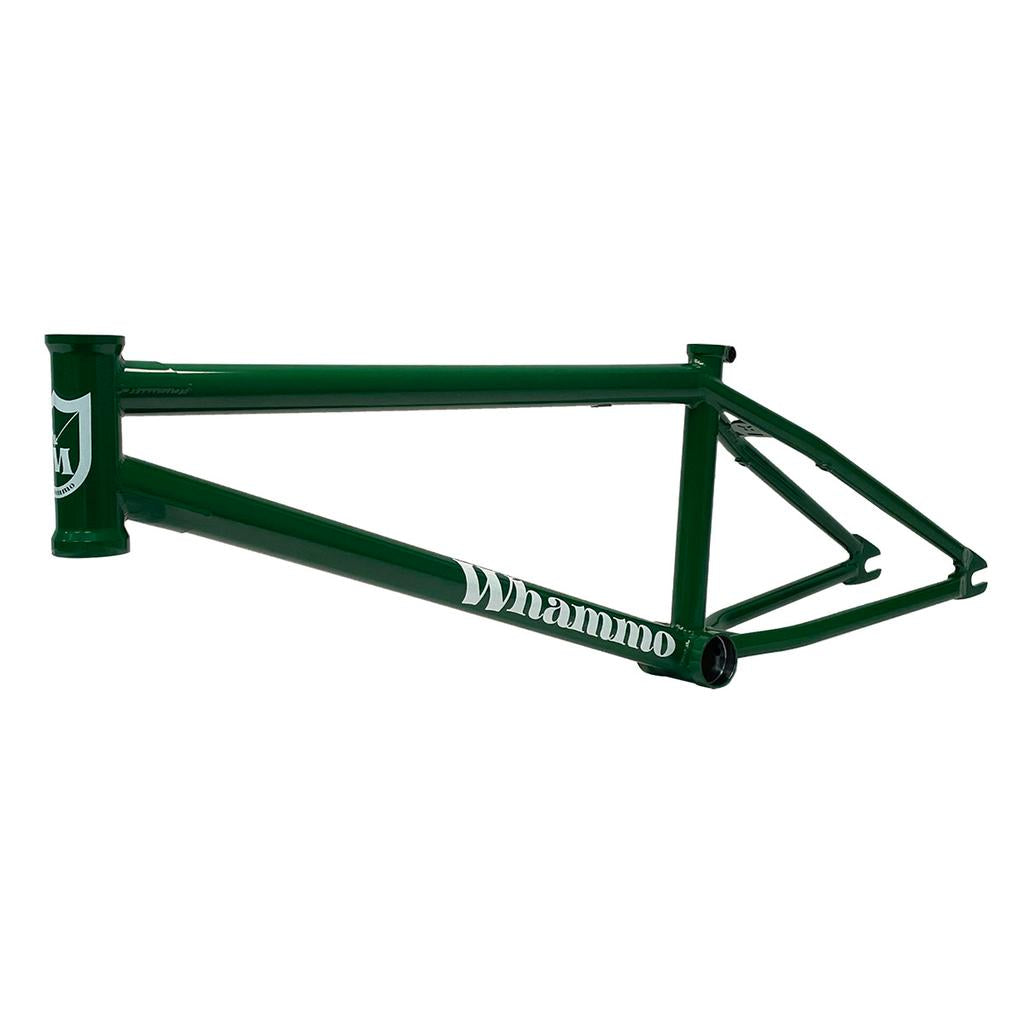

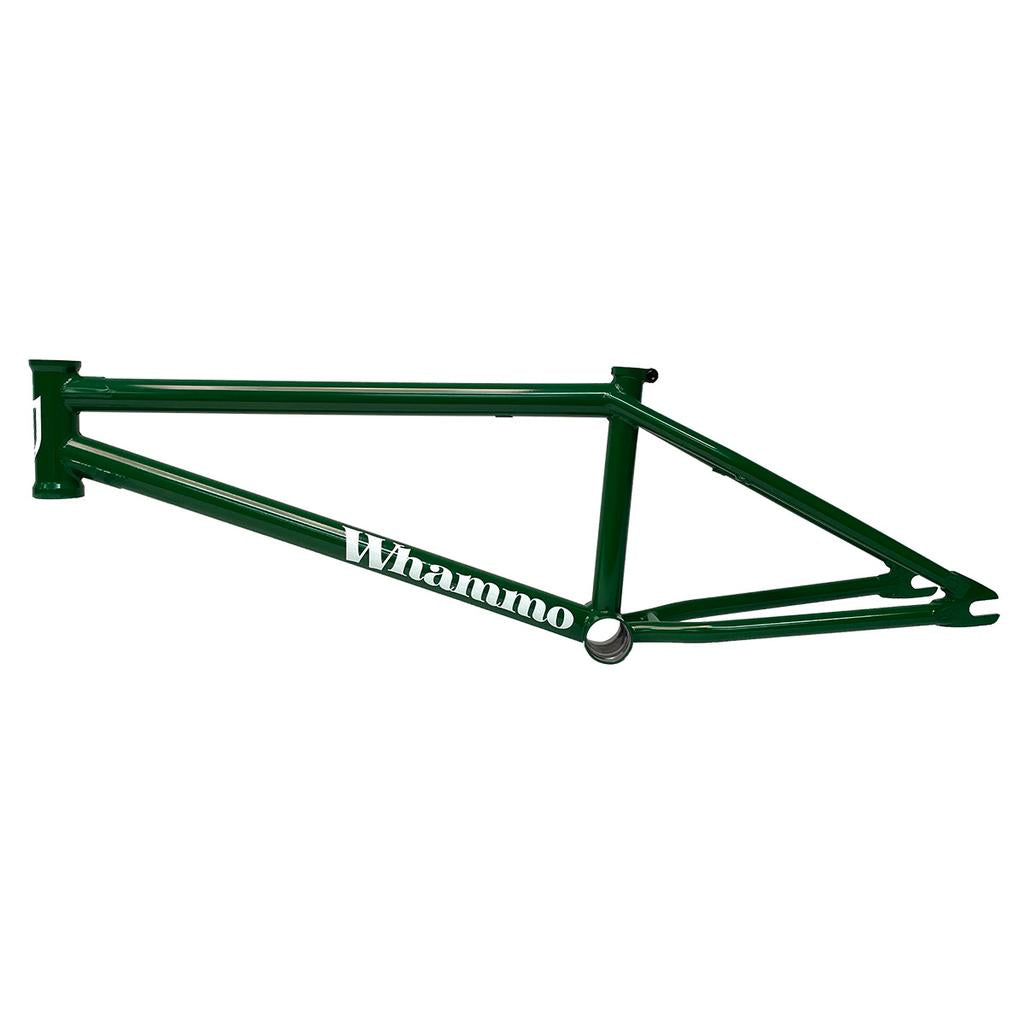

The S&M Whammo V2 (Craig Passero) Frame is a green, street-focused bike frame with "Whammo" on the side and a higher bottom bracket designed for agile urban rides.

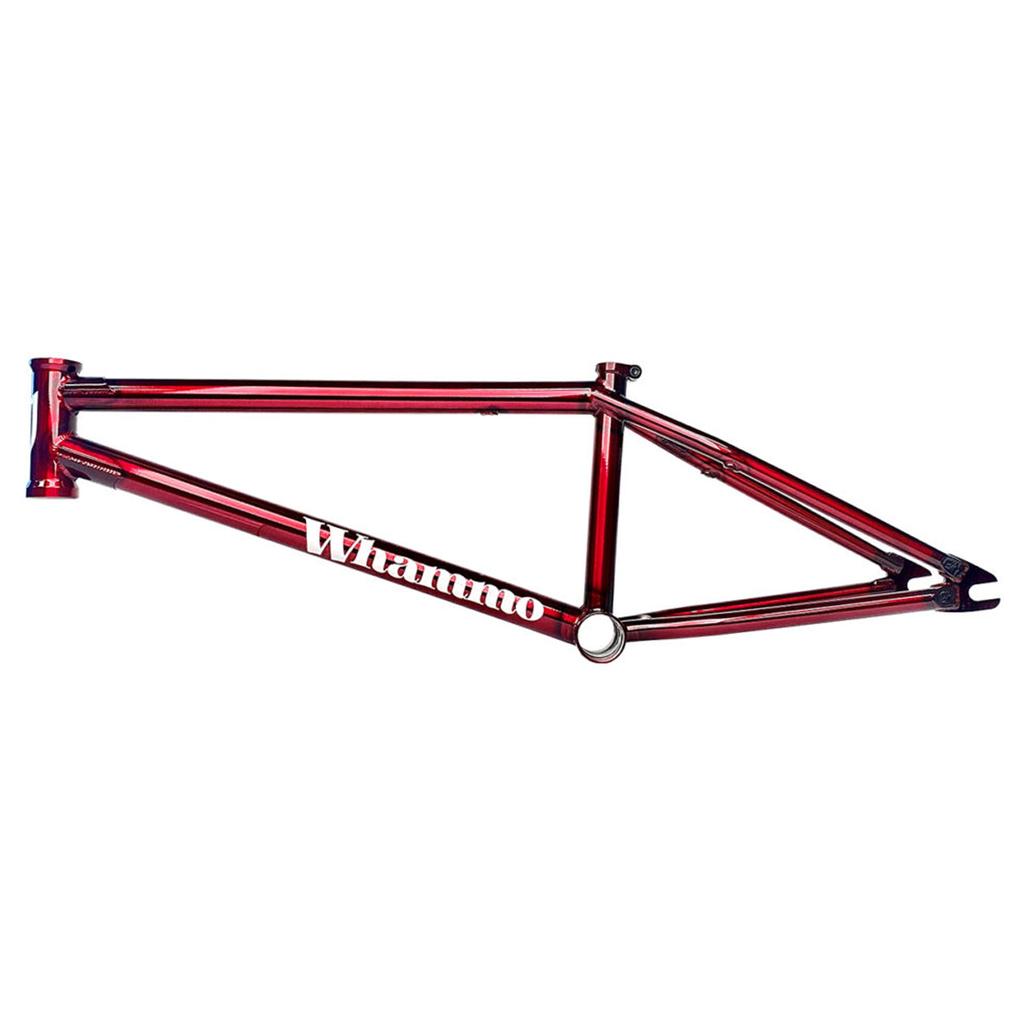

The S&M Whammo V2 (Craig Passero) Frame, designed for urban exploits, features a higher bottom bracket and is showcased in vibrant red against a crisp white background.
The S&M Whammo V2 (Craig Passero) frame is a green bicycle street frame featuring "Whammo" on the side and a shield logo on the head tube, designed for optimal sprocket clearance.

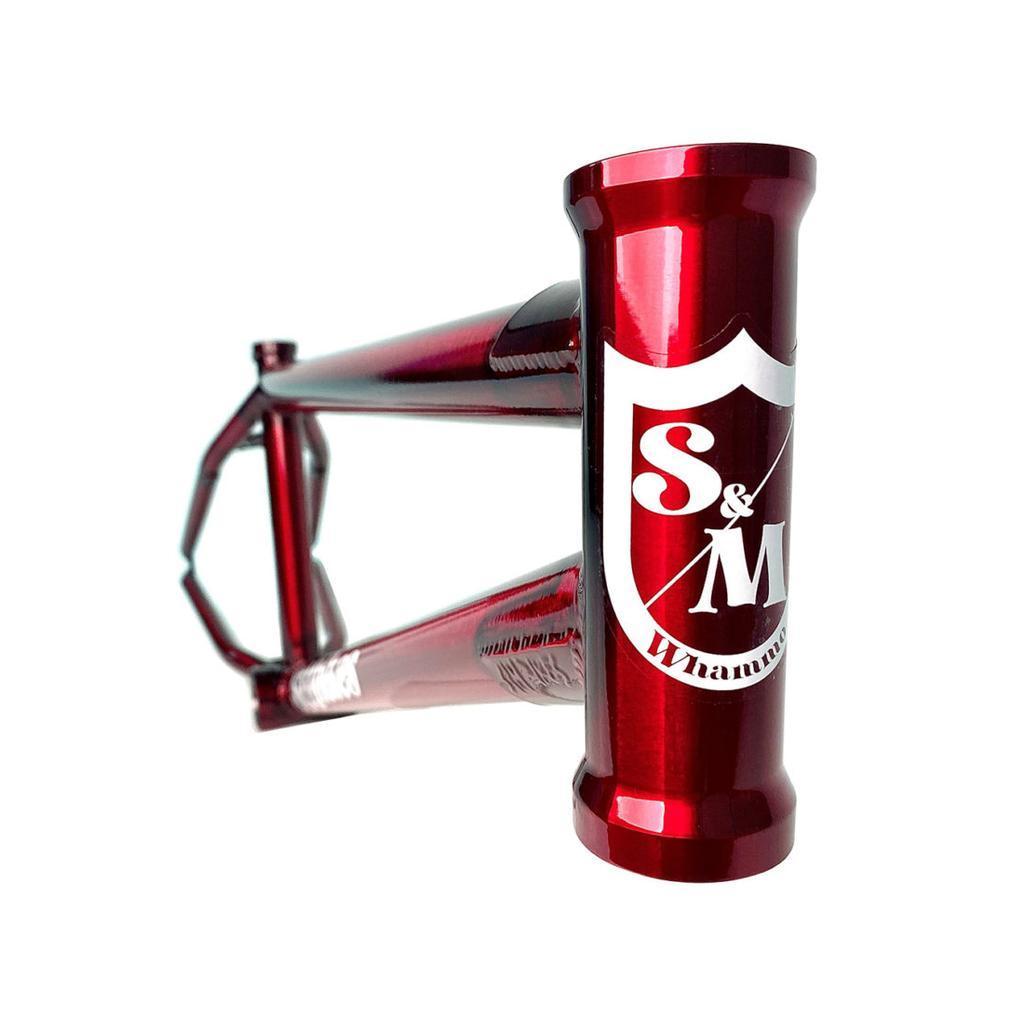

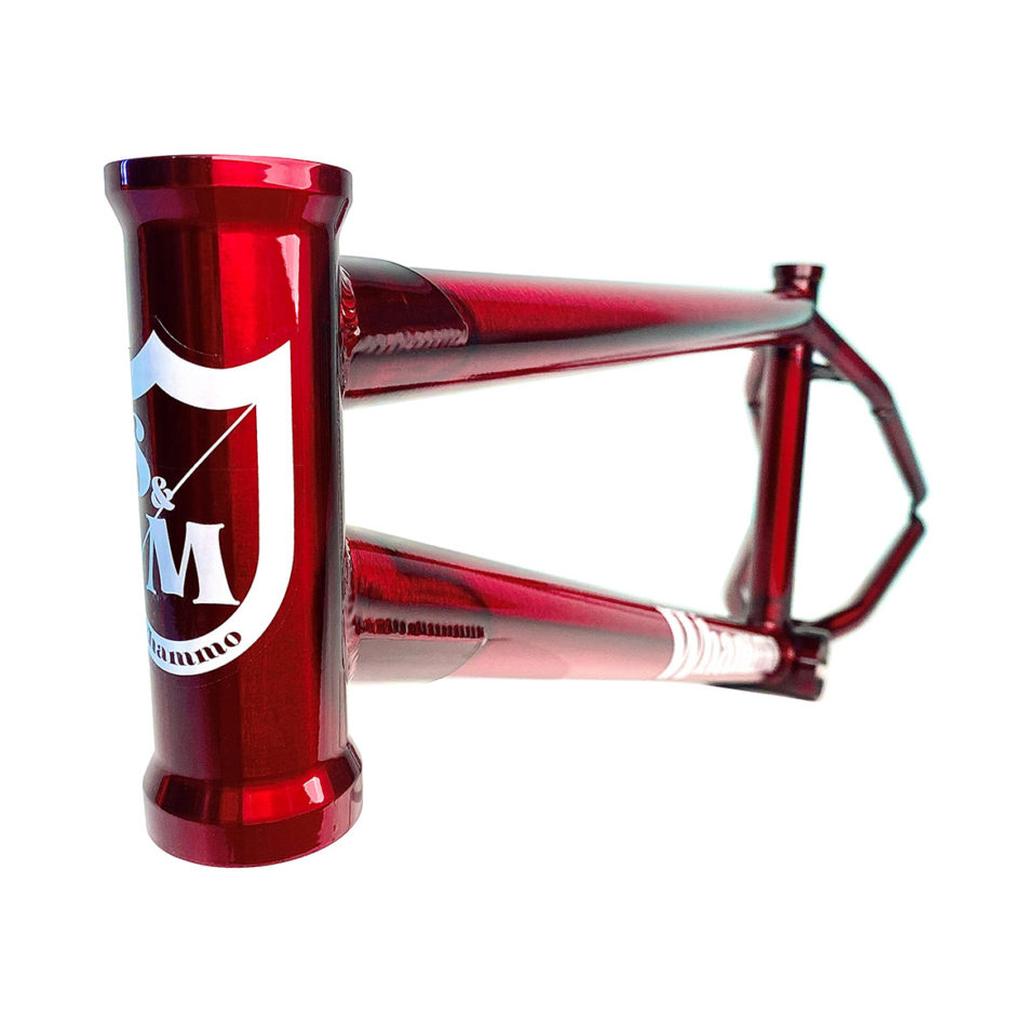

The S&M Whammo V2 (Craig Passero) Frame features a close-up of its red metallic finish and simple design, with a street-focused frame including a higher bottom bracket. Its head tube showcases a shield logo and text.
Close-up of the red S&M Whammo V2 (Craig Passero) Frame, featuring a higher bottom bracket for street agility and adorned with a white S&M logo.

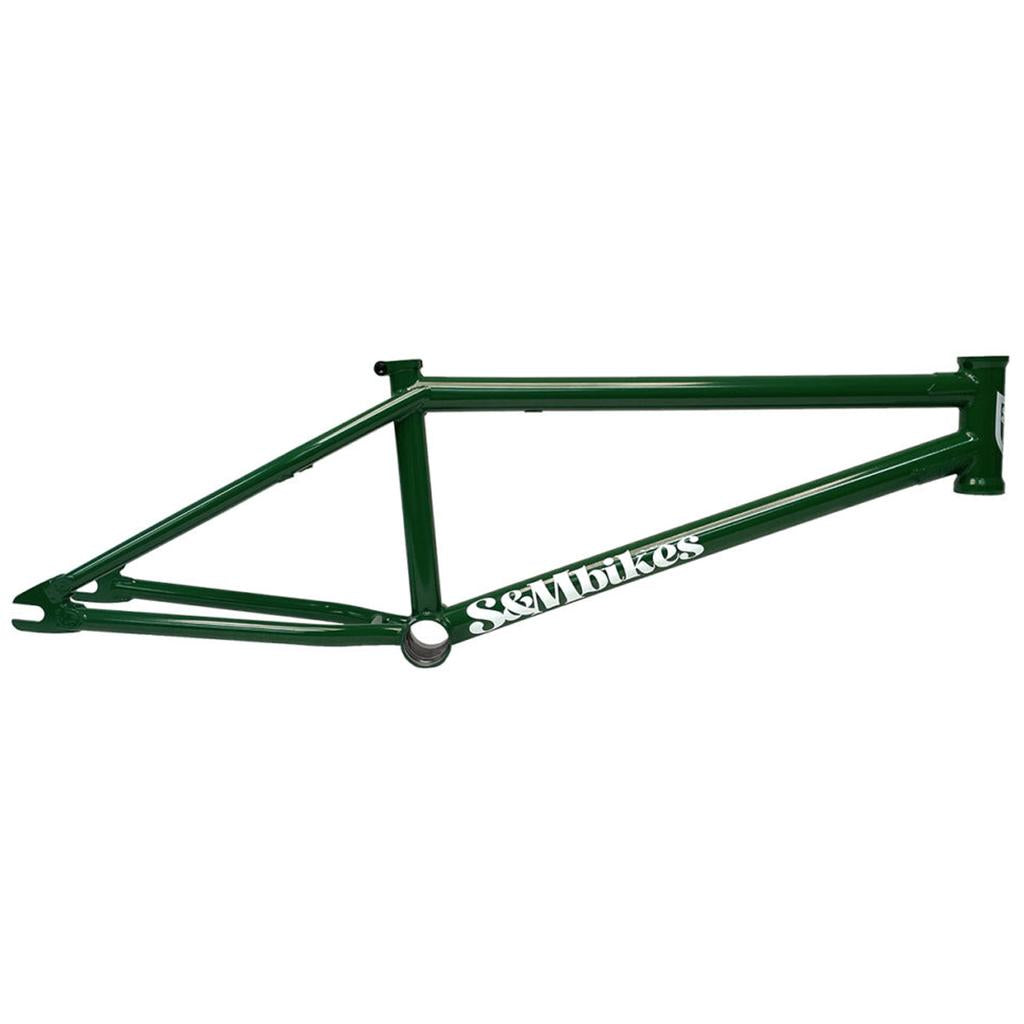

The S&M Whammo V2 (Craig Passero) frame, a green BMX bike frame with "S&M Bikes" branding, offers a responsive back end and ample sprocket clearance for smooth rides.

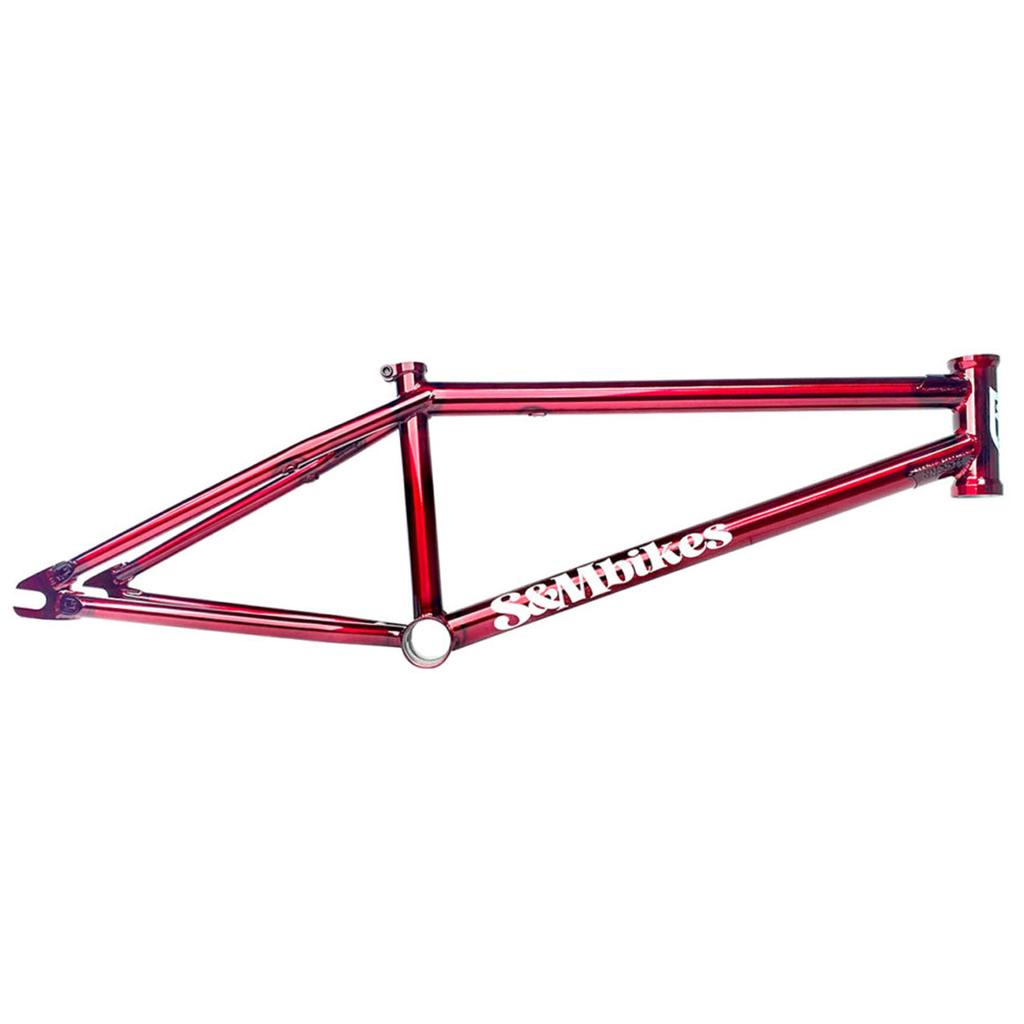

The S&M Whammo V2 (Craig Passero) Frame features a red design with the "S&M Bikes" logo, showcasing simple, sleek aesthetics with visible welds and optimized sprocket clearance for improved performance.

Highlights

  • Shorter 12.9″ back end
  • Taller 5″ head tube
  • 11.8″ bottom bracket
  • Butted ThermalX tubing, 2.12 kg

Description

The Whammo V2 is Craig Passero's heavily street focused frame, now with a shorter 12.9″ back end, a taller 5″ head tube and a bottom bracket raised to 11.8″. The taller head tube means fewer spacers and a cleaner setup, the shorter back end makes it more responsive, and the higher bottom bracket improves sprocket clearance when grinding.

The rest is tried and true from the first Whammo: butted ThermalX tubing, an integrated head tube and seat clamp, 14mm 4Q-baked dropouts and thread-on 990 brake mounts sold separately. It comes in 20.75″ and 21″ top tubes and weighs 2.12 kg.

Features
  • Shorter 12.9″ back end. Adjustable out to 13.5″, with the short setting making the frame more responsive under your feet.
  • Taller 5″ head tube. Fewer spacers under the stem gives a cleaner setup and gets the bars where you want them.
  • 11.8″ bottom bracket. Raised to improve sprocket clearance when grinding, with an 8.85″ standover to swing a leg over.
  • Butted ThermalX tubing, 2.12 kg. Light for a street frame, with an integrated head tube and integrated seat clamp keeping the build tidy.
  • 14mm 4Q-baked dropouts. Thread-on 990 brake mounts are sold separately and there are no gyro tabs, so you choose the setup.

Specifications
  • Top tube: 20.75″, 21″
  • Chainstay: 12.9″ to 13.5″
  • Head tube angle: 75.3°
  • Seat tube angle: 71°
  • Standover: 8.85″
  • Bottom bracket height: 11.8″
  • Bottom bracket: Mid
  • Tubing: Butted ThermalX
  • Dropouts: 14mm slot, 4Q-baked
  • Brake mounts: Thread-on 990, mounts sold separately
  • Head tube: Integrated (45°/45°, 41.8mm), 5″ tall
  • Seat tube: 1″ (25.4mm) post
  • Seat clamp: Integrated
  • Weight: 2.12 kg
  • Note: No gyro tabs

S&M Whammo V2 (Craig Passero) Frame

Brand: S&M SKU:

$1,299.99 AUD

Or 4 payments of $324.99 AUD with

Colour - Green

Top Tube Length - 20.75

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

S&M Whammo V2 (Craig Passero) Frame - Green / 20.75

$1,299.99 AUD

Price match request

$12.99 flat-rate shipping Australia-wide, Express from $21.99

Free in-store pickup - Brisbane

Availability

20.7521
Green
Trans Red

● In stock at LUXBMX ● With supplier ● Preorder ○ Sold out

Building a bike around this frame?

Add it to your cart, then pick the rest in our bike builder. Complete the build for 10% off the parts and free assembly.

Open the bike builder

Need Help ?

Chat with the LUXBMX crew!

Email Us Call Us SMS Us
  • 100% Australian owned
  • Australia's largest BMX range
  • Hassle-free returns
  • Fast trackable shipping

WE ALSO RECOMMEND:

Black S&M Enduro V2 Stem / 1-1/8 Inch (22.2mm Clamp) top load stem with four bolts on the handlebar clamp and two bolts on the steerer clamp.
Silver metal S&M Enduro V2 Stem with a top load design, handlebar clamp, and four black bolts.
Purple S&M Enduro V2 Stem top load bicycle handlebar stem with black mounting bolts.
Red S&M Enduro V2 Stem with four bolts on the faceplate and a handlebar clamp.
Instructional diagram for S&M Enduro V2 Stem / 1-1/8 Inch (22.2mm Clamp) installation, showing a four-bolt tightening pattern, torque requirements, and mounting procedures.
Black S&M Enduro V2 Stem top load bicycle handlebar stem with four bolts securing the faceplate.
Silver aluminum S&M Enduro V2 Stem top load bicycle handlebar stem featuring four black bolts and laser-etched logos.
Matte black S&M Enduro V2 Stem (22.2mm clamp) featuring a top load design with four hex bolts on the front plate and mounting points for handlebars and fork tube.
Silver S&M Enduro V2 Stem top load bicycle handlebar stem with four black clamp bolts.
Black S&M Enduro V2 Stem / 1-1/8 Inch (22.2mm Clamp) top load stem with four bolts on the handlebar clamp and two bolts on the steerer clamp.
Silver S&M Enduro V2 Stem with four black bolts on the top faceplate and two side-loading bolts.
Red S&M Enduro V2 Stem / 1-1/8 Inch (22.2mm Clamp) top load stem with four hex bolts and branding etched on the side and top.
Blue metal S&M Enduro V2 Stem / 1-1/8 Inch (22.2mm Clamp) top load bike handlebar stem with four black bolts on the faceplate and two on the side.
Brown S&M Enduro V2 Stem / 1-1/8 Inch (22.2mm Clamp) top load stem with a four-bolt handlebar clamp and a rear steer tube clamp.
Gold S&M Enduro V2 Stem with four black bolts and a central shield logo.
Grey S&M Enduro V2 Stem top load BMX bicycle handlebar stem with four black bolts.
Silver-colored S&M Enduro V2 Stem featuring four black hex bolts and a small logo on the top face.
Brown S&M Enduro V2 Stem top load bicycle handlebar stem with four black bolts.
Gold S&M Enduro V2 Stem with four bolts, featuring “S&M ENDURO”, “USA”, and “55” engraved on the surface.
Grey metal S&M Enduro V2 Stem with a four-bolt handlebar clamp and a steering tube clamp.
Gold-colored S&M Enduro V2 Stem / 1-1/8 Inch (22.2mm Clamp) top load stem featuring a four-bolt handlebar clamp design.
Brown S&M Enduro V2 Stem with a four-bolt handlebar clamp and a single-bolt fork steerer attachment.
S&M Enduro V2 Stem / 1-1/8 Inch (22.2mm Clamp)
From

$179.99 AUD

Black
Polished
Blood Red
Blue Groove
Matt Purple
Dark Roast
Gold
Matte Grey
55mm40mm49mm52mm
S&M Logo Grips / Orange

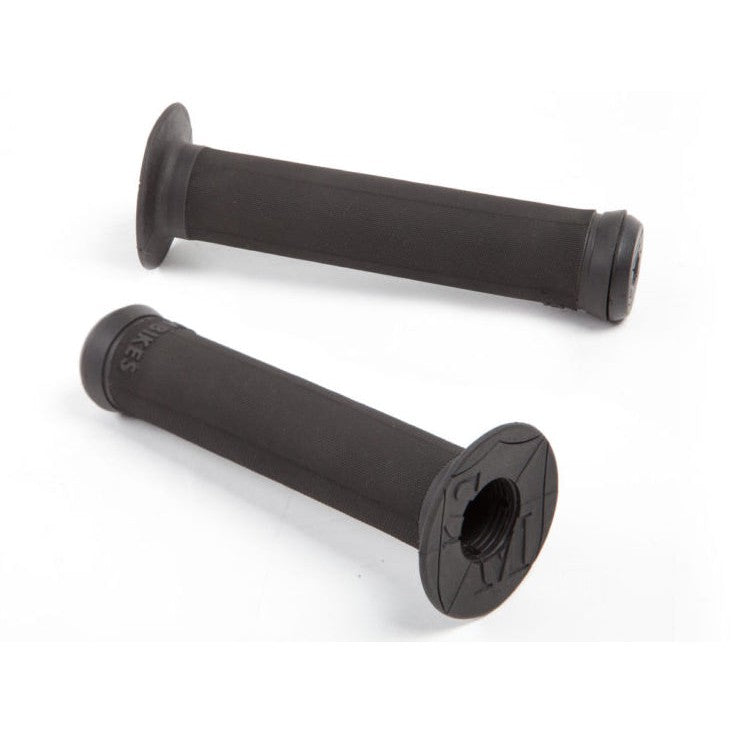

S&M Logo Grips / Black

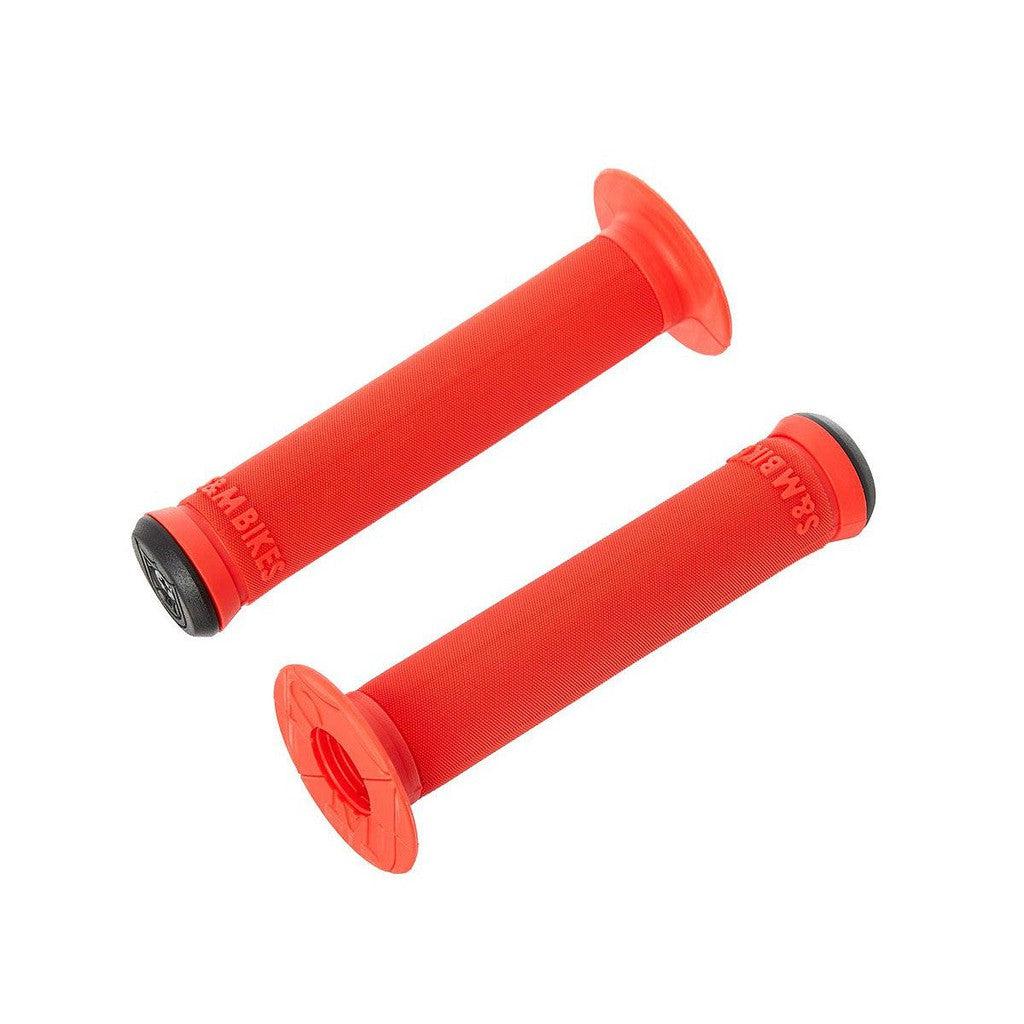

S&M Logo Grips / Red

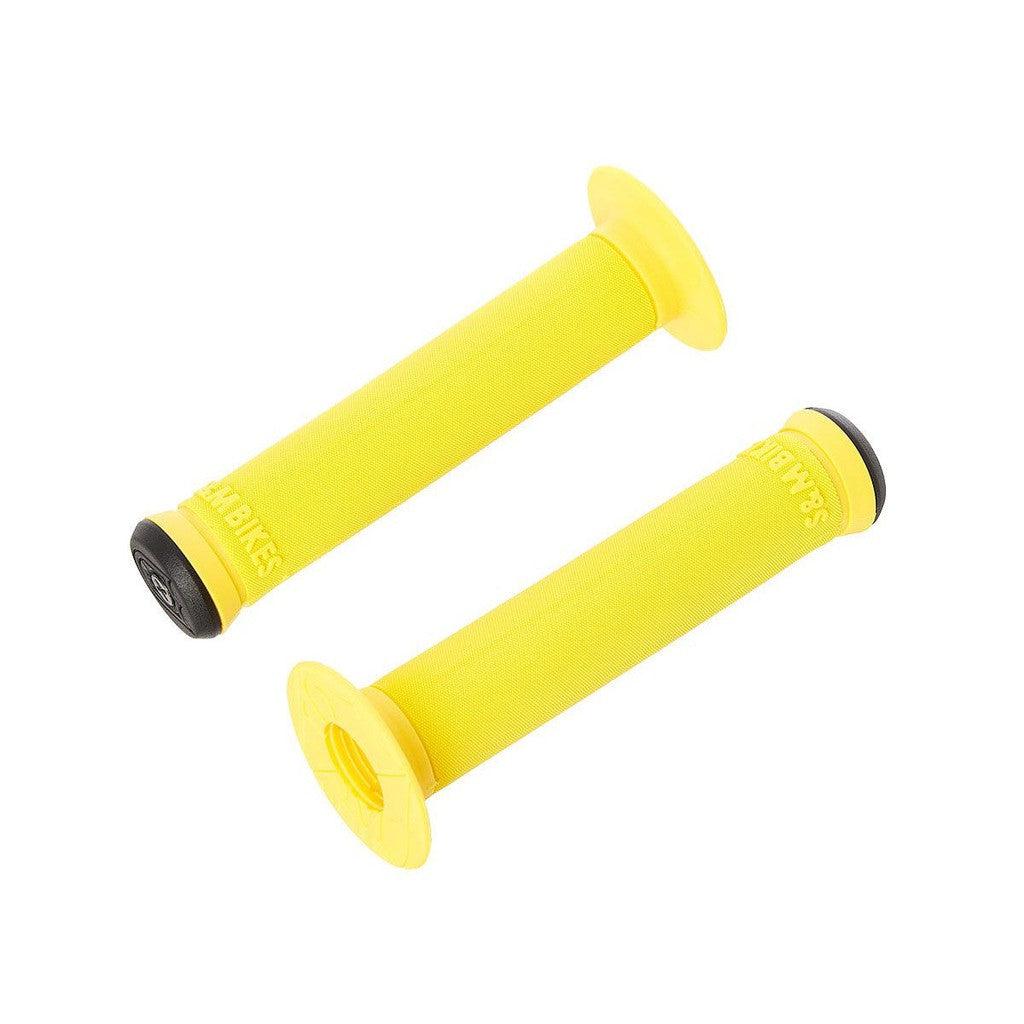

S&M Logo Grips / Yellow
S&M Logo Grips

$19.99 AUD

Black
Orange
Red
Yellow

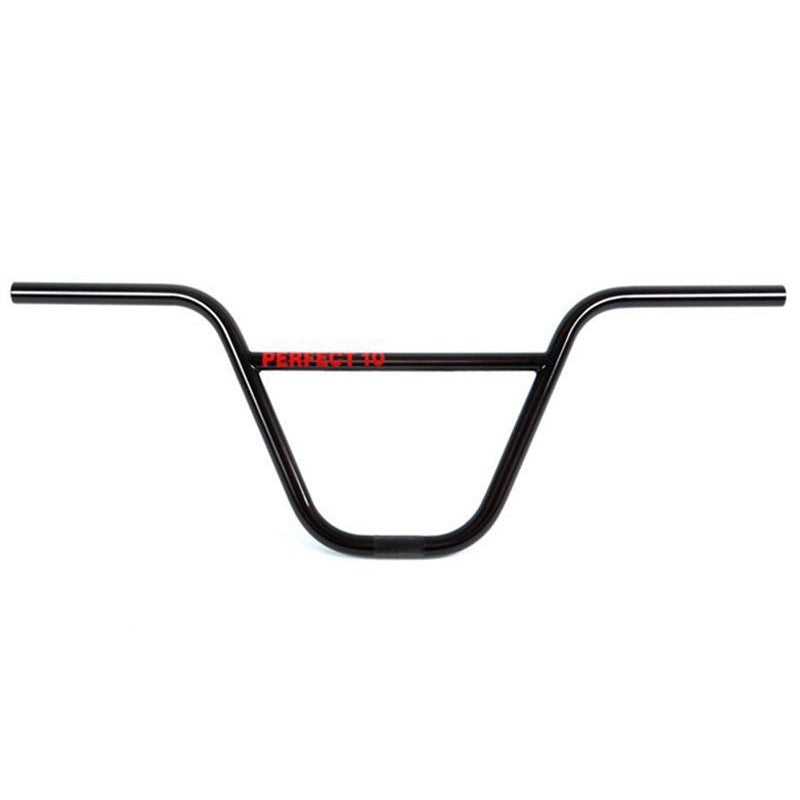

Black BMX handlebars with a high rise and straight crossbar, photographed on a white background. The words “PERFECT 10” are printed in red on the top crossbar, highlighting the S&M Perfect 10 Bars (22.2mm Clamp) with their impressive 10″ rise for maximum control and comfort.

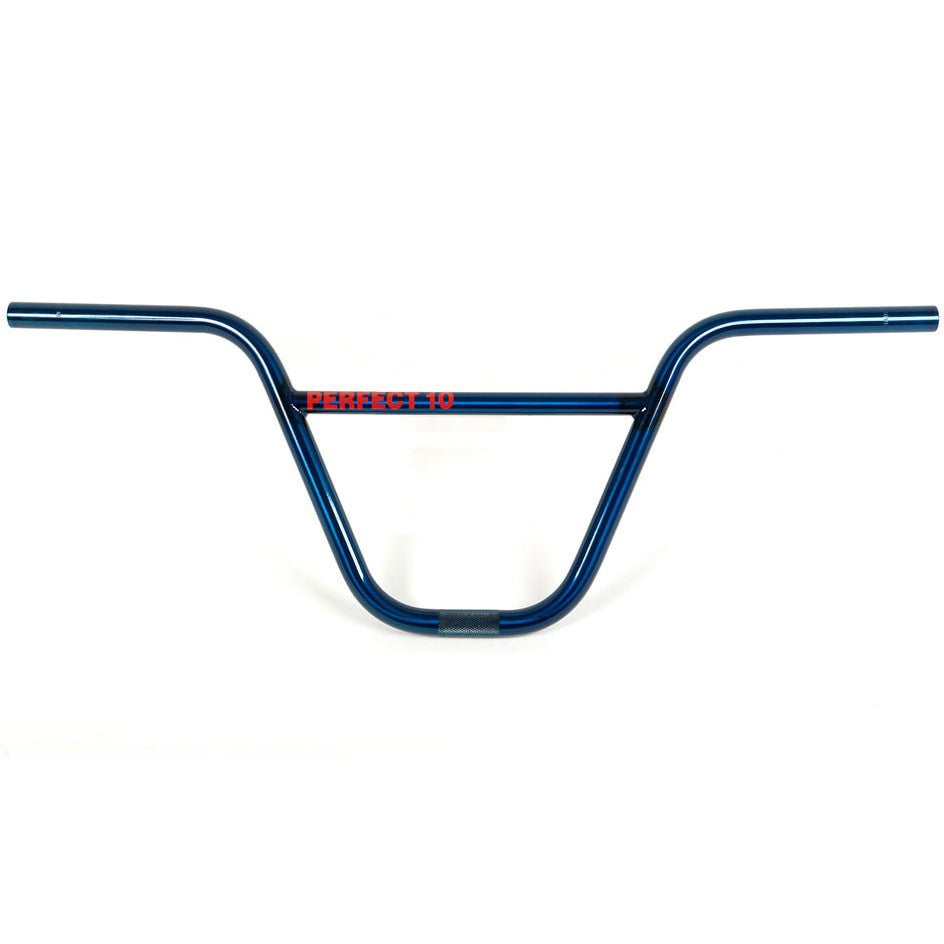

The S&M Perfect 10 Bars (22.2mm Clamp) are blue BMX handlebars with a crossbar and the bold “PERFECT 10” text in red, centered on the top bar. These bars provide a commanding 10″ rise, giving riders exceptional control and comfort.
Featured here is the S&M Perfect 10 Bars (22.2mm Clamp), a set of BMX handlebars crafted from sturdy metal with a crossbar and textured grip areas, showcased against a plain white background. These bars deliver an impressive 10″ rise for optimal control and performance.
A metallic S&M Perfect 10 Bars (22.2mm Clamp) BMX handlebar with a crossbar and a small red label in the center features an impressive 10″ rise. The handlebars are isolated on a white background.

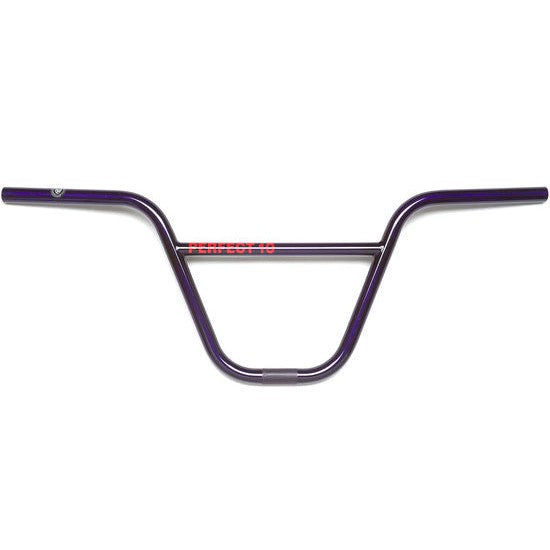

A purple S&M Perfect 10 Bars (22.2mm Clamp) BMX handlebar, showcasing its signature straight crossbar and angled grips, is photographed against a white background. With a 10″ rise, these bars are perfect for riders who want both style and performance in their BMX handlebars.

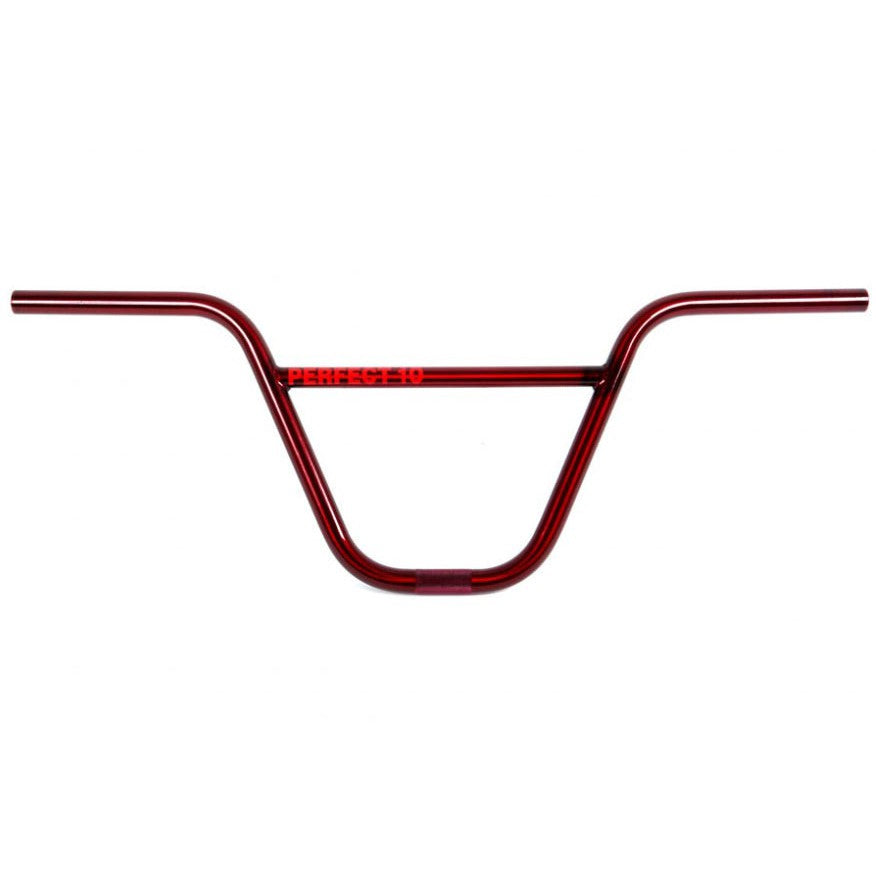

S&M Perfect 10 Bars (22.2mm Clamp) BMX handlebars in red, featuring a crossbar, a bold “PERFECT 10” graphic across the center, and a 10″ rise for ultimate control.

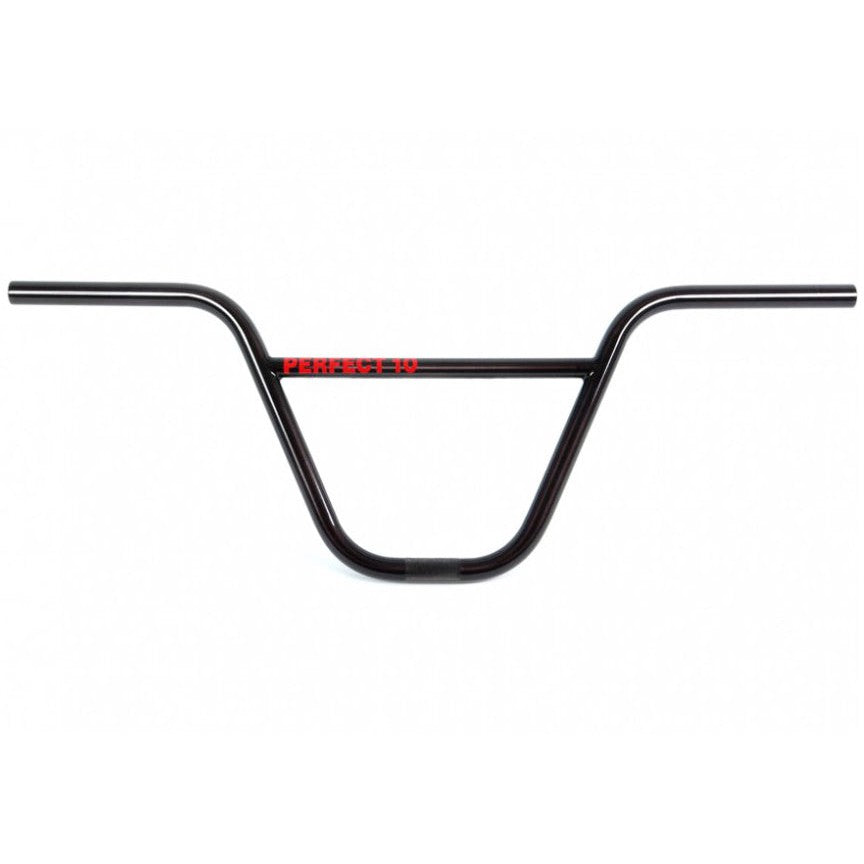

The S&M Perfect 10 Bars (22.2mm Clamp) are black BMX handlebars with a straight crossbar and an impressive 10″ rise, shown against a white background.

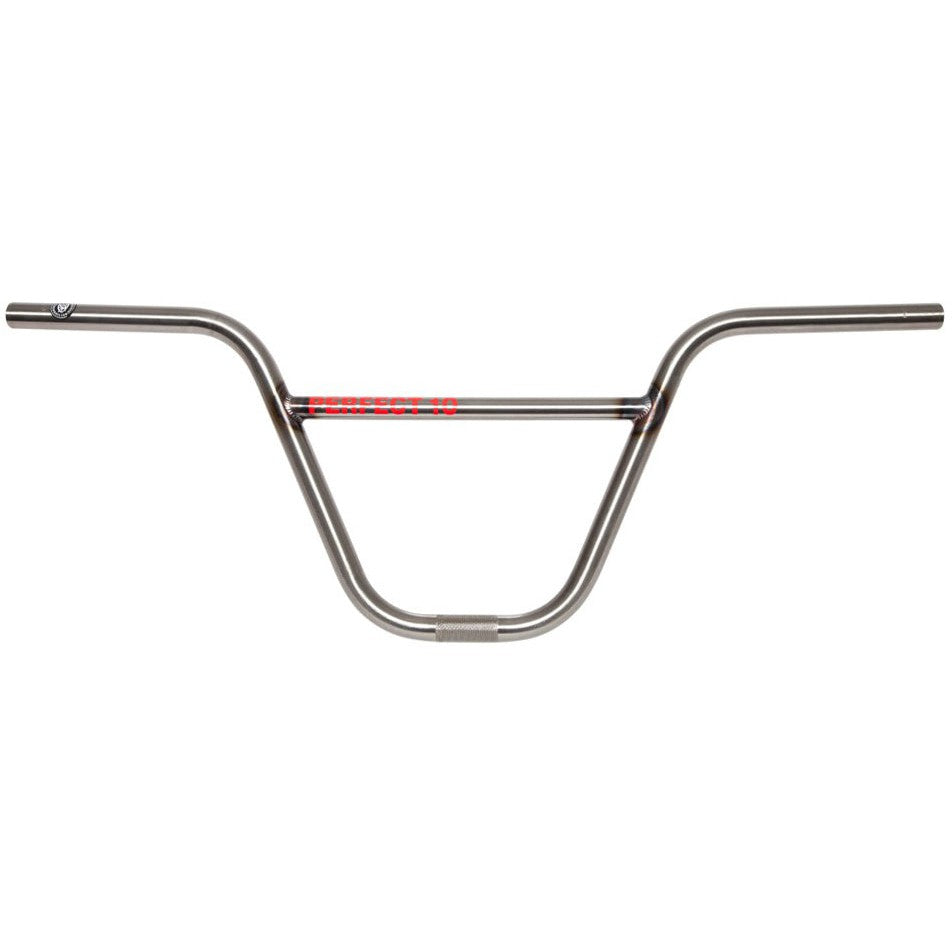

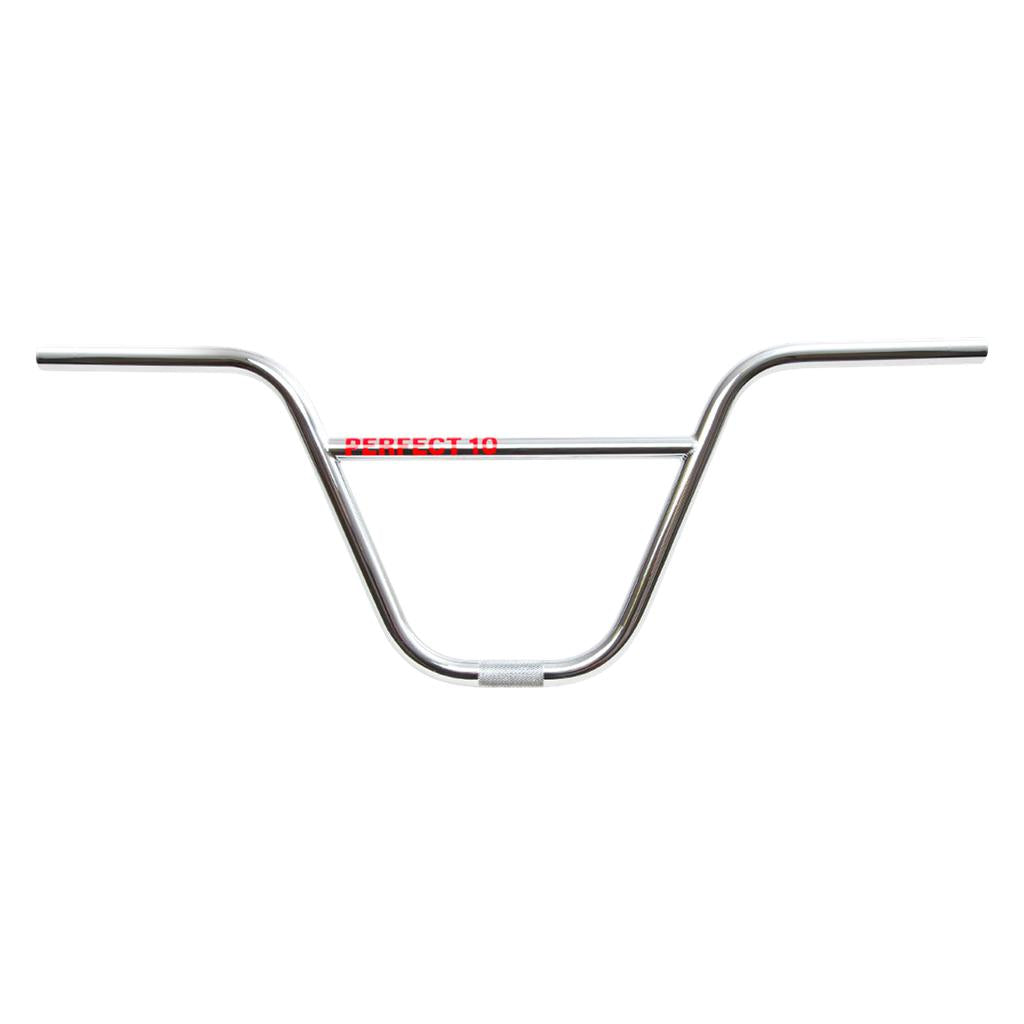

The S&M Perfect 10 Bars (22.2mm Clamp) are classic silver BMX handlebars with a crossbar and “PERFECT 10” printed in red on the upper bar. Renowned for their impressive 10″ rise, these bars offer both style and performance for riders seeking ultimate control.
