Close-up view of the Spectre NME Carbon Fiber 20 Inch Brakeless Rim in black, featuring visible spoke holes, set against a plain white background.

The Spectre NME Carbon Fiber 20 Inch Brakeless Rim, shown in black, is displayed against a plain white background.

A Spectre NME Carbon Fiber 20 Inch Brakeless Rim with a smooth, black surface stands upright against a plain white background.

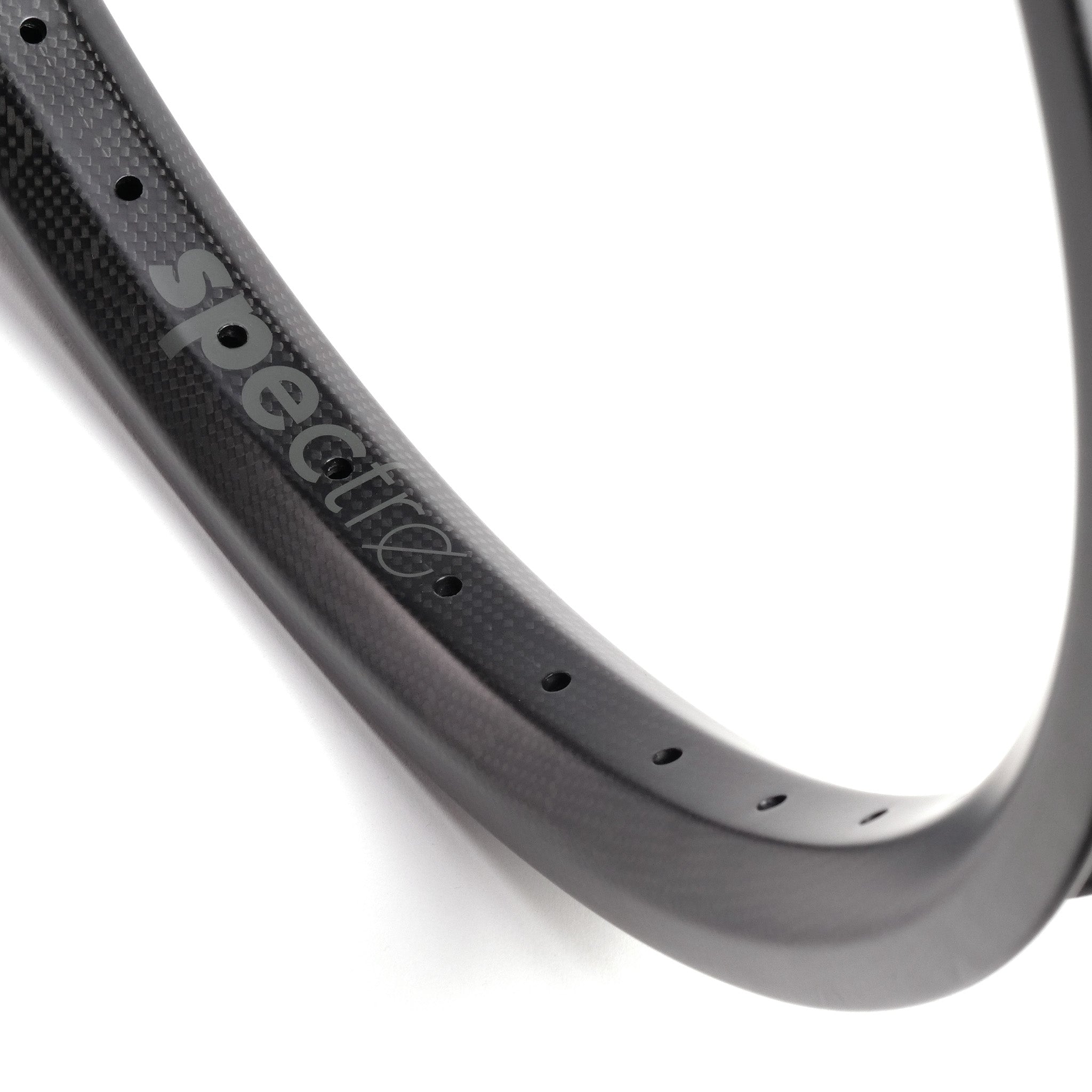

Close-up of a black Spectre NME Carbon Fiber 20 Inch Brakeless Rim, featuring the word "spectro" printed on it. The lightweight rim is crafted from carbon fiber and has multiple spoke holes.

Description

The Spectre NME rims have had almost 2 years of development, intensive real-world testing and feedback from both elite-level BMX race and freestyle riders. The result makes the NME rims not only the toughest Spectre rims to date, but they are also still some of the lightest carbon fibre rims on the planet.

Quick Specs

Rim width: 35mm
Rim depth: 22mm
Weight: 280 +/- 15g

Features

Toray T800 carbon build. Toray T800 carbon makes the NME the toughest rim Spectre have built while staying among the lightest carbon rims going.
36 hole, 4D drilling. Drilled 36h only, with 4D spoke hole drilling so each spoke pulls in line and the rim is not stressed at the eyelet.
Around 280g on the scales. At 280g plus or minus 15g, it takes real rotating weight out of your wheel build.
Brakeless by design. There is no machined brake surface on this one, so it suits riders running no rear brake.
Drilled for Schrader valves. The valve hole is sized for Schrader (A/V), so standard tubes go straight in without a grommet.

Specifications

Wheel size: 20" (ETRTO 406x29c)
Material: Toray T800 carbon fibre
Hole count: 36h only, 4D spoke hole drilling
Rim width: 35mm
Rim depth: 22mm
Brake surface: None, brakeless
Valve: Drilled for Schrader (A/V)
Weight: 280 +/- 15g
Note: ERD 381mm. Two year warranty against manufacturer defects.

Spoke calculator

Pick the part it is laced to and we will give you the lengths to buy.

This rim

Looking up its measurements.

Check or change its figures

ERD effective rim diameter, from the spec sheet mm

Laced to which hub?

Find your hub

Or type its figures

Hub spacing locknut to locknut, 100 front or 110 rear on most BMX mm Same both sides front hubs, or matching flanges

Flange diameter spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Drive side mm Non-drive side mm

Flange position

Flange to locknut Centre to flange

Drive side mm Non-drive side mm

Spoke count Cross pattern

Spoke lengths to buy

Drive side —mm

Non-drive side —mm

Pick the hub and your lengths will appear here.

Open the full spoke calculator for offset rims, other cross patterns and measuring help.

Spectre NME Carbon Fiber 20 Inch Brakeless Rim

Name: Spectre NME Carbon Fiber 20 Inch Brakeless Rim
Brand: Spectre
SKU: RM1C835Q19CEA000003O
Price: 499.99 AUD
Availability: OutOfStock
