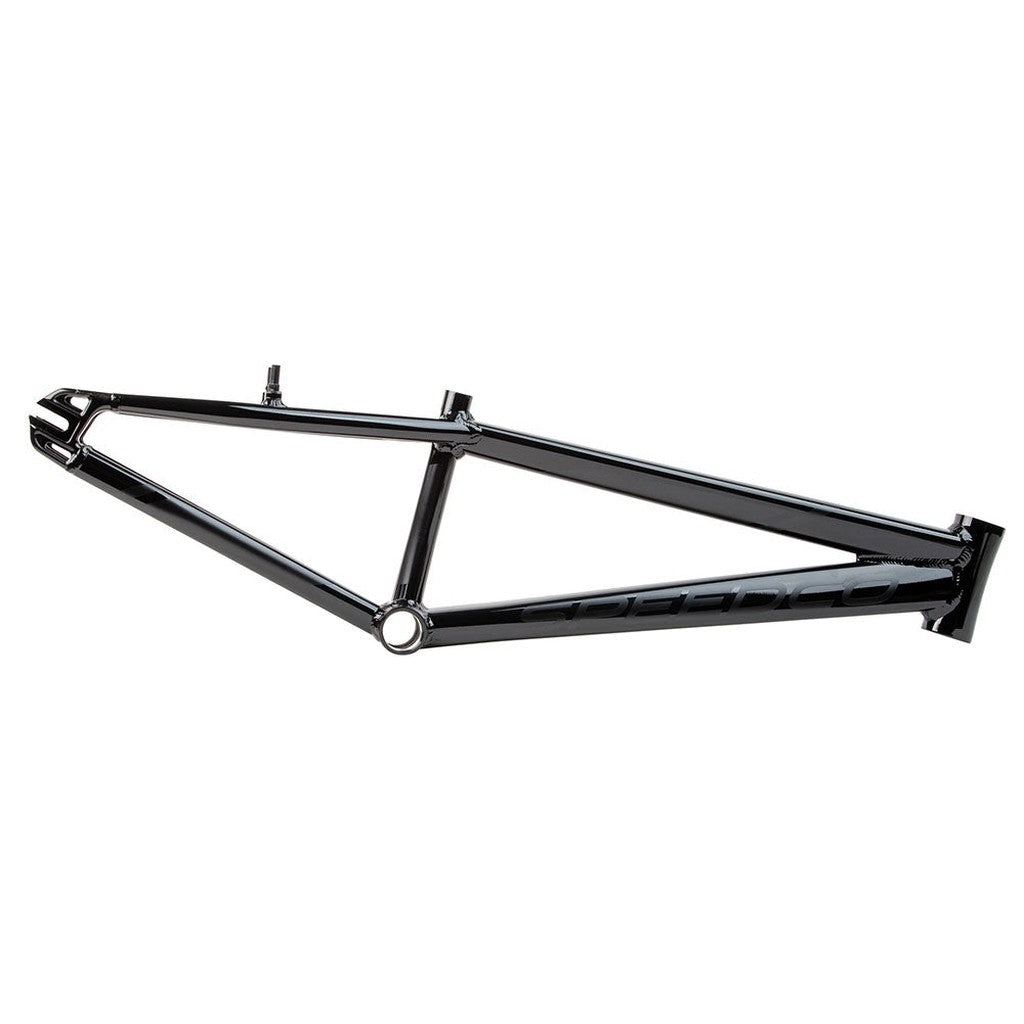

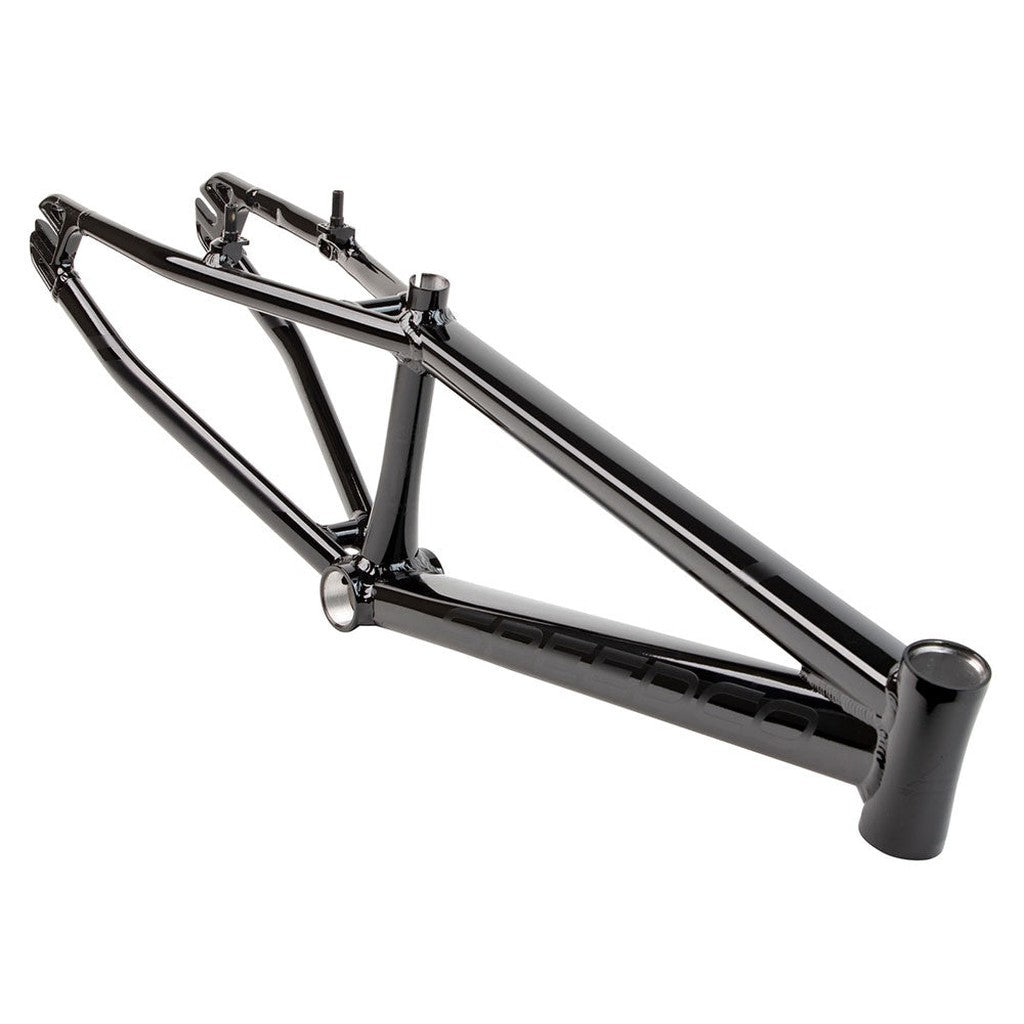

Glossy black Speedco M2 Mini Frame displayed on a white background, viewed from an angle that highlights its tubes and joints—design inspired by the Speedco M2 Alloy Youth frames.

Matte black Speedco M2 Mini Frame with gold accents, durable aluminium construction, disc brakes, and "SPEEDCO" branding on the side.

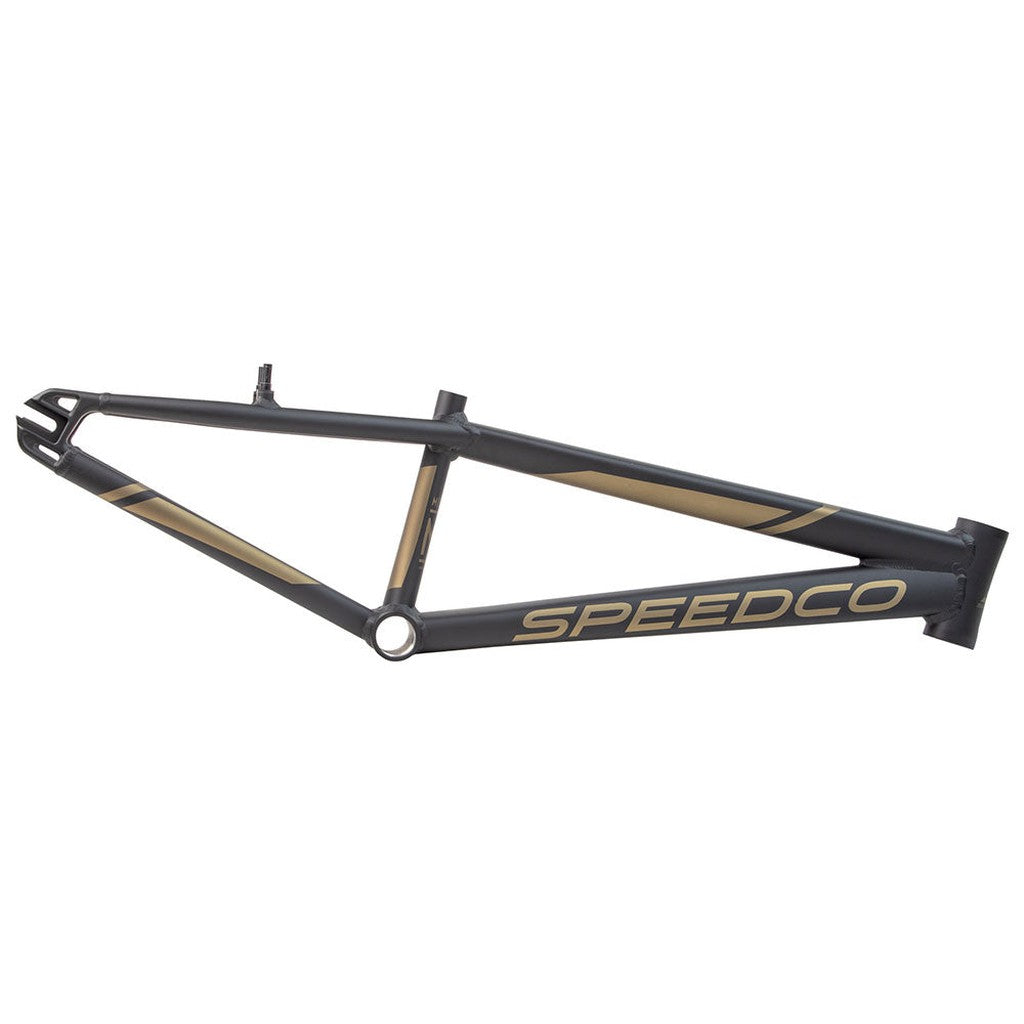

The Speedco M2 Mini Frame, shown in black and gold with side branding, is made from lightweight aluminium. Displayed horizontally on a white background, this frame is compatible with disc brakes for enhanced performance.

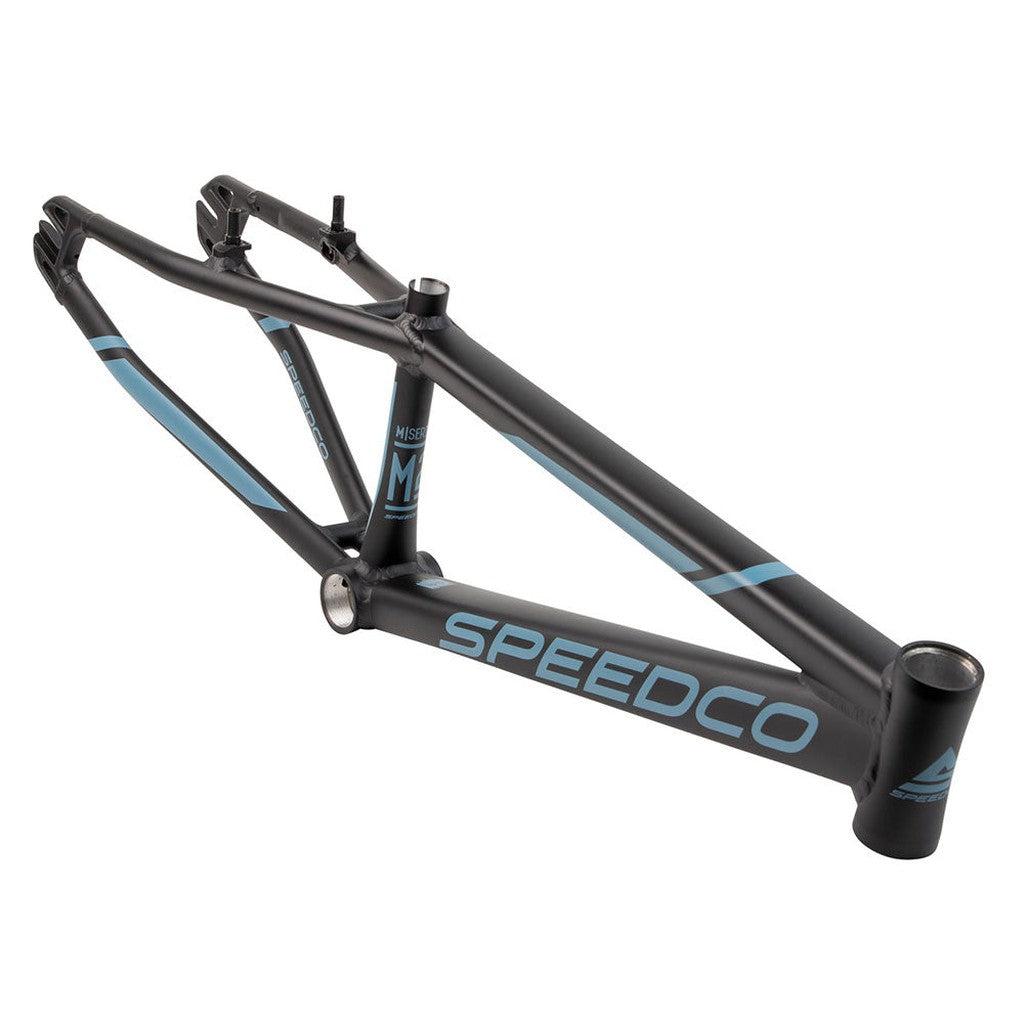

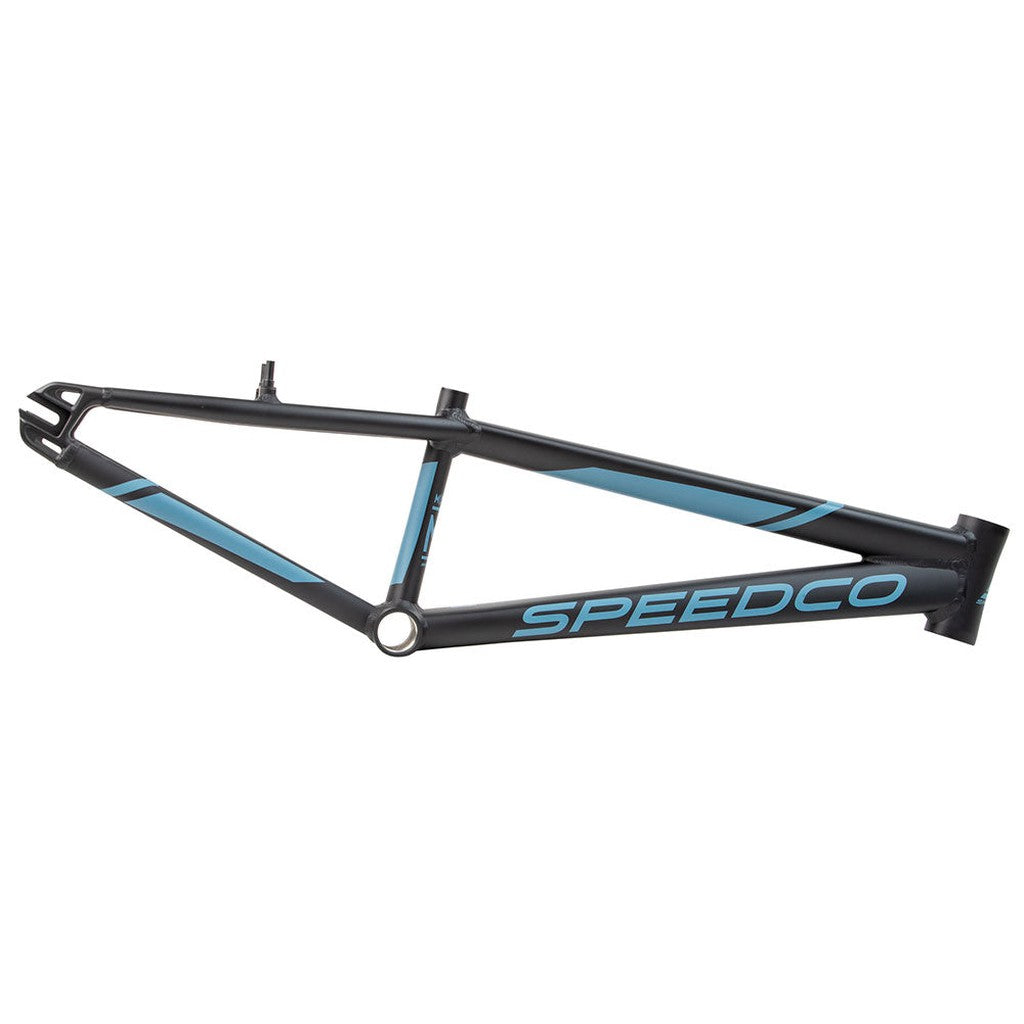

A black bicycle frame with blue accents, crafted from 7005 series aluminum, featuring the word "SPEEDCO" printed on one of the tubes. The Speedco 2024 M2 Mini Frame comes equipped with an integrated chain tensioner system for optimal performance.

Highlights

17" top tube, Mini size
Light 7005 aluminium frame
V-brake posts still fitted
Disc ready with the M2 adapter

Description

New colours for the Speedco M2 Alloy Youth frames bring a fresh update and confirm that the V-brake is not quite dead, yet! The Speedco M2 youth series retains the brake post mounts on the seat stay, though you have the option to run disc brakes using the M2 adapter.

Reliable 7005 series aluminium is used to manufacture the Speedco youth series of frames, tubing that is heat treated and double butted for weight reduction and increased strength. The down tube is tapered and wider at the bottom bracket to provide increased stiffness in this critical area. Bottom line, these are super light aluminium frames.

Additional features of the M2 frames include a seamless integrated chain tensioner system and internal cable routing from front of top-tube to mid seat-stay exiting right at the brake caliper, keeping the hydraulic hose protected as possible.

If you are making the jump to your first disc brake frame? Contact LUX's customer service team and they will step you through the process to ensure that everything goes together smoothly. They can help you choose the right wheelset and disc brake set up for your new Speedco race rig.

Features

17" top tube, Mini size. The smallest frame in the six size M2 range, for young racers stepping onto a proper alloy race frame.
Light 7005 aluminium frame. Heat treated and double butted tubing cuts weight while adding strength, which matters most on a small rider's bike.
V-brake posts still fitted. The brake posts stay on the seat stay, so an existing V-brake set up bolts straight on.
Disc ready with the M2 adapter. Add the M2 adapter and run a disc brake instead, so the frame can change as the rider progresses.
Internal hose routing. The hose runs from the front of the top tube to mid seat stay and exits at the calliper, protected the whole way.

Specifications

Sizes: Mini 17", Junior 18", Expert 19.25", Expert XL 20", Junior Cruiser 18.75", Expert Cruiser 20" top tube
Top tube: 17" (Mini)
Bottom bracket: Euro
Material: 7005 series aluminium, heat treated
Butting: Double butted, tapered down tube widening at the bottom bracket
Dropouts: Seamless integrated chain tensioner system
Brake mounts: V-brake posts on the seat stay, disc option using the M2 adapter
Cable routing: Internal, front of top tube to mid seat stay, exiting at the brake calliper
Head tube: 1-1/8"
Seat tube: 22.2mm post
