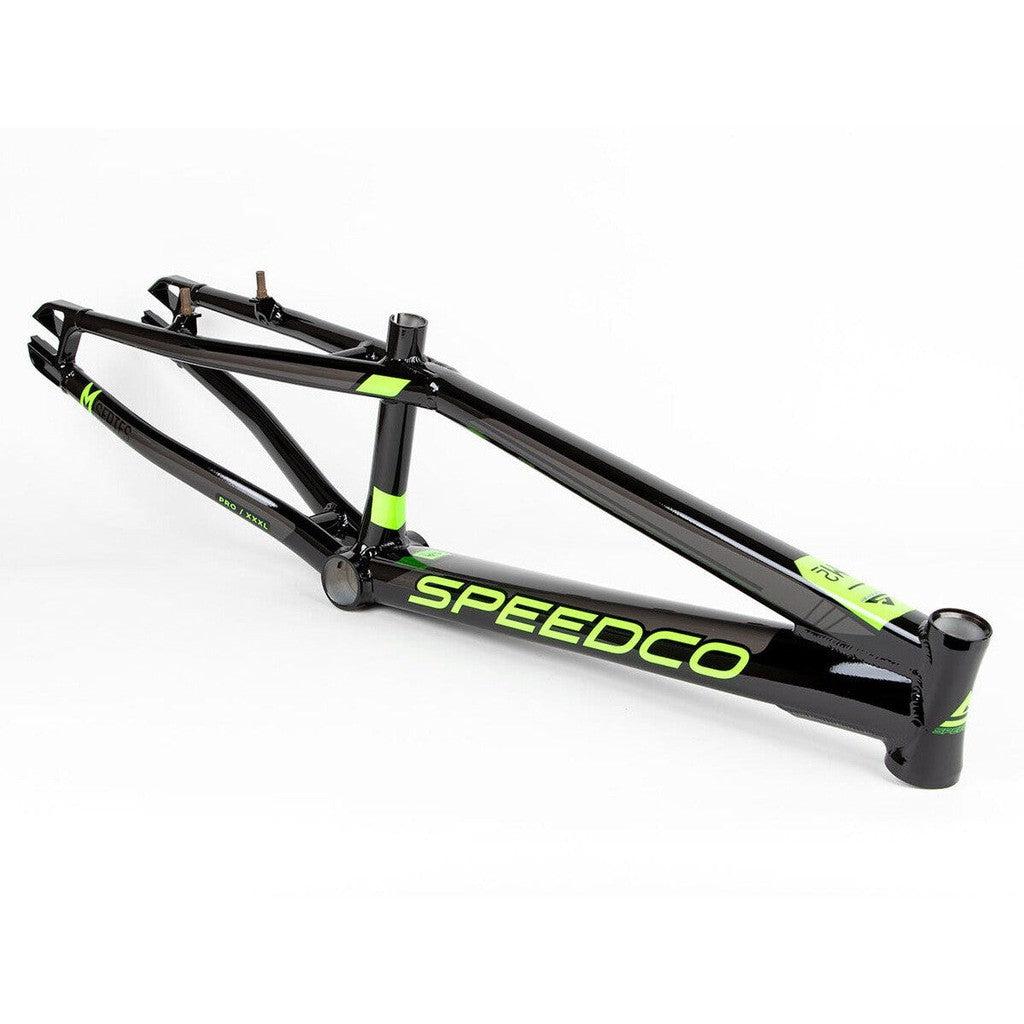

Speedco M2 Alloy Pro 24 Cruiser Frame / Black / Grey / Neon / 21TT

Speedco M2 Alloy Pro 24 Cruiser Frame

Sale price$899.99 AUD

Or 4 payments of $224.99 AUD with

Pay in 4 interest-free payments

Top Tube Length

Colour

Select Option

View All
Speedco M2 Alloy Pro 24 Cruiser Frame / Black / Grey / Neon / 21TT

Speedco M2 Alloy Pro 24 Cruiser Frame / 21TT / Black/Grey/Neon

Sale price$899.99 AUD

101283

Sold Out

Description

M2 Pro Frame Features Cruiser Pro 21/Pro XL 21.75

BB86 – press-fit BB86 is our bottom bracket of choice throughout our entire pro line of frames, both for the Velox & M2. The cups efficiently press directly into the shell with ease, but the benefit of this system is the oversized shell width. The 86mm shell accommodates a super wide chain-stay and a massive down-tube junction. These components maximize rigidity and responsiveness needed in our pro models.
Tapered head-tube - The standard for pro sized high-end race frames is a tapered head tube. A tapered head tube uses a 1-1/8” top bearing and a 1.5” bottom bearing and allows us to use a fork both lighter and stronger than ever before.
10/15mm drop-out -  The dropout on the M2 Alloy is all about efficiency. With an integrated chain tensioner through the front of the dropout, the need to over-tighten your wheel has been eliminated. Each dropout uses two flex-free 4mm adapters to insure your wheel isn’t gonna move regardless of how many horses you’re putting down first pedal.

Pro 24"" Frame Specs:

Pro 24"" Top Tube: 21"", Center of Chainstay: 15.4"", Weight: 3.85 lbs
Pro XL 24"" Top Tube: 21.75"", Center of Chainstay: 15.4"", Weight: 3.95 lbs
Head tube angle: 73°
Seat tube angle: 69.5°
BB Height: 12""
Seat tube spec: 27.2mm
Brake Mount: V-Brake
BB Shell: BB86
Headset Typed: Tapered Integrated 1-1/8"" to 1.5""
Seat tube spec: 27.2mm
Brake Mount: V-Brake
BB Shell: BB86
Required Thru Bolt Length: 145mm

Model Name Top Tube BB Height Rear Center Seat Tube Angle Head Tube Angle Weight
Pro 20"" 20.5"" 11.5"" 14.75"" 72 74 3.7lbs
Pro XL 20"" 21"" 11.5"" 14.75"" 72 74 3.75.lbs
Pro XL+ 20"" 21.35"" 11.5"" 14.75"" 72 74 3.8lbs
Pro XXL 20"" 21.75"" 11.5"" 15.2"" 72 74 3.85lbs
Pro XXXL 20"" 22"" 11.5"" 15.2"" 72 74 3.95lbs
Pro 24"" 21"" 12"" 15.4"" 69.5 73 3.85lbs
Pro XL 24"" 21.75"" 12"" 15.4"" 69.5 73 3.95lbs
