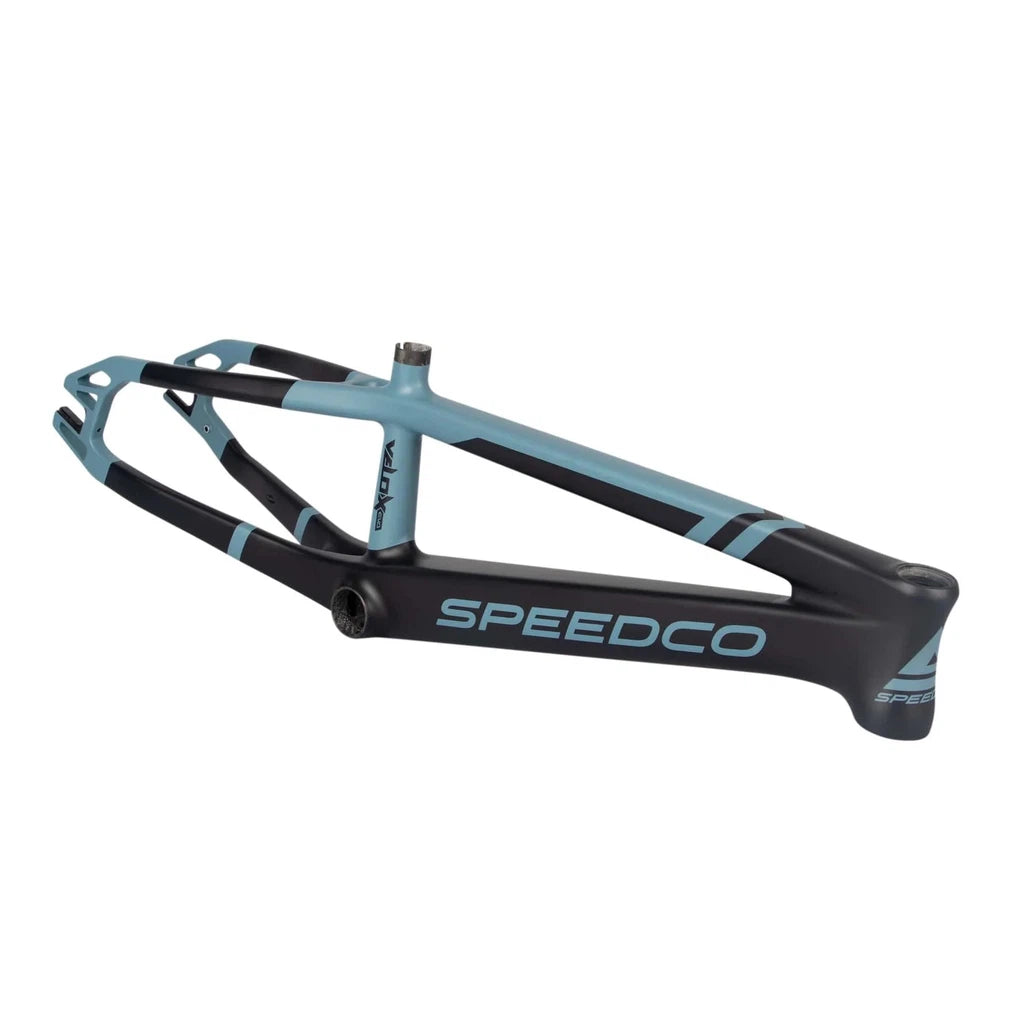

A racing frame featuring the Speedco Velox EVO Carbon Frame PRO XL.

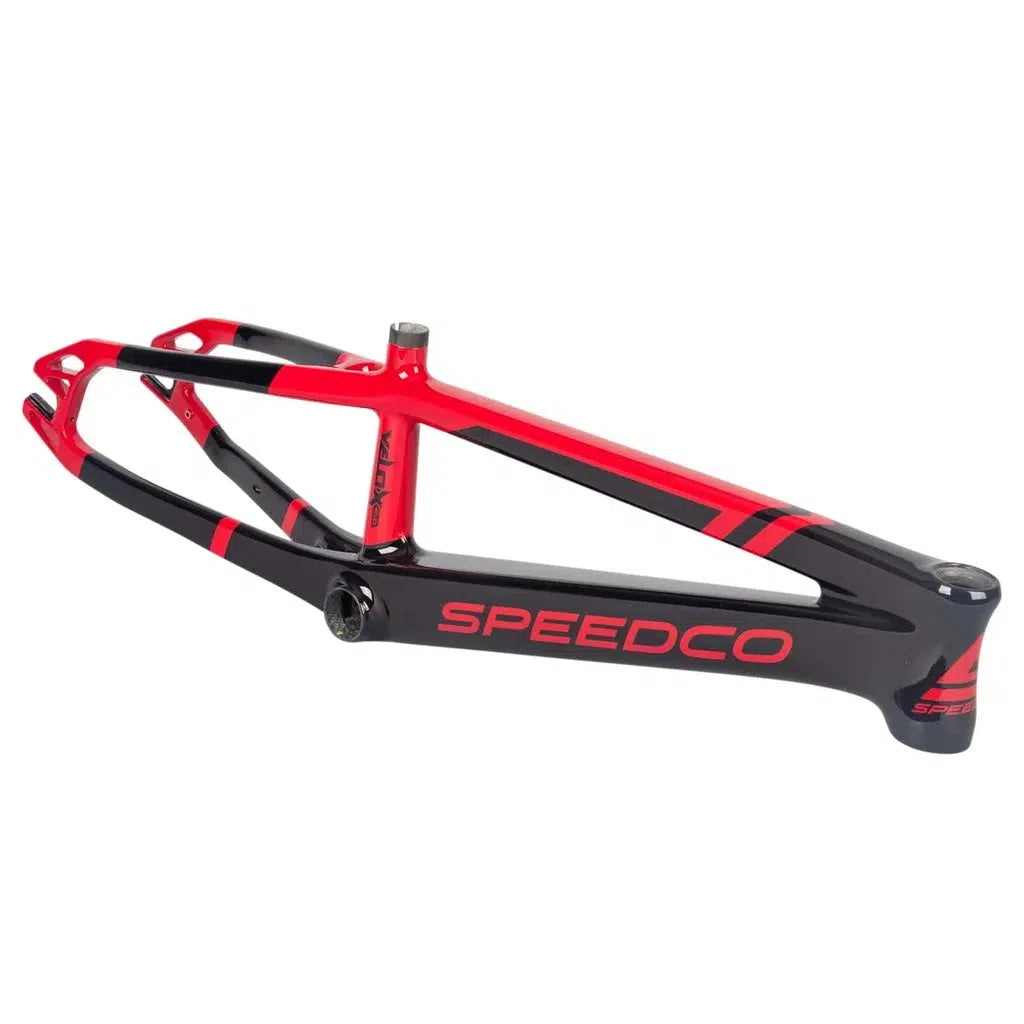

The Speedco Velox EVO Carbon Frame PRO XL showcases the iconic Speedco EVOs branding. Made for speed enthusiasts, this top-notch frame is designed to enhance performance and provide unmatched durability. Perfect for riders.
A Speedco Velox EVO Carbon Frame PRO XL on a white background.
A Speedco Velox EVO Carbon Frame PRO XL on a white background.

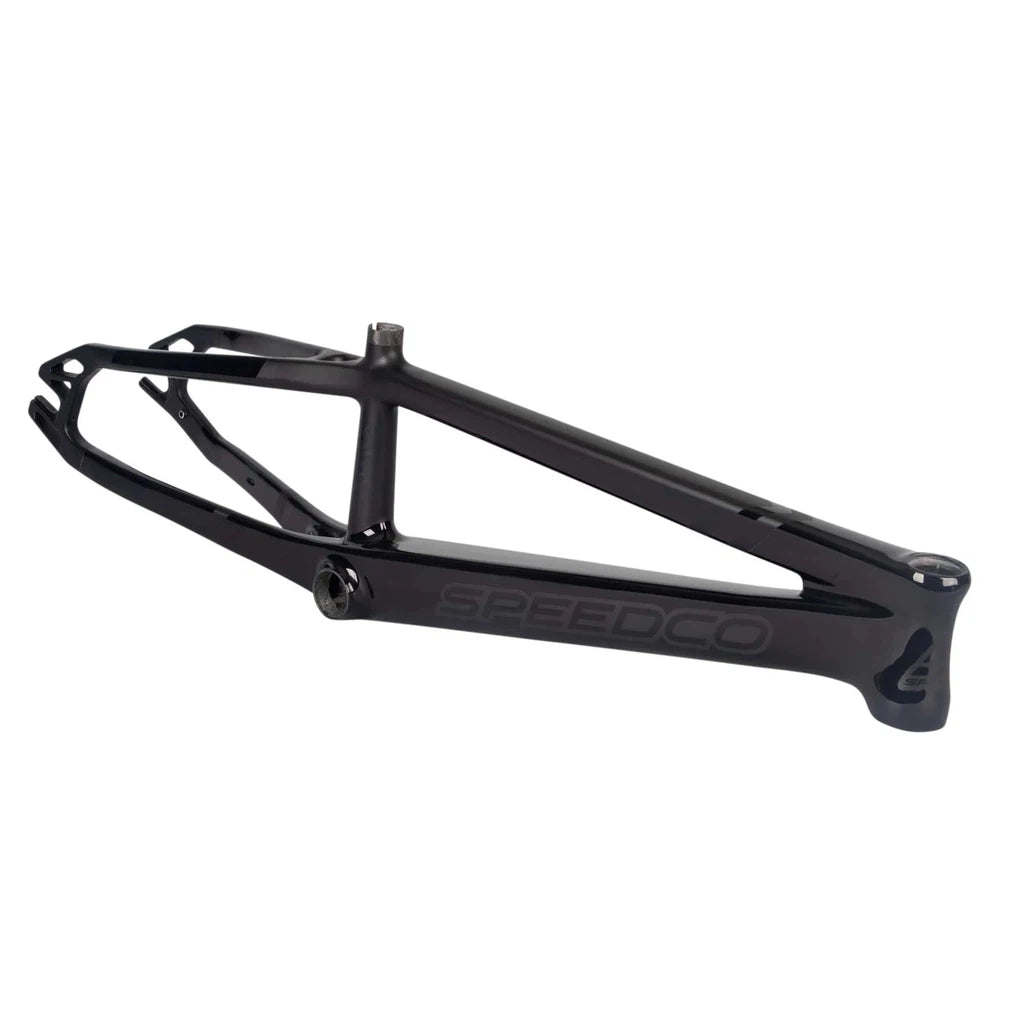

An elegant black Speedco Velox EVO Carbon Frame PRO XL, showcased on a clean white background.
A purple Speedco Velox EVO Carbon Frame PRO XL with the word Speedco on it, perfect for racing.

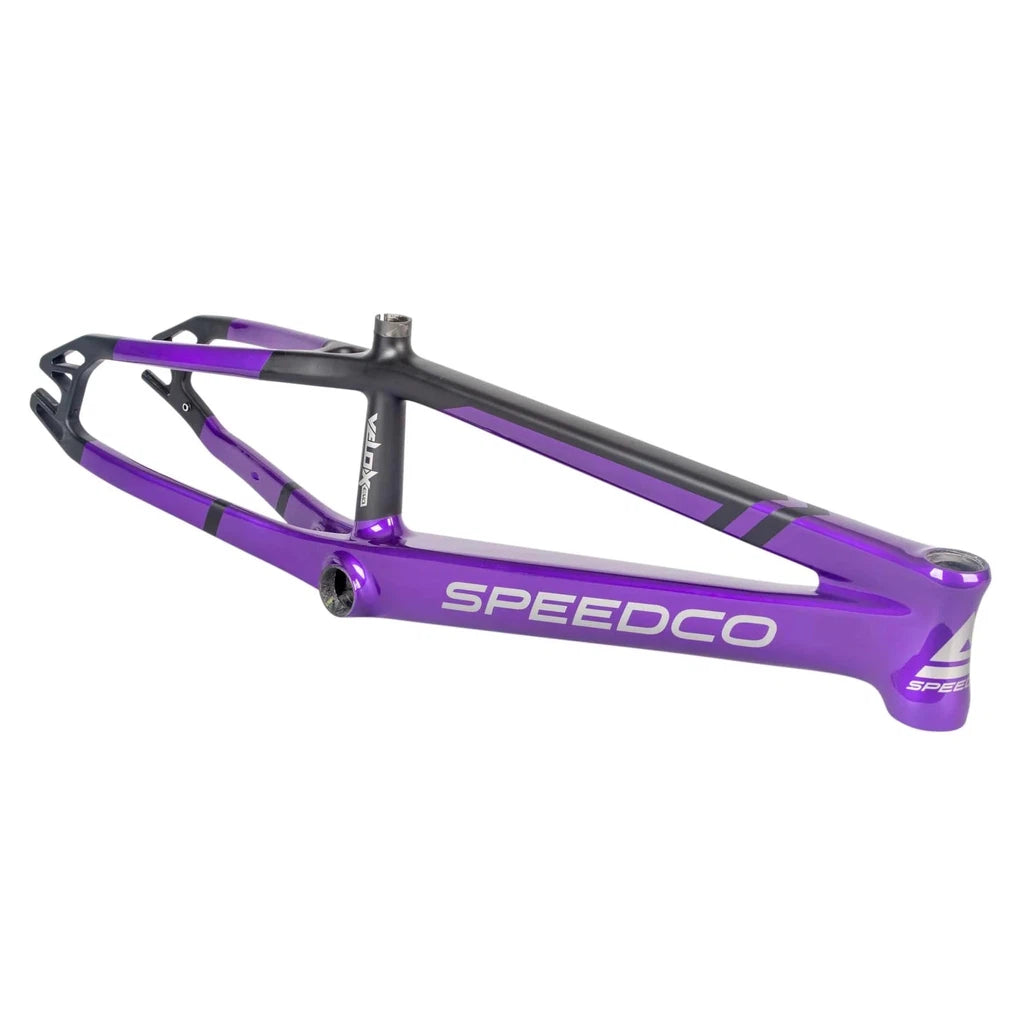

A Speedco Velox EVO Carbon Frame PRO XL in purple with the word Speedco prominently displayed.
A black and yellow Speedco Velox EVO Carbon BMX Race Frame Junior, made from Toray T-700 carbon, is shown against a white background.
A Speedco Velox EVO Carbon BMX Race Frame Junior in white and black, made from Toray T-700 carbon with flat mount disc brake compatibility, is shown against a plain white background.
The Speedco Velox EVO Carbon BMX Race Frame Junior, in black and yellow, displays the "Speedco" logo on the lower tube and is crafted from premium Toray T-700 carbon for superior strength and performance.
A white and black Speedco Velox EVO Carbon BMX Race Frame Junior, made from premium Toray T-700 carbon, is displayed against a plain white background with the "SPEEDCO" logo visible on the side.

Highlights

  • Toray carbon at 1363g
  • Downtube runs past the bottom bracket
  • Flat mount disc throughout
  • 21" top tube, 15" chainstay

Description

At the very top level of racing every millimetre of advantage you can gain by the bottom of the hill can turn into metres by the time you cross the line and the 2024 Speedco EVOs take this philosophy and turn it into reality with this series of frames.

From more aerodynamic tubing, to a beefy downtube that connects directly past the bottom bracket to the chainstays, this completely revised line up of pro frames from Speedco will easily surpass the popularity of the previous model.

The design of that downtube/BB interface is laboratory proven to stiffen the whole bottom end of the frame. It is a critical area of a frame and one in which has to withstand some of the highest torsional forces seen in the bike racing world. Nothing comes close to the "hit" that a BMX race bike takes to its drivetrain in any cycling disciple, courtesy of a standing start and light (compared to the track world) gearing that BMX racers run. Ad in long(ish) cranks and a BMX gate start places tremendous forces around the bottom bracket section of the frame.

Of course, being a Speedco also means that the overall aesthetic of the frame is an absolute killer. This brand continues the tradition of coming out with the most desirable looking carbon race frames and the Evo does not disappoint in any way. Slick, up to date colours and a beautiful finish means that this range will be a hot commodity.

Another obvious change from the Velox series of frames is the 100% disc commitment with a flat mount design attaching the brake caliper to the inner axle block and internally routing of the brake hose through the inside chainstay. It slides with the wheel and fastens to the frame with a 4mm screw on the outside of the chainstay.

 Axle compatibility is 10mm, 15mm or 20mm and rotor compatibility is 140mm.

Features
  • Toray carbon at 1363g. A full carbon race frame that keeps weight off the bike where it counts, so more of your gate effort turns into speed.
  • Downtube runs past the bottom bracket. It joins straight through to the chainstays, a design Speedco says is laboratory proven to stiffen the whole bottom end of the frame.
  • Flat mount disc throughout. The calliper fastens to the inner axle block and takes a 140mm rotor, with the hose routed inside the chainstay.
  • 21" top tube, 15" chainstay. Race geometry with a 74° head angle, a 72° seat angle and an 11.5" bottom bracket height.
  • Slotted dropouts, three axle sizes. Runs 10mm, 15mm or 20mm axles, so you can build around wheels you already own. Thru bolt length is 145mm.

Specifications
  • Top tube: 21.0"
  • Chainstay: 15.0"
  • Head tube angle: 74°
  • Seat tube angle: 72°
  • Bottom bracket height: 11.5"
  • Bottom bracket: BB86
  • Material: Toray carbon fibre
  • Dropouts: Slotted, 10mm / 15mm / 20mm
  • Brake mounts: Disc, flat mount, 140mm rotor
  • Cable routing: Brake hose routed internally through the inside chainstay, fastened with a 4mm screw
  • Head tube: 1-1/8th to 1.5" tapered
  • Seat tube: 27.2mm
  • Seat clamp: 31.8mm
  • Axle: 10mm, 15mm or 20mm
  • Wheel size: 406mm, 20 x 1.5 to 20 x 1.90 tyres
  • Weight: 1363g
  • Note: Required thru bolt length: 145mm

Speedco Velox EVO Carbon Frame PRO XL

Brand: Speedco SKU:

$2,699.99 AUD

Or 4 payments of $674.99 AUD with

Colour - Matte Blue

Top Tube Length - 21

BMX race bike sizing

Race frames are sized by class, and the class you ride is set by rider height rather than age.

SizeRider heightTop tube
Micro (18" wheels)Under 110cm16.25"
Mini (20" wheels)110 to 125cm17 to 18"
Junior120 to 140cm18.25 to 18.75"
Expert135 to 155cm19.5 to 19.75"
Expert XL150 to 165cm20 to 20.75"
Pro160 to 170cm20.25 to 20.75"
Pro XL165 to 175cm21 to 21.25"
Pro XXL170 to 185cm and up21.5 to 21.85"
Pro XXXL175 to 185cm and up22"
Pro XXXXL185cm and up22.5"
Cruiser (24" wheels)175cm and up21.5" and up

Heights overlap between bike sizes on purpose. If you fall in two size categories, a growing rider new to racing is usually better suited to the larger bike, a experienced rider who wants the bike to more responsive should err on the smaller size. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark. Just don't guess their height either, you know how fast they can grow!

Here are some tips

  • Between two sizes and still growing? Take the larger size, but make sure you check the top tube length of the bike. The length of top tube for a given size (Expert XL as an example) can vary up to a half inch or more across brands. Most Expert XL frames are 20", but we've seen them as long as 20.7"
  • Experienced racer and wanting the bike to be more responsive? Take the smaller size. You want the bike to be "under you", not a stretch to the bars and cranks.
  • Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Still not sure? We're the experts and size bikes for riders every day of the week. Our team has decades of experience between them and will help you decide which bike is the right fit based on rider height and racing experience.

Read the full buying guide

BMX race bike sizing

Race frames are sized by class, and the class you ride is set by rider height rather than age.

SizeRider heightTop tube
Micro (18" wheels)Under 110cm16.25"
Mini (20" wheels)110 to 125cm17 to 18"
Junior120 to 140cm18.25 to 18.75"
Expert135 to 155cm19.5 to 19.75"
Expert XL150 to 165cm20 to 20.75"
Pro160 to 170cm20.25 to 20.75"
Pro XL165 to 175cm21 to 21.25"
Pro XXL170 to 185cm and up21.5 to 21.85"
Pro XXXL175 to 185cm and up22"
Pro XXXXL185cm and up22.5"
Cruiser (24" wheels)175cm and up21.5" and up

Heights overlap between bike sizes on purpose. If you fall in two size categories, a growing rider new to racing is usually better suited to the larger bike, a experienced rider who wants the bike to more responsive should err on the smaller size. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark. Just don't guess their height either, you know how fast they can grow!

Here are some tips

  • Between two sizes and still growing? Take the larger size, but make sure you check the top tube length of the bike. The length of top tube for a given size (Expert XL as an example) can vary up to a half inch or more across brands. Most Expert XL frames are 20", but we've seen them as long as 20.7"
  • Experienced racer and wanting the bike to be more responsive? Take the smaller size. You want the bike to be "under you", not a stretch to the bars and cranks.
  • Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Still not sure? We're the experts and size bikes for riders every day of the week. Our team has decades of experience between them and will help you decide which bike is the right fit based on rider height and racing experience.

Read the full buying guide
