White and orange Staystrong V5.1 Junior Disc Frame BMX race frame, featuring race geometry and "STAY STRONG" prominently displayed in bold letters, shown against a plain background.

Staystrong V5.1 Junior Disc Frame in orange and white, displaying “STAY STRONG” branding on the lower tube, features a BB86 TTL bottom bracket and race geometry, shown from the side against a white background.

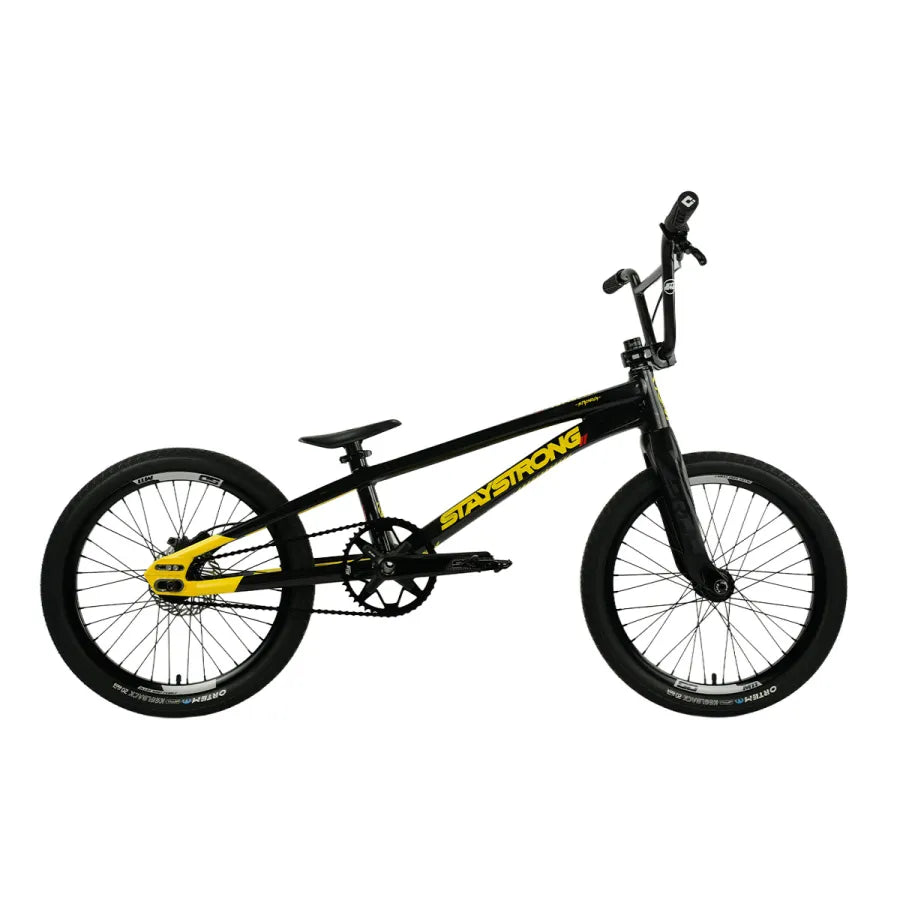

A black Staystrong V5.1 Pro XXL Disc BMX race frame with yellow accents and “Stay Strong” written on the frame is shown from the side on a white background, featuring race geometry.

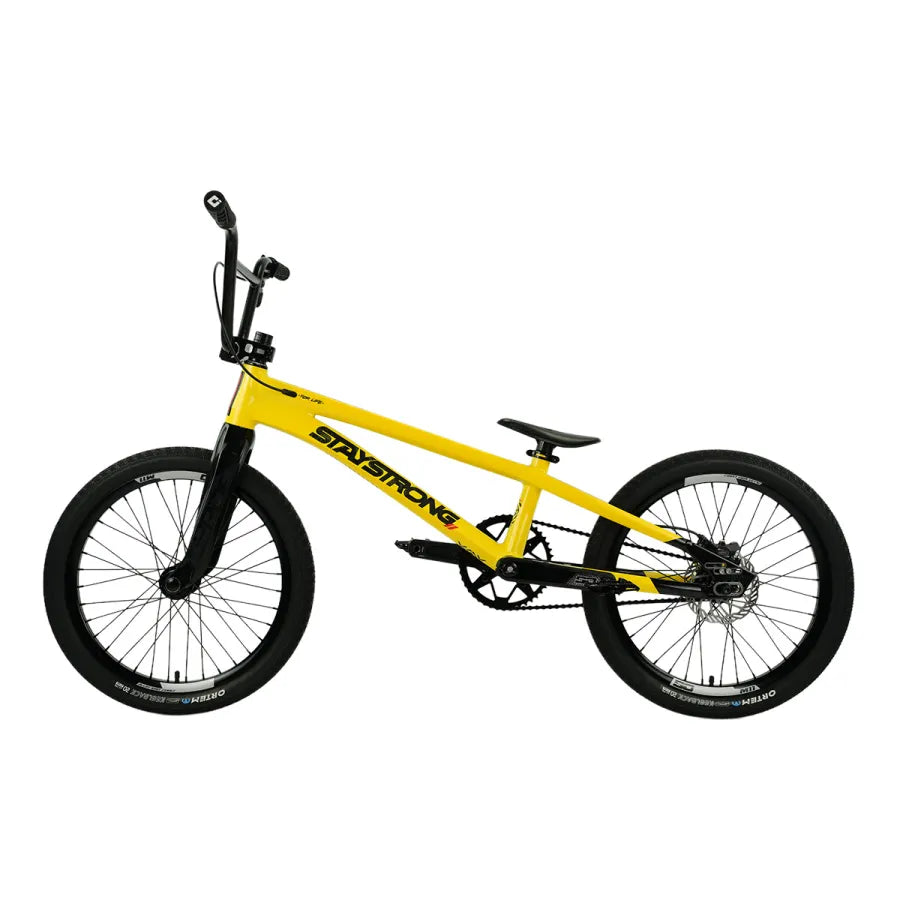

A yellow Staystrong V5.1 Pro XXL Disc Frame BMX bike with black handlebars, wheels, and seat is displayed on a plain white background. Featuring a BMX race frame with advanced race geometry for optimal performance, the frame displays "STAY STRONG" printed in black letters, highlighting the Staystrong V5.1 Pro XXL Disc model.

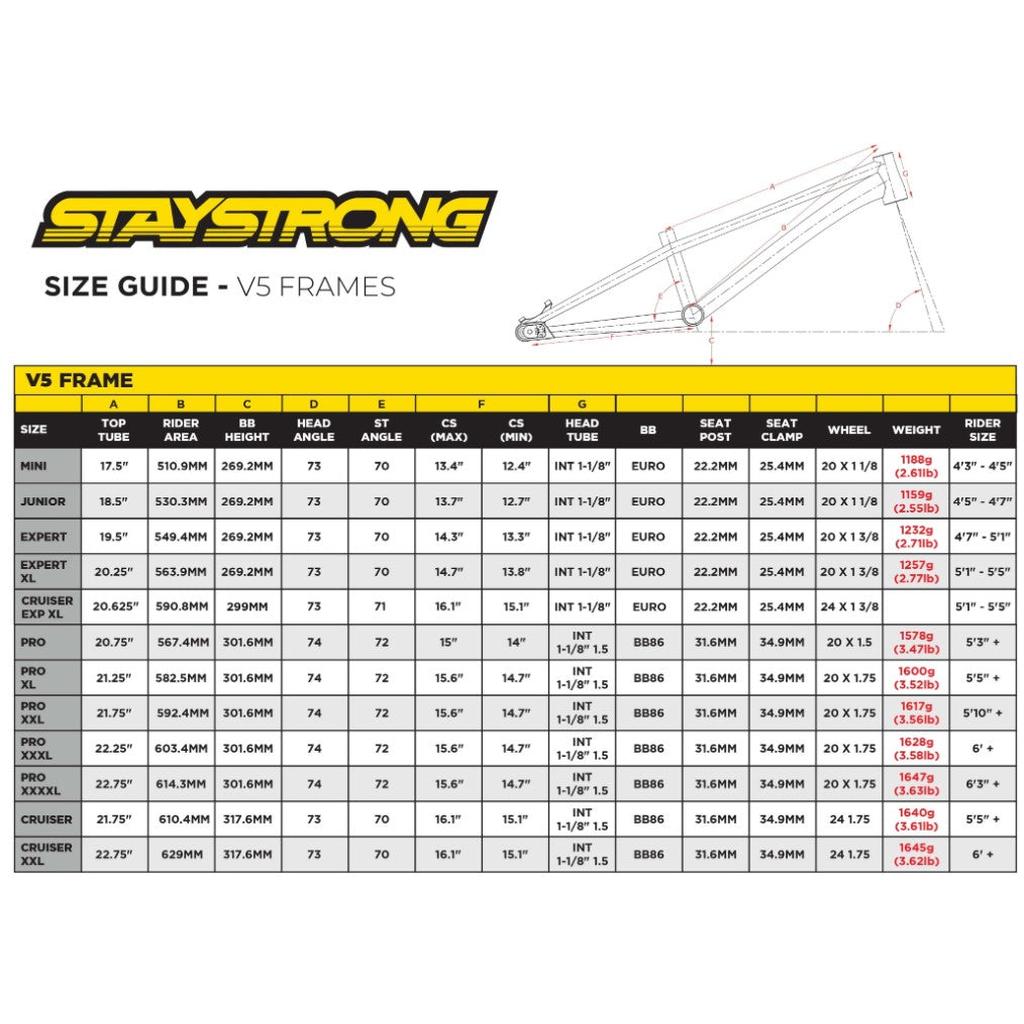

Chart showing the Staystrong V5.1 Pro XXL Disc Frame size guide with race geometry measurements, recommended rider heights, seat post sizes, weights, and frame type details for various age and skill categories.

Description

The Stay Strong V5.1 BMX Race Frame represents the evolution of Stay Strong’s most successful race platform, refined, re-engineered, and pushed further than ever before. Building on the stiffness, proven race geometry, and unmistakable Stay Strong look of the previous generation, the V5.1 delivers even greater performance, strength, and usability.

At the core of the frame is the BB86 TTL (To The Line) bottom bracket, combined with an oversized seat tube, down tube, and bottom bracket junction to maximize stiffness and power transfer. The winning race geometry remains unchanged ensuring explosive starts, predictable handling, and high-speed stability.

The biggest upgrade comes in the form of the bespoke Race DVSN dropout and 5-point dropout system. This innovative design permanently fixes the inserts and disc hanger to the frame, improving stiffness while making wheel and brake adjustments faster and easier. The custom dropout also allows for a taller seat stay, resulting in a stiffer and wider rear end, while rear-access chain tensioners make wheel alignment quick and hassle-free.

Stay Strong dropouts are supplied with 10mm inserts as standard, with an optional 15mm thru-axle kit available for riders running a 15mm rear hub. The V5.1 is the most technically advanced and extensively tested race frame Stay Strong has ever produced, featuring triple and double butted tubing, a tapered head tube, smooth welds, and race-proven construction throughout.

Visually, the V5.1 stands out with exclusive dual-color schemes, upgraded water decals, and hidden details from the “STY STRG CODE” with every frame featuring a clean and fresh look, race-ready finish.

Note: Frames are supplied with a disc hanger suitable for 140mm disc rotors.

Features

Proven race geometry, unchanged. Explosive starts, predictable handling and high speed stability carried straight over from the previous generation, here in the Mini size.
BB86 TTL bottom bracket. An oversized seat tube, down tube and bottom bracket junction back it up, so your effort out of the gate goes into power transfer, not flex.
Race DVSN 5-point dropout system. Inserts and the disc hanger are fixed permanently to the frame for a stiffer, wider rear end, with rear-access chain tensioners for quick wheel alignment.
Triple and double butted tubing. A tapered head tube and smooth welds finish the most extensively tested race frame Stay Strong has produced.
Disc ready out of the box. Supplied with a disc hanger suitable for 140mm rotors, plus 10mm dropout inserts as standard and an optional 15mm thru-axle kit.

Specifications

Sizes: Mini
Bottom bracket: BB86 TTL (To The Line)
Butting: Triple and double butted tubing
Dropouts: Race DVSN 5-point, permanently fixed inserts and disc hanger, rear-access chain tensioners
Brake mounts: Disc, supplied with a hanger suitable for 140mm rotors
Head tube: Tapered
Axle: 10mm inserts as standard, optional 15mm thru-axle kit for a 15mm rear hub
