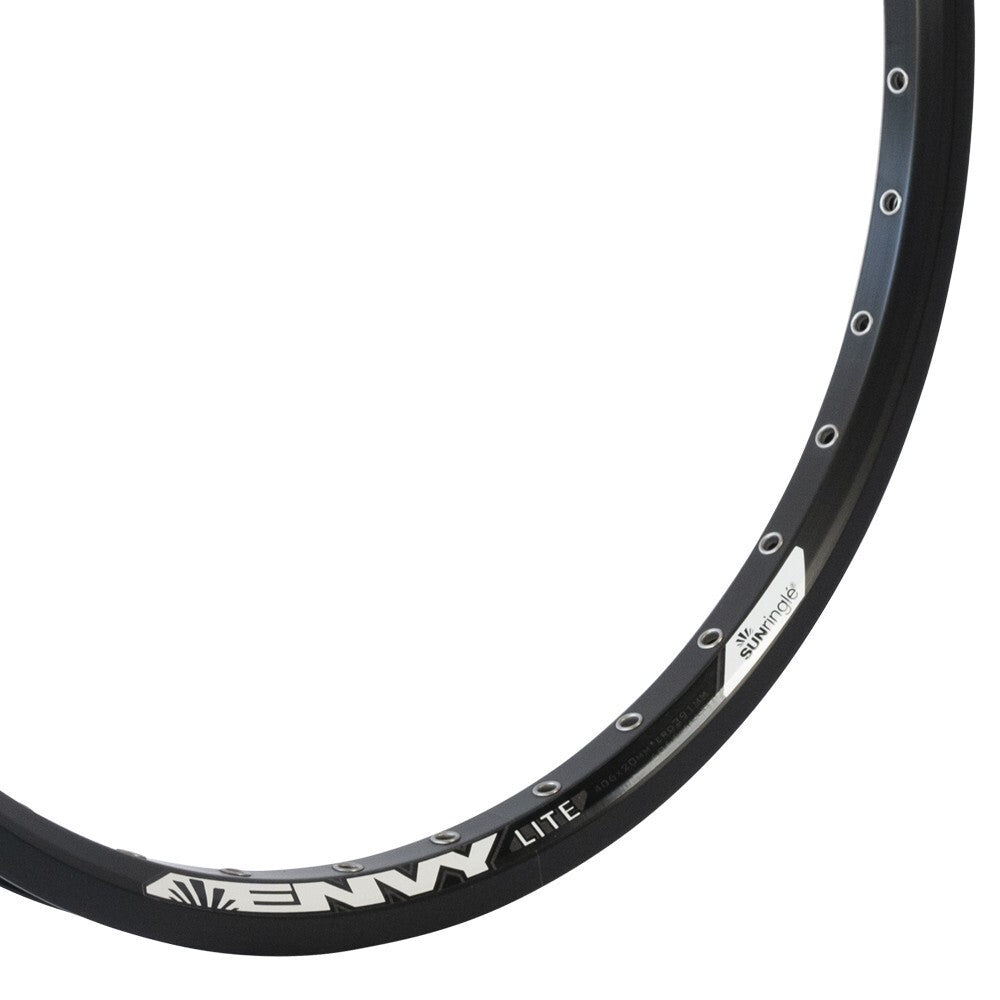

Close-up of a black Sun Envy-Lite Rim 20 x 1.50 with 32 spoke holes and a 406mm bead diameter, showing visible spoke holes along the aluminum edge.

Highlights

  • Double wall with eyelets
  • Takes 1.40 to 1.95 inch tyres
  • 32 spoke holes
  • 330g per rim

Description

The Sun Envy-Lite is a 20 inch aluminium rim built double wall, pinned, with eyelets at every spoke hole. It measures 25mm wide with a 406mm bead diameter, and takes tyres from 20 x 1.40" through to 20 x 1.95".

It is drilled 32 hole for a Schrader valve and weighs 330g. Sun suggest a rider weight limit of 79.4kg, so keep that in mind when you plan the build. Rims are sold individually.

Features
  • Double wall with eyelets. Pinned double wall construction with eyelets at each spoke hole, so the nipples have something solid to pull against.
  • Takes 1.40 to 1.95 inch tyres. The 25mm width covers most 20 inch tyres, from a skinny race tyre up to a 1.95.
  • 32 spoke holes. Drilled 32 hole, so pair it with a 32 hole hub and a standard spoke count build.
  • 330g per rim. Light for a double wall 20 inch rim, which helps the wheel spin up quicker out of the gate.
  • Schrader drilled. The valve hole is sized for Schrader, so a presta tube needs an adaptor or a different rim.

Specifications
  • Fits: 20 x 1.40", 1.50", 1.75" and 1.95" tyres
  • Sizes: 20 x 1.50"
  • Wheel size: 20"
  • Material: Aluminium
  • Hole count: 32 hole
  • Rim width: 25mm
  • Valve: Schrader
  • Weight: 330g
  • Note: Sold individually. Bead diameter 406mm, ERD 391mm. Suggested rider weight limit 79.4kg.

Spoke calculator
Display

Pick the part it is laced to and we will give you the lengths to buy.

This rim

Looking up its measurements.

Check or change its figures

Laced to which hub?

Or type its figures

Flange diameter/PCD (pitch circle diameter) spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Flange position

Spoke lengths to buy

Drive side —mm
Non-drive side —mm

Pick the hub and your lengths will appear here.

Open the full spoke calculator for offset rims, other cross patterns and measuring help.

Sun Envy-Lite Rim 20 X 1.50 32H

Brand: Sun SKU:

$99.99 AUD

Or 4 payments of $24.99 AUD with

Colour - Black

Spoke Holes - 32 Hole

Brake Surface - Braking

Sun Envy-Lite Rim 20 X 1.50 32H - Black / 32 Hole / Braking

$99.99 AUD
