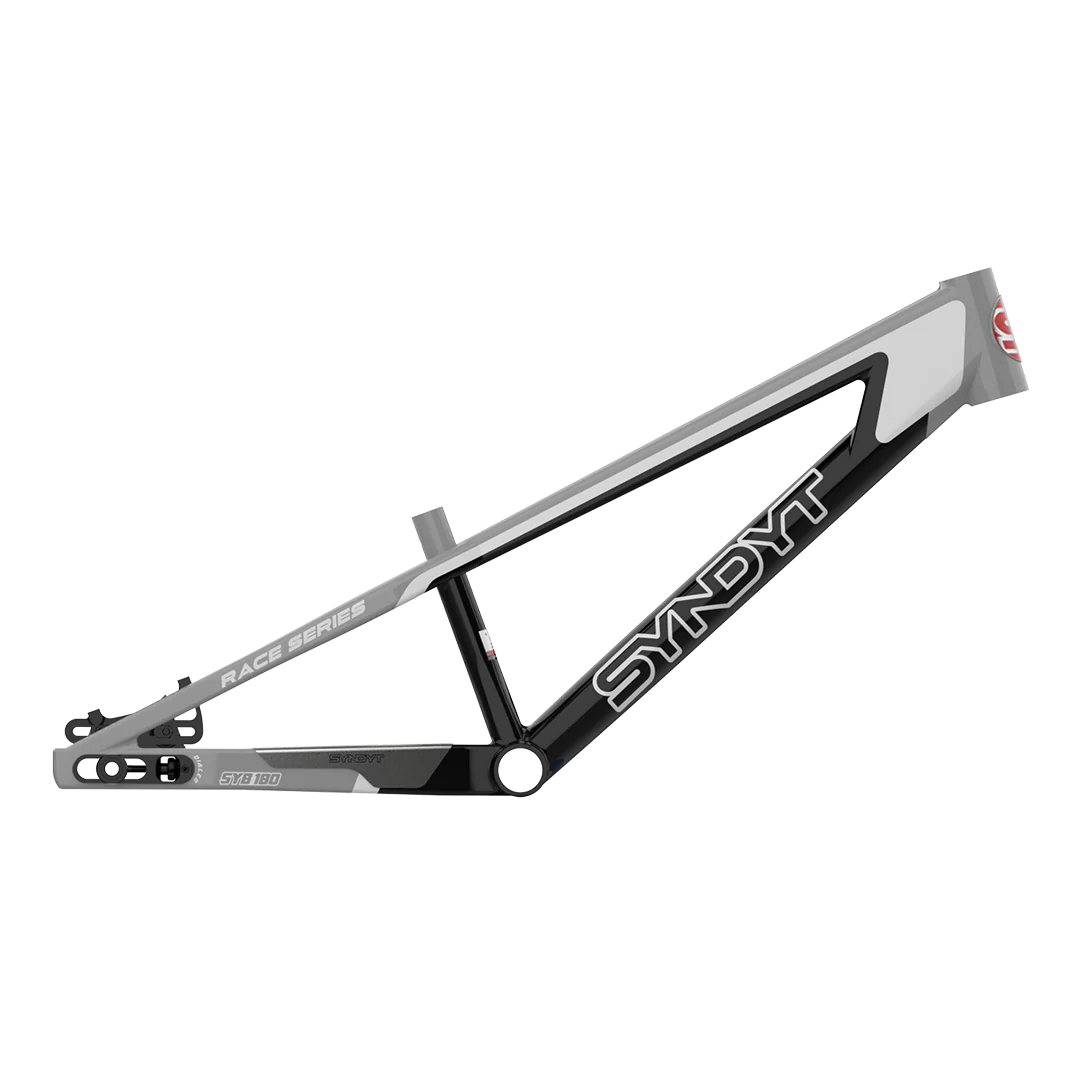

The Syndyt 180 Mini XL Frame is a black and gray BMX frame with bold "SYNDYT" lettering, sharp angular design, and "RACE SERIES" on the top tube, crafted via hydroforming for lightweight precision.
Side view of the Syndyt 180 Mini XL Frame in black, white, and gray with "Race DVSN" text and a red logo on the head tube, made using lightweight precision hydroforming technology, shown against a plain white background.

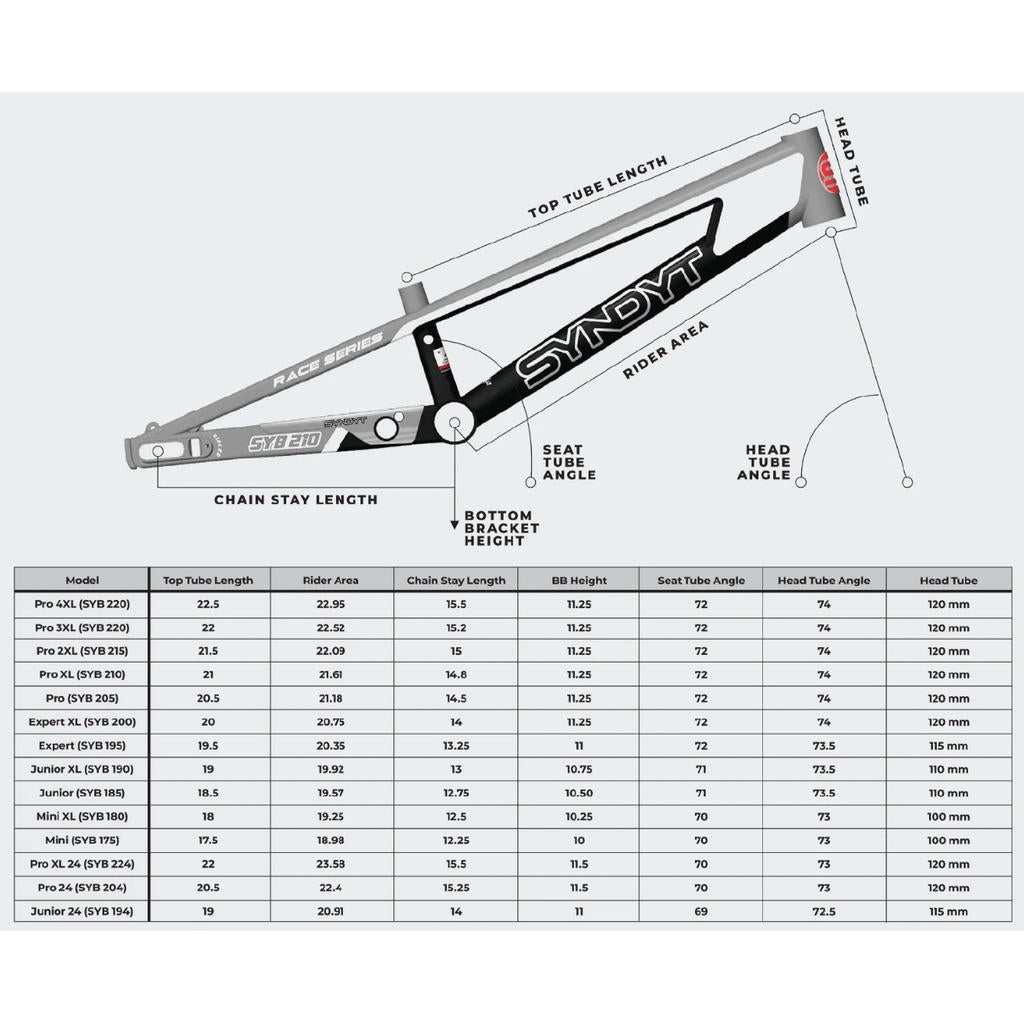

Diagram of a Syndyt 180 Mini XL Frame with labeled parts and geometry, highlighting lightweight precision hydroforming technology, plus a table showing frame measurements for different model sizes.

Description

Introducing the SYNDYT BMX Racing Frames, a groundbreaking evolution in BMX frame design that sets a new standard for performance and exclusivity within the SYNDYT community.

Crafted from premium 6061 custom handcrafted alloy, these frames embody the perfect balance of durability, lightweight precision, and an unparalleled ride quality. Employing state-of-the-art hydroforming technology and featuring triple-butted tubes, our frames deliver optimal power transfer and responsiveness, enhancing your overall riding experience.

Features
  • 18" top tube, Mini XL sizing. Race sizing for Mini XL riders, and at 1250g the frame keeps the finished build light out of the gate.
  • Triple-butted hydroformed 6061-T6. Hydroformed, triple-butted alloy tubes are shaped for power transfer and response without carrying extra weight.
  • Disc only, post mount rear. Takes a 140mm rotor and nothing larger, so pick your rotor and calliper to match.
  • Fits 10mm and 15mm hubs. Axle hardware for 10mm bolt-on and 15mm thru axle is included, with 110mm rear spacing or 152mm frame width in thru axle.
  • Integrated tensioners, headset included. 38mm of chain adjustment built into the dropouts, plus a headset for 1" and tapered 1" to 1 1/8" steerers.

Specifications
  • Top tube: 18" (Mini XL)
  • Bottom bracket: 68mm European shell
  • Material: 6061-T6 aluminium, hydroformed
  • Butting: Triple-butted tubes
  • Dropouts: Integrated chain tensioners with 38mm of adjustment
  • Brake mounts: Disc only, post mount, 140mm rotor
  • Cable routing: Internal rear brake
  • Head tube: Tapered 38/42 integrated, 1" to 1 1/8"
  • Seat tube: 22.2 seat post
  • Seat clamp: 25.4
  • Axle: 10mm bolt-on or 15mm thru axle, hardware included
  • Axle size: 110mm O.L.D. rear hub spacing, 152mm frame width with 15mm thru axle
  • Wheel size: 451mm
  • Weight: 1250g
  • Note: Includes headset for 1" steerer and tapered 1" to 1 1/8"

Syndyt 180 Mini XL Frame

Brand: Syndyt SKU:

$1,089.99 AUD

Or 4 payments of $272.49 AUD with

Colour - Grey

Top Tube Length - 18

$1,089.99 AUD
