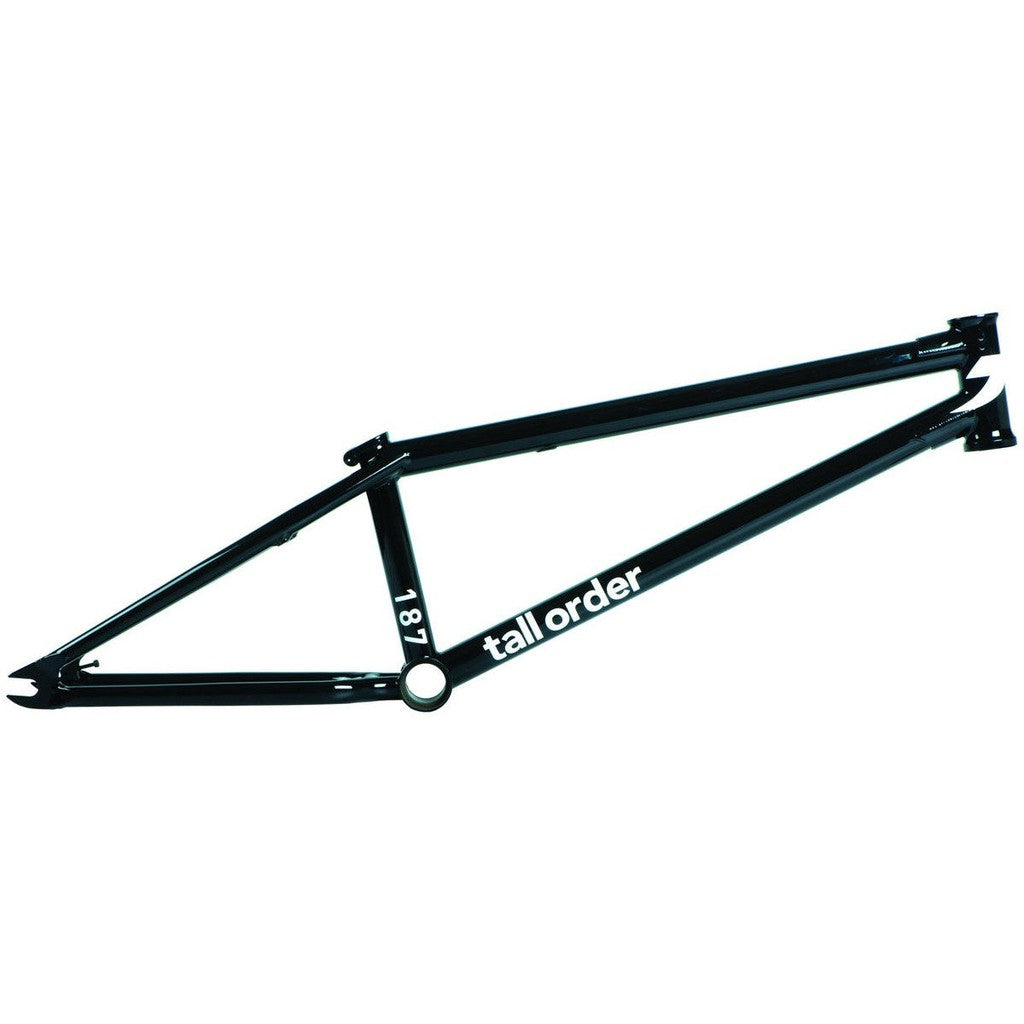

Tall Order 187 V3 Frame / Gloss Black / 19.75TT
Tall Order 187 V3 Frame / Gloss Black / 20.4TT
Tall Order 187 V3 Frame / Gloss Black / 20.8TT

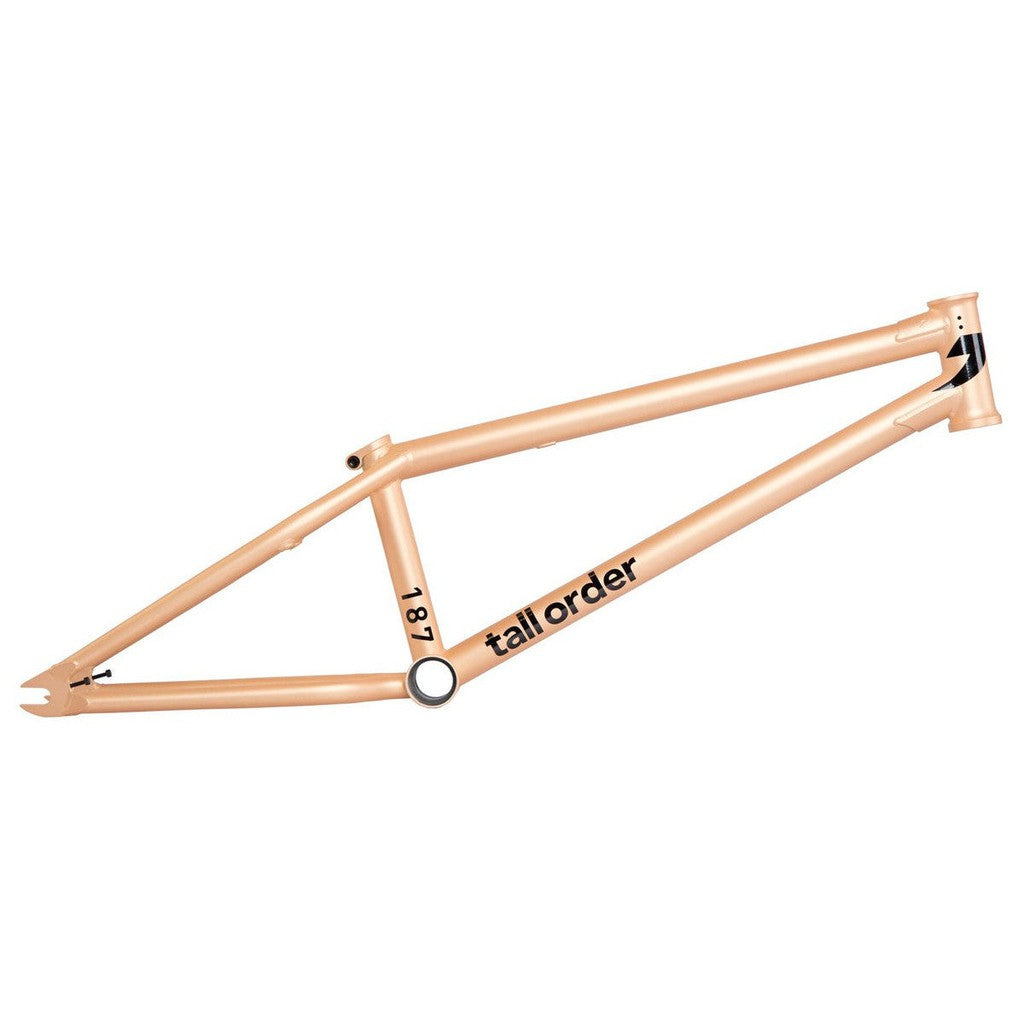

Tall Order 187 V3 Frame / Reilly Rose Gold / 20.4TT
Tall Order 187 V3 Frame / Reilly Rose Gold / 20.8TT

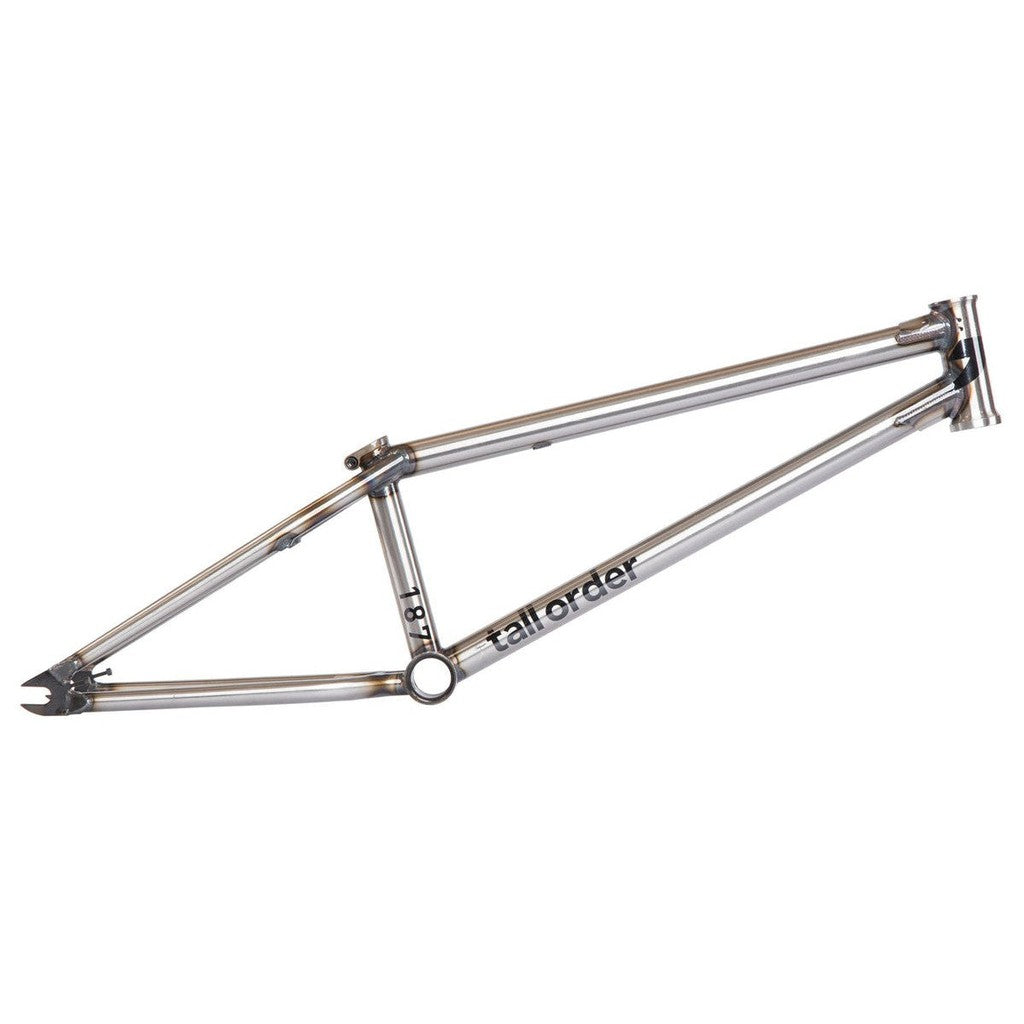

Tall Order 187 V3 Frame / Gloss Raw / 20.4TT
Tall Order 187 V3 Frame / Gloss Raw / 20.8TT

Highlights

  • Short 12.8" chainstay slammed
  • Low 7.5" standover
  • Sanko 4130 chromoly throughout
  • Now fits a 28 tooth sprocket

Description

The Tall Order 187 V3 runs a short back end and a steep front: a 12.8" chainstay slammed, a 75° head tube and a 71° seat tube, with a low 7.5" standover and an 11.6" high mid bottom bracket.

It is built from Sanko 4130 chromoly with the head tube, bottom bracket and dropouts heat treated. The seat clamp and chain tensioners are built in, the brake mounts are removable, and the tapered seat stays run into an IC seat stay bridge. Ovalised tapered chainstays now make room for a 28 tooth sprocket.

Features
  • Short 12.8" chainstay slammed. The back end runs tight when the wheel is slammed, and built in chain tensioners hold it there.
  • Low 7.5" standover. A low top tube over an 11.6" high mid bottom bracket gives you room to move around on the frame.
  • Sanko 4130 chromoly throughout. The head tube, bottom bracket and dropouts are heat treated, covering the three areas that cop the most abuse.
  • Now fits a 28 tooth sprocket. Ovalised tapered chainstays clear a bigger sprocket, so you can set the gearing you want.
  • Removable brake mounts, built in seatclamp. Run brakes or strip them off, and the clamp is part of the frame with tapered seat stays and an IC seat stay bridge.

Specifications
  • Chainstay: 12.8" slammed
  • Head tube angle: 75°
  • Seat tube angle: 71°
  • Standover: 7.5"
  • Bottom bracket height: 11.6"
  • Bottom bracket: Mid, high
  • Material: Sanko 4130 chromoly, heat treated head tube, bottom bracket and dropouts
  • Dropouts: Built in chain tensioners
  • Brake mounts: Removable
  • Seat clamp: Built in
  • Note: IC seat stay bridge, tapered seat stays, ovalised tapered chainstays fit up to a 28 tooth sprocket.

Tall Order 187 V3 Frame

Brand: Tall Order SKU:

From

$479.99 AUD

 $599.99 AUD

Or 4 payments of $119.99 AUD with

Colour - Gloss Black

Top Tube Length - 19.75

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
