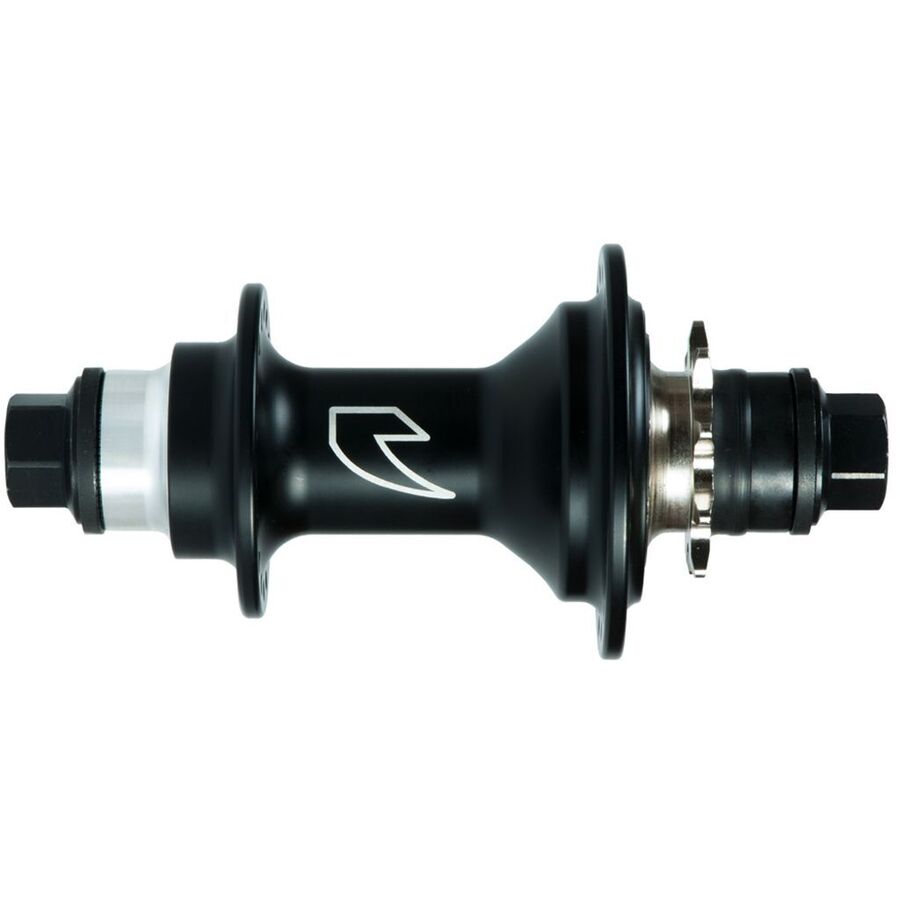

Tall Order Drone Cassette Hub / Black / 9T RHD

Tall Order Drone Cassette Hub / Silver / 9T RHD

Tall Order Drone Cassette Hub / Black / 9T LHD

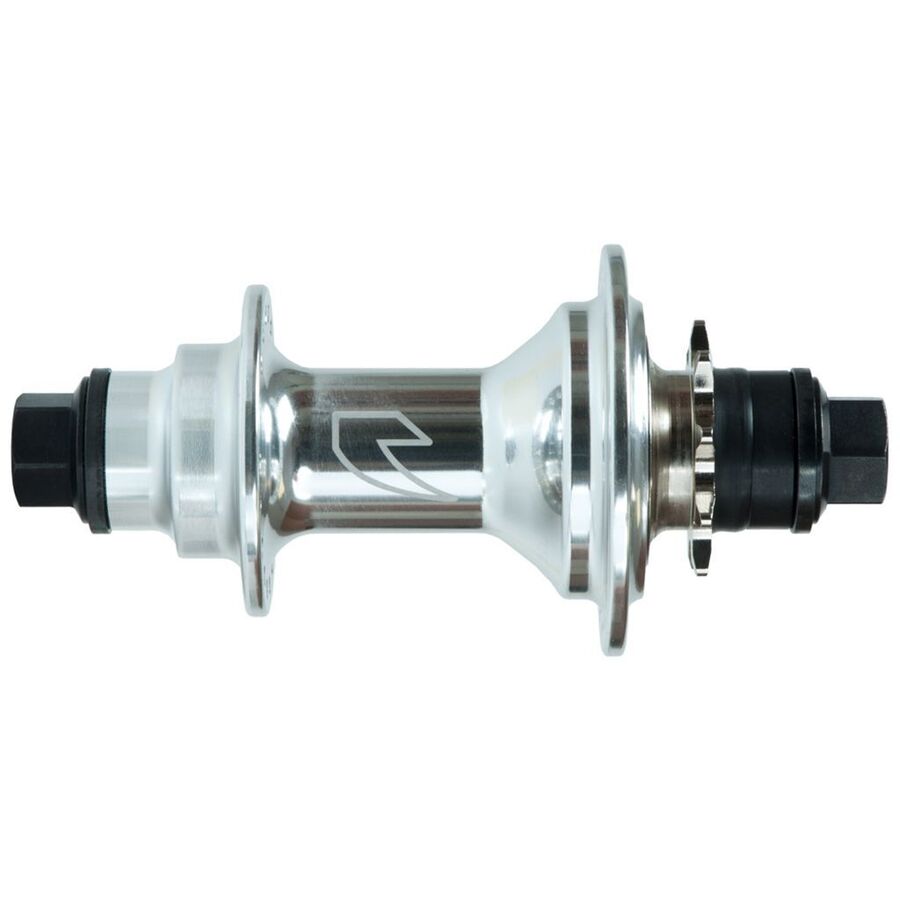

Tall Order Drone Cassette Hub / Silver / 9T LHD

Description

The Tall Order Drone Rear Hub features super fast engagement. This Hub has 3 individually sprung pawls with 150 points of contact, which creates an almost instant engagement when you start to pedal ,as well as being one of the most unique sounding cassettes on the market. So if anyone is running a ‘Tall Order’ cassette you will instantly be able to recognise it from the unique sound alone.

The hub also has a chrome driver and laser etched logo to complete the look. This hub is available with a 17mm female axle and 14mm bolts.

Dimensions:

Axle width (Locknut to Locknut) - 110mm
Drive side flange diameter - 58mm
Non-Drive side flange diameter - 45mm
Drive side flange to locknut - 28mm
Non-Drive side flange to locknut - 24mm

17mm axle with 14mm female bolts
Chrome driver
Aluminium shell
Laser etched Tall order logo
3 individually sprung pawls
Super fast engagement
Weight: 475 grams

Features

17mm axle with 14mm female bolts
Chrome driver
Aluminium shell
Laser etched Tall order logo
3 individually sprung pawls
Super fast engagement

Spoke calculator

Display

Pick the part it is laced to and we will give you the lengths to buy.

This hub

Looking up its measurements.

Check or change its figures

Hub spacing locknut to locknut, 100 front or 110 rear on most BMX mm Same both sides front hubs, or matching flanges

Flange diameter/PCD (pitch circle diameter) spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Drive side mm Non-drive side mm

Flange position

Flange to locknut Centre to flange

Drive side mm Non-drive side mm

Laced to which rim?

Find your rim

Or type its figures

ERD effective rim diameter, from the spec sheet mm
