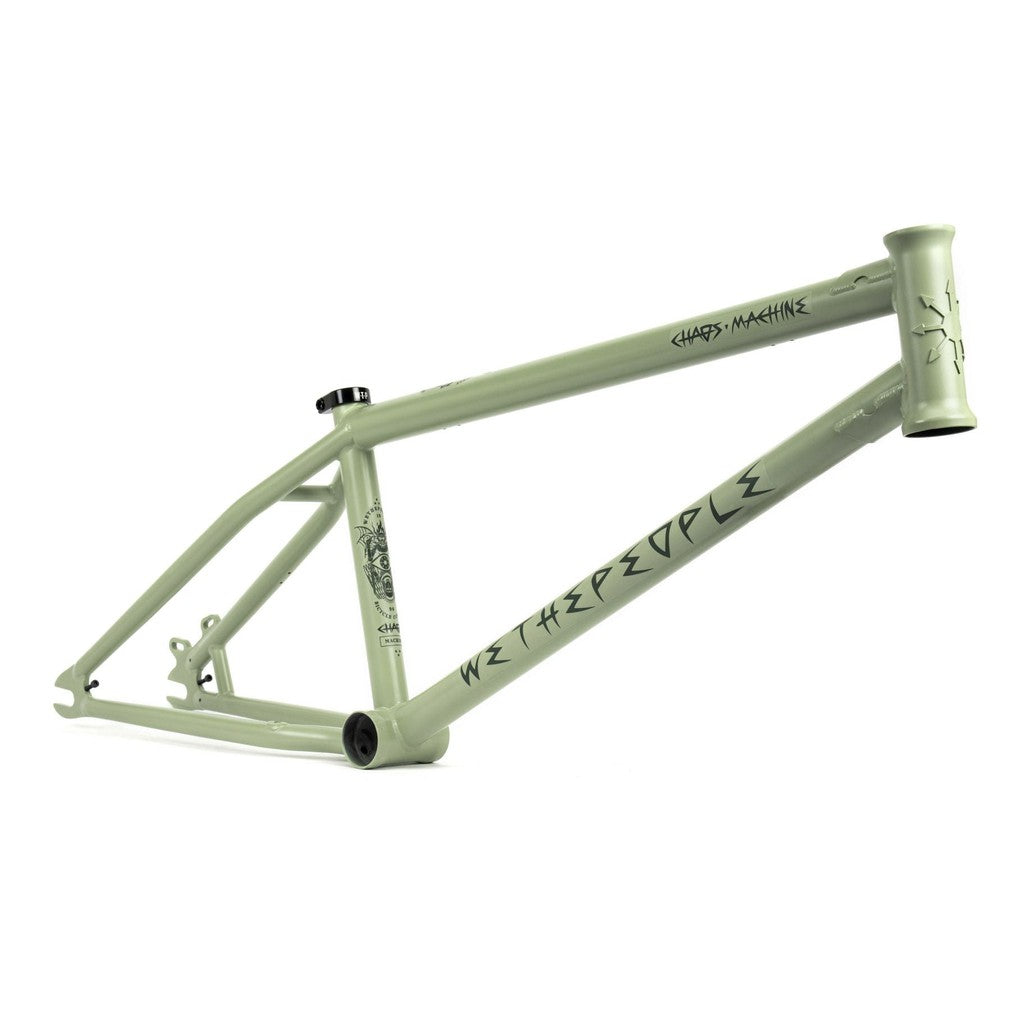

The 22-inch Wethepeople Chaos Machine frame, a minimalist yet robust design with "We The People" and "Chaos Machine," is Tyson Jones-Peni's signature model and available for pre-order now.

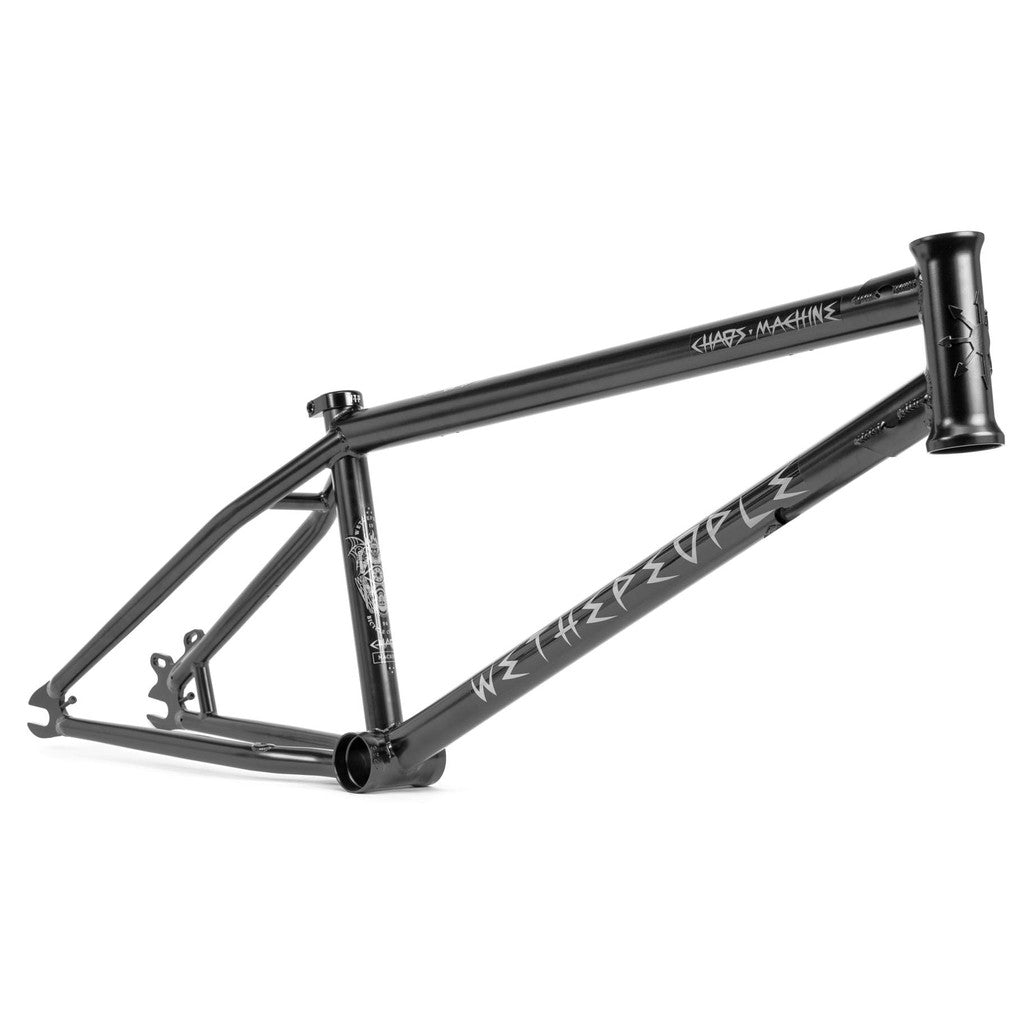

A black "Wethepeople Chaos Machine 22" BMX frame featuring Tyson Jones-Peni's signature is displayed against a white background, showcasing "We The People" and "Chaos Machines" in white text on the top tube.

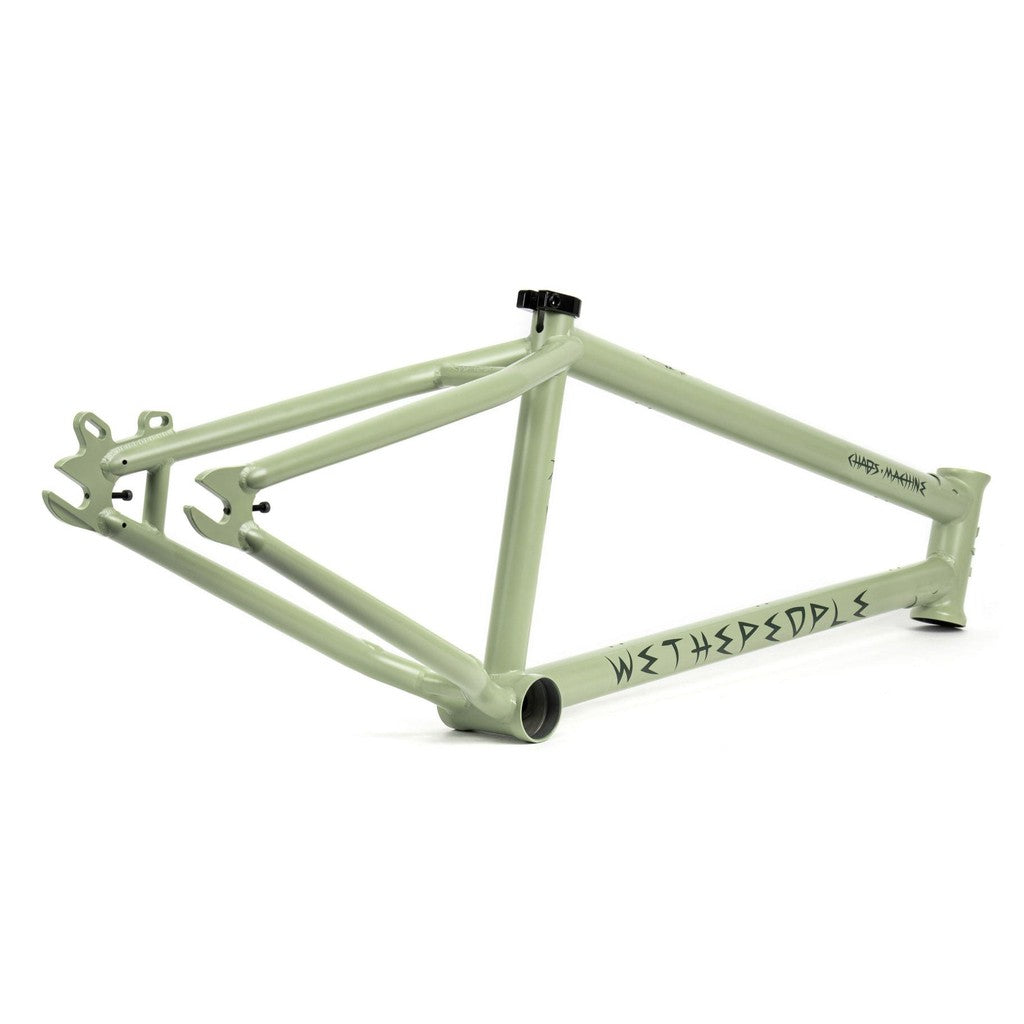

The Wethepeople Chaos Machine 22 Frame (Tyson Jones-Peni Signature) is a light green bicycle frame adorned with black text and graphics, offering an ergonomic design, a 22-inch build, and trail geometry with multiple mounting points.

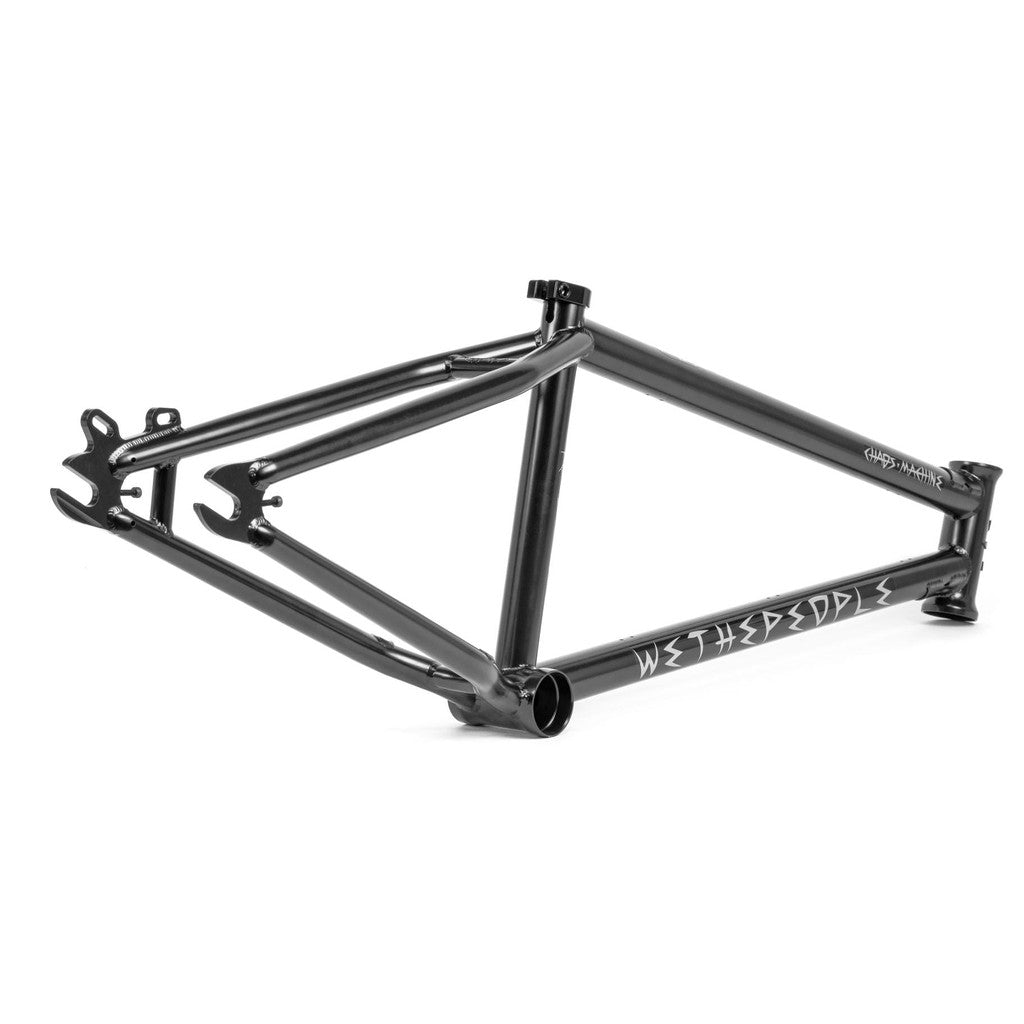

The Wethepeople Chaos Machine 22 Frame (Tyson Jones-Peni Signature) features a matte black finish with unique structural trail geometry and a pristine white logo.

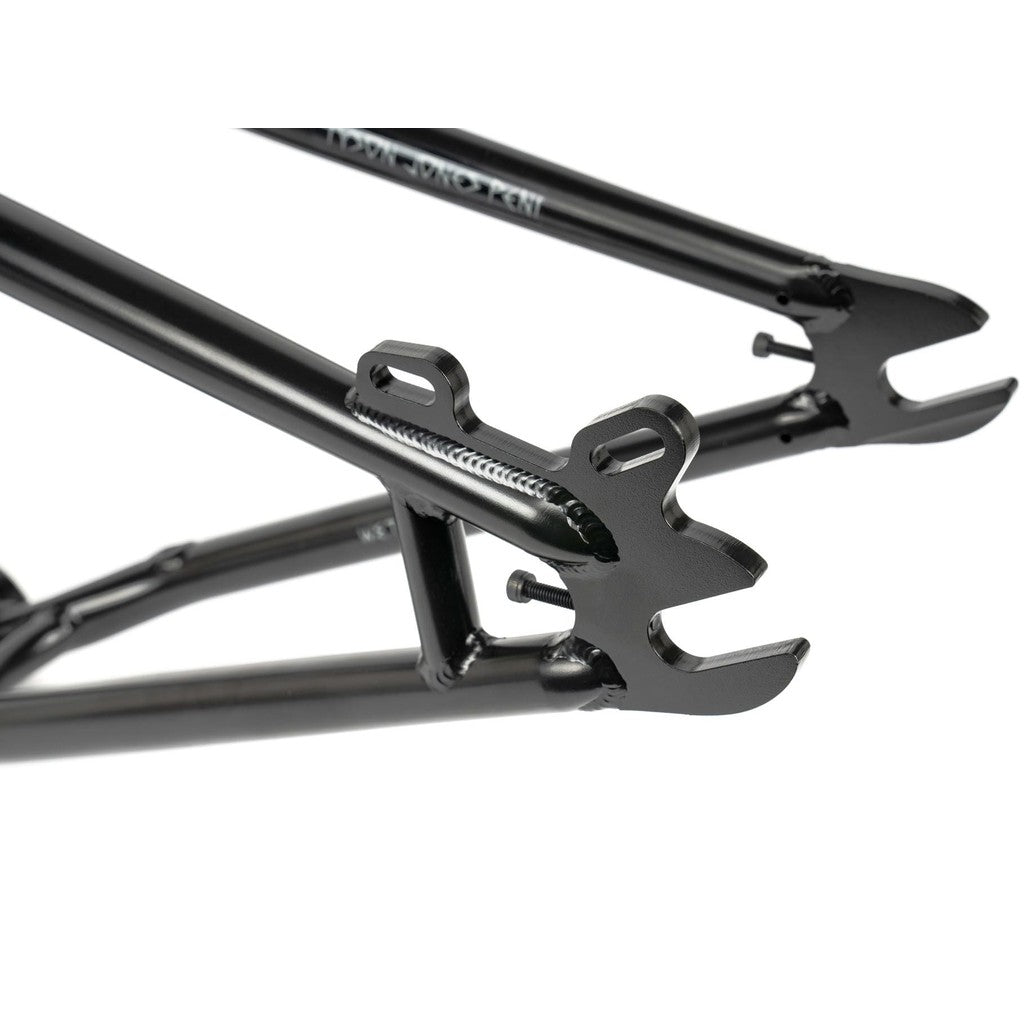

Close-up of the Wethepeople Chaos Machine 22 Frame (Tyson Jones-Peni Signature) showcasing a black metal bicycle frame with detailed focus on the rear dropouts and disc brake mount, highlighting precision in trail geometry design.

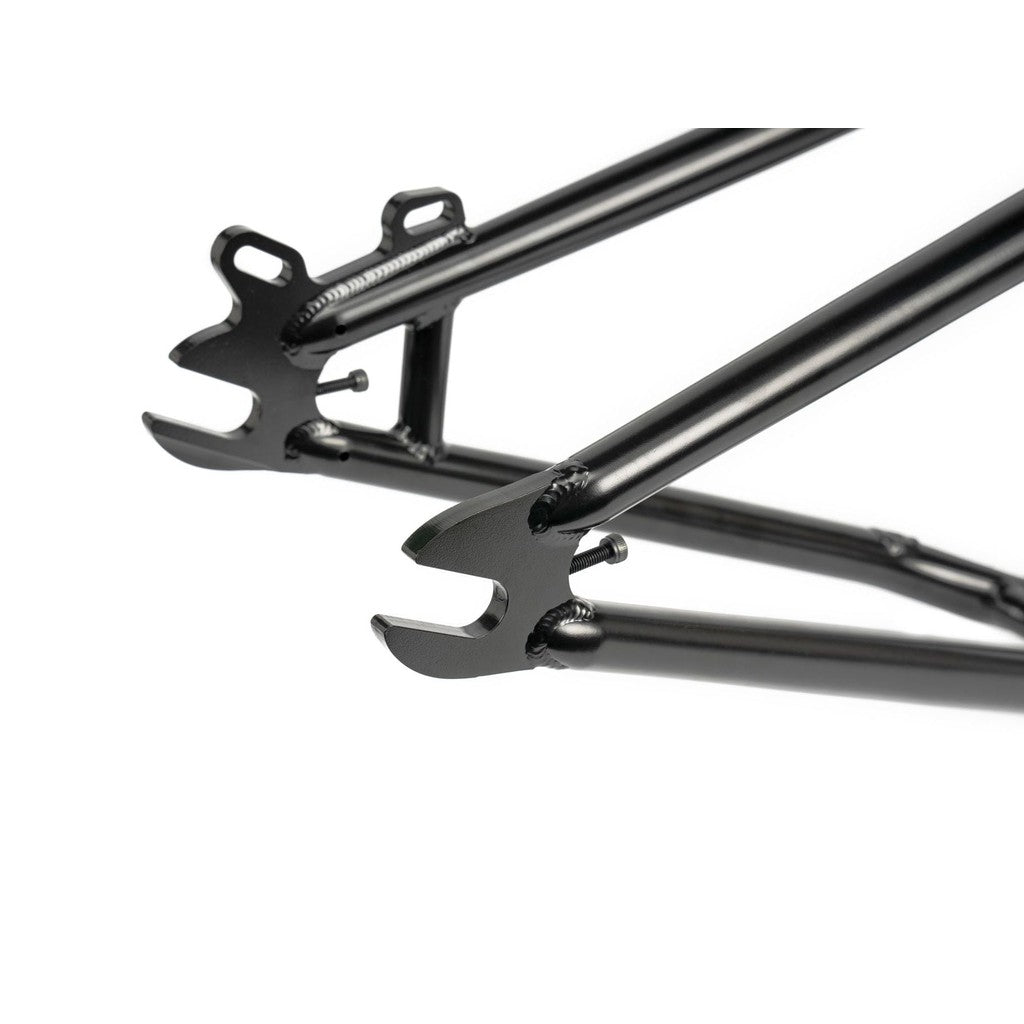

Close-up of the Wethepeople Chaos Machine 22 Frame (Tyson Jones-Peni Signature) in sleek black, showcasing visible dropouts, welds, and a disc brake mount for enhanced performance.

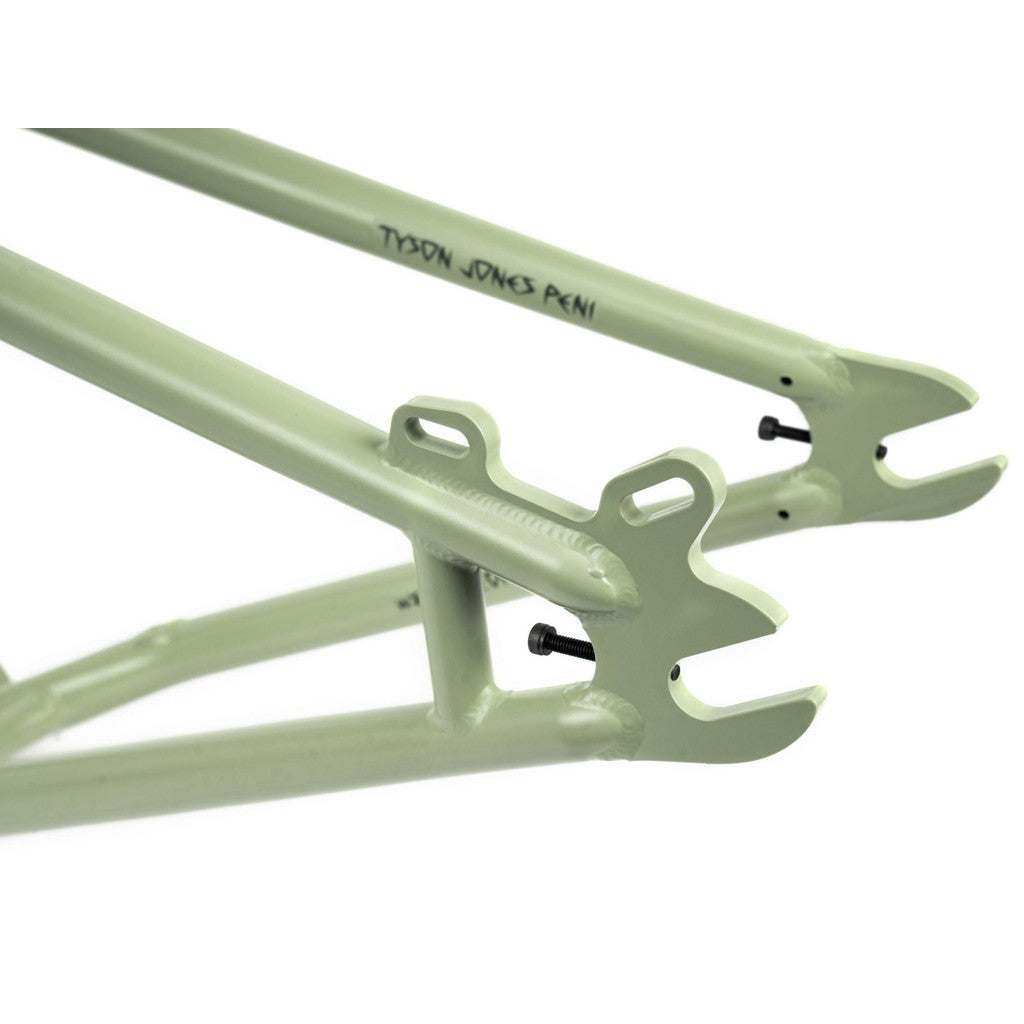

Close-up of the Wethepeople Chaos Machine 22 Frame, featuring a pale green finish with two rear dropouts and screw mounts. The Tyson Jones-Peni signature highlights its long, stable trail geometry, inscribed on the frame.

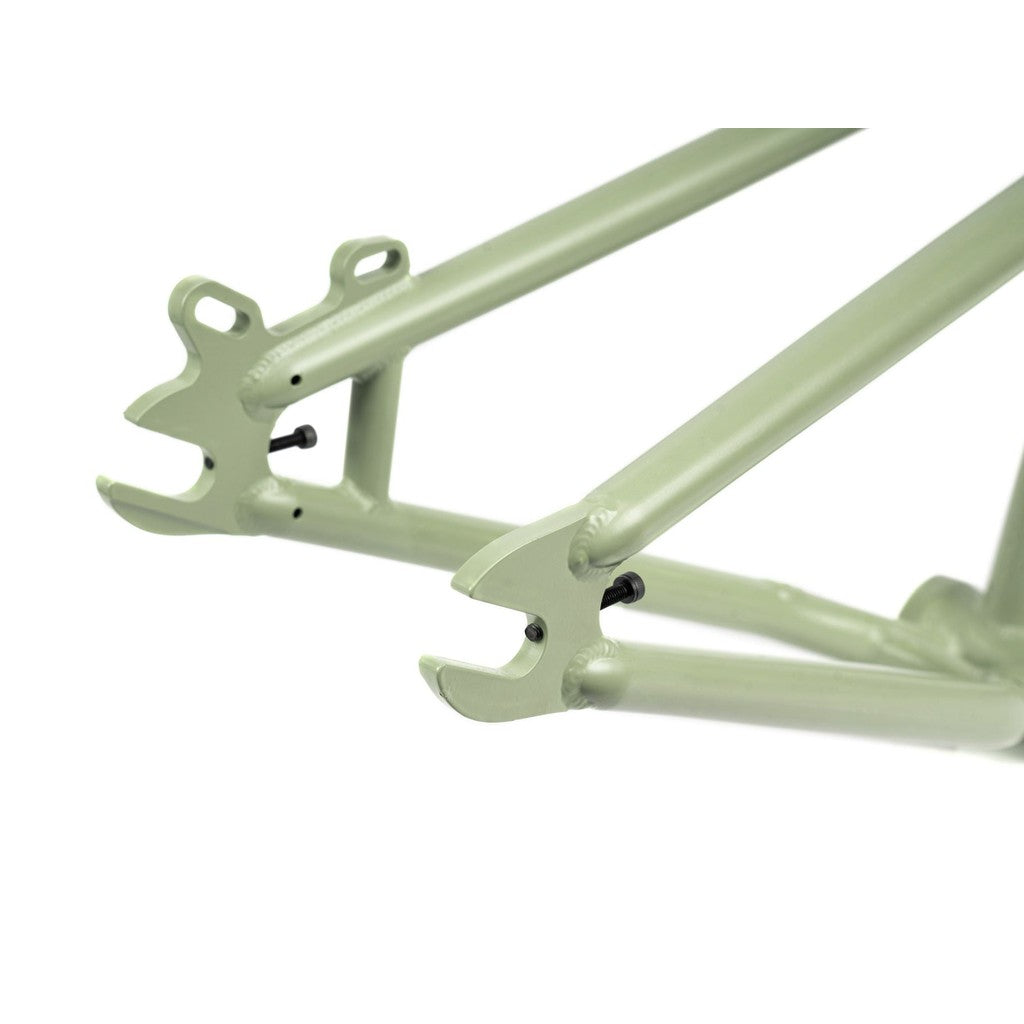

Close-up of a light green Wethepeople Chaos Machine 22 Frame (Tyson Jones-Peni Signature) highlighting the rear dropout area with two attachment points and bolts, ideal for pre-order.

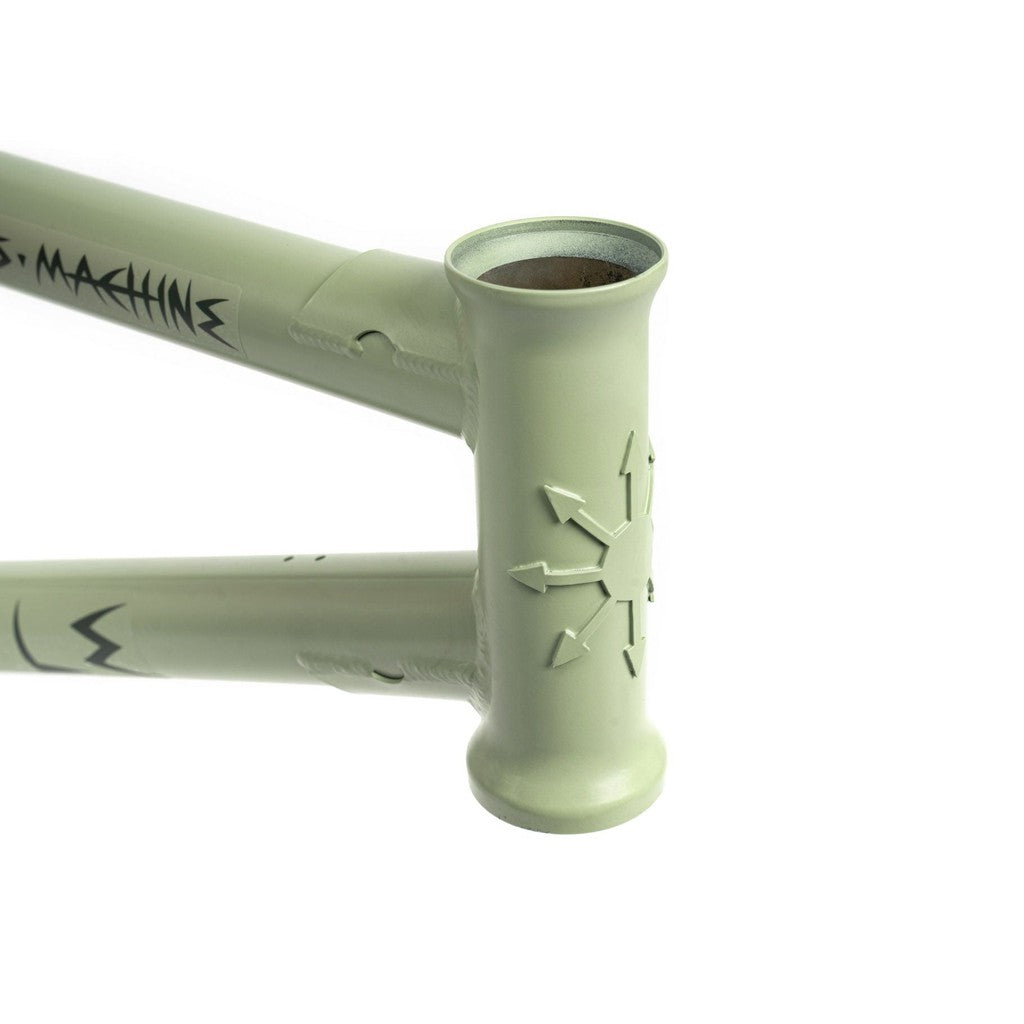

Close-up of a light green Wethepeople Chaos Machine 22 Frame showcasing Tyson Jones-Peni's signature snowflake emblem and black text on the top tube, designed with a long and stable trail geometry.

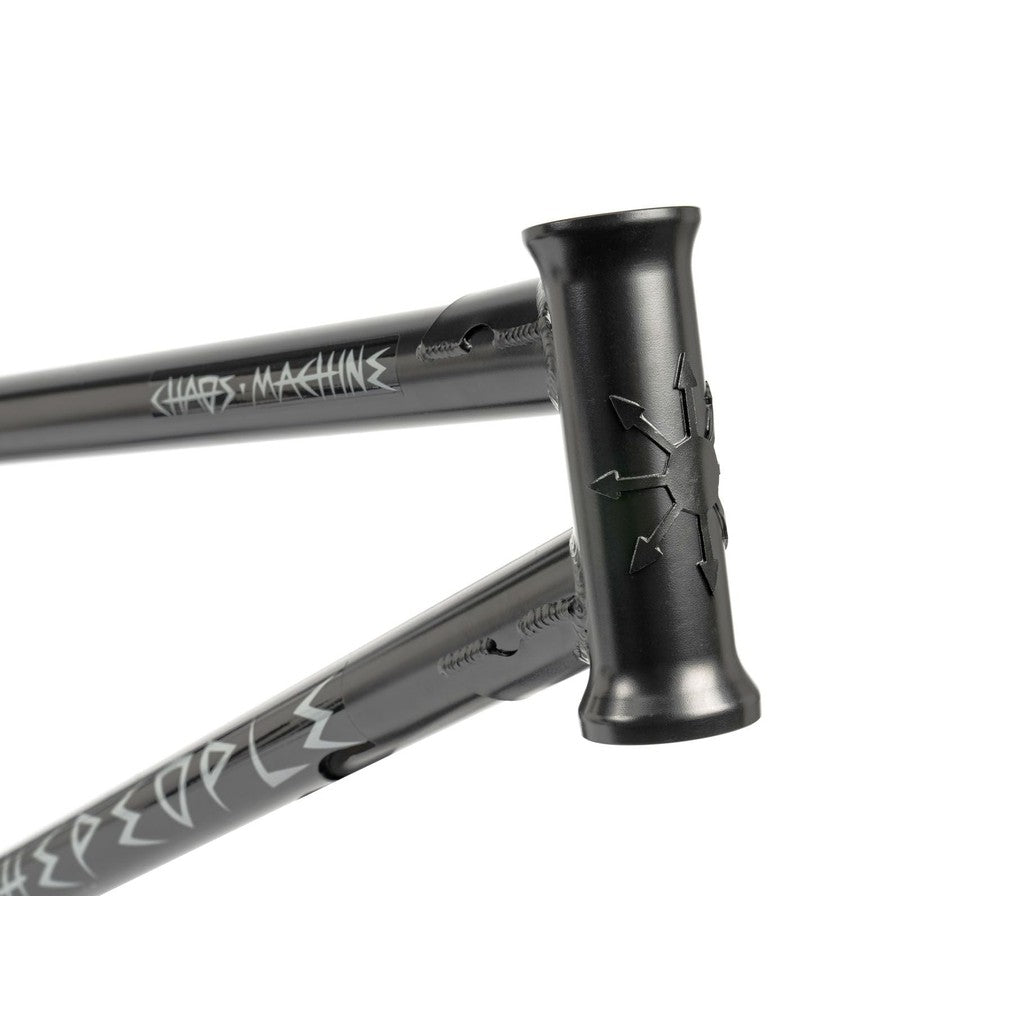

A close-up of the sleek black Wethepeople Chaos Machine 22 frame showcasing its geometric logo and "Chaos Machine" text. This Tyson Jones-Peni signature model is now available for pre-order.

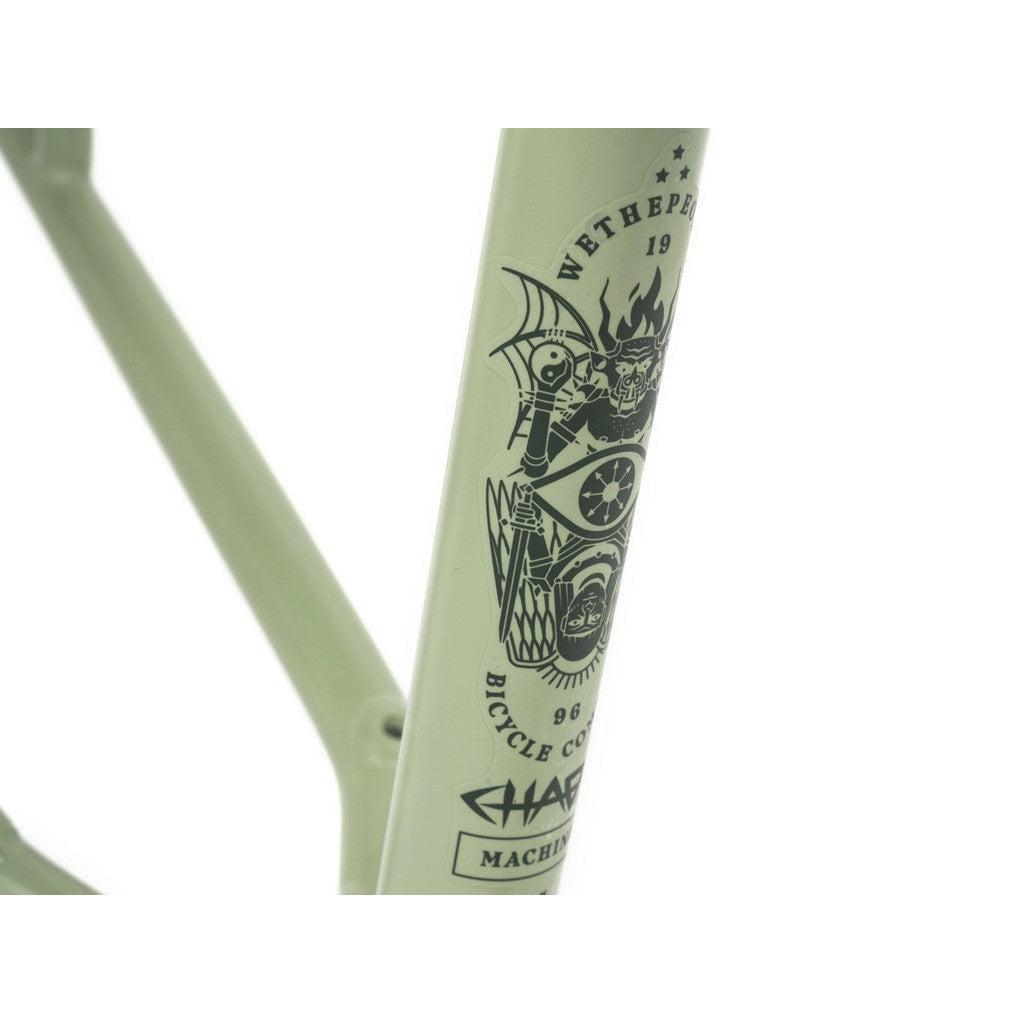

Close-up of the green 22-inch Wethepeople Chaos Machine Frame with black graphics, featuring "Wethepeople" and "Bicycle Co." text. This Tyson Jones-Peni signature model boasts a long and stable trail geometry for enhanced performance.

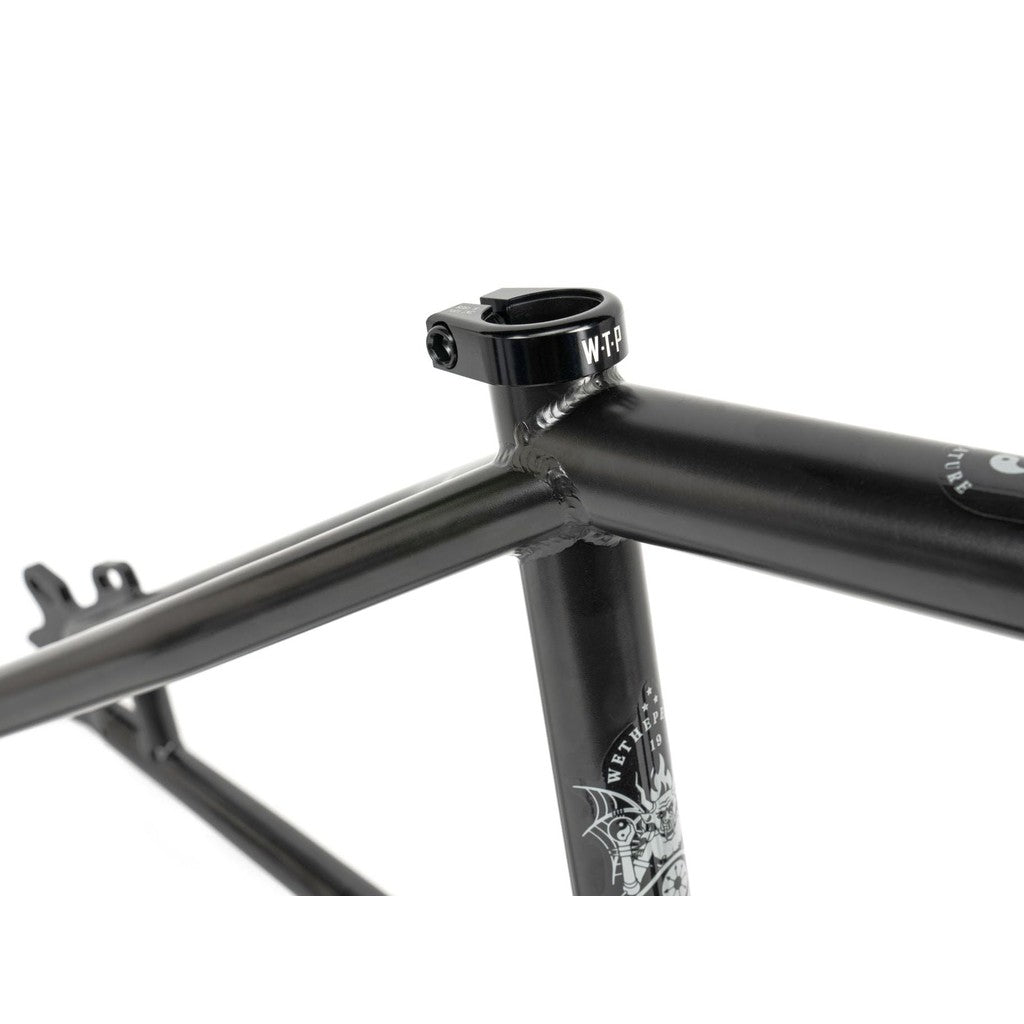

A close-up of the Wethepeople Chaos Machine 22 Frame (Tyson Jones-Peni Signature) highlights the seat post clamp area, showcasing its impressive welds and decals. With a long, stable trail geometry, this masterpiece ensures strength and precision for every ride.

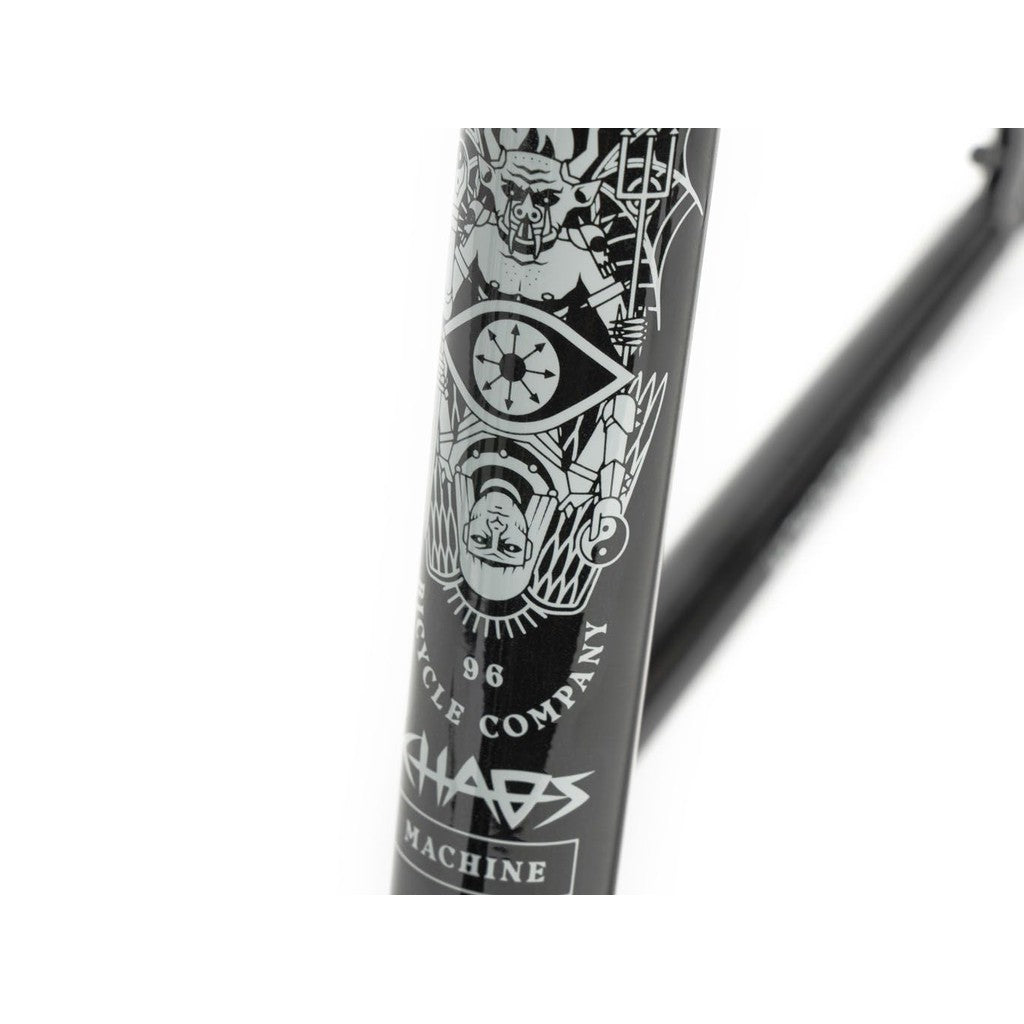

Close-up of the Wethepeople Chaos Machine 22 Frame, featuring monochrome geometric shapes and a stylized face. Labeled "96 Bicycle Company" and "YEAR MACHINE," this Tyson Jones-Peni signature edition is available for pre-order.

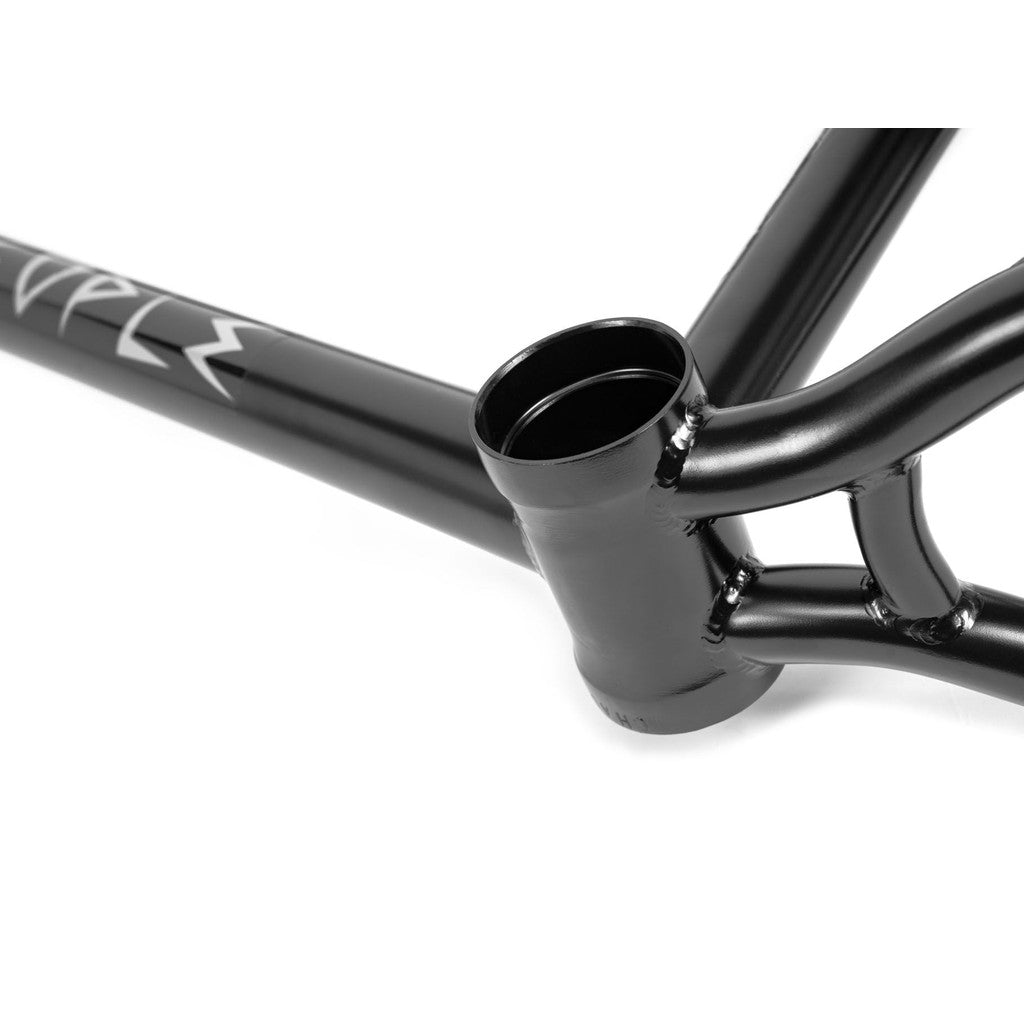

Detailed view of the Wethepeople Chaos Machine 22 Frame (Tyson Jones-Peni Signature) in black, showcasing the frame joint with visible welds, tubing, and a clear disc brake mount.

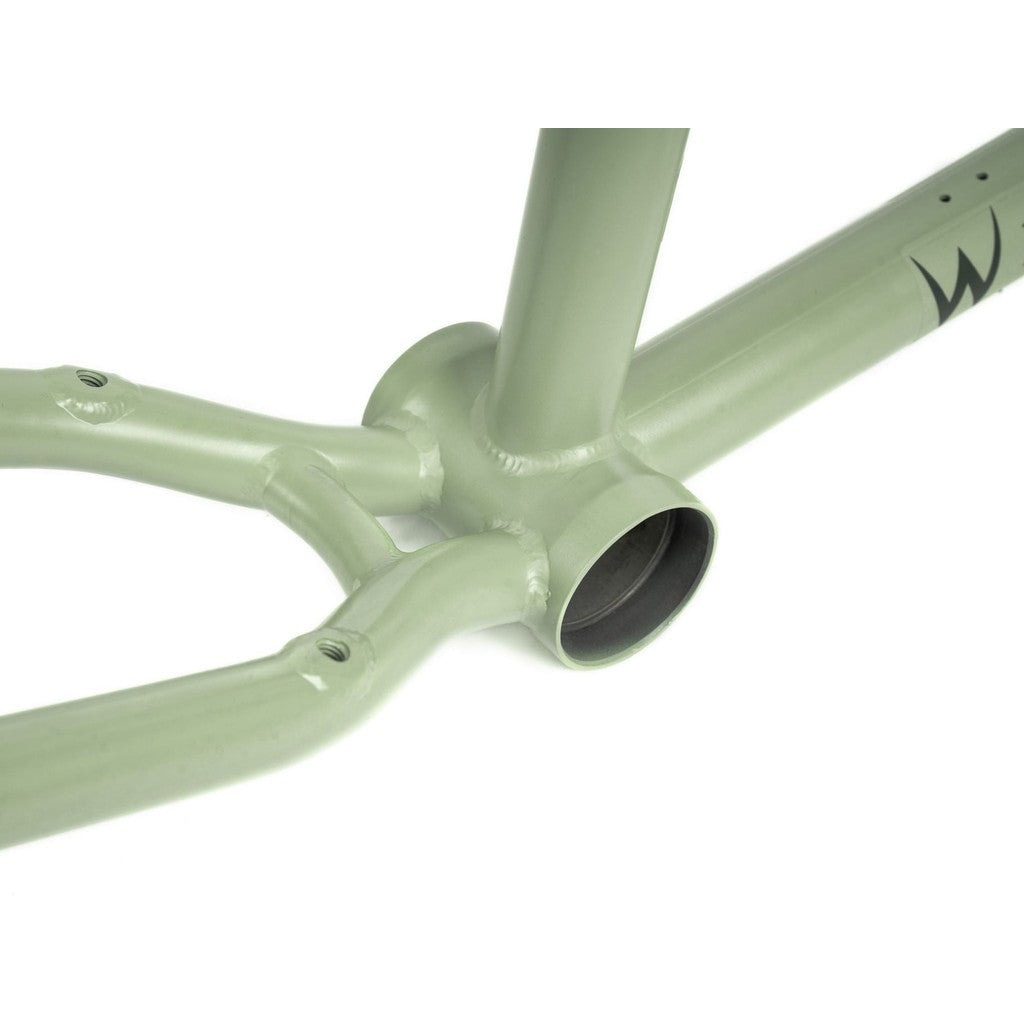

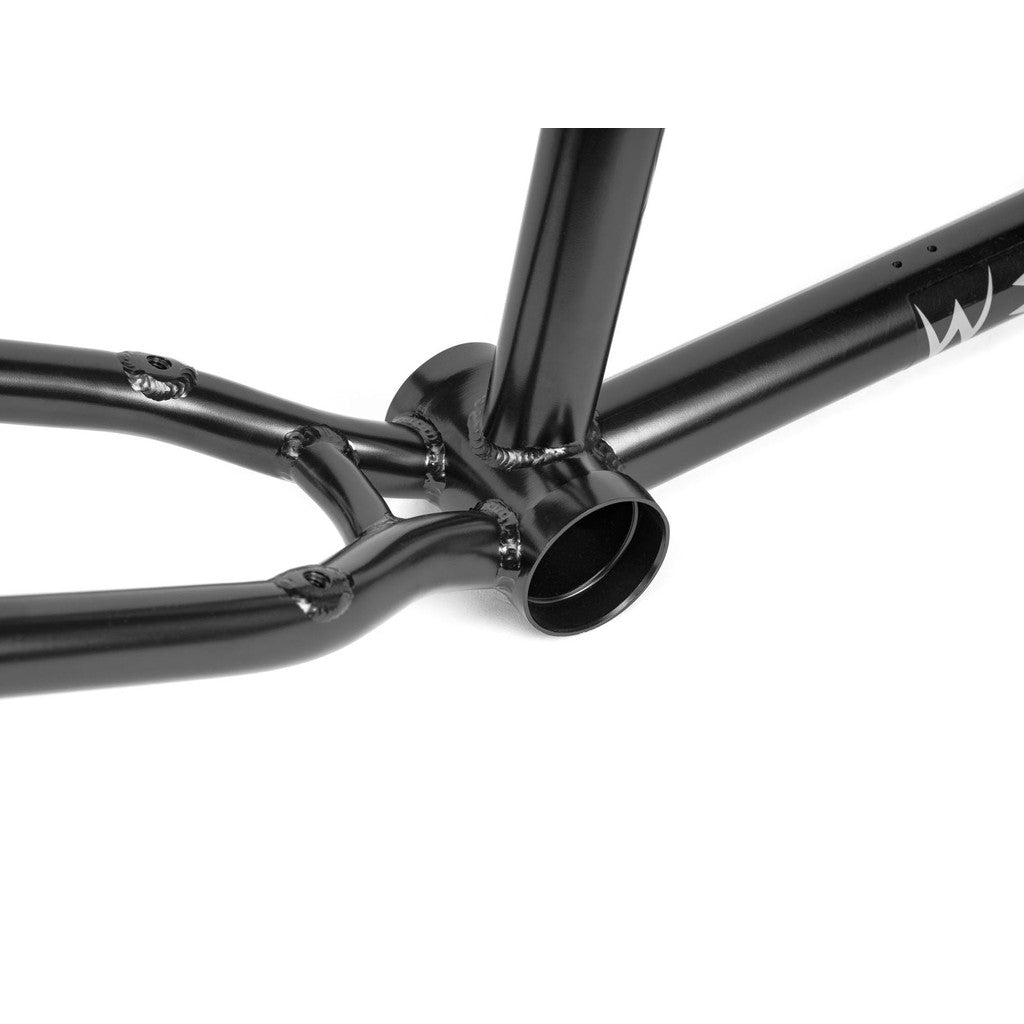

Close-up of the Wethepeople Chaos Machine 22 Frame's bottom bracket area, highlighting its welding details and two tubes connecting to the main frame, showcasing Tyson Jones-Peni Signature trail geometry.
Close-up of the Wethepeople Chaos Machine 22 Frame, highlighting welding details at the bottom bracket and disc brake mount, seamlessly integrated into its trail geometry.

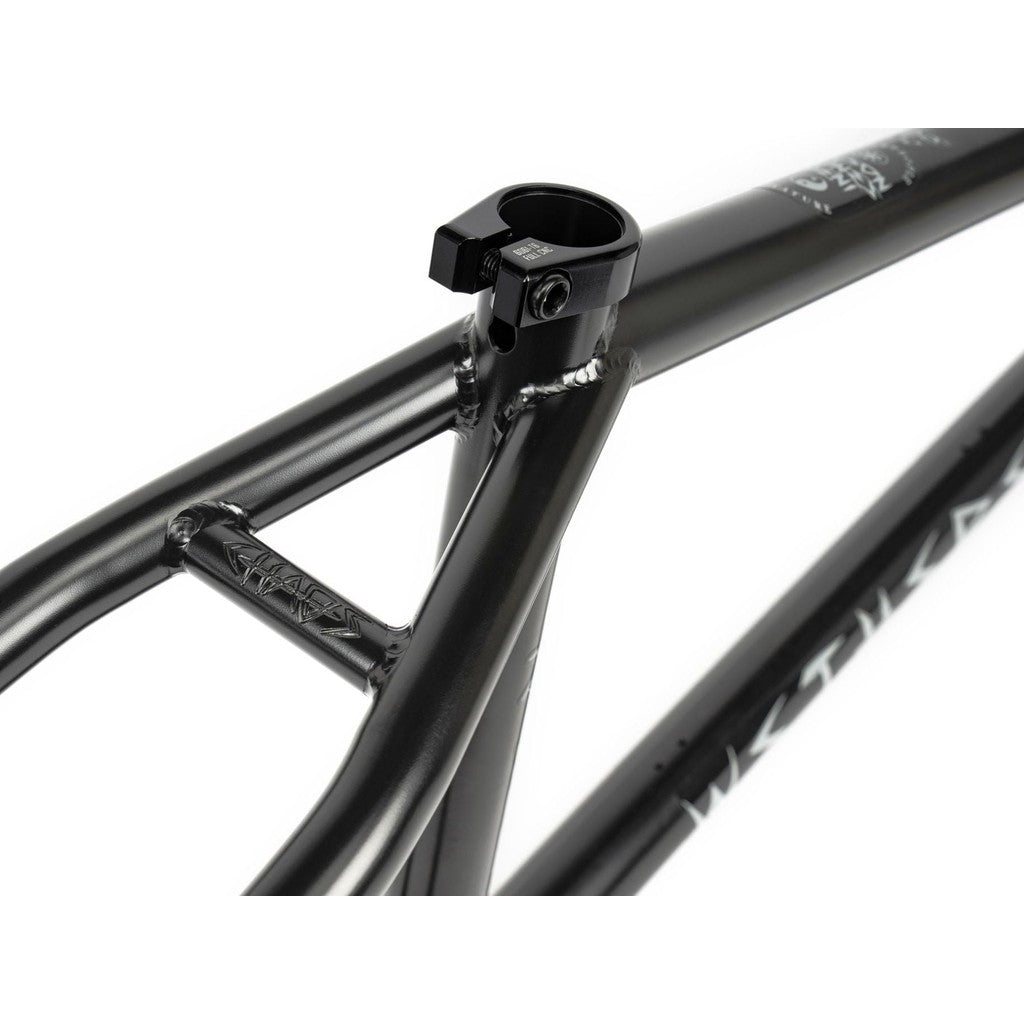

Close-up of the Wethepeople Chaos Machine 22 Frame (Tyson Jones-Peni Signature) in black, showcasing detailed welds, trail geometry, and a seat clamp. This 22-inch frame features a precise disc brake mount for optimal performance.

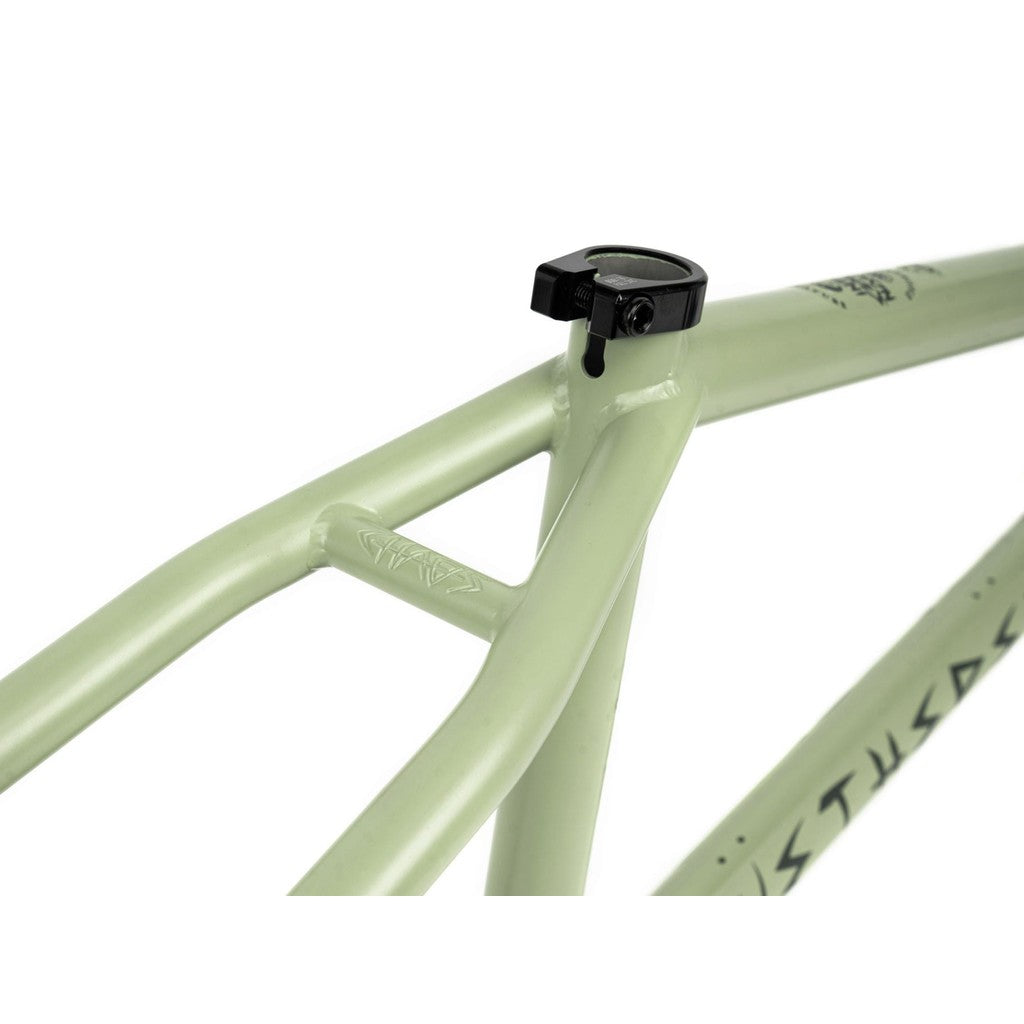

Close-up of the 22-inch Wethepeople Chaos Machine Frame (Tyson Jones-Peni Signature) in light green, featuring a black seat clamp, disc brake mount, angular lines, and minimal decals—ideal for riders seeking trail geometry.
A person stands outdoors beside a Wethepeople Chaos Machine 22 Frame bicycle in front of a dirt ramp and trees, wearing a white graphic t-shirt and black shorts.

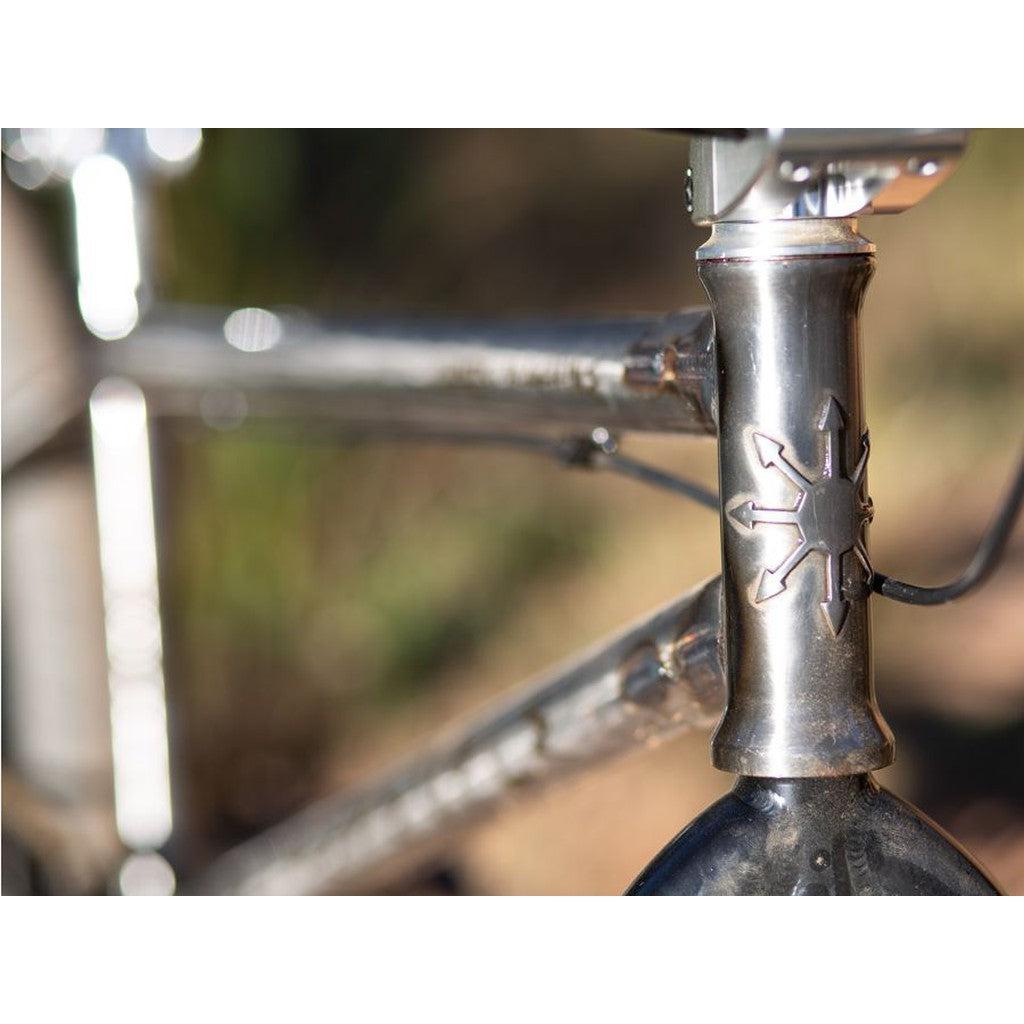

Close-up of the Wethepeople Chaos Machine 22 Frame, showcasing a snowflake design on the front tube and the Tyson Jones-Peni signature for a unique touch.

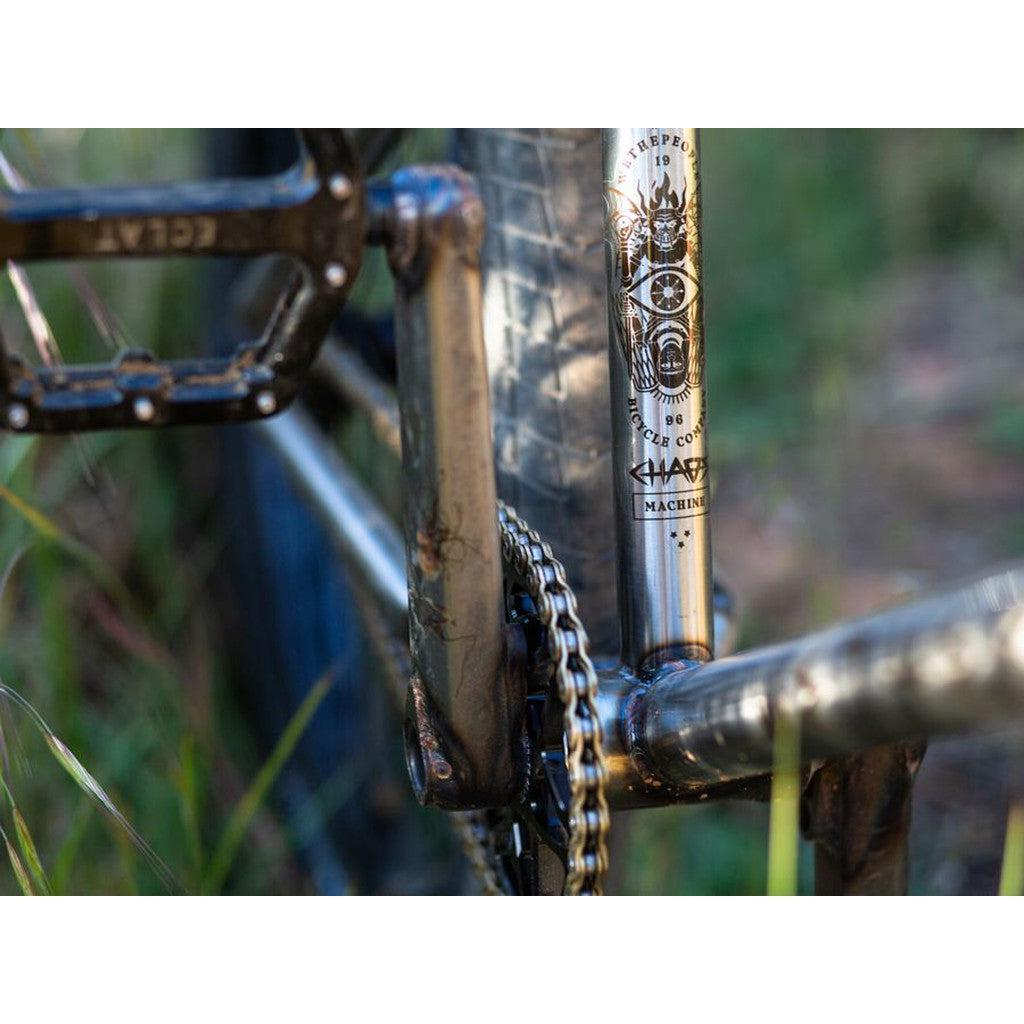

Close-up of a bicycle's pedal, chain, and the Wethepeople Chaos Machine 22 Frame (Tyson Jones-Peni Signature). The bike rests on grass.

Description

Save your back and get your 22 inch build moving with the 22 Inch Chaos Machine frame! Contact us to get an order together with the right brake and wheel hardware.

About the Brand
Wethepeople BMX began making its mark on history almost 15 years ago. Designing the first rough drawings of their frames and forks around the same time as the world started to see BMX in a different light, a time when rails were first grinded and the possibility that riding the streets was in fact the true way forward. To achieve their aims, Wethepeople knows exactly how to deploy their strengths with an efficiency that is unmatched in the BMX industry.

Features
  • Full 22 inch trail geometry. Tyson Jones-Peni's signature frame runs the same chainstay length as the 20" Chaos Machine, so it stays long and stable.
  • Disc mount that moves with you. The unique IS disc mount works in multiple chainstay positions, and a disc brace on the stays adds braking stiffness.
  • Stiffer, stronger back end. Larger radius stay tubing, a CNC machined seat stay bridge and a wider rear triangle with room for a 2.4" tyre.
  • Built to take a beating. Butted Japanese seamless 4130 chromoly, top tube and down tube gussets, and larger 1.8mm welding at the head tube.
  • Fewer spacers up front. The 127mm head tube lets you run an uncut fork with less stack, and a Supreme alloy seat clamp is included.

Specifications
  • Top tube: 22.25"
  • Chainstay: 14" to 14.75", optimised for 14.1", 14.35" and 14.7" with 30-9 gearing
  • Head tube angle: 74.25°
  • Seat tube angle: 71°
  • Standover: 9.75"
  • Bottom bracket height: 12.25"
  • Bottom bracket: Mid, 74mm
  • Tubing: Butted, Japanese seamless 4130 chromoly
  • Dropouts: Minimal size, 6mm CNC machined heat treated chromoly, integrated chain tensioners
  • Brake mounts: IS disc mount for 140mm to 160mm rotors, requires an IS to Post Mount adapter, works in multiple chainstay positions, replacement brake hardware included
  • Head tube: 127mm, CNC machined and heat treated, integrated headset, badge
  • Seat clamp: Wethepeople Supreme alloy, included
  • Peg compatible: No, the minimal dropouts are not suitable for pegs
  • Tyre clearance: 2.4"
  • Wheel size: 22 inch
  • Weight: 2.40kg approx
  • Note: Requires 22 inch forks, wheels and tyres. Includes a lifetime guarantee.

Wethepeople Chaos Machine 22 Frame (Tyson Jones-Peni Signature)

Brand: Wethepeople SKU:

$849.99 AUD

Or 4 payments of $212.49 AUD with

Colour - Black

Top Tube Length - 22.25

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
