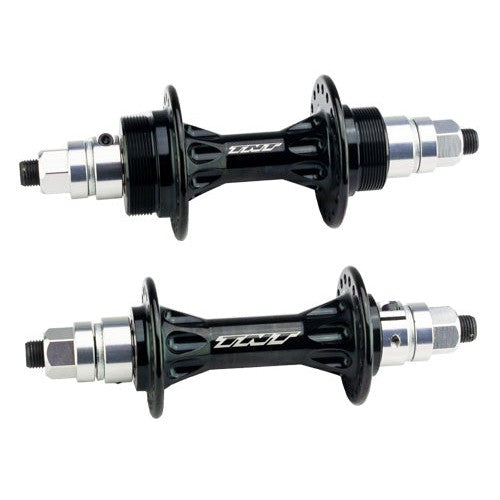

The TNT Derringer low flange hub set is a classic product that has stood the test of time. Originally introduced in the late 1980’s, the Derringer won more races than any
other hub set on the market. Ask almost anybody involved in BMX, and it’s safe to say that 9 out of 10 people most likely owned a set of Derringer hubs at one point in their
racing career. Paired with a high quality freewheel, the Derringer offers an affordable alternative to cassette hubs. To this day the Derringer remains a trusted and
proven product. Some key features include precision sealed bearings, chromoly axle, aluminum bearing collars, aluminum axle nuts, laser etched logo, and flip flop freewheel capability allowing for 13T -22T sizes

Front Hub Details
1. Flange Size = 38mm, (measured from center to center
of spoke hole)
2. Flange Distance = 67mm, (measured from center of
flange to center of flange)
3. Center of Hub to Center of Flange = 33.5mm
4. Axle Length = 150mm (Chromoly Axle) (3/8″ x 26tpi)
5. Hub Spacing = 100mm (to fit between dropouts)
6. Bearings = 2 Sealed

Rear Hub Details
1. Flange Size = 45mm, (measured from center to center
of spoke hole)
2. Flange Distance = 54mm, (measured from center of
flange to center of flange)
3. Center of Hub to Center of Flange = 27mm
4. Axle Length = 160mm (Chromoly Axle) (3/8″ x 26tpi)
5. Hub Spacing = 110mm (to fit between dropouts)
6. Bearings = 2 Sealed
