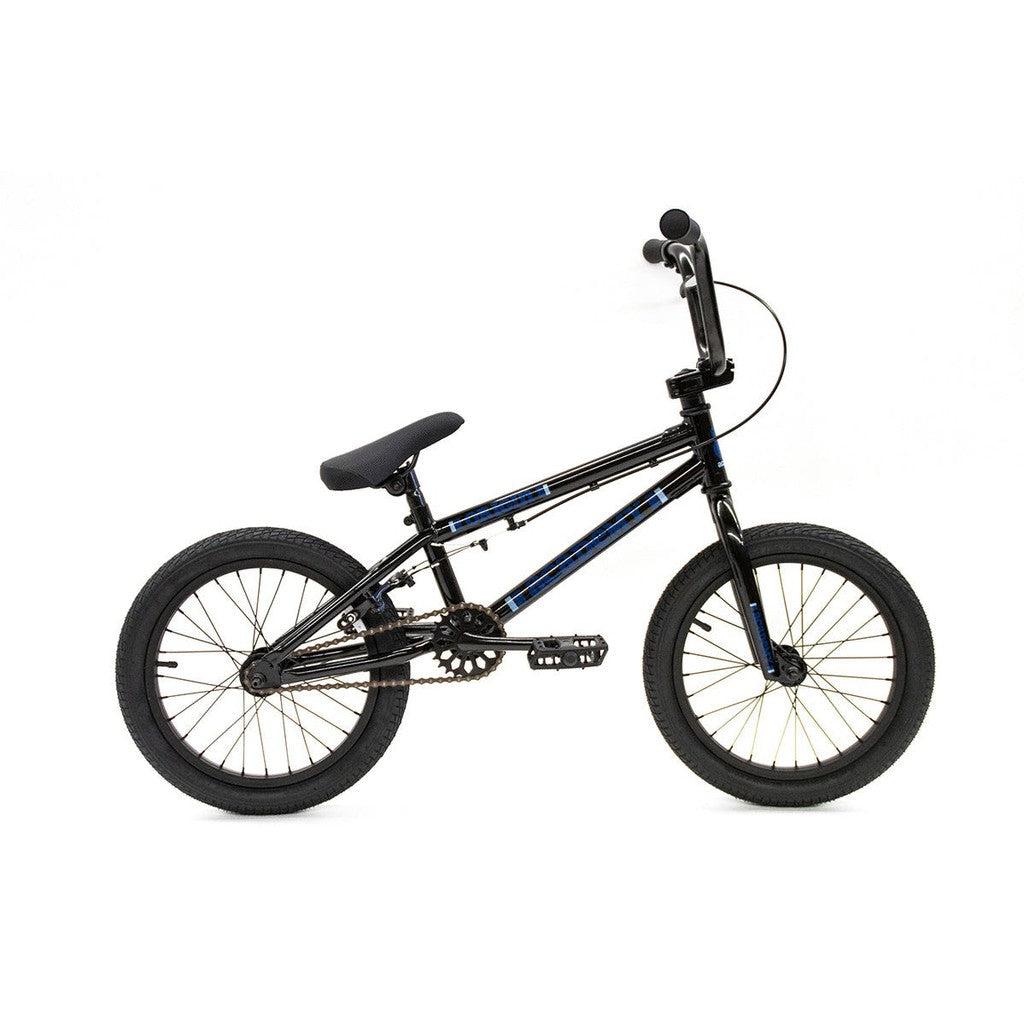

Academy Origin 16 Bike / Gloss Black / 16TT

Description

Academy bikes are specifically designed to offer the price-conscious customer an entry-level complete bike with geometry and specifications typically reserved for pro-level BMX bikes. This gives riders new to BMX a better overall experience right out the gate.

These same design principles have been followed all the way down to Academys 16 Inch Origin Bike. As the younger generation starts riding BMX, they deserve to have a bike that rides as smoothly as their idols, and with a sealed bearing rear cassette hub and 25/9 gear ratio, the Academy Origin sure helps deliver that experience! Did we mention the glossy black and polished features?

Features

Pro geometry for first-timers. Academy builds entry-level completes with the geometry and spec usually reserved for pro-level BMX bikes, so riders new to BMX get a better experience right out of the gate.
Sealed bearing 9T cassette hub. Paired with a 25T sprocket for a 25/9 ratio, the Academy Origin helps your youngest ride as smoothly as their idols.
Sized for small riders. 140mm one-piece cranks, 7.0" rise bars at 23" wide and a forged alloy top load stem keep the reach and the pedal stroke short.
Hi-Ten frame, 16.0" top tube. Hi-Ten steel frame and tapered-leg fork with a 75.0° head angle, 11.25" rear end and 1-1/8" external headset.
Rear U-brake, 40 kg rider limit. Alloy U-brake with a right-hand alloy lever and slick cable, on a bike that is not designed for jumping and has a rider weight limit of 40 kg.

Specifications

Size: 16" wheels, 16.0" top tube
Frame: Academy Origin 16" Hi-Ten, USA BB, external headset
Top tube: 16.0"
Chainstay: 11.25"
Head tube angle: 75.0°
Seat tube angle: 71°
Fork: Academy Origin 16" Hi-Ten, tapered legs
Headset: 1-1/8" external
Stem: Academy forged alloy top load
Bars: Academy Hi-Ten, 7.0" rise, 23" wide
Grips: Academy
Brakes: Rear alloy U-brake, slick cable
Brake lever: Alloy, right hand
Cranks: Academy one-piece Hi-Ten, 140mm
Bottom bracket: USA loose ball
Sprocket: Academy 25T
Chain: KMC
Pedals: Plastic
Front hub: Academy alloy, loose ball, 10mm axle
Rear hub: Academy alloy, sealed bearing cassette, 9T driver, 10mm axle
Spokes: Black
Rims: Alloy single wall, 36H
Tyres: 16" x 1.75"/2.1" (tyres vary per production run)
Seat: Academy railed
Seat post: Steel
Gearing: 25/9
Weight: 10.5 kg
Note: Not designed for jumping. Rider weight limit 40 kg.

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Academy Origin 16 Inch Bike

Name: Academy Origin 16 Inch Bike
Brand: Academy
SKU: ACXB23023E1
Price: 499.99 AUD
Availability: OutOfStock

Brand: Academy SKU: Click to copy the SKU and show the pick location

$499.99 AUD

Or 4 payments of $124.99 AUD with

Recommended Rider Height:

96-122cm

Colour - Gloss Black

Top Tube Length - 16

A 16 inch bike suits a rider of about 96 to 122cm, usually 4 to 7 years old, on a 16 to 16.5 inch top tube. It is the size most kids learn to ride properly on.

Rider height	Wheel size	Top tube
60 to 91cm	12"	12 to 12.5"
81 to 106cm	14"	14 to 14.5"
96 to 122cm	16"	16 to 16.5"
122 to 147cm	18"	18 to 18.5"
147 to 157cm	20"	19.75 to 20.25"
157 to 168cm	20"	20 to 20.5"
168 to 175cm	20"	20.25 to 20.75"
175 to 183cm	20"	20.5 to 21"
183 to 190cm and up	20"	20.75 to 21.5"
160cm and up	22"	21 to 22.25"
160cm and up	24"	21.75 to 22"
160cm and up	26"	22 to 23"

Sizes overlap on purpose, so personal preference comes into it. At this wheel size the top tube barely changes the fit: go by height, and check they can stand over the bike flat footed.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Between two wheel sizes? Go up. Kids grow into a bike far faster than they grow out of the fun.
They should be able to stand over the top tube with both feet flat on the ground.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
