The Alienation 440 20 Inch Rim is perfect for intermediate jump enthusiasts, featuring multiple drill holes and a striking red logo. Made from top-notch race material, it ensures durability and includes a black geometric logo in the upper left corner.
The Alienation 440 20 Inch Rim, made from durable 6061 T6 aluminum with multiple spoke holes, stands vertically against a white background. A black geometric symbol on the top left suggests its suitability for intermediate jumps or races.
The Alienation 440 20 Inch Rim is a red bicycle rim made from 6061 T6 aluminum, featuring circular holes and a striking graphic design on a white background. Ideal for race enthusiasts, it showcases the logo elegantly in the top left corner.

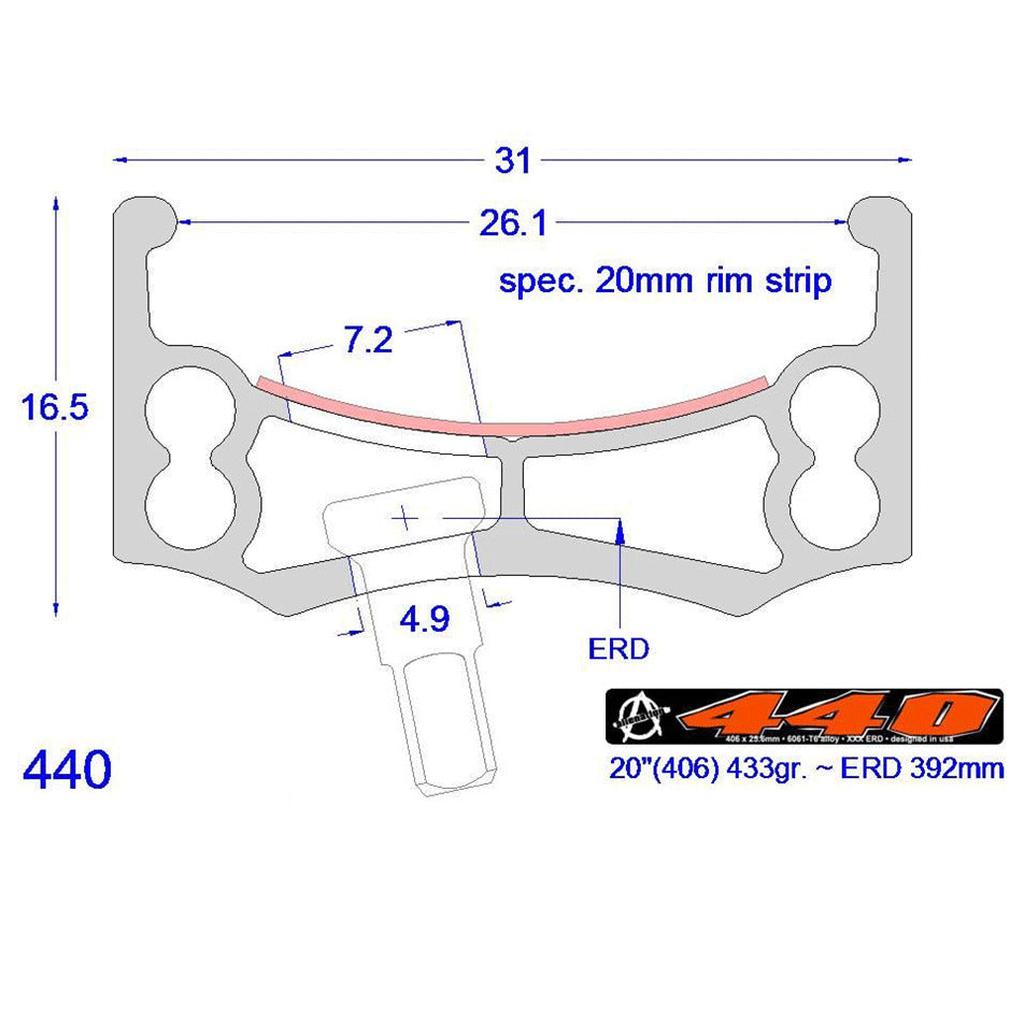

The Alienation 440 20 Inch Rim features a technical cross-section diagram, made from 6061 T6 alloy, perfect for racing. It includes labeled dimensions: 31mm width, 16.5mm height, with specifics at 7.2mm and 4.9mm, an ERD of 392mm, and a logo displaying "440" for riders tackling intermediate jumps.
Caution: Alienation 440 20 Inch Rim features a unique center cross lace pattern made of race material, reducing wheel deflection.

Description

A 20 inch double wall rim from Alienation, built in 6061 T6 with a pinned joint and a CNC machined sidewall. The 406 diameter suits standard 20 inch BMX wheels and it takes an AV valve.

It weighs 440g with an ERD of 393, and Alienation rate it for intermediate jump and race use. Note that it is cross lacing only, so plan your spoke lengths and lacing pattern accordingly.

Features
  • Double wall 6061 T6. Two walls of 6061 T6 give the rim the stiffness to hold true through jump landings.
  • 440g on the scales. Light for a double wall rim, so the wheel spins up quicker out of the gate.
  • CNC machined sidewall. The sidewall is machined flat and true, which gives rim brakes a consistent surface to bite.
  • Rated for jump and race. Alienation pitch it at intermediate jump and race riding, so it suits trails and track rather than street abuse.
  • Cross lacing only. It has to be laced cross pattern, so do not plan a radial build around this rim.

Specifications
  • Wheel size: 406 (20")
  • Material: 6061 T6, double wall, pinned joint
  • Brake surface: CNC machined sidewall
  • Valve: AV
  • Weight: 440g
  • Note: Cross lacing only. ERD 393. Use: intermediate jump, race.

Alienation 440 20 Inch Rim

Brand: Alienation BMX SKU:

$89.99 AUD

Or 4 payments of $22.49 AUD with

Colour - Blue

Spoke Holes - 36 Hole

$89.99 AUD
