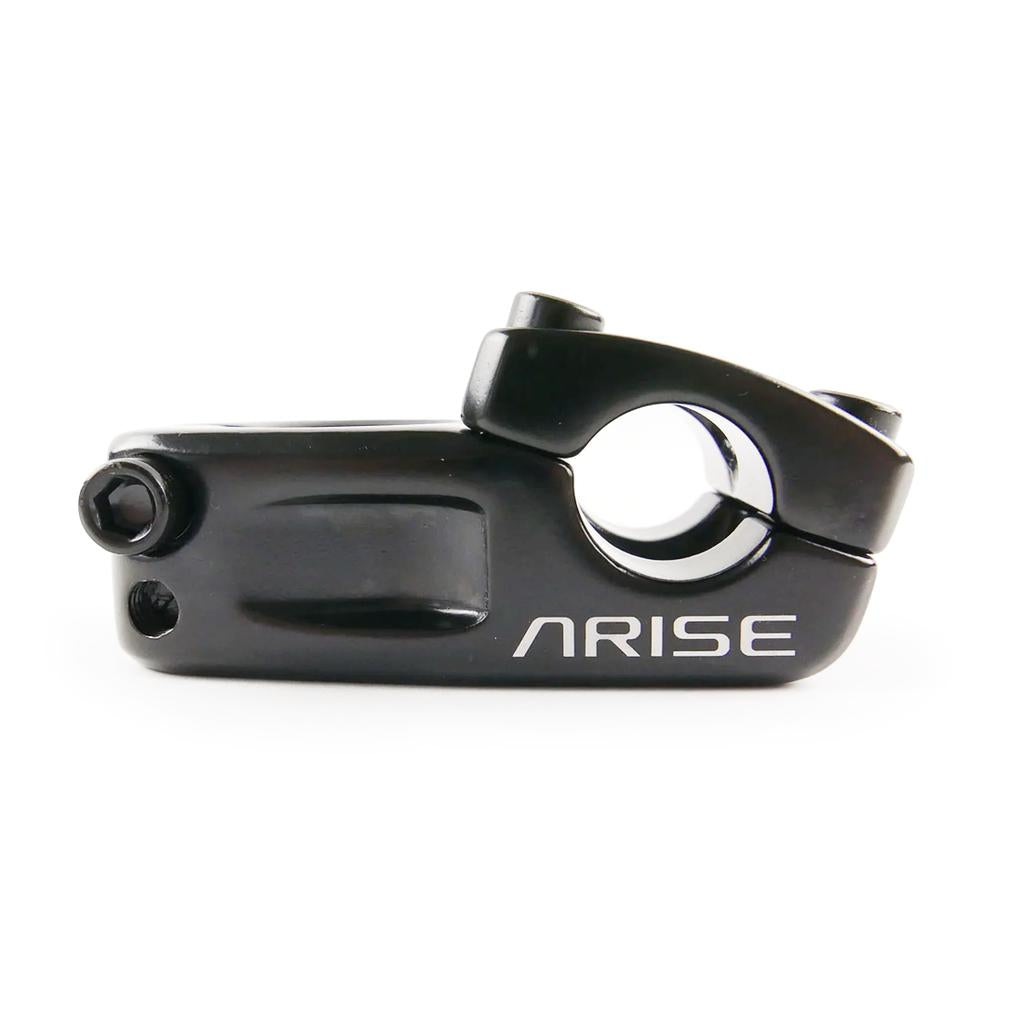

The Arise Cobalt Junior Top Load Stem is crafted from 6061-T6 alloy, features "ARISE" printed on its black side, a cylindrical handlebar opening, 40mm reach, and a secure bolt.

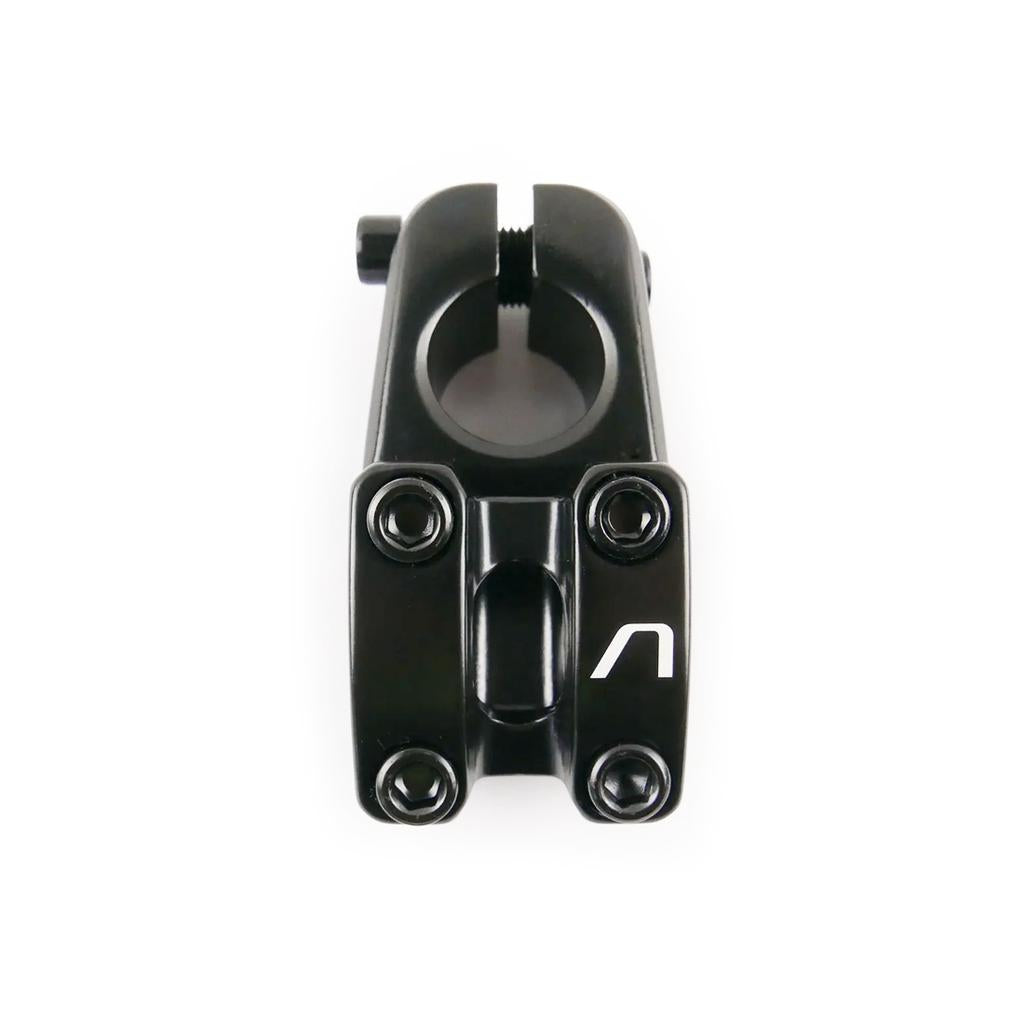

The Arise Cobalt Junior Top Load Stem offers a 40mm reach, four bolt holes, and a sleek black finish. The central clamp showcases a stylized white logo on a plain white background, combining durability with style for mini juniors.
The Arise Cobalt Junior Top Load Stem, featuring "70mm reach, 23mm rise" text, is displayed from above on a white background.

Description

The Arise Cobalt Junior is a top load stem built for mini and junior bikes. The shorter 40mm reach keeps the bars in the right place for the youngest riders, and the cut away stem cap brings the weight down to 250g.

The body is cast 6061-T6 alloy with a forged cap, it clamps 22.2mm bars and it comes with chromoly bolts. Note that it suits 1" steerer tube forks only, so check your forks before ordering.

Features
  • 40mm reach for juniors. The short 40mm reach pulls the bars back to where a mini or junior rider can actually control them.
  • For 1" steerer forks only. This is a 1" clamp-on stem, so it will not suit forks with a 1 1/8" steerer tube.
  • Weight saving cap detail. The custom faceplate takes material out where it is not needed, bringing the stem in at 250g.
  • 6061-T6 alloy. A cast 6061-T6 body with a forged cap keeps it strong without adding bulk to a small build.
  • Chromoly bolts included. It ships with M8 x 11mm chromoly bolts, four at 20mm and two at 25mm.

Specifications
  • Fits: 1" steerer tube forks only
  • Rise: 23mm
  • Clamp diameter: 22.2mm
  • Steerer: 1" clamp-on
  • Reach: 40mm
  • Stack height: 30mm
  • Material: 6061-T6 alloy, cast body, forged cap
  • Included: M8 x 20mm (x4) / 25mm (x2) x 11mm chromoly bolts
  • Weight: 250g
  • Colour: Black
  • Note: Cap is 45mm wide.

Arise Cobalt Junior Top Load Stem

Brand: Arise SKU:

$59.99 AUD

Or 4 payments of $14.99 AUD with

Colour - Black

Length - 40mm

$59.99 AUD
