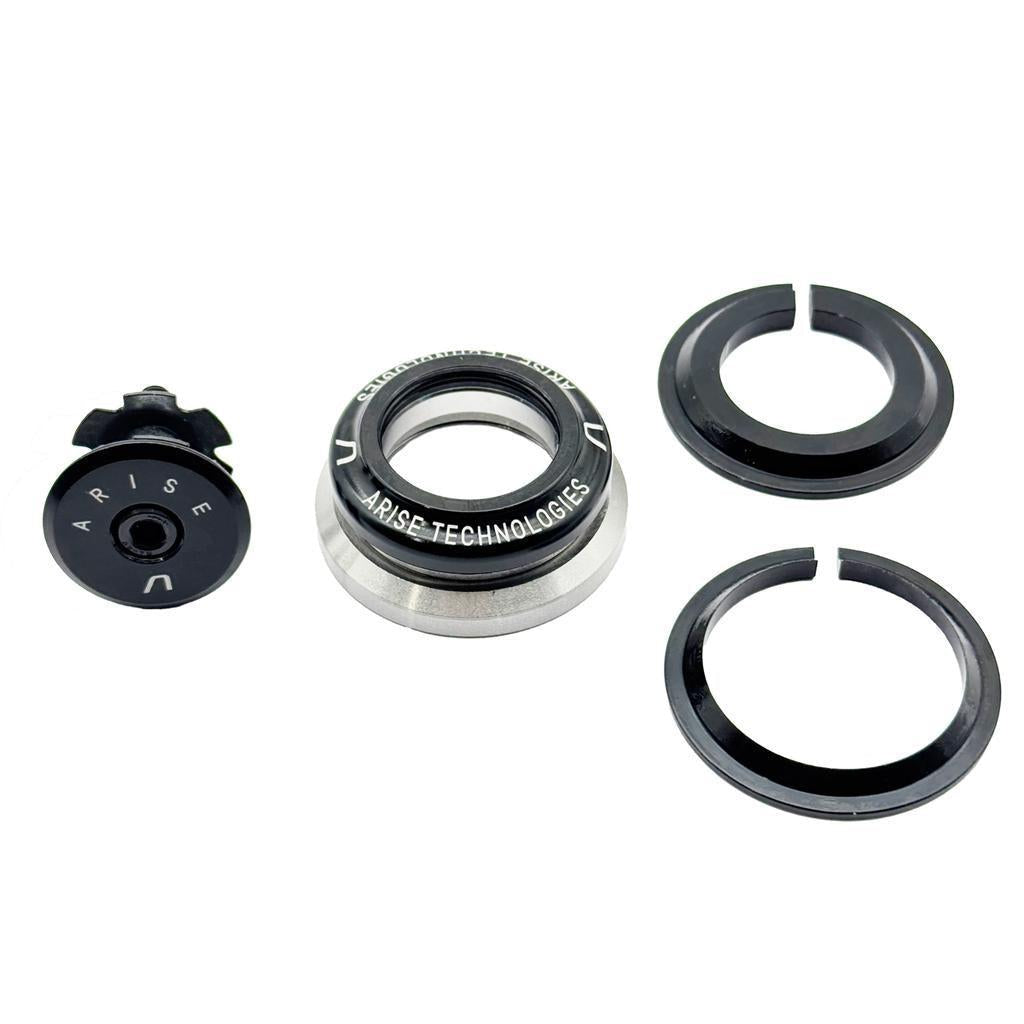

Introducing the Arise Crystal Integrated Headset Tapered 1-1/8 - 1.5 Inch: Bicycle components with integrated headset elements such as bearings, spacers, and a top cap featuring "Arise Technologies" on a pristine white background. Enjoy smooth performance with stainless steel sealed bearings for longevity.
Close-up of a CNC machined Arise Crystal Integrated Headset, featuring a rainbow-colored top half and silver bottom half, with a visible axle and high-precision bearings.

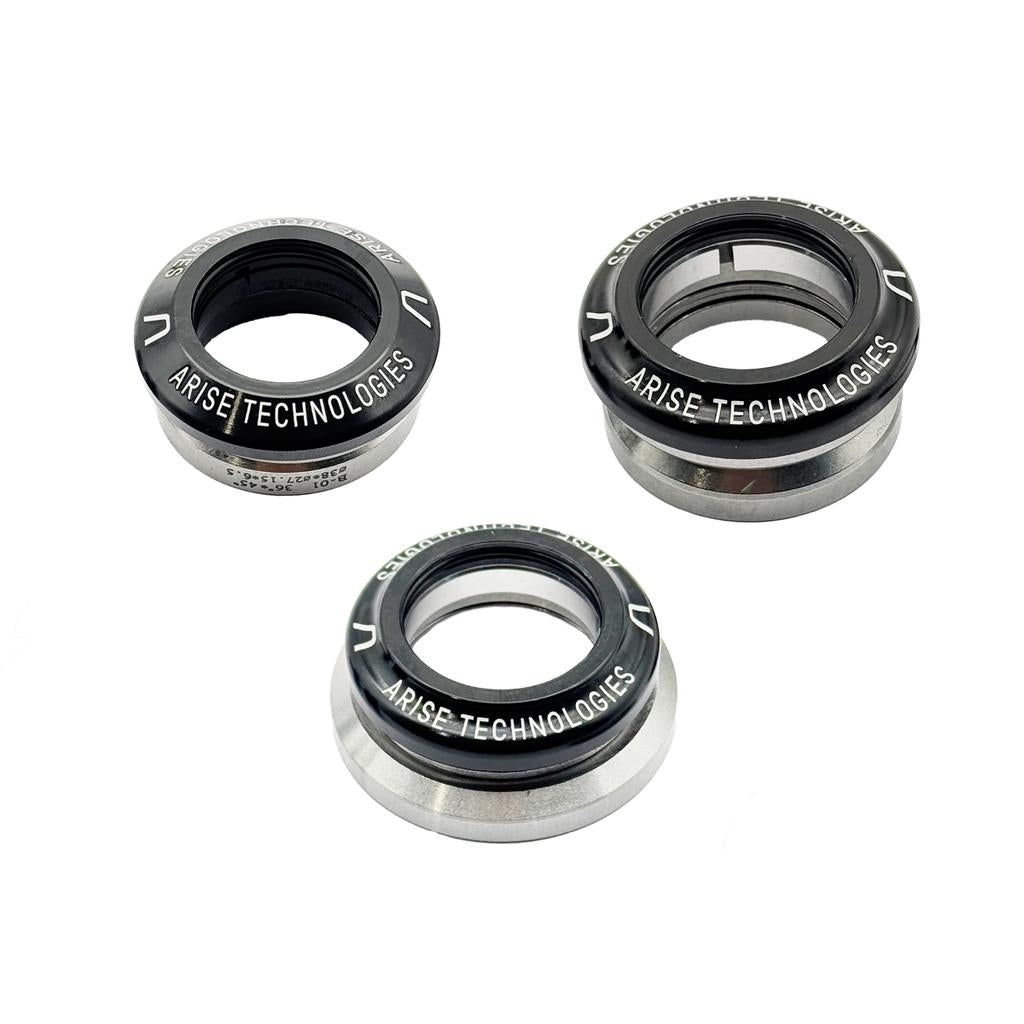

Three CNC-machined metal components labeled "Arise Technologies" on a white background, featuring the Arise Crystal Integrated Headset Tapered 1-1/8 - 1.5 Inch.

Description

This is the tapered Arise Crystal, made for a 1 1/8 inch to 1.5 inch head tube. It runs a 41.8 x 30.5 x 8mm bearing up top and a 50.9 x 40 x 8mm bearing down below, both at 45/45 degrees, with 30mm and 39.8mm inside diameter crown races.

The bearings are high end stainless steel and sealed, so the steering stays smooth and the weather stays out. The kit weighs 120g and comes with the exclusive Arise top cap, CNC machined from 6061-T6 alloy and colour matched to the Arise bottom bracket kits.

Features
  • Fits tapered head tubes. Made for a 1 1/8 inch to 1.5 inch tapered head tube, so check your frame before ordering.
  • Two crown races supplied. 30mm and 39.8mm inside diameter crown races cover the top and bottom of a tapered steerer.
  • Sealed stainless steel bearings. 41.8 x 30.5 x 8mm up top and 50.9 x 40 x 8mm below, both 45/45 degree and sealed against grit.
  • 120 grams complete. The full tapered kit comes in at 120g, or 4.2oz, top cap included.
  • CNC top cap included. Supplied with the exclusive Arise top cap in 6061-T6 alloy, colour matched to the Arise BB kits.

Specifications
  • Fits: 1 1/8" to 1.5" tapered head tubes
  • Material: 6061-T6 alloy CNC machined top cap, stainless steel sealed bearings
  • Bearings: 41.8 x 30.5 x 8mm and 50.9 x 40 x 8mm, 45/45 degree
  • Headset type: Integrated, race spec
  • Included: Arise top cap
  • Weight: 120g (4.2oz)
  • Note: 30mm and 39.8mm ID crown races.

Arise Crystal Integrated Headset Tapered 1-1/8 - 1.5 Inch

Brand: Arise SKU:

$89.99 AUD

Or 4 payments of $22.49 AUD with

Colour - Black

$89.99 AUD

Price match request

Arise Crystal Integrated Headset Tapered 1-1/8 - 1.5 Inch - Black

$12.99 flat-rate shipping Australia-wide

Express from $21.99

Free in-store pickup - Brisbane

Availability

Black
Oil Slick
Polished
Red

● In stock at LUXBMX ● With supplier ● Preorder ○ Sold out
