Close-up of a CNC machined Arise Echo Cog (Alloy) sprocket made from 7075-T6 Aluminium, featuring multiple teeth. Engraved details include specifications and prominently display the Shimano HyperGlide brand name.

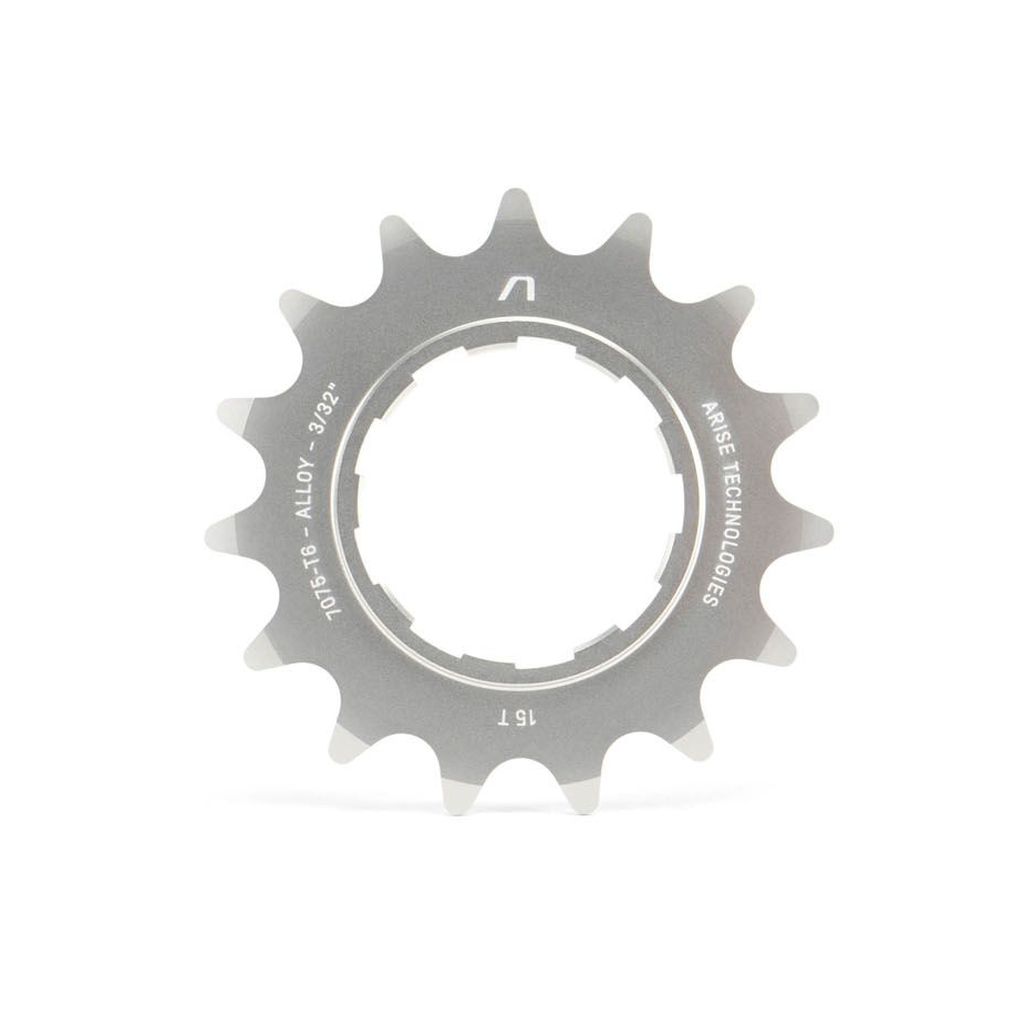

The Arise Echo Cog (Alloy) is a silver 15T bicycle sprocket, CNC machined from durable 7075-T6 Aluminium, featuring engraved text like "ALLOY" and "ARISE TECHNOLOGIES," and is compatible with Shimano HyperGlide systems.

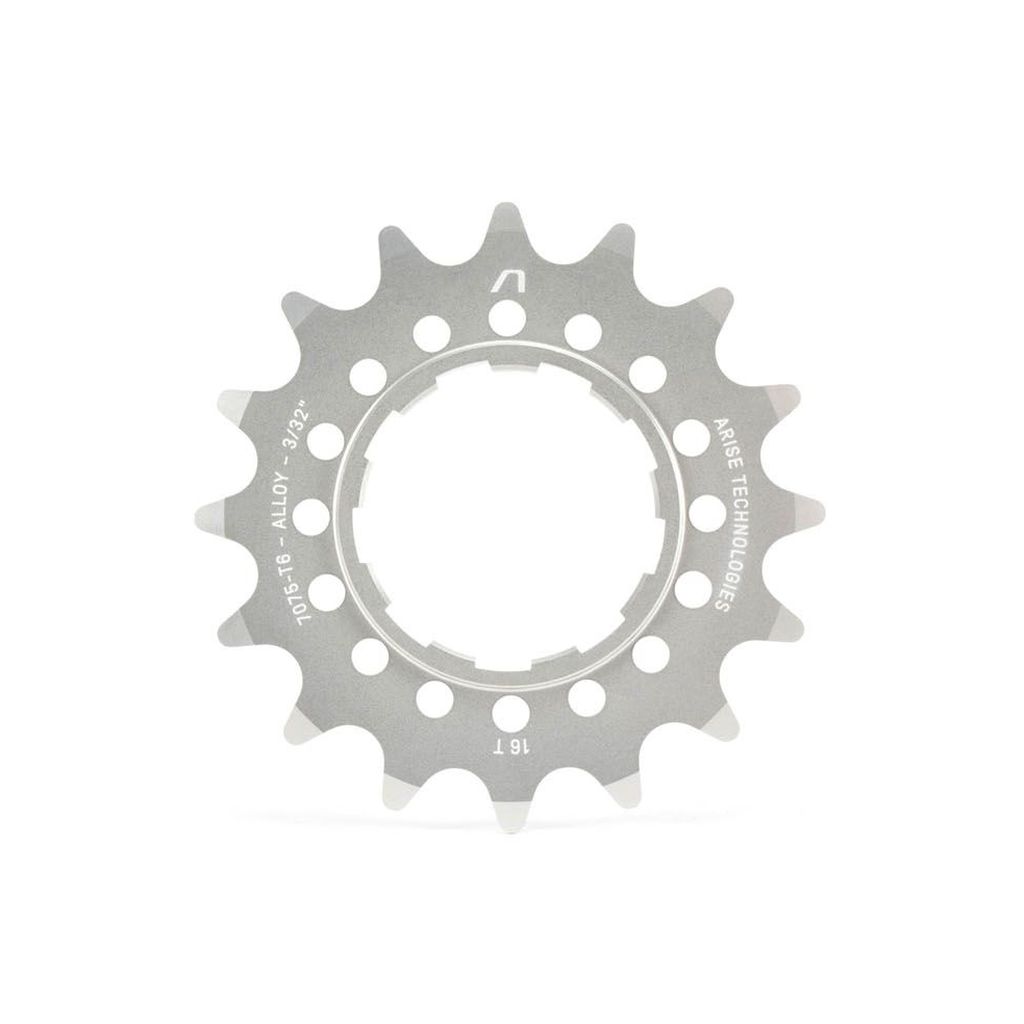

The Arise Echo Cog (Alloy) is a CNC machined metallic bicycle sprocket with 16 teeth, crafted from durable 7075-T6 Aluminium, showcasing its brand name and specifications.
The Arise Echo Cog (Alloy) is CNC machined from 7075-T6 Aluminium, featuring 15 teeth, precision holes for Shimano HyperGlide compatibility, and a silver finish.

Description

The Arise Echo Cog is CNC machined from 7075-T6 aluminium and cut to fit Shimano HyperGlide cassette hubs. A 5mm wide spacer is built into the cog, giving a more solid interface with the cassette body.

It comes in 14t, 15t, 16t, 17t and 18t for 1/2" x 3/32" chain, in a hard anodised silver finish. Weights run from 11g on the 14t to 18g on the 18t, with cut-outs on 16t and above.

Features
  • Fits Shimano HyperGlide hubs. Machined for the HyperGlide spline, so it slides straight onto a standard Shimano cassette body.
  • Built-in 5mm spacer. The spacer is part of the cog, giving a more solid interface with the cassette body and one less loose part.
  • 14t through to 18t. Five gearing choices, all cut for 1/2" x 3/32" chain, so you can fine tune your ratio.
  • 7075-T6 alloy throughout. CNC machined aluminium brings the 14t down to 11g and the 18t to 18g.
  • Cut-outs on 16t and up. The bigger cogs are machined out to shed extra weight without changing how they fit.

Specifications
  • Fits: Shimano HyperGlide cassette hubs
  • Teeth: 14t, 15t, 16t, 17t or 18t
  • Chain size: 1/2" x 3/32"
  • Material: 7075-T6 aluminium, CNC machined
  • Finish: Hard anodised silver
  • Weight: 14t 11g, 15t 13g, 16t 14g, 17t 16g, 18t 18g
  • Note: 5mm wide built-in spacer. Cut-outs on 16t and above to save weight.

Arise Echo Cog (Alloy)

Brand: Arise SKU:

$44.99 AUD

Or 4 payments of $11.24 AUD with

Colour - Silver

Teeth - 14T

$44.99 AUD

Price match request

Arise Echo Cog (Alloy) - Silver / 14T

$12.99 flat-rate shipping Australia-wide

Express from $21.99

Free in-store pickup - Brisbane

Availability

14T15T16T17T18T
Silver

● In stock at LUXBMX ● With supplier ● Preorder ○ Sold out
