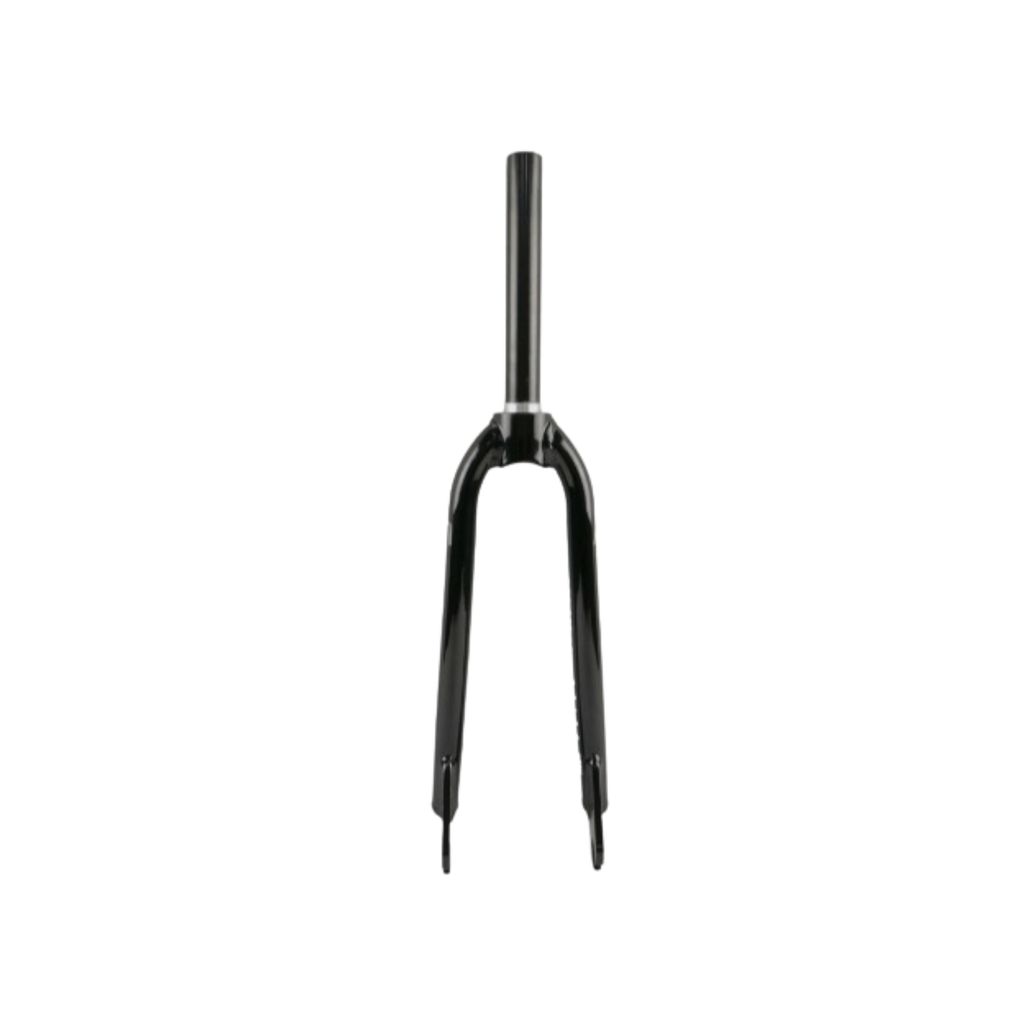

The Arise Quartz Junior Forks feature a sleek black design with a lightweight chromoly steerer tube and dropouts, ideal for front wheel attachment.

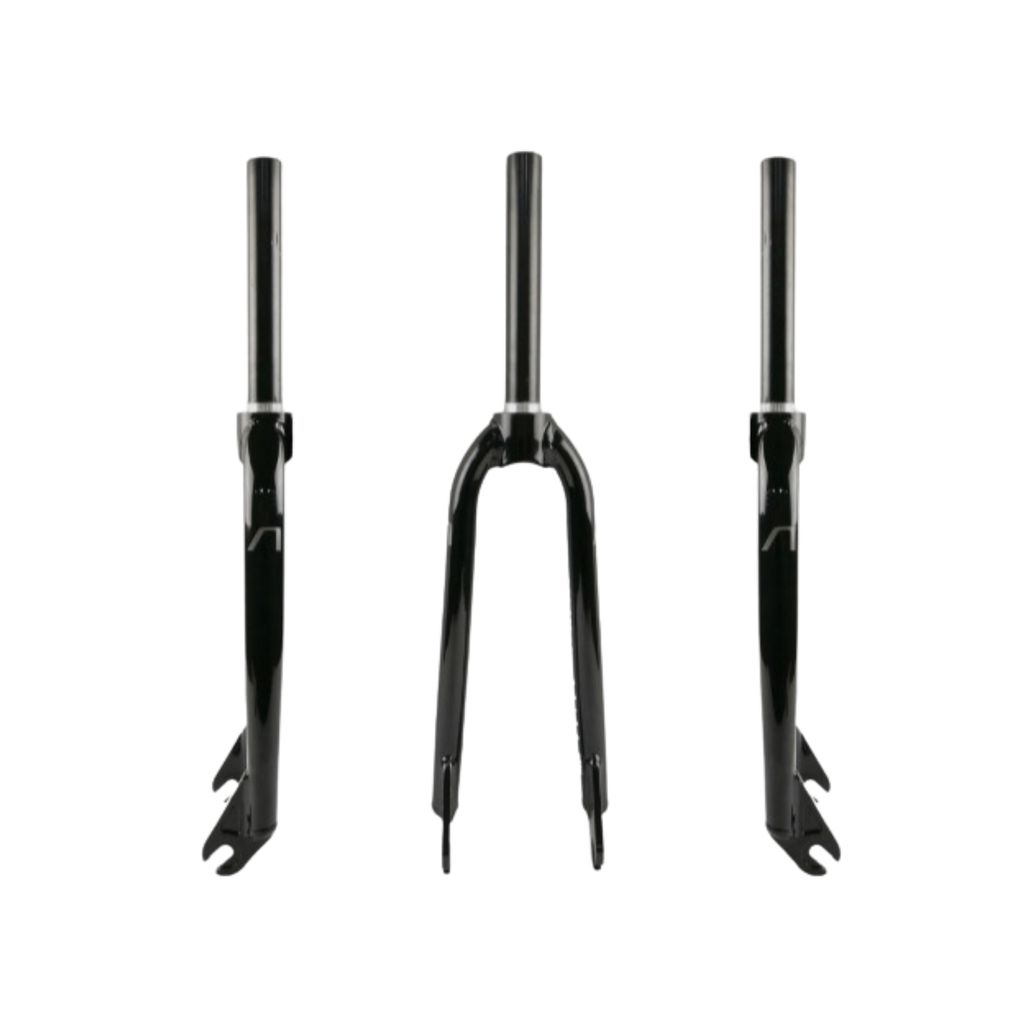

Three Arise Quartz Junior Forks, black with a lightweight design and durable chromoly steerer tube, are displayed against a white background, showcasing both front and side views.

Description

A super slim, lightweight junior sized fork: a heat-treated 4130 chromoly steerer tube with hydroformed 6061-T6 alloy legs and CNC detailed dropouts, using Arise's own leg shape for a balance between looks and performance. Incredibly stiff and light next to a carbon fibre fork, and laboratory tested and race proven.

It is built around a 1" straight steerer 175mm long, 26.4mm crown races and 10mm / 3/8" front hubs, with 25mm offset and 310mm axle to crown. Weight is 610g and the rider weight limit is 50kg.

Features
  • Junior sized and light. 610g of fork with a 1" straight steerer 175mm long and a 50kg rider weight limit, made for junior racers.
  • Chromoly steerer, alloy legs. A heat-treated 4130 chromoly steerer with hydroformed 6061-T6 legs and dropouts: stiff and light next to a carbon fork.
  • Oversized welds for durability. The welds are oversized so the fork holds its stiffness through hard race use.
  • 25mm offset, 310mm axle to crown. Junior race geometry from a fork that has been laboratory tested and proven on the track.
  • For 10mm front hubs. CNC machined dropouts take 3/8" / 10mm axles and the fork fits 26.4mm crown races, with a 1" (22mm) star nut needed separately.

Specifications
  • Material: Heat-treated 4130 chromoly steerer, 6061-T6 alloy legs and dropouts
  • Dropouts: CNC machined, for 3/8" / 10mm hubs
  • Steerer: 1" straight, 175mm long, fully CNC machined
  • Fork offset: 25mm
  • Fork legs: Hydroformed 6061-T6 alloy with oversized welds
  • Tyre clearance: 47mm maximum tyre, including minimum 3mm clearance
  • Weight: 610g (21.5oz / 1.35lbs)
  • Colour: Black
  • Note: Axle to crown 310mm. Fits 26.4mm crown races. Top bolt not included, takes a 1" (22mm) star nut. Maximum rider weight 50kg

Arise Quartz Junior Forks

Brand: Arise SKU:

$349.99 AUD

Or 4 payments of $87.49 AUD with

Colour - Black

Offset - 25mm

$349.99 AUD
