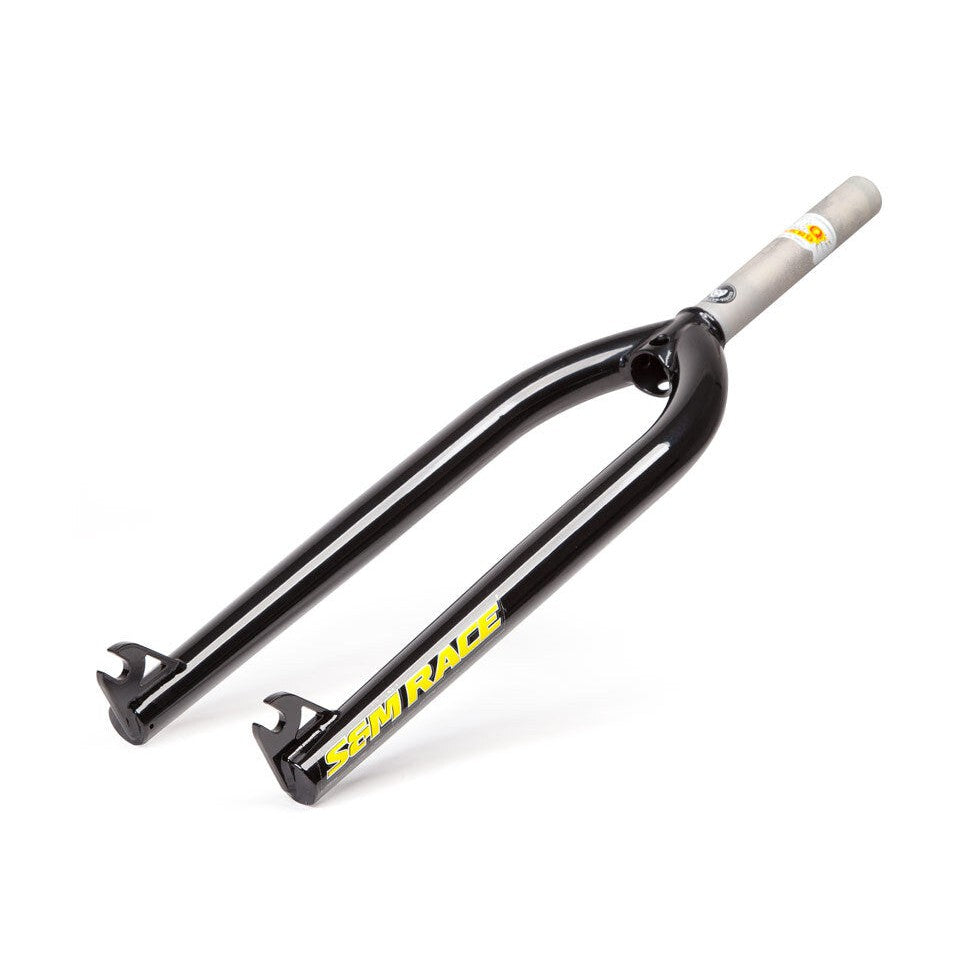

S&M Race Forks XLT/ C/Moly-Black / 26 Inch-Tapered -S/T 172MM

Description

The S&M Race XLT is a 26 inch race fork with double butted, tapered 4130 chromoly legs and laser cut dropouts with a 3/8" slot. The steerer is CNC machined from one piece of 4130 chromoly at 1-1/8", and the whole fork is 4Q baked after welding.

Fit numbers for your build: 172mm steerer length, 33mm offset and a 395mm axle to crown height, at 1.17 kg. Compression runs an M24 x 1.5 thread with a 6mm allen slot. Finished in black chromoly.

Features

Double butted, tapered chromoly legs. Tapered 4130 legs carry material where the fork loads up and shed it where they can, so the front end stays light.
Sized for 26 inch wheels. A 395mm axle to crown height and 33mm offset, drawn for a 26 inch cruiser front end.
1-1/8" one piece steerer. The steerer is CNC machined from one piece of 4130 chromoly and comes at 172mm, ready to cut to your stack.
Laser cut 3/8" dropouts. Standard 3/8" slots take a race axle and hold it square in the fork.
1.17 kg, 4Q baked. Post-weld 4Q baking is part of how S&M finish this fork, which lands at 1.17 kg in black.

Specifications

Dropouts: Laser cut, 3/8" slot
Steerer: 1 piece CNC-machined 4130 chromoly, 172mm
Steerer diameter: 1-1/8"
Fork offset: 33mm
Fork legs: Double butted, tapered 4130 chromoly
Wheel size: 26"
Weight: 1.17 kg
Colour: Black
Note: Axle to crown height 395mm. Compression M24 x 1.5 thread, 6mm allen slot. Heat treat 4Q baked post-weld.

S&M Race Forks XLT/ C/Moly-Black / 26 Inch-Tapered -S/T 172MM

Name: S&M Race Forks XLT/ C/Moly-Black / 26 Inch-Tapered -S/T 172MM
Brand: S&M
SKU: SMFO402-01-BLK
Price: 529.99 AUD
Availability: OutOfStock
