Description

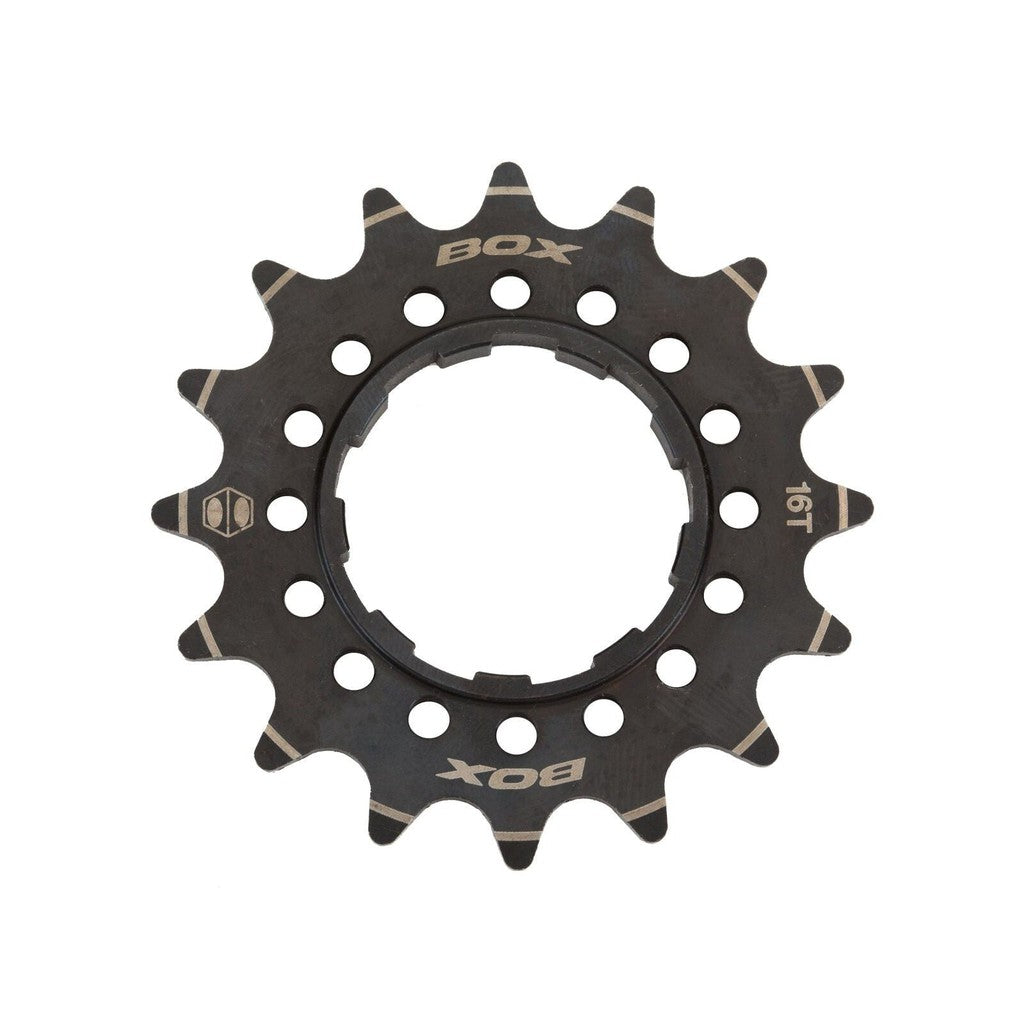

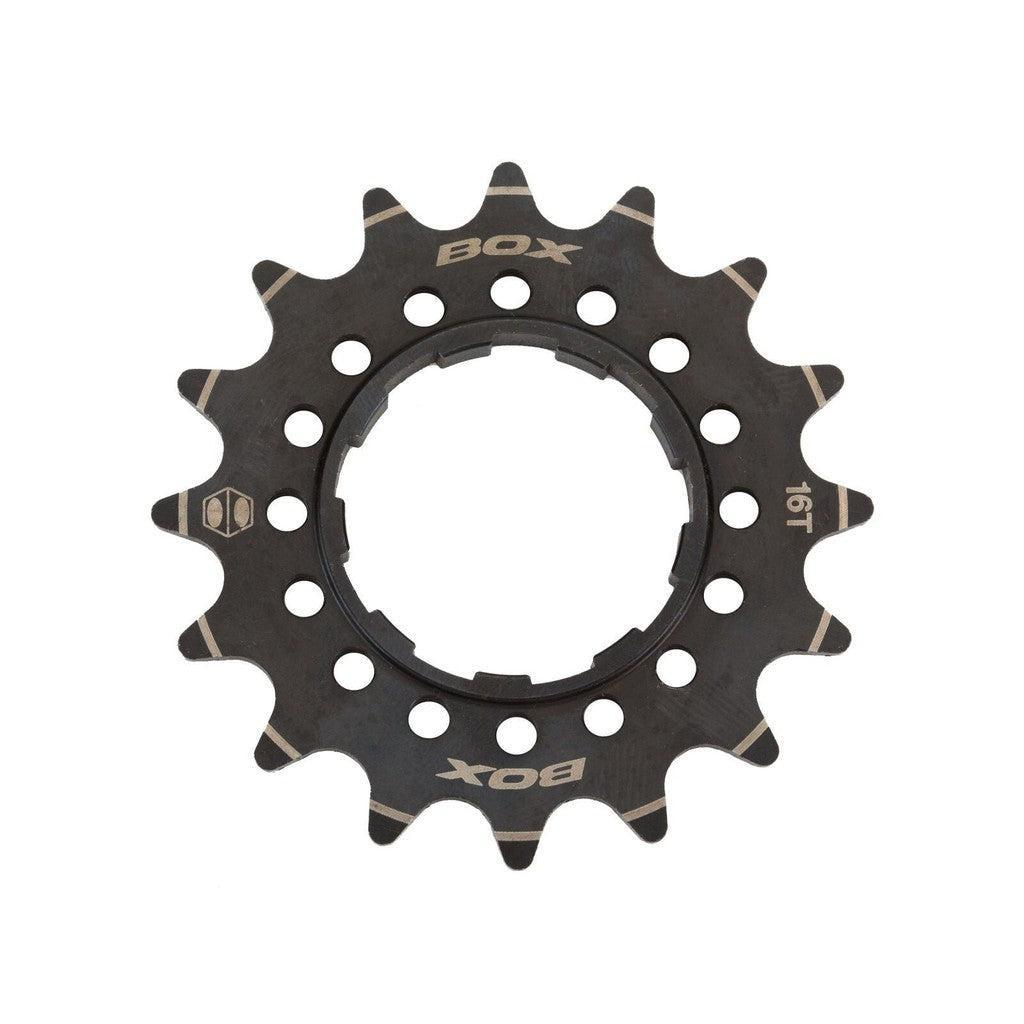

The Box One Pinion cog is CNC machined from chromoly and made to fit Shimano compatible cassette hubs. It comes in 3/32 inch sizes from 13 up to 18 tooth, so you can set your gearing where you want it.

A 5mm wide inner base gives a more solid interface with the cassette body. The chromoly cogs are electro plated black with laser etched logos, while the same cog is also offered CNC machined from 7075-T6 aluminium.

Features

Fits Shimano compatible cassette hubs. The Pinion cog is designed to slide onto a Shimano compatible cassette body, so it drops into that hub ecosystem.
13 to 18 tooth sizes. Sizes run from 13 through to 18 tooth, so you can fine tune your gearing.
5mm wide inner base. The wider base gives a more solid interface with the cassette body under load.
Long wearing chromoly. CNC machined chromoly, electro plated black with laser etched logos.
3/32 inch chain size. Sized for 3/32 inch single speed chains, so it matches a standard single speed drivetrain.

Specifications

Fits: Shimano compatible cassette hubs
Teeth: 13 to 18T
Chain size: 3/32"
Material: CNC machined chromoly (also offered in 7075-T6 aluminium)
Finish: Electro plated black with laser etched logos
Weight: 13t: 8g, 14t: 11g, 15t: 13g, 16t: 14g, 17t: 16g, 18t: 18g
Note: 5mm wide inner base for a more solid interface with the cassette body.
