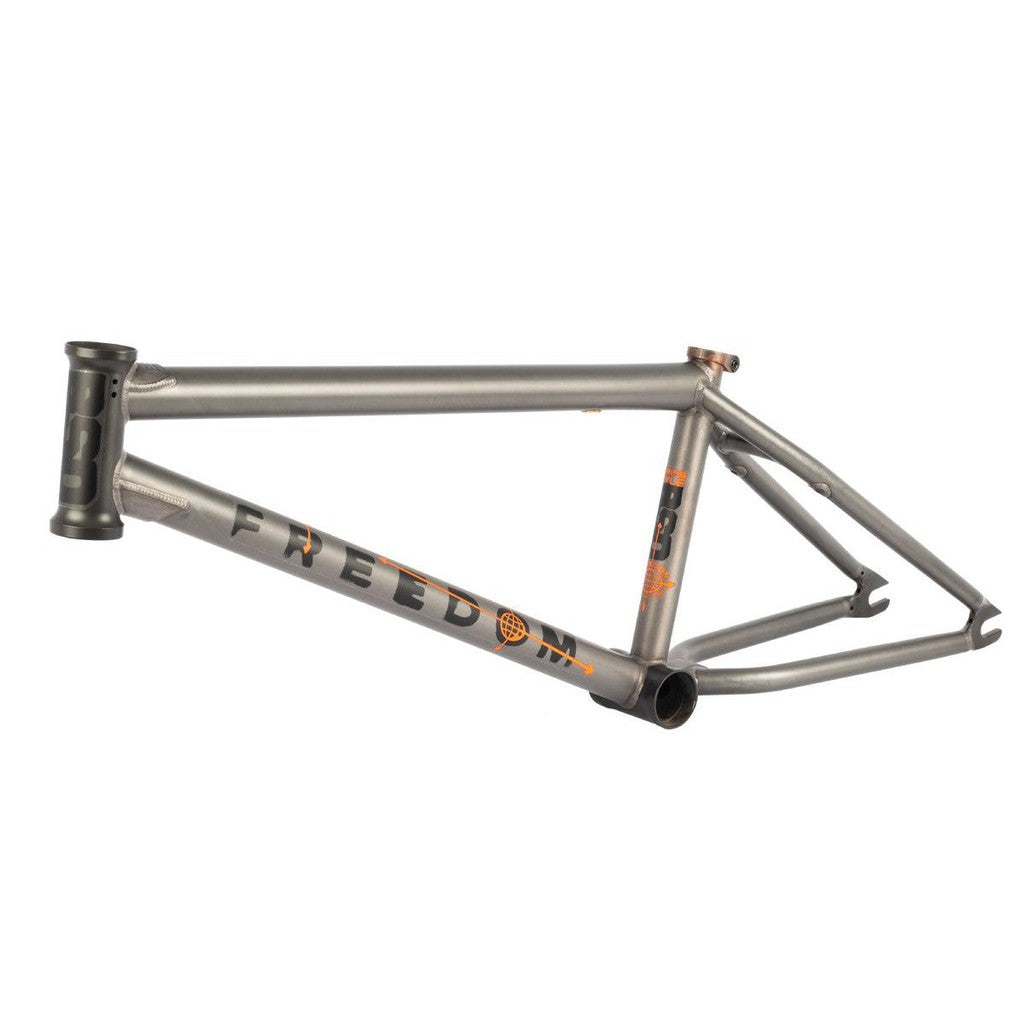

BSD Freedom Frame (Kris Kyle Signature) / Flat Raw / 20.5 TT

BSD Freedom Frame (Kris Kyle Signature) / Flat Black / 21.1TT

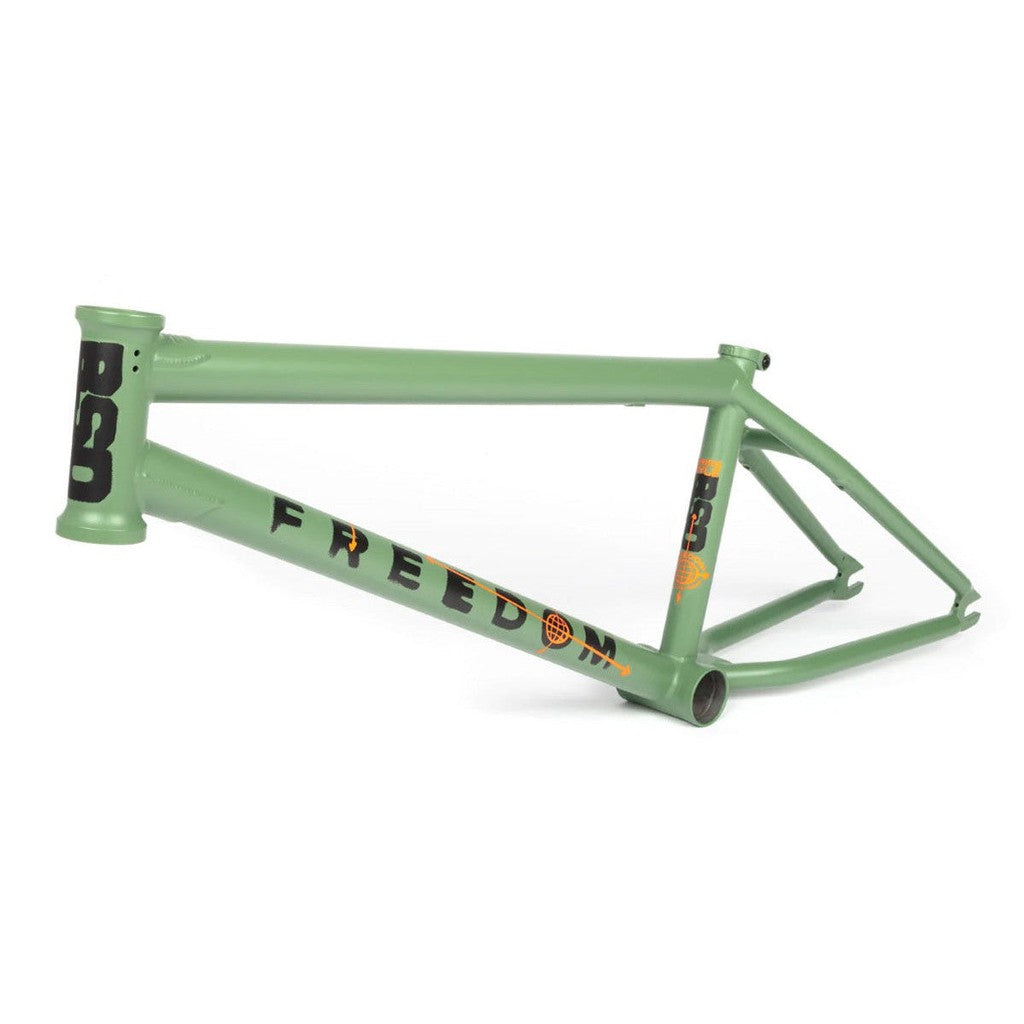

BSD Freedom Frame (Kris Kyle Signature) / Military Green / 21.1TT

BSD Freedom Frame (Kris Kyle Signature) / Flat Black / 21.5TT

BSD Freedom Frame (Kris Kyle Signature) / Military Green / 21.5TT

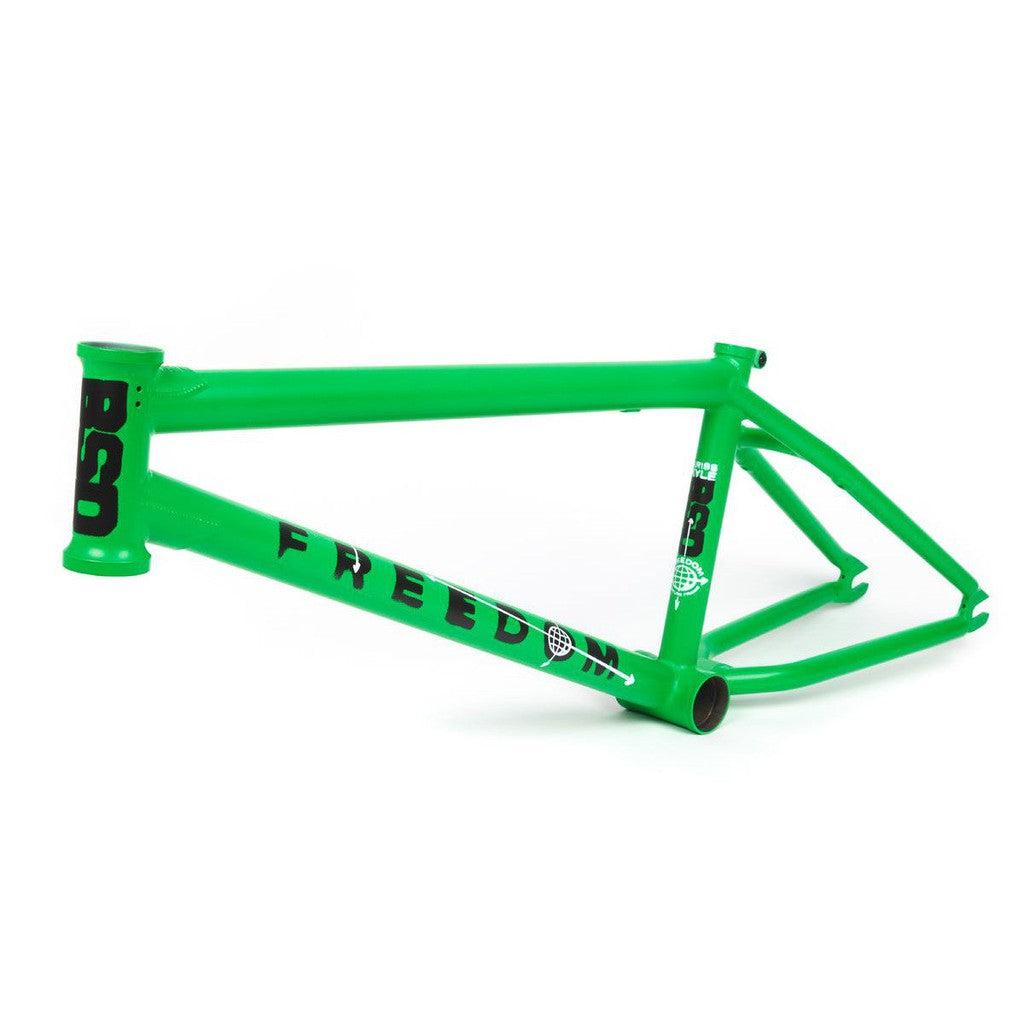

BSD Freedom Frame (Kris Kyle Signature) / Kawasaki Green / 20.5 TT

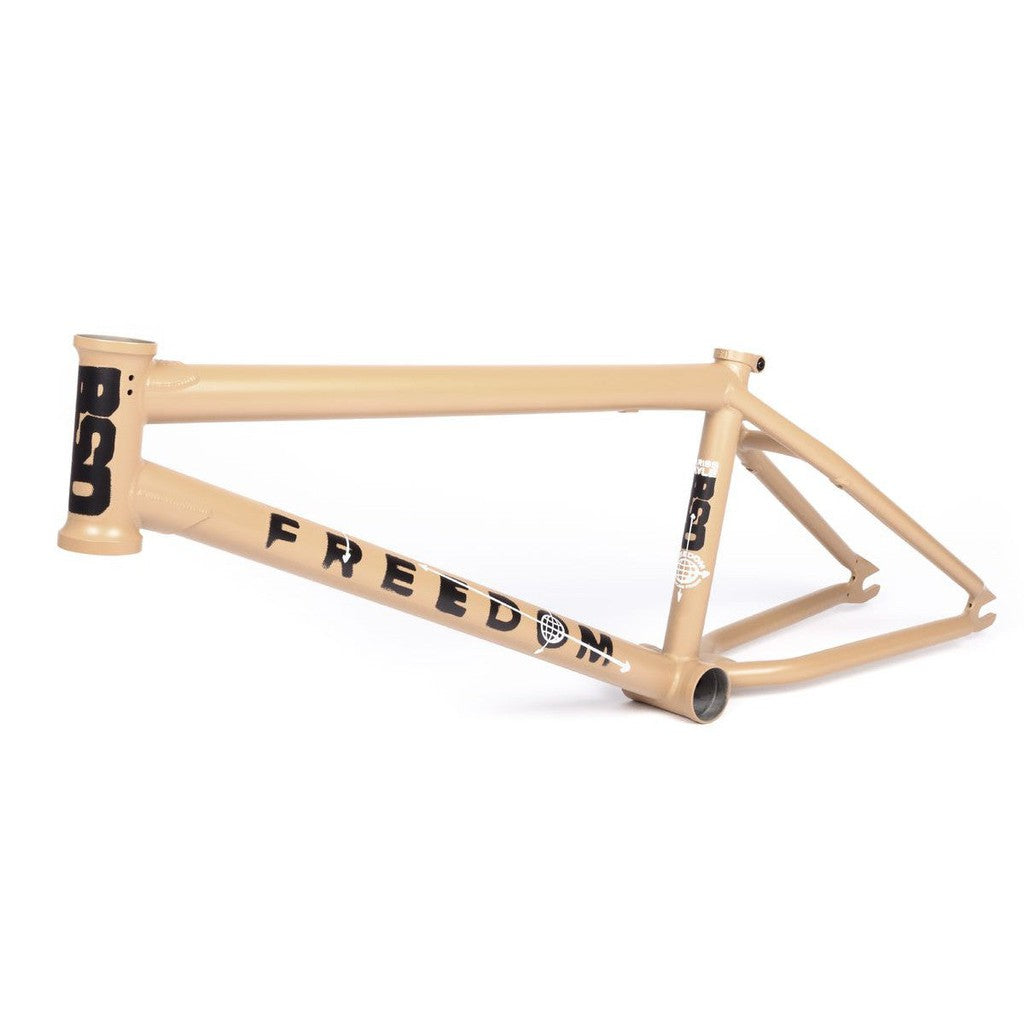

BSD Freedom Frame (Kris Kyle Signature) / Sandstorm / 20.5 TT

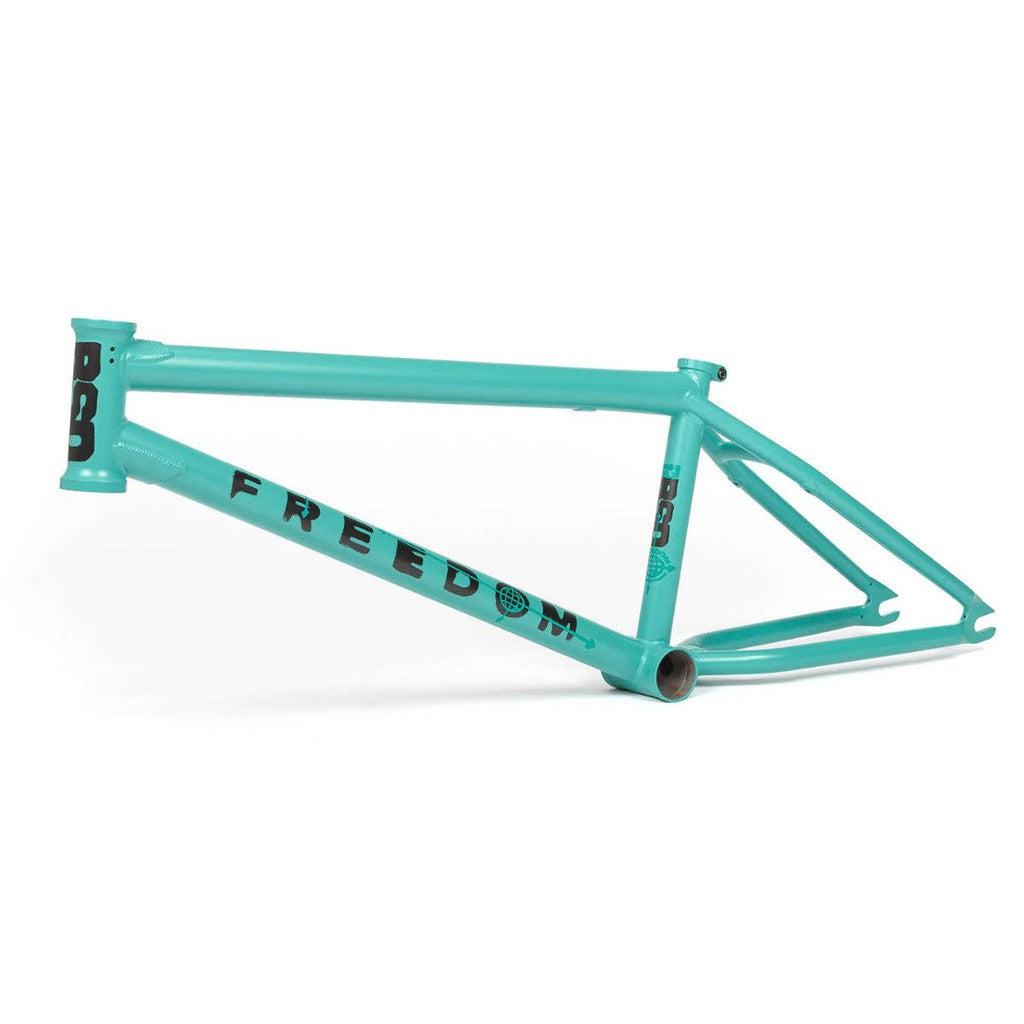

BSD Freedom Frame (Kris Kyle Signature) / Light Teal / 20.5TT

BSD Freedom Frame (Kris Kyle Signature) / Kawasaki Green / 20.8 TT

BSD Freedom Frame (Kris Kyle Signature) / Flat Raw / 20.8 TT

BSD Freedom Frame (Kris Kyle Signature) / Sandstorm / 20.8 TT

BSD Freedom Frame (Kris Kyle Signature) / Light Teal / 20.8TT

BSD Freedom Frame (Kris Kyle Signature) / Kawasaki Green / 21.1 TT

BSD Freedom Frame (Kris Kyle Signature) / Flat Raw / 21.1 TT

BSD Freedom Frame (Kris Kyle Signature) / Sandstorm / 21.1 TT

BSD Freedom Frame (Kris Kyle Signature) / Light Teal / 21.1TT

BSD Freedom Frame (Kris Kyle Signature) / Kawasaki Green / 21.5 TT

BSD Freedom Frame (Kris Kyle Signature) / Flat Raw / 21.5 TT

BSD Freedom Frame (Kris Kyle Signature) / Light Teal / 21.5TT

A red BSD Freedom Frame (Kris Kyle Signature) on a white background.

Chrome BSD Freedom Frame (Kris Kyle Signature) BMX frame featuring visible welds, invest cast wishbone, and white geometric logos on the head tube and top tube. Shown isolated on a white background.

Description

Kriss Kyle is the type of rider who likes to ride everything, bowls, street, dirt, the lot. He is an absolute destroyer of anything in front of him, so it's only fitting that he has a signature frame that can withstand it all! His signature Freedom frame is designed to perform well on all terrain, this frame combines the stability of a low 11.5" BB, the responsiveness of a 75° headangle and the versatility of a short rear end. To create a stiffer rear triangle BSD has utilized an invest cast wishbone and invest cast seatstay bridge, great for sideways landings!!

• Invest cast wishbone
• Extra wide rear end
• Invest cast seatstay bridge
• Invest cast seatclamp
• REMOVABLE brake mounts
• 7mm thick invest cast dropouts
• Built in chain tensioners

Top Tube Length - 20.2” / 20.5” / 20.8” / 21.1” / XL 21.5”
Chainstay Length 13.2” - 13.625”
Head Tube Angle - 75°
Seat Tube Angle - 69.5°
BB Height - 11.5”
Standover Height - 9”
Weight - 2.26kg

Features

Kriss Kyle is the type of rider who likes to ride everything, bowls, street, dirt, the lot. His signature Freedom frame is designed to perform well on all terrain, this frame combines the stability of a low 11.5” BB, the responsiveness of a 75° headangle and the versatility of a short rear end. To create a stiffer rear triangle we’ve utilized an invest cast wishbone and invest cast seatstay bridge, great for sideways landings!

• Invest cast wishbone
• Extra wide rear end
• Invest cast seatstay bridge
• Invest cast seatclamp
• REMOVABLE brake mounts
• 7mm thick invest cast dropouts
• Built in chain tensioners

Specifications

Top Tube Length - 20.2” / 20.5” / 20.8” / 21.1” / XL 21.5”
Chainstay Length 13.2” - 13.625” / XL 13.4” - 13.825”
Head Tube Angle - 75°
Seat Tube Angle - 69.5°
BB Height - 11.5”
Standover Height - 9”
Weight - 2.26kg

BSD Freedom Frame (Kris Kyle Signature)

Name: BSD Freedom Frame (Kris Kyle Signature)
Brand: BSD BMX
SKU: BSFR026-02-RAW
Price: 749.99 AUD
Availability: OutOfStock

Brand: BSD BMX SKU: Click to copy the SKU and show the pick location

$749.99 AUD

Or 4 payments of $187.49 AUD with

Colour - Flat Raw

Top Tube Length - 20.5

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.
