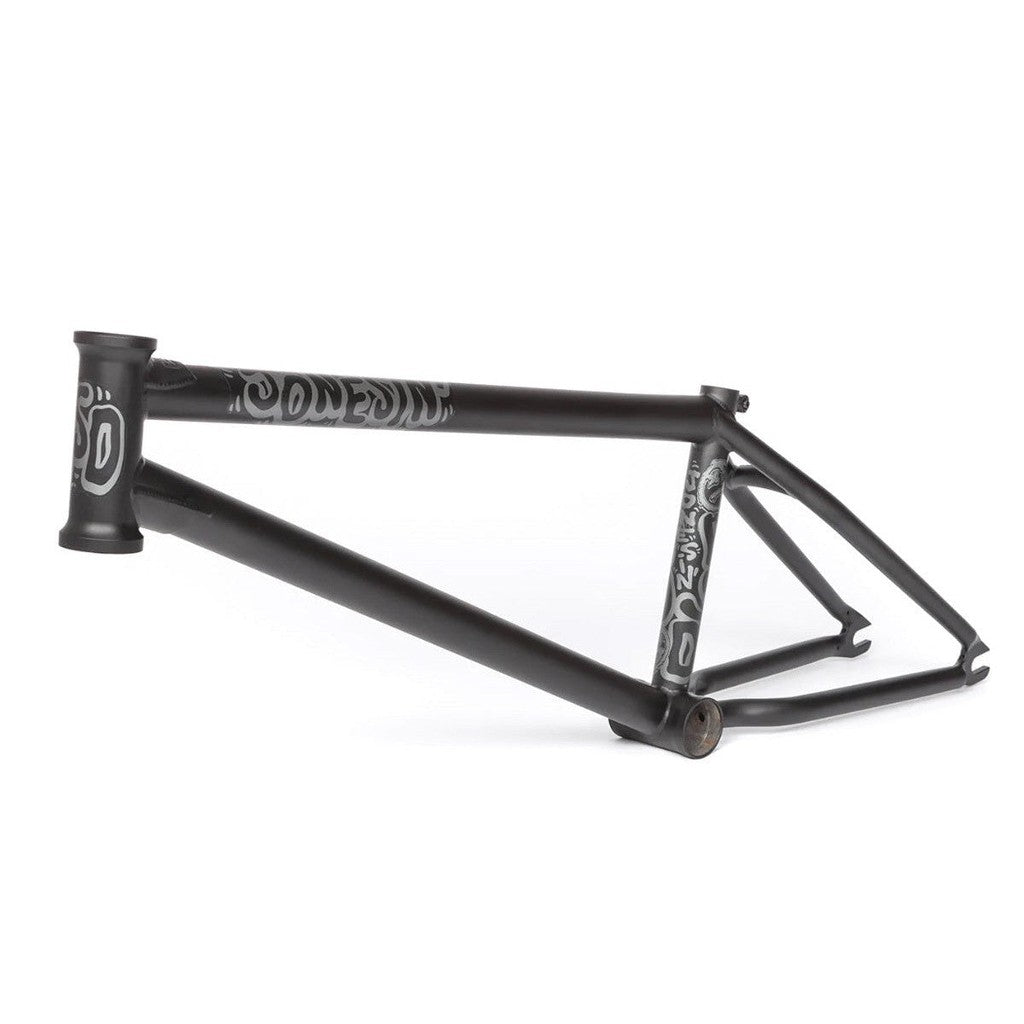

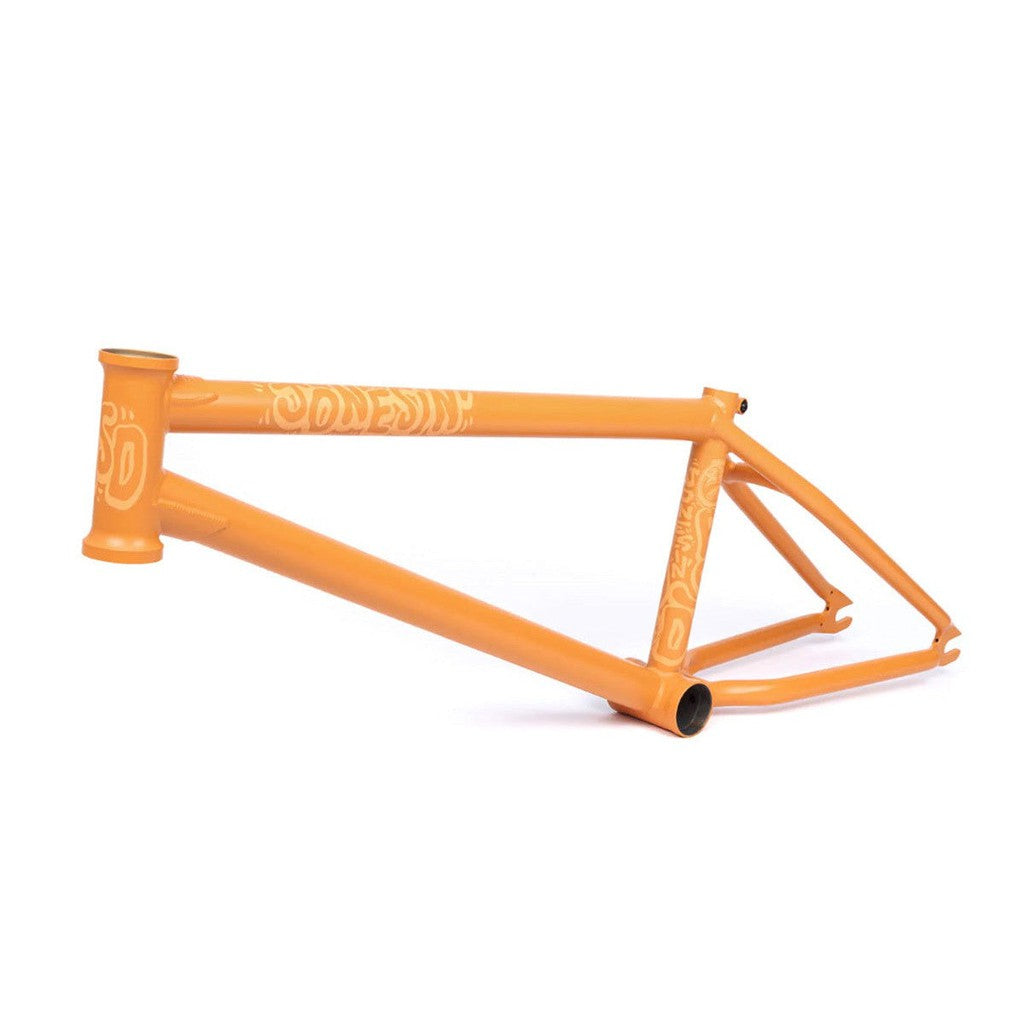

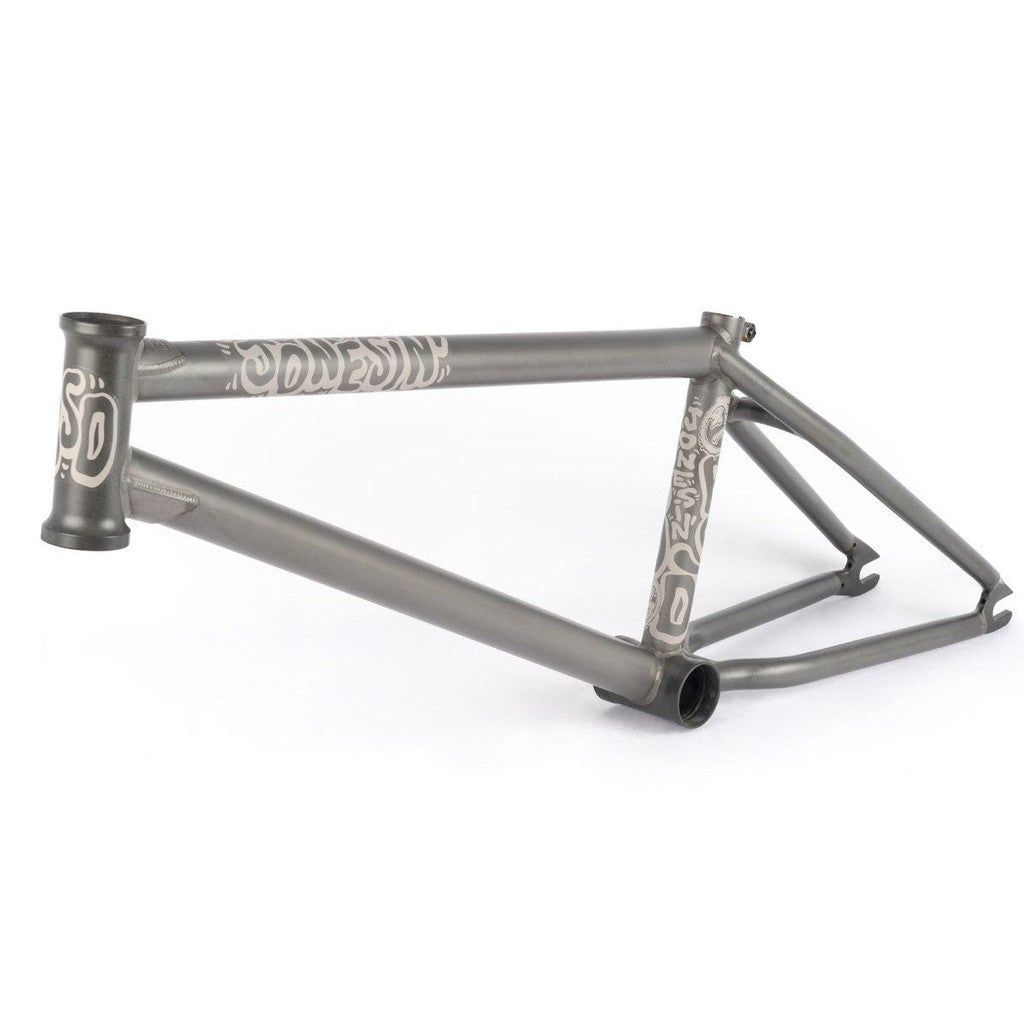

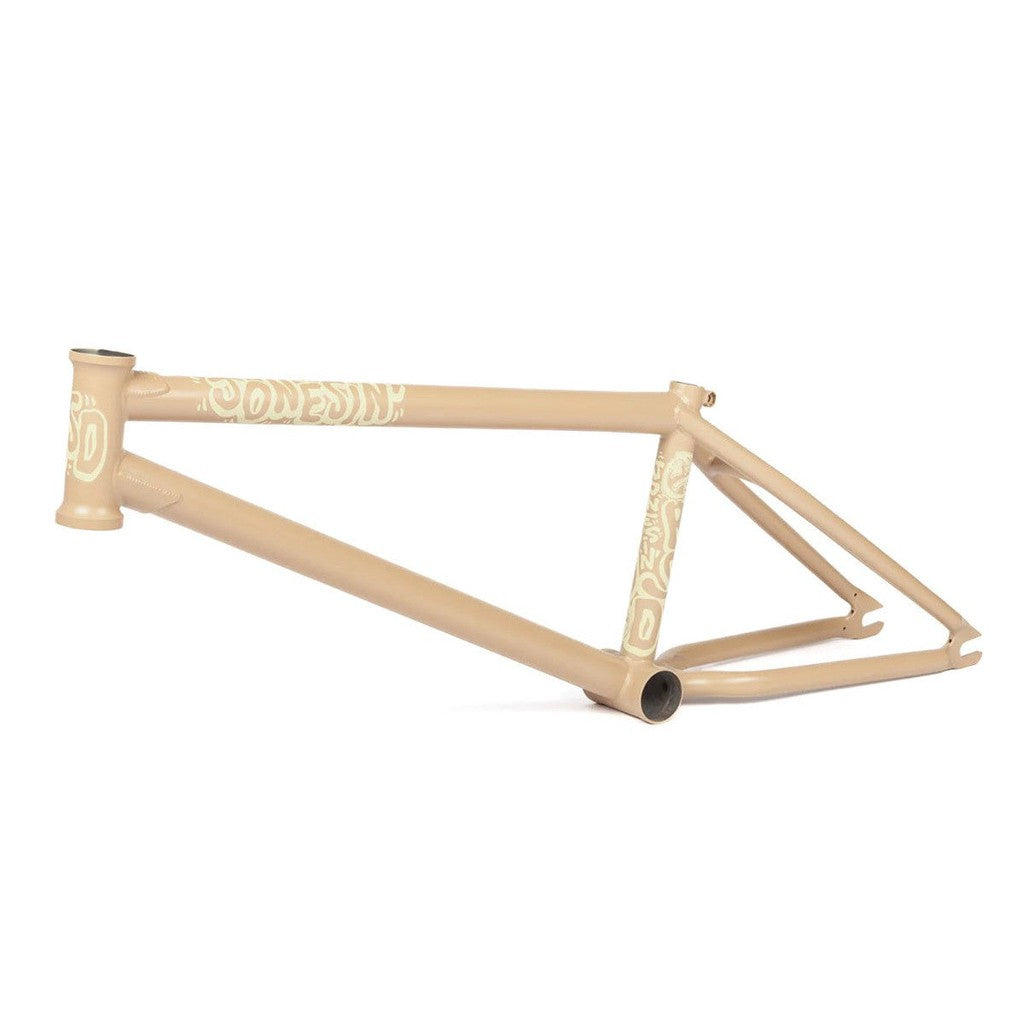

BSD Jonesin Frame (Sam Jones)
Sam Jones signature JONESIN’ frame is the latest BSD's frame. As you may know Sam is a master of front-end tricks and he designed his new frame with a steep 76° headangle and a 8.9” standover as well as using BSD's new superscoop chainstay tubing. Noztastic!
• SuperScoop chainstay
• Extra wide rear end
• Invest cast seatstay bridge
• NO brake mounts
• 7mm thick invest cast dropouts
• Built in chain tensioners
Top tube length - 20.4” / 20.6” / 20.8” / 21”
Chainstay length - 12.7” - 13.2”
Head tube angle - 76°
Seat tube angle - 71°
BB height - 11.7”
Standover height - 8.9”
Weight - 2.7kg
