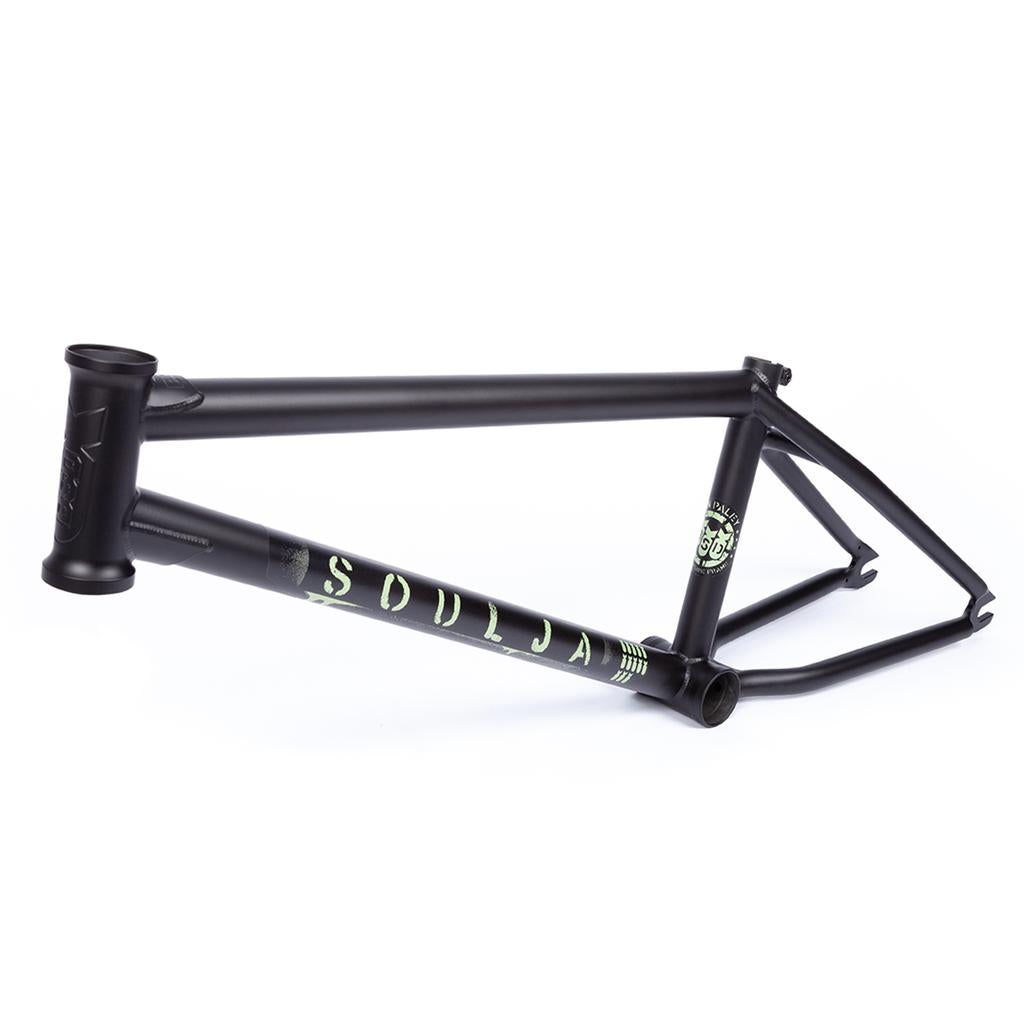

The BSD Soulja V4 Frame (2021) showcases "Soulja" in vibrant green on the sleek black downtube, paired with a Superscoop chainstay for improved performance.

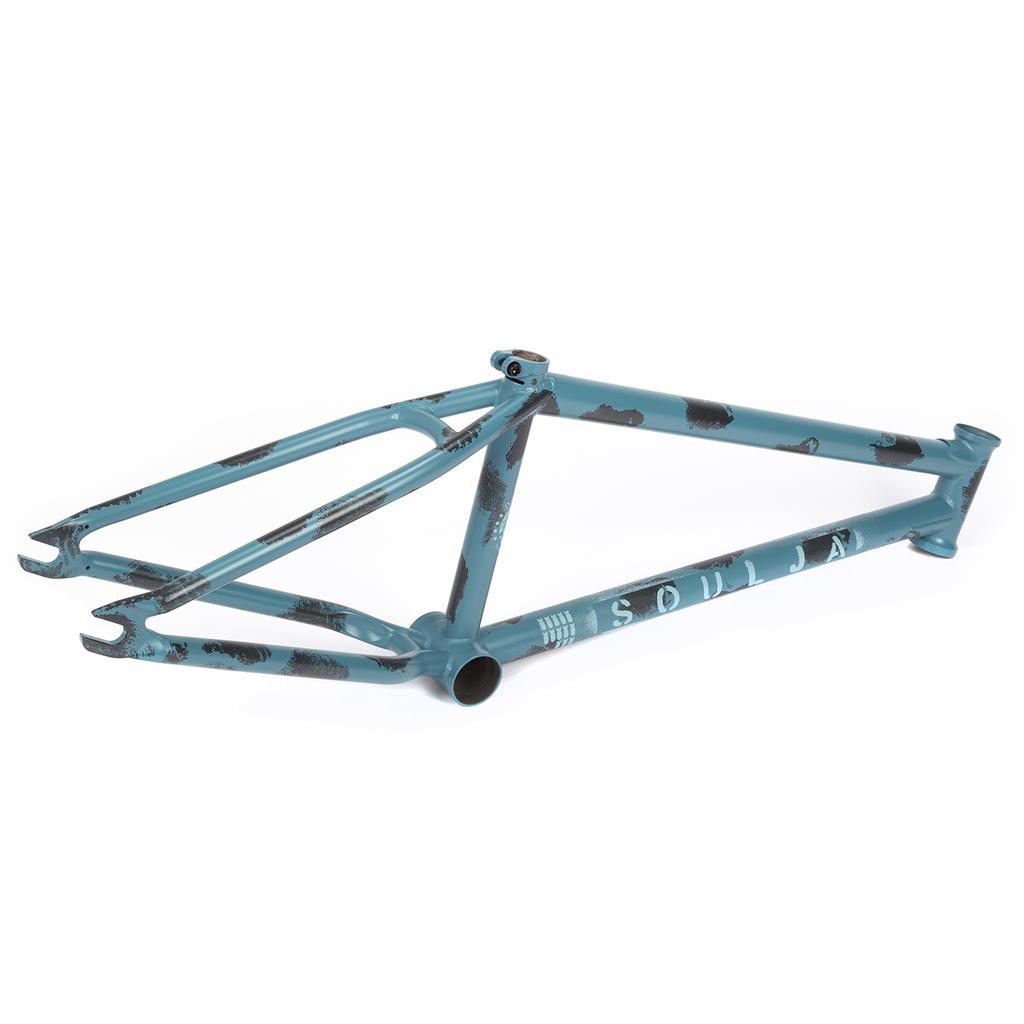

The BSD Soulja V4 Frame (2021) features a durable blue chromoly construction with a black camouflage pattern, the word "Solja" on the side, and Superscoop chainstay tubing for improved performance.

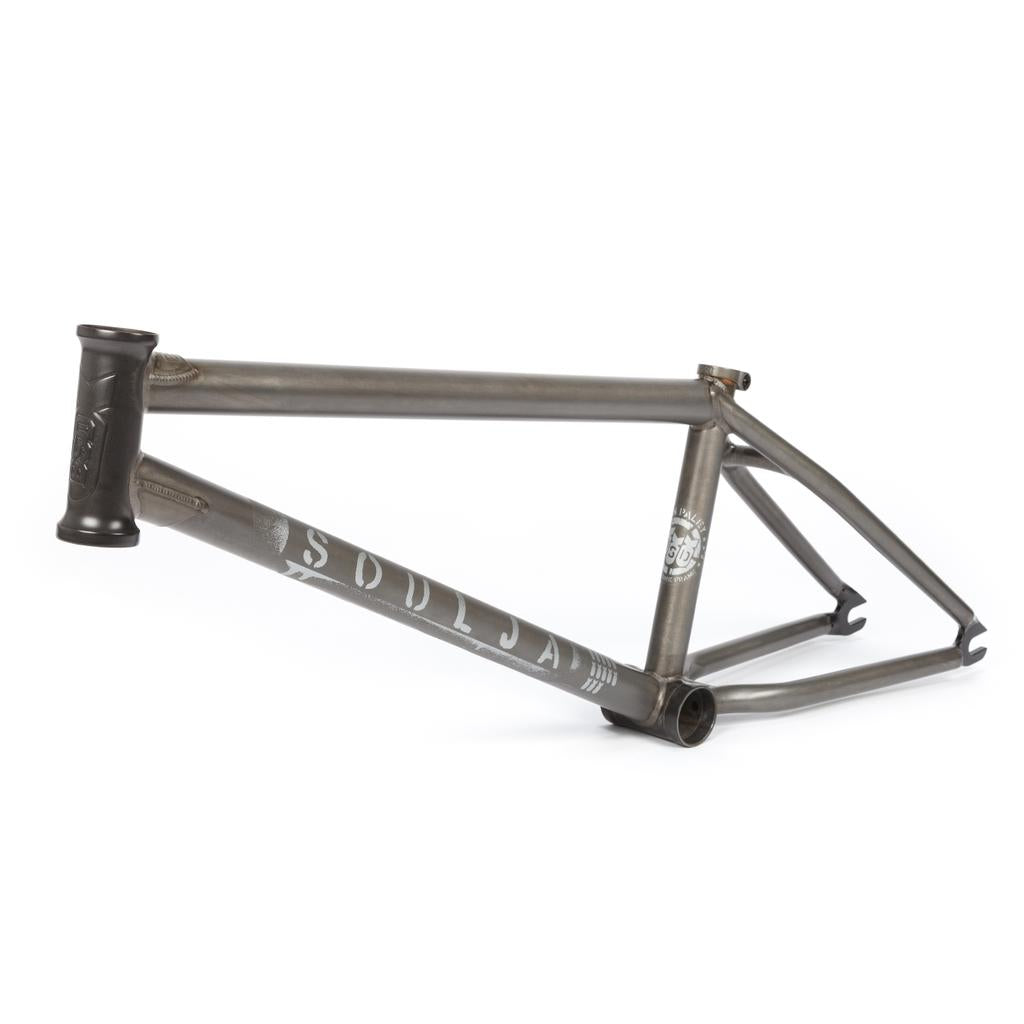

The BSD Soulja V4 Frame (2021) is a durable chromoly frame with a triangular structure featuring a front head tube and Superscoop chainstay tubing for enhanced performance.

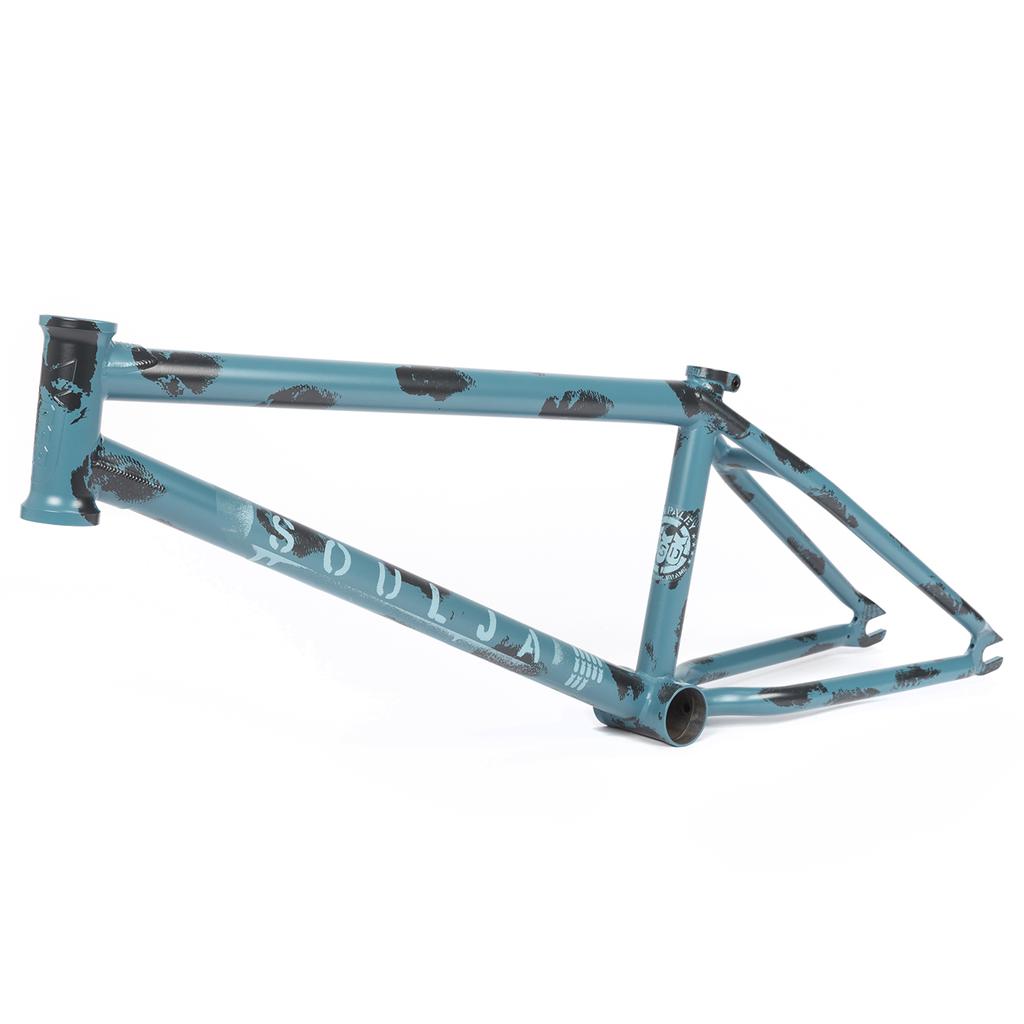

The 2021 BSD Soulja V4 Frame combines durable chromoly tubing with a teal, distressed finish. Its bold "Soulja" text on a white background ensures it stands out for any enthusiast.

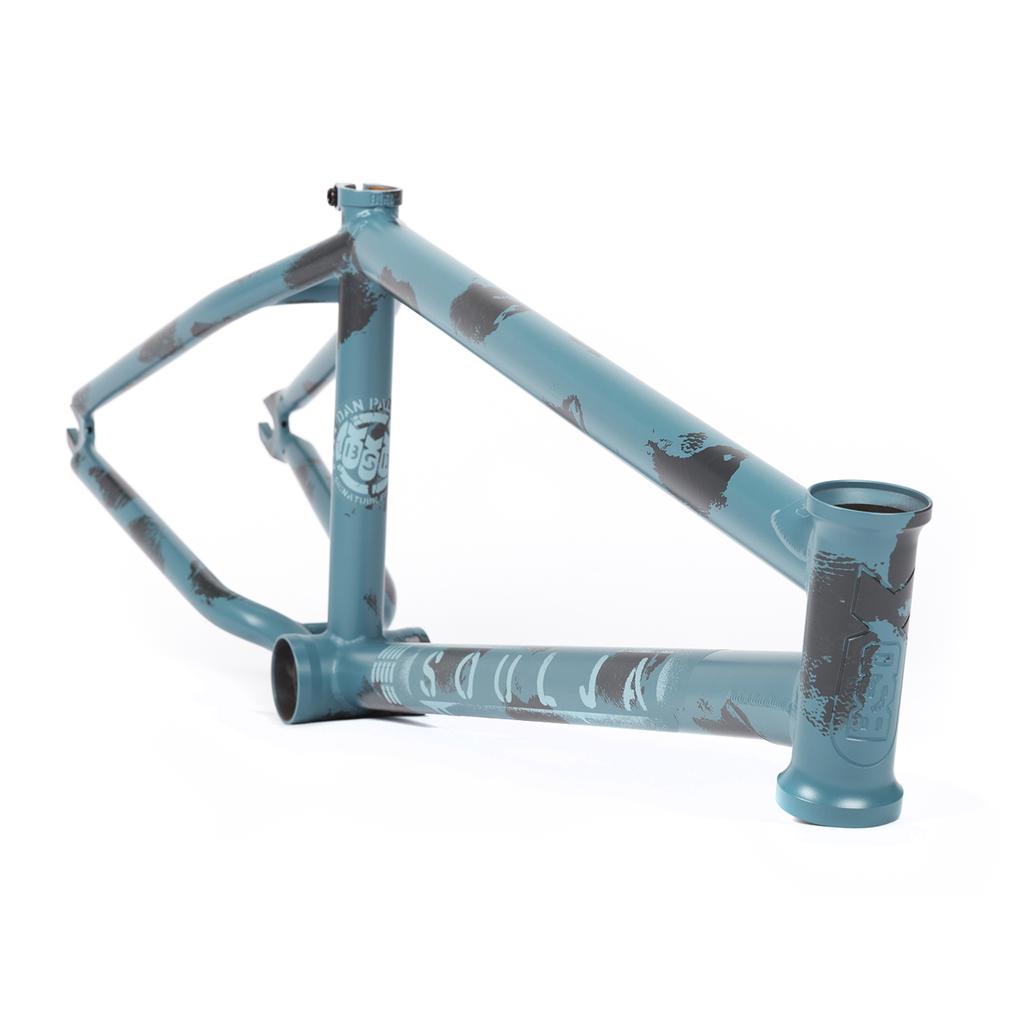

The 2021 BSD Soulja V4 Frame boasts a vibrant blue finish with dark gray accents and text on a white backdrop, enhanced by Superscoop chainstay tubing for extra durability.

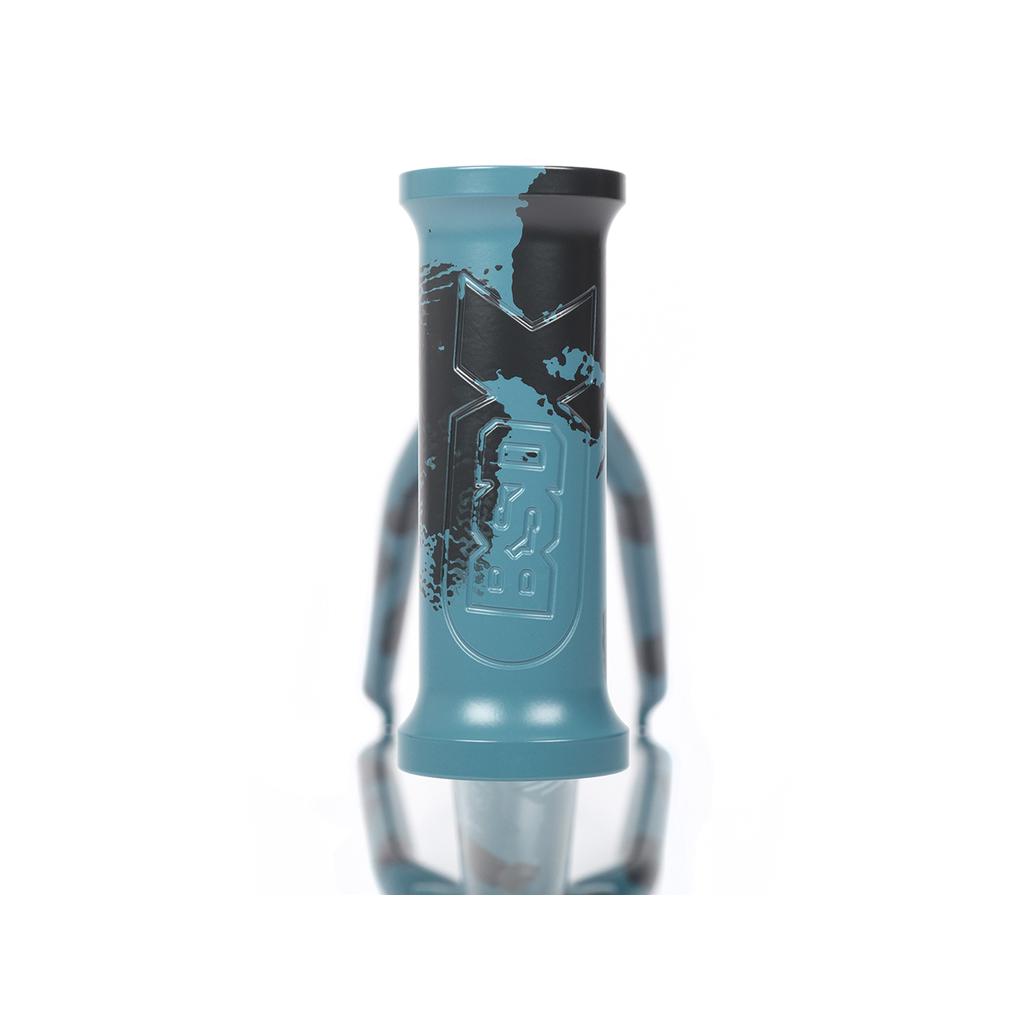

Close-up of the blue BSD Soulja V4 Frame (2021) with visible logos and branding, highlighting the fork and main tube along with the innovative Superscoop chainstay tubing.

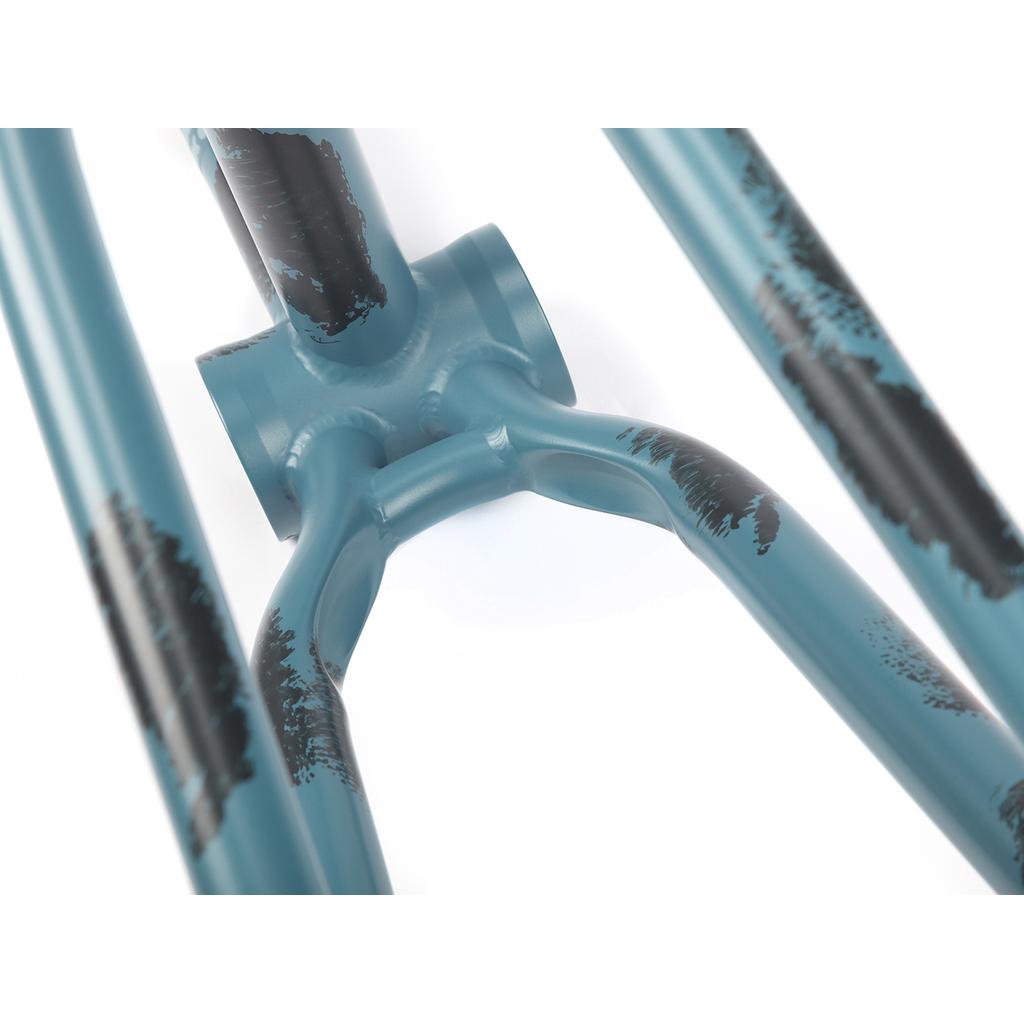

Close-up of the teal BSD Soulja V4 Frame (2021) with black paint details, showcasing the Superscoop chainstay at the connection of seat stays and chain stays to the bottom bracket shell.

Close-up of a 2021 BSD Soulja V4 Frame, highlighting the bottom bracket with artistic paint splatters and featuring Superscoop chainstay tubing for improved performance.

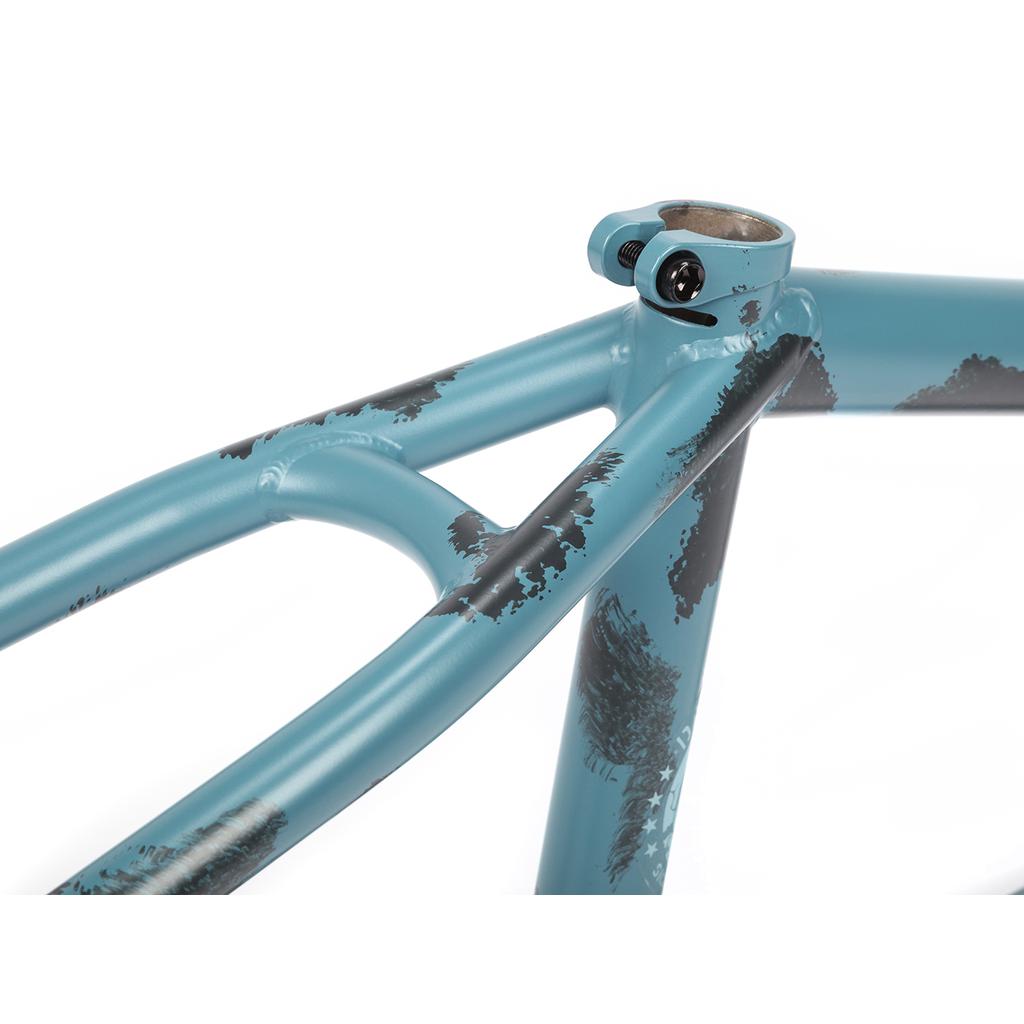

Close-up of a 2021 BSD Soulja V4 Frame in blue with black abstract patterns, highlighting the top tube, seat tube, and clamping mechanism with bolt.

Description

BSD Soulja V4 Frame (2021)

New for 2021, the latest version of Dan Paley's signature Soulja frame, updated using BSD's new Superscoop chainstay tubing for extra tire clearance when your wheel is slammed. This frame features a 75.2 degree headangle, 8.8” standover, 12.8 – 13.2” rear end and invest cast dropouts with built in chain tensioners. this machine is super strong and packed full of some incredible tech to make a truely epic riding experience.

Toptube lengths - 20.6 / 20.9 / 21.2
Headtube angle - 75.2°
Headtube length - 117mm
Seattube angle - 71°
Rear end length - 12.8-13.2"
BB height - 11.7"
Standover height - 8.8"
Weight - 2.27kg
Brake mounts - none - brakeless
Tubing - Sanko Japanese seamless 4130 chromoly

Specifications

Toptube lengths - 20.6 / 20.9 / 21.2
Headtube angle - 75.2°
Headtube length - 117mm
Seattube angle - 71°
Rear end length - 12.8-13.2"
BB height - 11.7"
Standover height - 8.8"
Weight - 2.27kg
Brake mounts - none - brakeless
Tubing - Sanko Japanese seamless 4130 chromoly

BSD Soulja V4 Frame (2021)

Name: BSD Soulja V4 Frame (2021)
Brand: BSD BMX
SKU: BSFR022-02-BLK
Price: 499.99 AUD
Availability: OutOfStock

Brand: BSD BMX SKU: Click to copy the SKU and show the pick location

From

$499.99 AUD

$629.99 AUD

Or 4 payments of $124.99 AUD with

Colour - Black

Top Tube Length - 20.9

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
