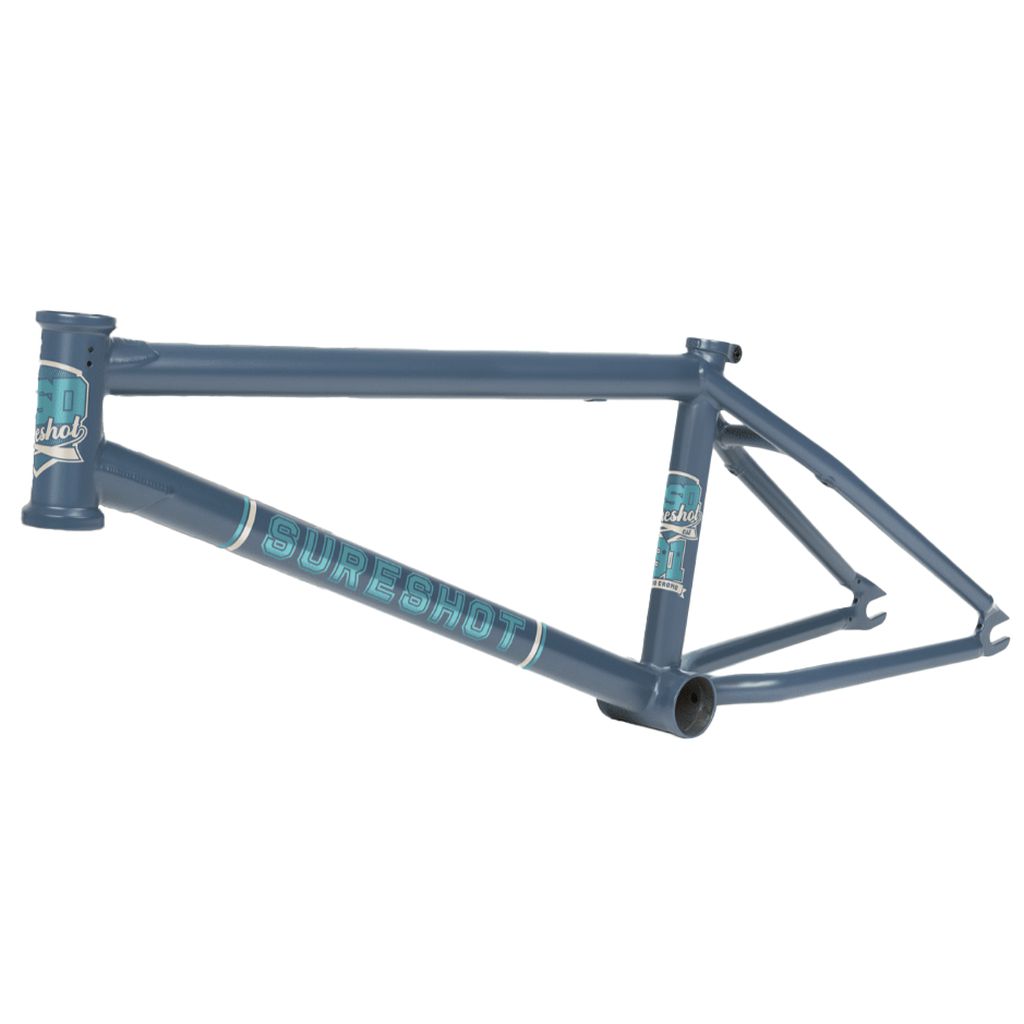

BSD Sureshot Frame, a blue BMX bike frame with distinctive graphics and removable brake mounts, isolated on white.

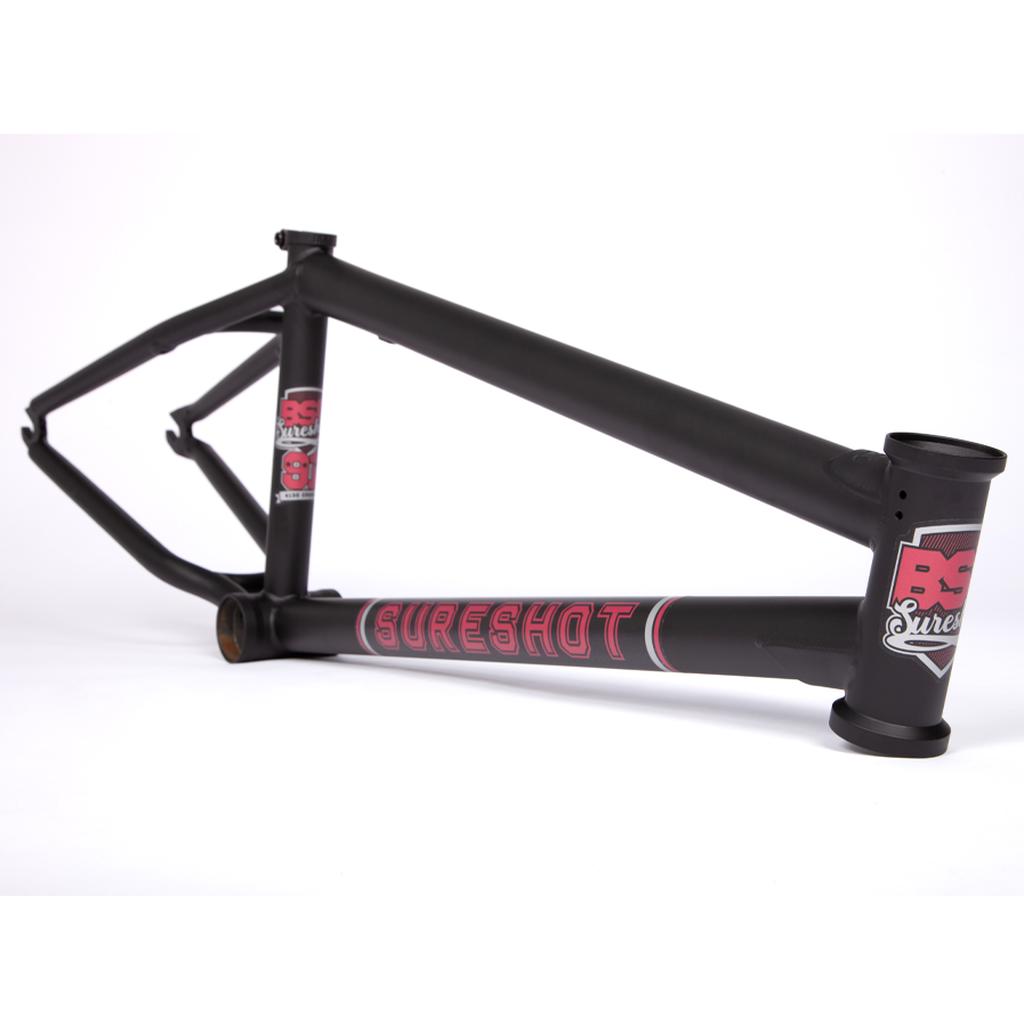

The BSD Sureshot Frame is a black all-round BMX frame with red and white accents and removable brake mounts, shown on a white background.

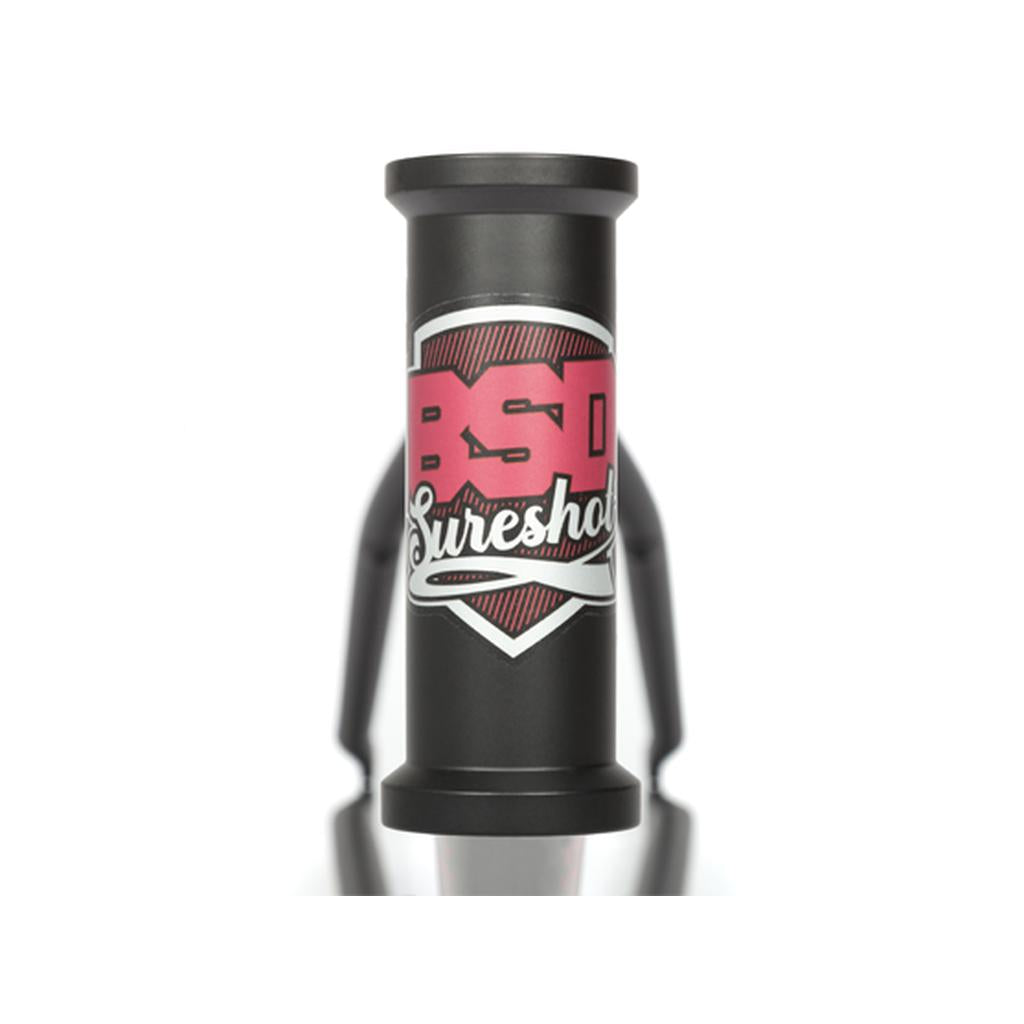

Close-up of the BSD Sureshot Frame’s black head tube with a red and white decal, showcasing its versatile all-round BMX frame design and removable brake mounts.

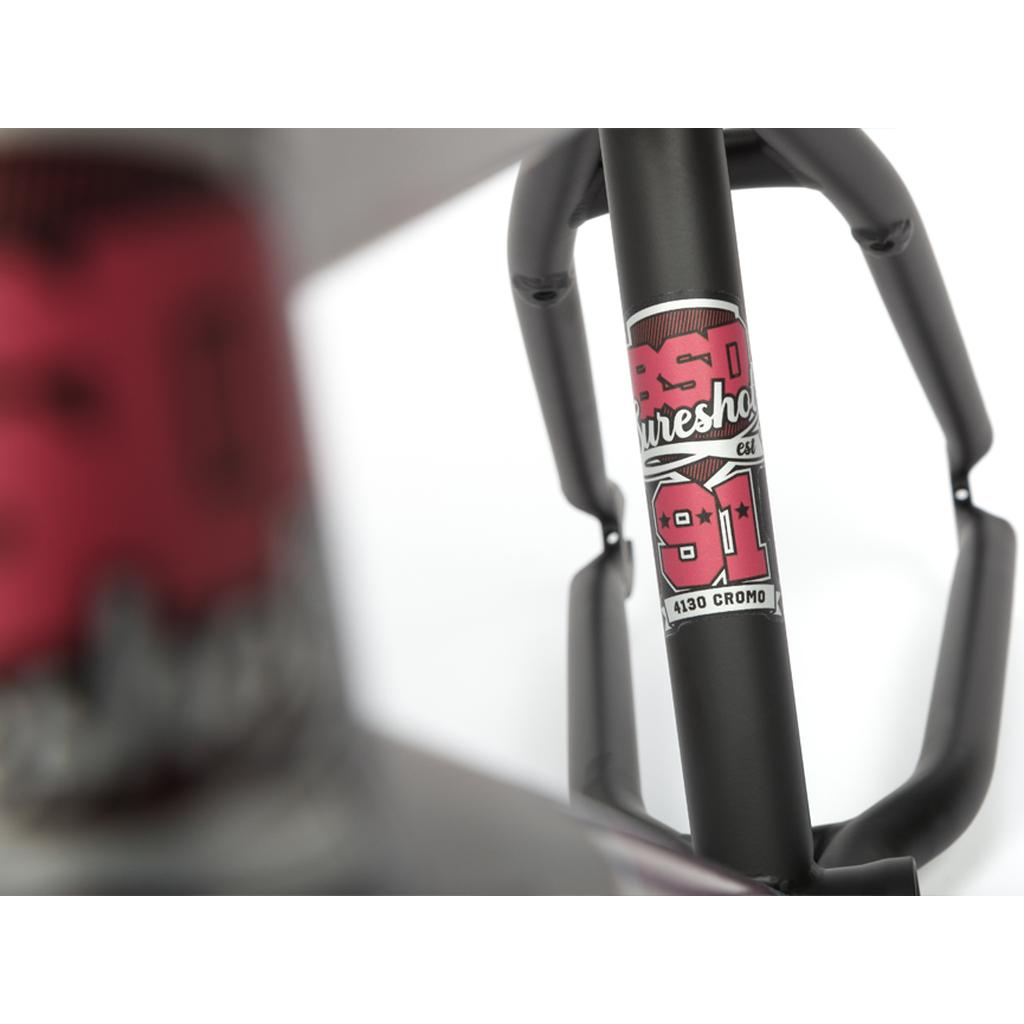

Close-up of the BSD Sureshot Frame with a “BSD Sureshot 991 4130 Cromo” decal, showing another blurred frame section in front. This all-round BMX frame offers versatility and has removable brake mounts.

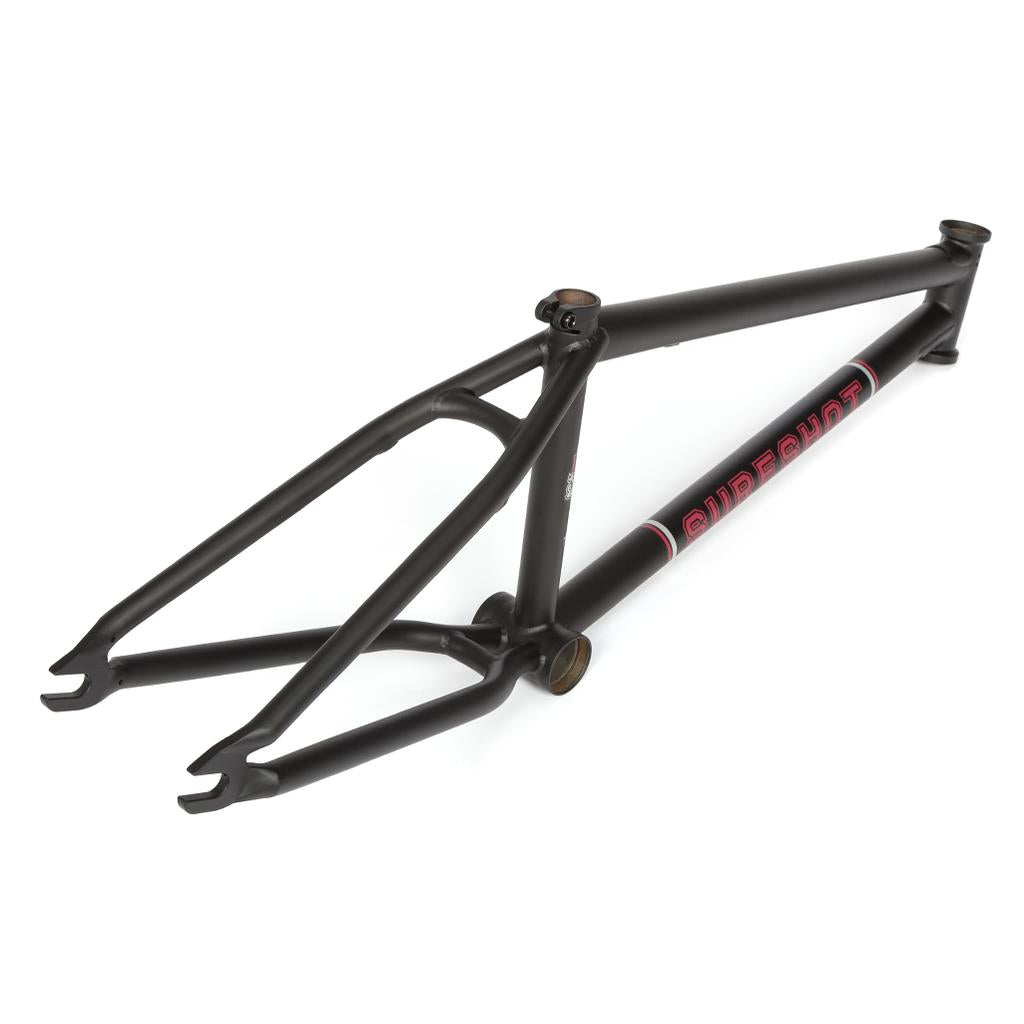

The BSD Sureshot Frame features ramp-inspired geometry, a matte black finish, and "DUBCUNT" in red and white on the down tube, shown against a white background.

Description

The BSD Sureshot is an all-round BMX frame. Ramp-based geometry, a low bottom bracket and a longer rear end let you carry high speed through transitions, and the brake mounts are removable so you can run it clean and brakeless. A brake kit is available separately if you want one back on there.

It is built to last. The tubing is Sanko Japanese seamless 4130 CrMo, triple butted, with external gussets and built-in chain tensioners. The head tube, bottom bracket, dropouts and seat clamp are all heat treated 4130 CrMo, CNC machined or investment cast, and the whole frame comes in at 2.26kgs.

Features
  • Ramp-based all-round geometry. A 21.7" top tube, low 11.5" bottom bracket and long 13.4 to 13.9" rear end for holding speed on ramps.
  • Removable brake mounts. Run the Sureshot brakeless for a clean look, or fit the brake kit that is available separately.
  • Triple butted Sanko tubing. Japanese seamless 4130 CrMo puts material where the stress is and keeps the frame down to 2.26kgs.
  • External gussets, built-in tensioners. Gussets back up the front end and the tensioners hold the rear wheel in place while you set chain tension.
  • Heat treated cast details. Invest cast dropouts and seat clamp plus a CNC machined head tube and bottom bracket, all heat treated 4130 CrMo.

Specifications
  • Top tube: 21.7"
  • Chainstay: 13.4 to 13.9"
  • Head tube angle: 74.75°
  • Seat tube angle: 71°
  • Standover: 9"
  • Bottom bracket height: 11.5"
  • Bottom bracket: Heat treated 4130 CrMo, CNC machined
  • Material: 4130 CrMo
  • Tubing: Sanko Japanese seamless 4130 CrMo
  • Butting: Triple butted
  • Dropouts: Heat treated 4130 CrMo, invest cast
  • Brake mounts: Removable, brake kit available separately
  • Head tube: 117mm, heat treated 4130 CrMo, CNC, offset thickness
  • Seat clamp: Heat treated 4130 CrMo, invest cast
  • Weight: 2.26kgs
  • Note: External gussets and built-in chain tensioners.

BSD Sureshot Frame

Brand: BSD BMX SKU:

$739.99 AUD

Or 4 payments of $184.99 AUD with

Colour - Blue Groove

Top Tube Length - 21.7

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
