Highlights

  • 150 tooth engagement
  • Pure buzz when you coast
  • Massive 14mm female axle
  • Hefty 6903 bearings

Description

The new BSD Swerve Hub has an ultra-fast engagement made possible by its 150 tooth ratchet ring plus individually toothed pawls, the pedal gap on this hub is almost non-existent and the noise it creates is a pure buzz. The Swerve hub is perfect for tech moves where a small pedal gap really helps.

The Swerve hub uses many of the same parts as the Back Street Pro hub, such as bombproof 14mm female bolts, chromo cones, a massive female axle and hefty 6903 bearings...

Hub guards available separately. Non-drive side and Drive side.

Features

  • 150 tooth engagement. A 150 tooth ratchet ring with individually toothed pawls makes the pedal gap almost non-existent, which really helps on tech moves.
  • Pure buzz when you coast. The ultra fast engagement gives the hub its distinctive buzz rather than a slow clicking.
  • Massive 14mm female axle. Bombproof 14mm female bolts and a big female axle, the same setup as the Back Street Pro hub.
  • Hefty 6903 bearings. Large 6903 bearings and chromoly cones carry the load through hard riding.
  • 110mm axle width. Measured locknut to locknut, with a 58mm drive side flange and a 45mm non-drive side flange.

Specifications

  • Width: 110mm locknut to locknut
  • Bearings: 6903
  • Engagement: 150 tooth ratchet ring with individually toothed pawls
  • Axle: Female 14mm with 14mm female bolts, chromoly cones
  • Note: Drive side flange diameter 58mm, non-drive side 45mm. Drive side flange to locknut 26mm, non-drive side 25mm. Hub guards sold separately for drive side and non-drive side.

Spoke calculator

Display

Pick the part it is laced to and we will give you the lengths to buy.

This hub

Looking up its measurements.

Check or change its figures

Flange diameter/PCD (pitch circle diameter) spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Flange position

Laced to which rim?

Or type its figures

Spoke lengths to buy

Drive side —mm
Non-drive side —mm

Pick the rim and your lengths will appear here.

Open the full spoke calculator for offset rims, other cross patterns and measuring help.

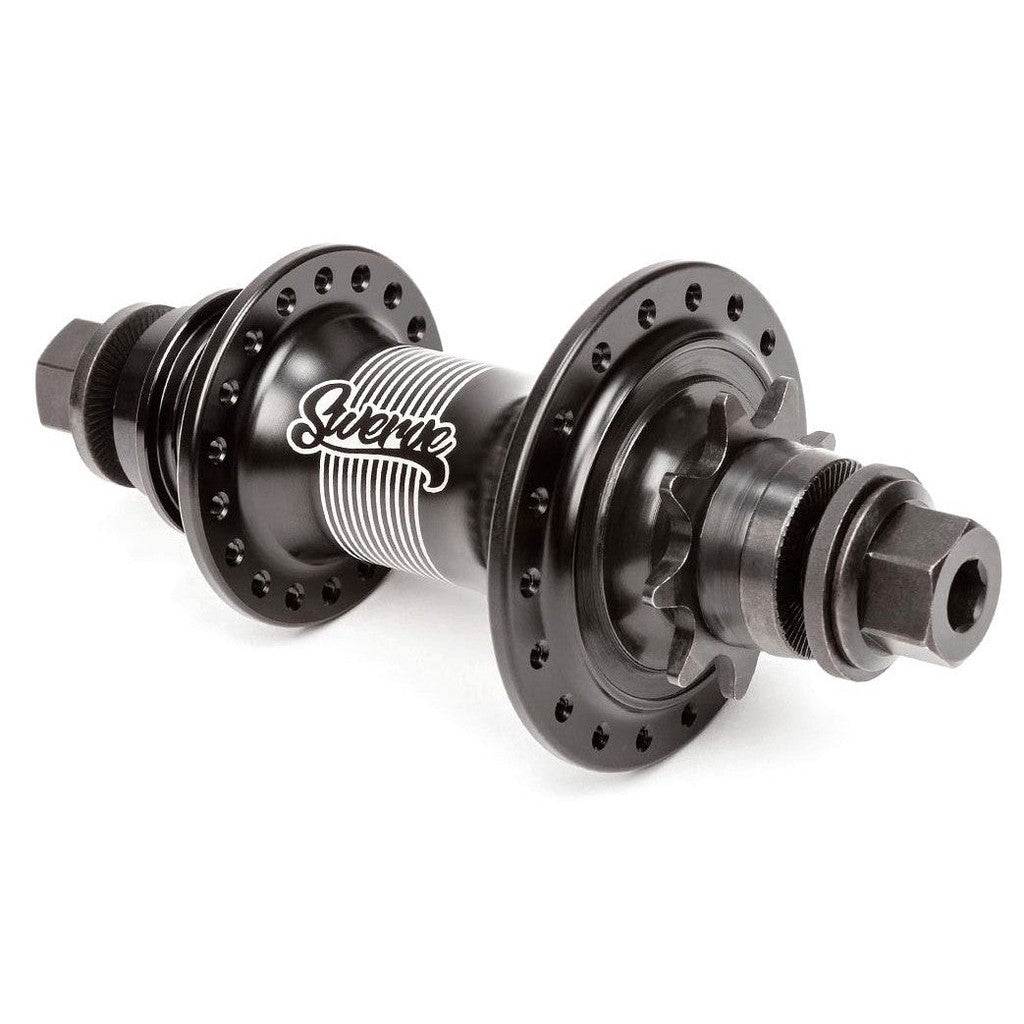

BSD Swerve Rear Hub

Brand: BSD BMX SKU: Click to copy the SKU and show the pick location

Sale priceFrom

$299.99 AUD

Regular price$341.99 AUD

Or 4 payments of $74.99 AUD with

Option - LHD

Size - 9T

Colour - Black


BSD Swerve Rear Hub - LHD / 9T / Black

Discount 12%

Instead of $341.99

$299.99 AUD

Price match request

$12.99 flat-rate shipping Australia-wide, Express from $21.99

Free in-store pickup - Brisbane

Availability

RHDLHD
Black

● In stock at LUXBMX ● With supplier ● Preorder ○ Sold out
