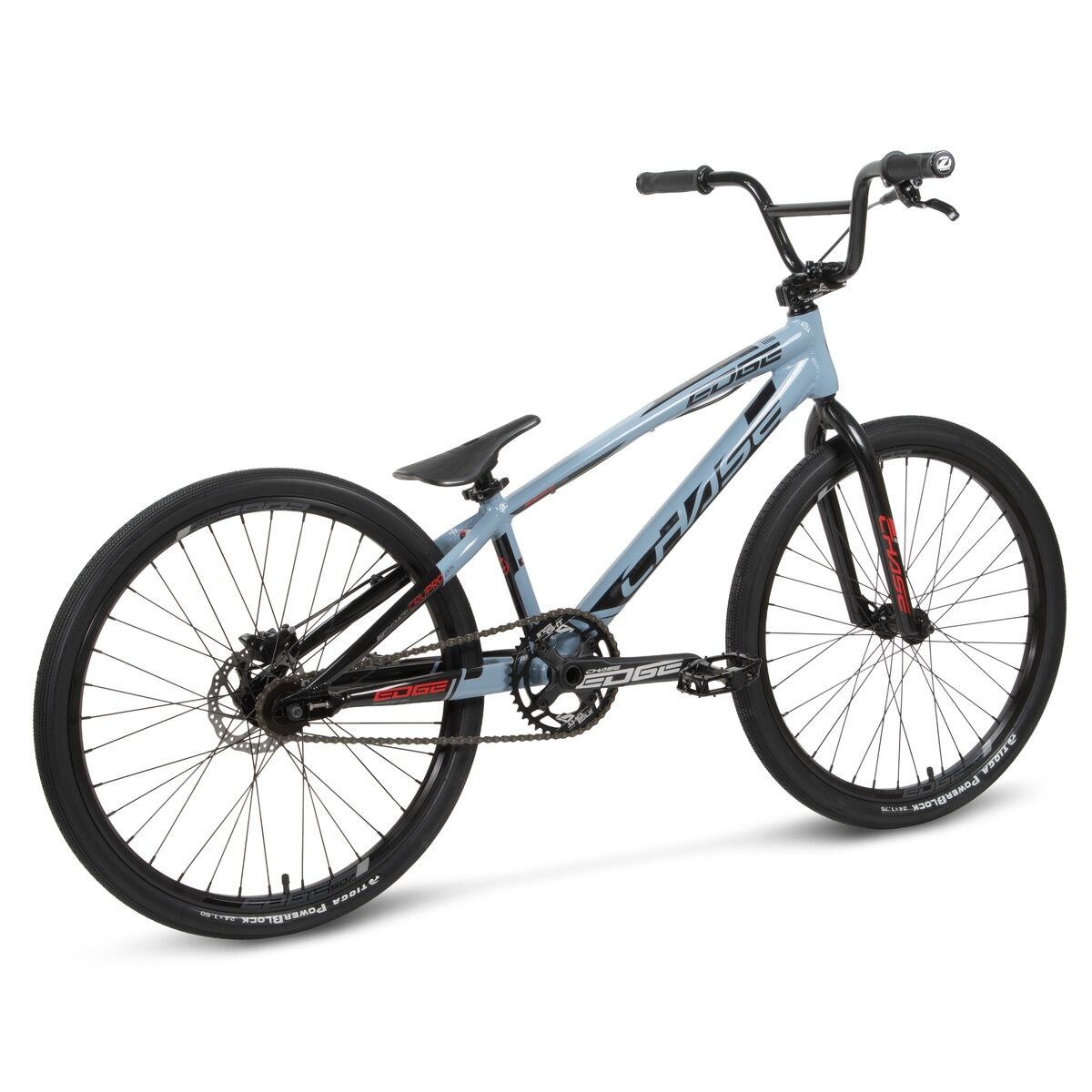

The all new CHASE Edge Cruiser is a race ready BMX machine, ideal for riders ready to get serious about BMX racing and take it to the next level.
Just when you didn't think it was possible, the new Edge has been improved, as now it is equipped with Shimano Hydraulic disc brakes (Junior size & above), all new Chase 24mm 2 piece Alloy Cranks (Expert XL & Above) , updated gearing and crank sizes, a 2 tone paint and graphics design, and an closed rear dropout system with integrated chain tensioner system,. The Edge frame also features hydroformed, triple butted, 6061 aluminium tubes with an integrated head tube. Other featured parts on the Edge include 4130 chromoly fork and handlebars, double wall rims with triple engagement rear cassette rear hub, and TIOGA tires. The combination of all these components arguably makes the CHASE Edge one of the most advanced race BMX bikes available today.
The new Edge also features a two tone paint design, along with waterbed decals that are under the clear coat. Using some of the best brands in BMX to build up the Edge, we feature Pro level parts on various sizes of the Edge including Tioga tires, Chase 2 Piece 24mm Cranks, Insight Chain Ring, Shimano Brakes, a Triple Clutch System cassette hub, KMC Chains, and a Pivotal Seat and Seat Post. With 9 bike sizes offered, the Edge line up gives you a full range of size options for just about any size / age racer.
| Length | 21.5T |
| Frame | Chase Edge Pro Cruiser 21.5″ Top Tube, 6061 T6 Alloy Triple Butted Hydroformed, Integrated Head Tube, Enclosed Rear Dropouts And Chain Tensioner System |
| Fork | Chase Edge Pro Cruiser Full Cr-mo, 1-1/8″ Steer Tube With Tapered Blades |
| Headset | Integrated IS 42/42 1-1/8″, Sealed Bearing |
| Stem | Chase Edge 50mm 6061 T6 Alloy Laser Etched Logo |
| Handlebar | Chase Edge 22.2mm,5.5″ Rise, 28″ Wide, 11° Back Sweep, 3.5° Up Sweep |
| Grips | INSIGHT C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug |
| Brake | Lever Shimano Disc Brake BL-MT200(R) Hydraulic, Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor |
| Crank | Chase Edge 2 Pieces 24mm Axle Crank 175mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts |
| Chainring | INSIGHT 41 Tooth 4 Bolt 104mm 1/2"x3/32" 5mm Alloy Ring |
| Chainring Bolts | Alloy |
| Bottom Bracket | Euro External BSA 24mm Sealed Bearing |
| Pedals | Pro Platform 9/16″ Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
| Chain | KMC Z1 narrow 1/2″x3/32″ |
| Front Hub | Chase Edge Pro, 3/8″ Axle, 36H, Sealed Bearing |
| Rear Hub | Chase Edge Pro ISO, 3/8″ Axle, 36H, Sealed Bearing, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
| Spokes | Front 179mm, Rear 173/174mm, 14 Gauge, Steel |
| Rear Cog | 18Tooth |
| Front / Rear Rim | Chase Edge 150 Double Wall 36H 24″x1.50″ Schrader Valve |
| Tyres | TIOGA PowerBlock 244″x1.75″ Wire Bead / TIOGA PowerBlock 24″x1.60″ Wire Bead |
| Seat / Post | Chase Edge Pro Pivotal / Pivotal 27.2x250mm Alloy |
| Seat Clamp | Chase Edge QR Alloy 31.8mm |
| Gearing / Ratio | 41x18 / 53.54" |
| Weight | 10kg |
