Highlights

  • Disc brake, straight out of the box
  • Built for the Sprocket ranks
  • Same tubing as the big bikes
  • 155mm cranks, 40 x 16 gearing

Description

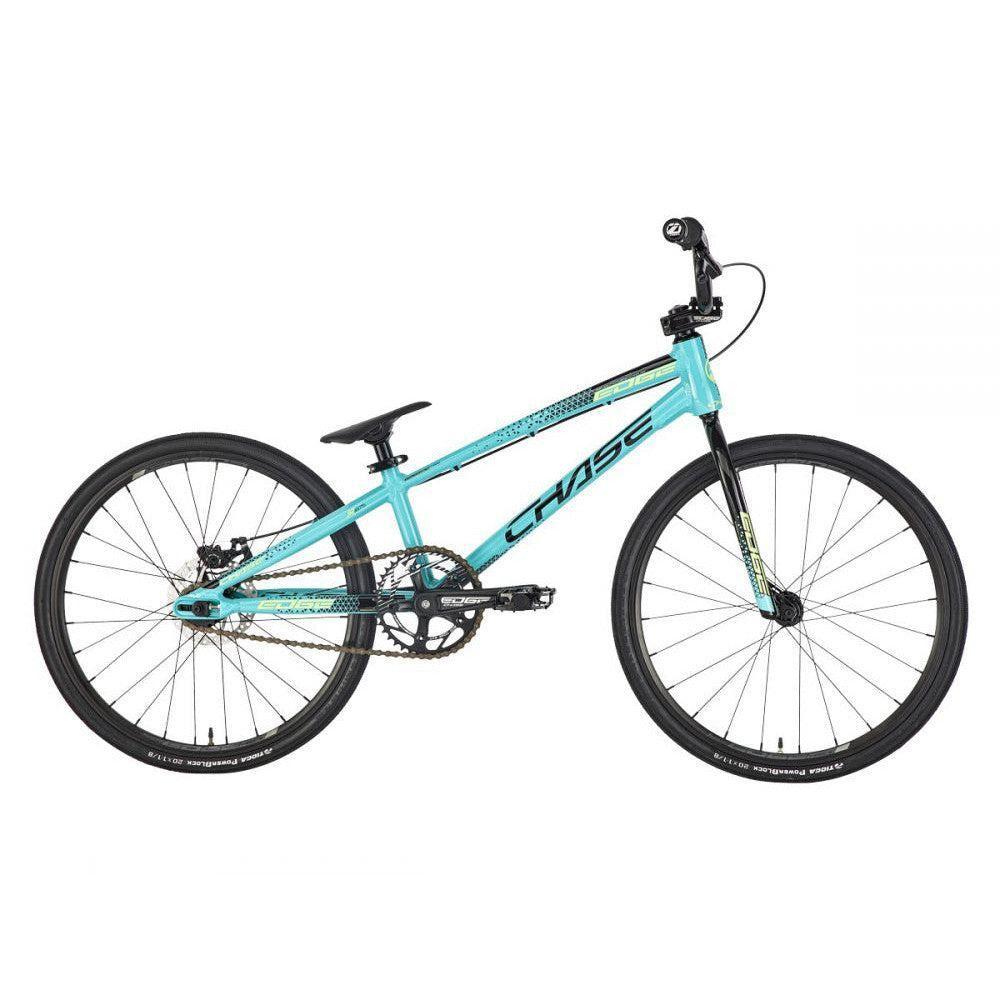

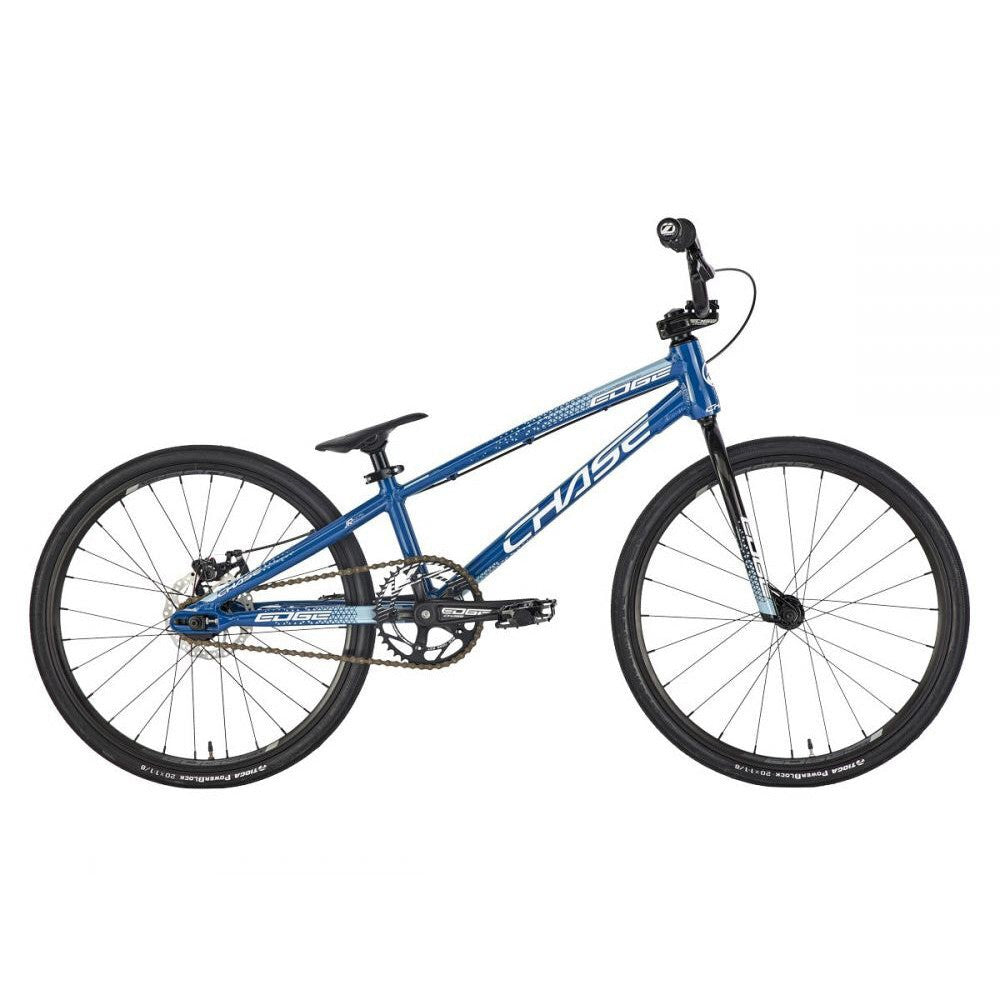

Chase Bicycles have again knocked it right out of the park with their 2023 Edge range. Next in their 20 inch bike line up is the Chase Edge Junior. For 2023, the bike again is offered in two colours and it packs a punch coming spec'd straight from the factory with a disc brake and with what we predict will become the norm for braking. Your young racer will start out on the very best in performance with the frame on the brand's Edge Junior manufactured with the same hydroformed and triple butted tubing as the bigger bikes in the range, and includes features like enclosed dropouts. The part's list mirrors quality like that of its bigger brothers as well, with Chase Edge CroMo forks, Tioga PowerBlock 20 x 1-1/8th tyres and Insight chainring, grips and pivotal mini seat.

With dedicated race geometry and lightweight design, the Chase Junior race bike is just the ticket for the racer entering the Sprocket racing ranks and is biting at the bit to send it down the big hill like the older kids. Get ready to be tagging #winwithchase regularly as your racer enters the winning arena. All in all, this is one of the coolest, highest spec'd junior race bikes currently available on the market and will set up your young rider for a life of BMX racing on of the most developed complete junior race bikes to date.

By far one our best selling brands in 2022, we expect the 2023 Chase Edge models to sell just as quick as they are definitely one of the best club level race bikes out there.

Features

  • Disc brake, straight out of the box. A 140mm rotor and mechanical disc calliper with a linear-pull lever come stock, the setup we predict will become the norm for race braking.
  • Built for the Sprocket ranks. Dedicated race geometry on an 18.75" top tube, for the racer entering Sprocket class who wants to send it down the big hill like the older kids.
  • Same tubing as the big bikes. Triple butted hydroformed 6061 T6 alloy frame with enclosed rear dropouts and an integrated chain tensioner, plus a full CrMo Chase Edge fork with 1" steer tube.
  • 155mm cranks, 40 x 16 gearing. Chase Edge 3-piece alloy cranks with CrMo chainring bolts, an Insight 40T ring and 16T cog for a 50.98" gear, on a Euro sealed bottom bracket.
  • Junior-sized cockpit and wheels. Tioga PowerBlock 20 x 1-1/8" tyres on Chase Edge 118 double wall rims, 40mm stem, 4.25" rise bars at 24" wide, Insight Mini Pivotal seat, 7.95 kg without pedals.

Specifications

  • Size: 20" wheels, 18.75" top tube
  • Frame: Chase Edge Junior, triple butted hydroformed 6061 T6 alloy, enclosed rear dropouts, integrated chain tensioner system
  • Top tube: 18.75"
  • Fork: Chase Edge Junior, full CrMo, 1" steer tube
  • Headset: Integrated sealed bearing
  • Stem: Chase Edge 40mm
  • Bars: Chase Edge 22.2mm, 4.25" rise, 24" wide, 8° back sweep, 2° up sweep
  • Grips: Insight C.O.G.S 115mm, alloy clamps, laser etched logo, PVC end plug
  • Brakes: Rear mechanical disc calliper, 140mm rotor
  • Brake lever: Linear-pull lever
  • Cranks: Chase Edge 3-piece, 155mm alloy arms, laser etched logo, CrMo chainring bolts and nuts
  • Bottom bracket: Euro sealed
  • Chainring: Insight 40T, 5 bolt, 110mm BCD
  • Pedals: Alloy sealed
  • Front hub: Chase Edge Mini, 3/8" axle, sealed bearings
  • Rear hub: Chase Edge Mini, 3/8" axle, sealed bearings, steel cassette body, 3-pawl triple angle engagement clutch on a 24T ratchet, ISO disc mount
  • Rear cog: 16T
  • Rims: Chase Edge 118 double wall, 20" x 1-1/8", 24H front and 28H rear
  • Tyres: Tioga PowerBlock 20" x 1-1/8" front and rear
  • Seat: Insight Mini Pivotal
  • Seat clamp: Chase Edge QR alloy, 28.6mm
  • Gearing: 40 x 16 (50.98" gear)
  • Weight: 7.95 kg (without pedals)

Assembly information

Your race bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Spin the rear wheel and check the rotor runs clear of the calliper
  • Check the brake and tyre pressure before the first ride

Disc brakes: keep your fingers off the rotor and pads, because oil from your skin contaminates the braking surface and takes the bite away. If the rotor rubs, loosen the two calliper bolts, squeeze the lever, then tighten them again with the lever held on. Bed the brake in with a few firm stops before you race it.

Tools: Allen key set and a 15mm spanner for the pedals. Check your axle hardware, since race bikes vary between bolt-on nuts and a thru-axle.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Chase Edge Junior Bike

Brand: Chase SKU: Click to copy the SKU and show the pick location

Sale price$1,194.99 AUD

Or 4 payments of $298.74 AUD with

Recommended Rider Height: 120 to 150 cm

Colour - Blue

Top Tube Length - 18.75

BMX race bike sizing

Race frames are sized by class, and the class you ride is set by rider height rather than age.

SizeRider heightTop tube
Micro (18" wheels)Under 110cm16.25"
Mini (20" wheels)110 to 125cm17 to 18"
Junior120 to 140cm18.25 to 18.75"
Expert135 to 155cm19.5 to 19.75"
Expert XL150 to 165cm20 to 20.75"
Pro160 to 170cm20.25 to 20.75"
Pro XL165 to 175cm21 to 21.25"
Pro XXL170 to 185cm and up21.5 to 21.85"
Pro XXXL175 to 185cm and up22"
Pro XXXXL185cm and up22.5"
Cruiser (24" wheels)175cm and up21.5" and up

Heights overlap between bike sizes on purpose. If you fall in two size categories, a growing rider new to racing is usually better suited to the larger bike, a experienced rider who wants the bike to more responsive should err on the smaller size. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark. Just don't guess their height either, you know how fast they can grow!

Here are some tips

  • Between two sizes and still growing? Take the larger size, but make sure you check the top tube length of the bike. The length of top tube for a given size (Expert XL as an example) can vary up to a half inch or more across brands. Most Expert XL frames are 20", but we've seen them as long as 20.7"
  • Experienced racer and wanting the bike to be more responsive? Take the smaller size. You want the bike to be "under you", not a stretch to the bars and cranks.
  • Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Still not sure? We're the experts and size bikes for riders every day of the week. Our team has decades of experience between them and will help you decide which bike is the right fit based on rider height and racing experience.

BMX race bike sizing

Race frames are sized by class, and the class you ride is set by rider height rather than age.

SizeRider heightTop tube
Micro (18" wheels)Under 110cm16.25"
Mini (20" wheels)110 to 125cm17 to 18"
Junior120 to 140cm18.25 to 18.75"
Expert135 to 155cm19.5 to 19.75"
Expert XL150 to 165cm20 to 20.75"
Pro160 to 170cm20.25 to 20.75"
Pro XL165 to 175cm21 to 21.25"
Pro XXL170 to 185cm and up21.5 to 21.85"
Pro XXXL175 to 185cm and up22"
Pro XXXXL185cm and up22.5"
Cruiser (24" wheels)175cm and up21.5" and up

Heights overlap between bike sizes on purpose. If you fall in two size categories, a growing rider new to racing is usually better suited to the larger bike, a experienced rider who wants the bike to more responsive should err on the smaller size. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark. Just don't guess their height either, you know how fast they can grow!

Here are some tips

  • Between two sizes and still growing? Take the larger size, but make sure you check the top tube length of the bike. The length of top tube for a given size (Expert XL as an example) can vary up to a half inch or more across brands. Most Expert XL frames are 20", but we've seen them as long as 20.7"
  • Experienced racer and wanting the bike to be more responsive? Take the smaller size. You want the bike to be "under you", not a stretch to the bars and cranks.
  • Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Still not sure? We're the experts and size bikes for riders every day of the week. Our team has decades of experience between them and will help you decide which bike is the right fit based on rider height and racing experience.
