With every subsequent year over the past 10 years, Chase BMX complete race bikes have become more and more dialled in, showing this company's experience at both the top level of BMX racing, and at the entry level.
The 2024 Chase Edge range of complete bikes offer the BMX racer that is at the beginning of their race journey a bike, that out of the box, can be taken to the track and sent off the gate with the confidence that it will handle anything that your local track will throw at you.
Chase draws upon the experience of their team riders to build a race bikes with Championship winning geometry frames and then upgrade them with some of the top parts brands in BMX racing, such as Tioga, KMC, Insight and more. The Chase Edge will give your young racer the edge over their competition and get on the way to #winwithChase like Izaac and Joris.
Some of the highlights of the Chase Edge bike include features like a disc specific race frame with Hydroformed & butted tubing, cable actuated disc brakes, integrated chain tensioner / disc brake mounting system, Tioga tyres, Insight Chain Ring, Triple Clutch System cassette hub, KMC Chain, and a Pivotal Seat and Seat Post. With 10 bike sizes offered, the Edge line up gives you a full range of size options for just about any racer.
For 2024, the Chase Edge range is our recommendation for riders just starting out with a few gate nights and training sessions at their local club, with the bike also totally tuned up for club and local racing. Cromoly forks and sealed bearings all round mean that the Edge range will be durable and maintenance kept to a minimum to give you more time out on the race track.
Key Specs:
TT Length: 18.75"
BB Height: 10.6"
Crank Length: 155mm
Gearing: 40x16
Gear Ratio: 50.98"
Tyre Size: 20x1-1/8
| Size | 18.75TT |
| Frame |
CHASE Edge Junior 18.75" Top Tube, 6061 T6 Alloy Triple Butted Hydroformed, Integrated Head Tube, Enclosed Rear Dropouts And Chain Tensioner System
|
| Fork | CHASE Edge Full Cr-Mo, 1" Steer Tube, Tapered Blades |
| Headset | Integrated IS 42/42 Reductor 1", Sealed Bearing |
| Stem | CHASE Edge 40mm 6061 T6 Alloy |

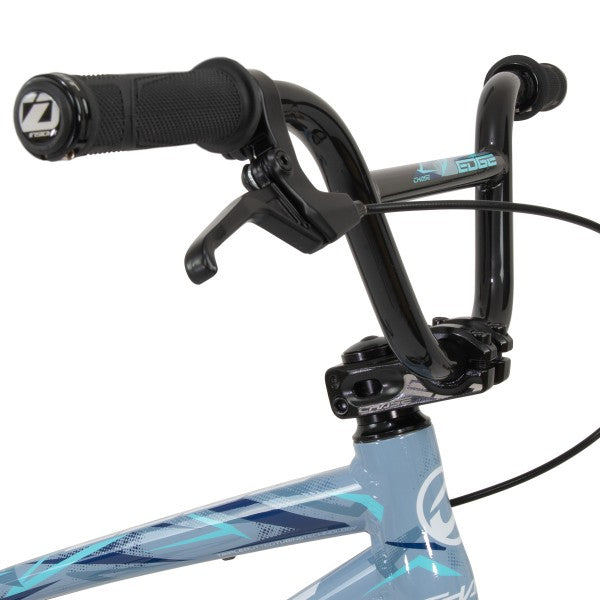

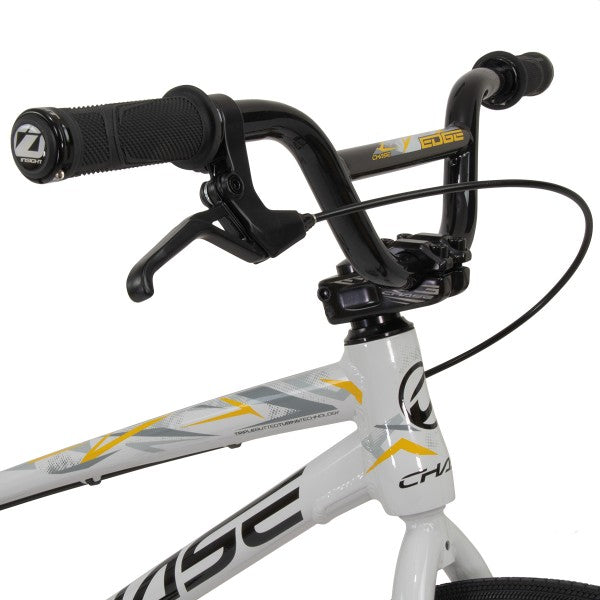

| Handlebar | Chase Edge Cr-Mo 4.25" Rise, 24" Wide, 8° Back Sweep & 2° Up Sweep |
| Grips | INSIGHT C.O.G.S 115mm Lock-On |

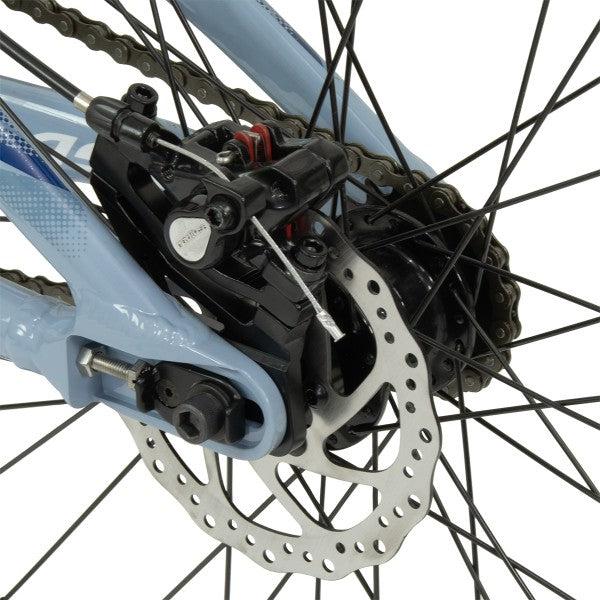

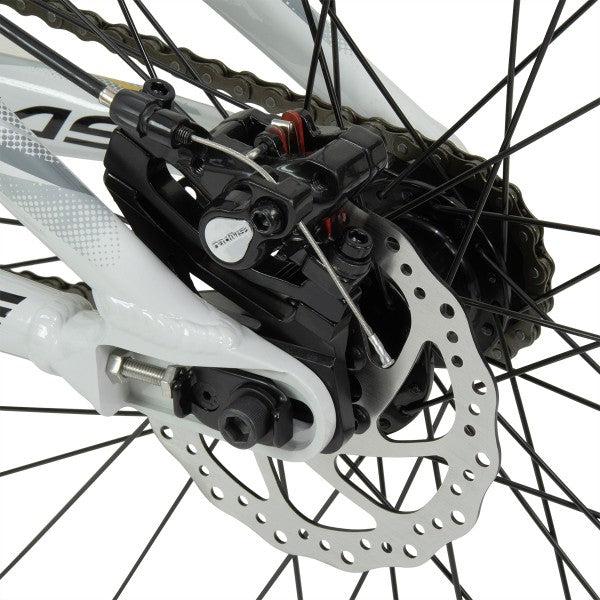

| Brake | Mechanical, 140mm Disc Rotor, Shimano B01S Compatible Pads, Lock Disc Adaptor / Alloy Junior Lever |

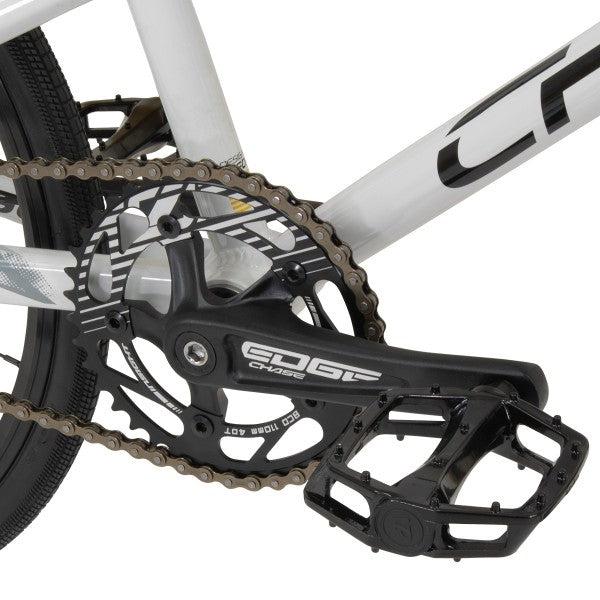

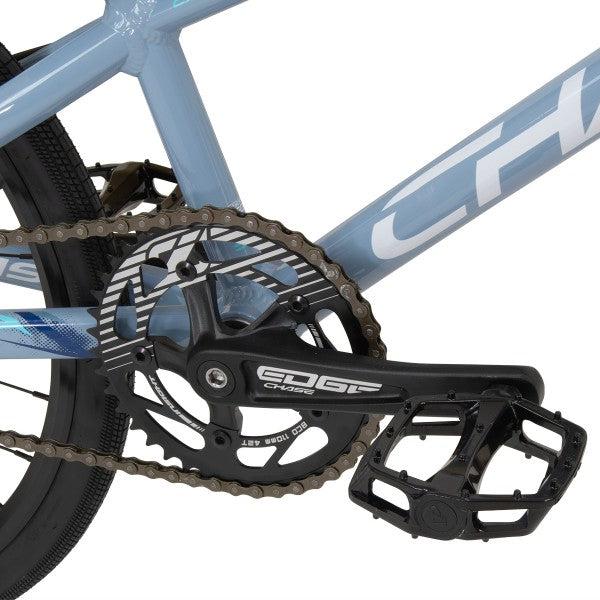

| Crank | CHASE Edge 3 Piece Crank 155mm Alloy Arm, Cr-Mo Chainring Bolts |
| Chainring | Insight 40 Tooth 5 Bolt 110mm 1/2"X3/32" 3mm Alloy Ring |
| Chainring Bolts | Steel |
| Bottom Bracket | 118mm Euro, ISIS, Sealed Cartridge |
| Pedals | Mini Platform 9/16" Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
| Chain | KMC Z1 Narrow 1/2"X3/32" |
| Front Hub | Mini 28H, Sealed Bearing, 10mm Axle, M6 Bolts |
| Rear Hub | Mini ISO 28H, Sealed Bearing, 10mm Axle, M6 Bolts, Steel Cassette Body With 3 Pawls At Triple Angle Engagement For 24T Ratchets |
| Spokes | Front 182mm, Rear 173/174mm, 14 Gauge, Steel / Brass Nipples |
| Rear Cog | 16T Steel |
| Front / Rear Rim | Chase Edge 118 Double Wall 28H 20"X1-1/8" Presta Valve |
| Tyres | Tioga PowerBlock 20"X1-1/8" Wire Bead |

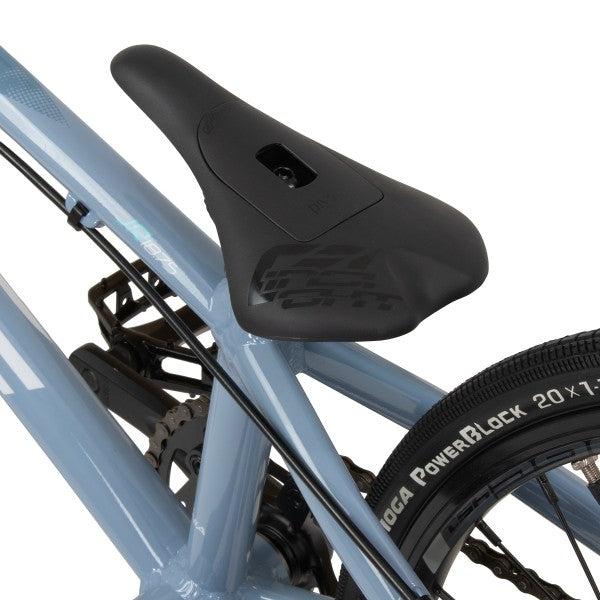

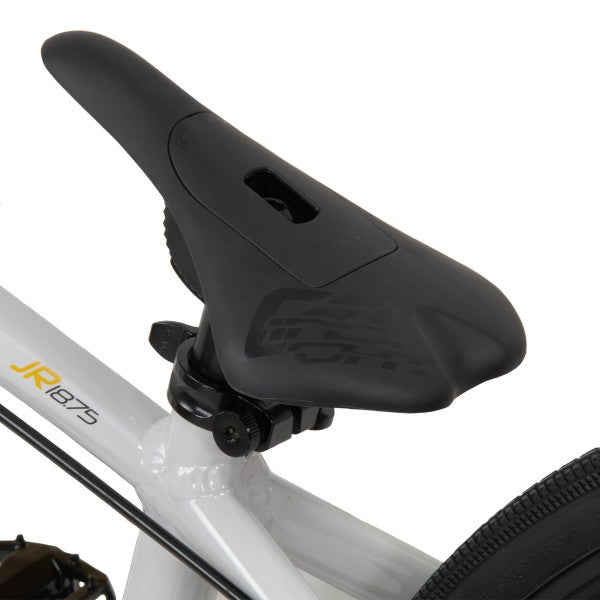

| Seat / Post | Insight Mini Pivotal Nylon Plastic Body With Cr-Mo Bolt / Pivotal 25.4x110mm Polished Alloy |
| Seat Clamp | Chase Edge QR Alloy 28.6mm |
| Gearing / Ratio | 40x16 / 50.98 |
| Weight | 7.95kg (without pedals) |
