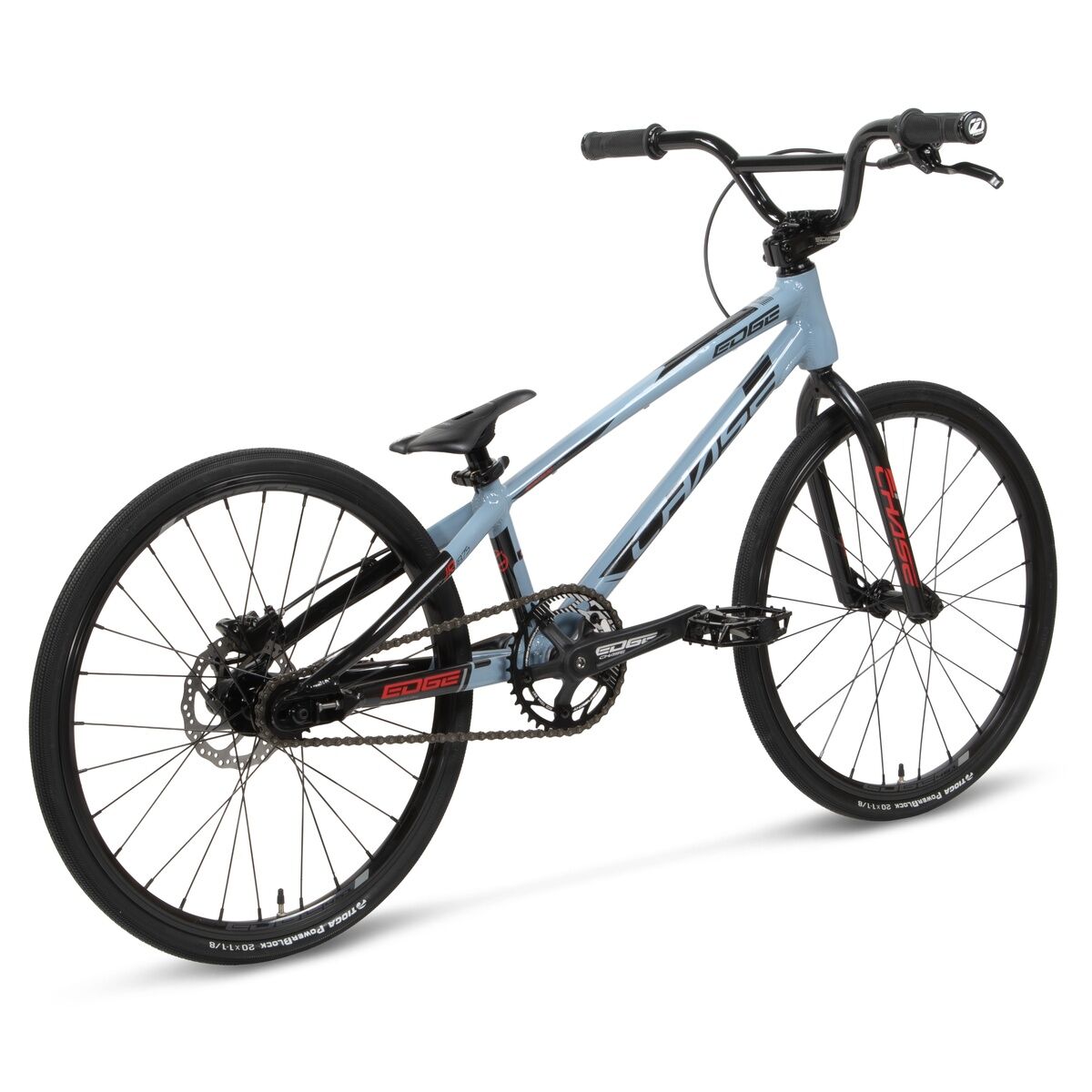

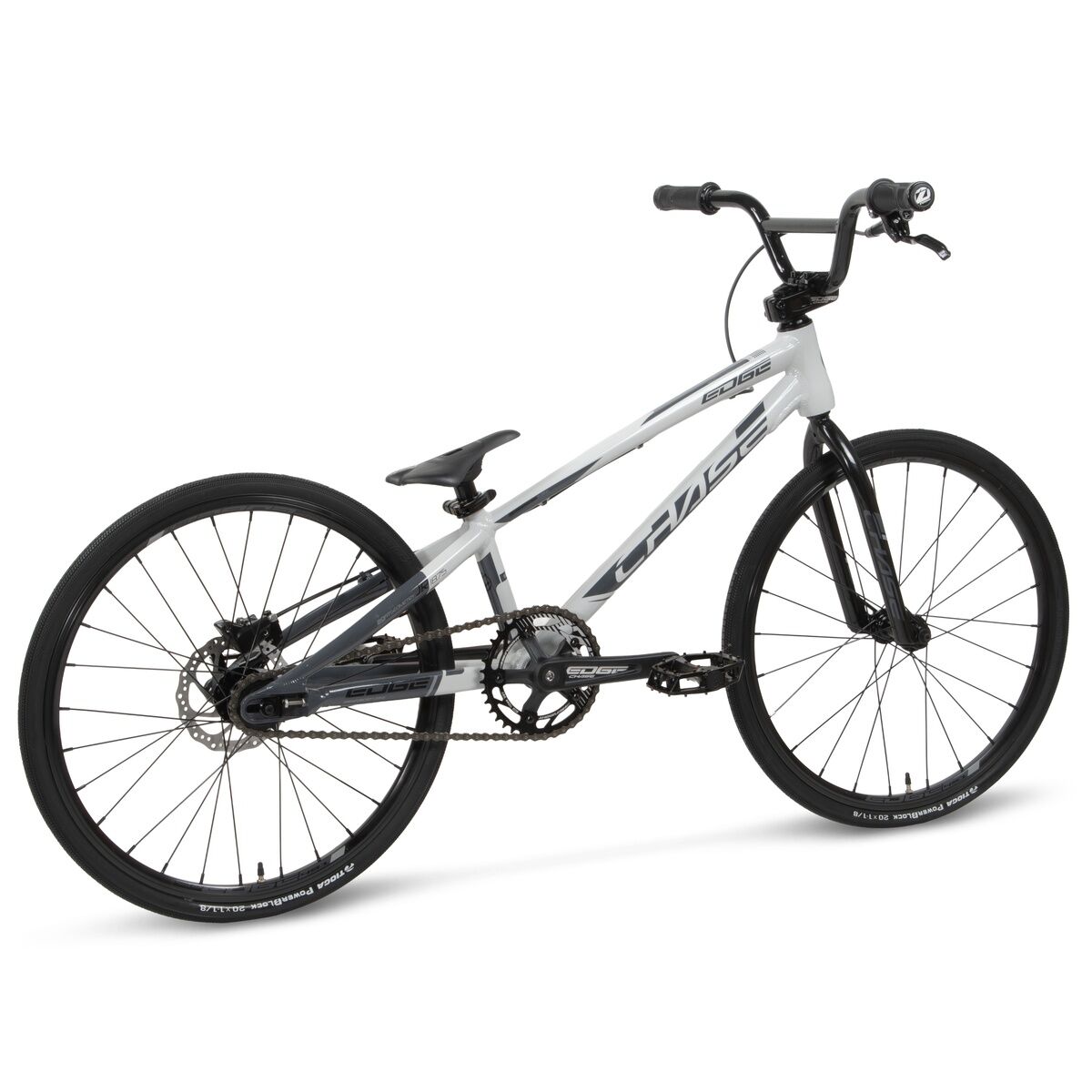

The all new CHASE Edge is a race ready BMX machine, ideal for riders ready to get serious about BMX racing and take it to the next level.
Just when you didn't think it was possible, the new Edge has been improved, as now it is equipped with Shimano Hydraulic disc brakes (Junior size & above), all new Chase 24mm 2 piece Alloy Cranks (Expert XL & Above) , updated gearing and crank sizes, a 2 tone paint and graphics design, and an closed rear dropout system with integrated chain tensioner system,. The Edge frame also features hydroformed, triple butted, 6061 aluminum tubes with an integrated head tube. Other featured parts on the Edge include 4130 chromoly fork and handlebars, double wall rims with triple engagement rear cassette rear hub, and TIOGA tires. The combination of all these components arguably makes the CHASE Edge one of the most advanced race BMX bikes available today.
The new Edge also features a two tone paint design, along with waterbed decals that are under the clear coat. Using some of the best brands in BMX to build up the Edge, we feature Pro level parts on various sizes of the Edge including Tioga tires, Chase 2 Piece 24mm Cranks, Insight Chain Ring, Shimano Brakes, a Triple Clutch System cassette hub, KMC Chains, and a Pivotal Seat and Seat Post. With 9 bike sizes offered, the Edge line up gives you a full range of size options for just about any size / age racer.
| Length | 18.75TT |
| Frame | Chase Edge Junior 18.75″ Top Tube, 6061 T6 Alloy, Integrated 1″ Head Tube, Enclosed rear dropouts and Chain tensioner system |
| Fork | Chase Edge Mini Full Cr-mo, 1″ Steer Tube With Tapered Blades |
| Headset | Integrated IS 42/42 Reductor 1″, Sealed Bearing |
| Stem | Chase Edge 40mm 6061 T6 Alloy Laser Etched Logo |
| Handlebar | Chase Edge 22.2mm, 4.25″ Rise, 24″ Wide, 8° Back Sweep, 2° Up Sweep |
| Grips | Insight C.O.G.S 115mm Alloy Clamps Laser Etched Logo, PVC End Plug |
| Brake | Lever Shimano Disc Brake BL-MT200(R) Hydraulic, Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor |
| Crank | Chase Edge 3 Piece Crank 150mm Alloy Arm, Cr-Mo Chainring Bolts |
| Chainring | Insight 38 Tooth 5 Bolt 110mm 1/2″X3/32″ 3mm Alloy Ring |
| Chainring Bolts | Alloy |
| Bottom Bracket | Euro Square 113mm Sealed Bearing |
| Pedals | Mini Platform 9/16" Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
| Chain | KMC Z1 narrow 1/2″x3/32″ |
| Front Hub | Mini 24H, Sealed Bearing, 10mm Axle, M6 Bolts |
| Rear Hub | Mini ISO 28H, Sealed Bearing, 10mm Axle, M6 Bolts, Steel Cassette Body With 3 Pawls At Triple Angle Engagement For 24T Ratchets |
| Spokes | Front 182mm, Rear 173/174mm, 14 Gauge, Steel |
| Rear Cog | 16 Tooth |
| Front / Rear Rim | ChaseEdge 118 Double Wall 24H 20″x1-1/8″ Presta Valve |
| Tyres | TIOGA PowerBlock 20″X1-1/8″ Wire Bead |
| Seat / Post | Insight Mini Pivotal Nylon Plastic Body With Cr-Mo Bolt / Pivotal 25.4x110mm Alloy |
| Seat Clamp | Chase Edge QR Alloy 28.6mm |
| Gearing / Ratio | 38x16 / 48.44" |
| Weight | 7.95kg (without pedals) |
