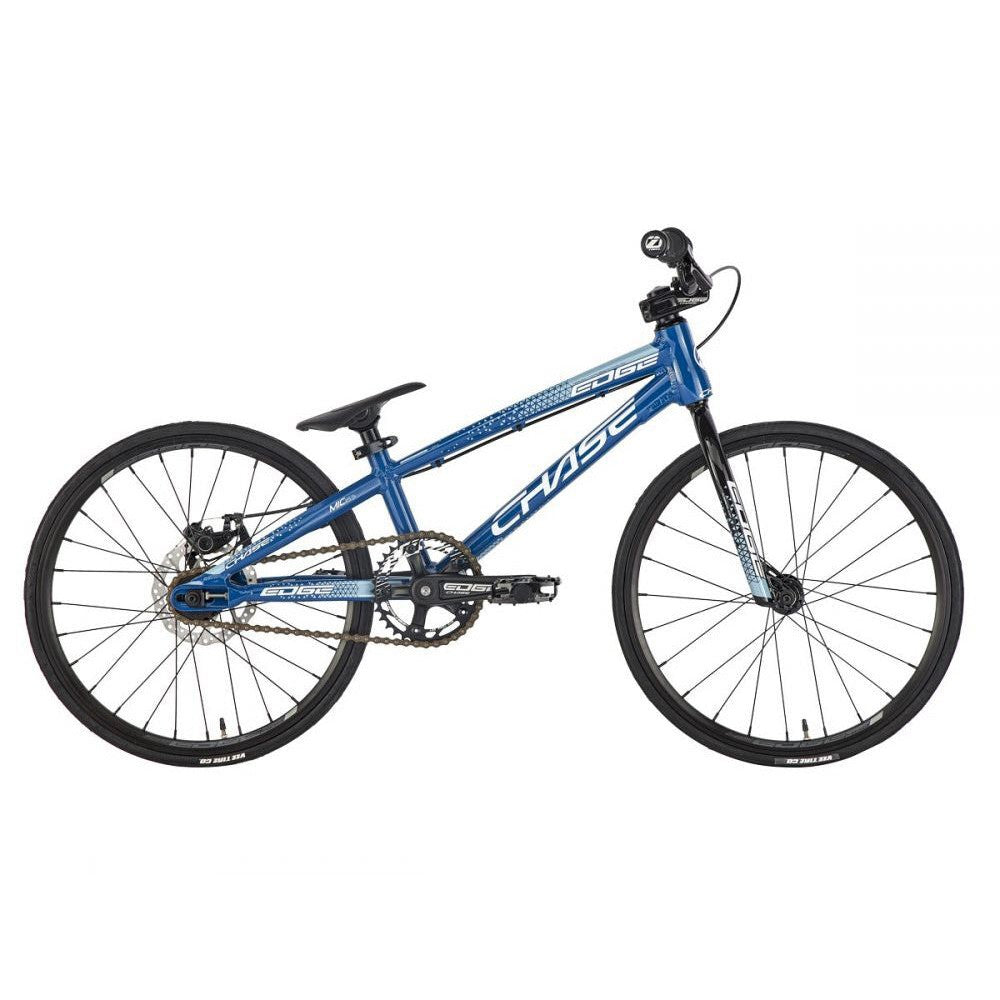

Chase Edge Micro 18 Bike (2023) / Blue / 16.25TT

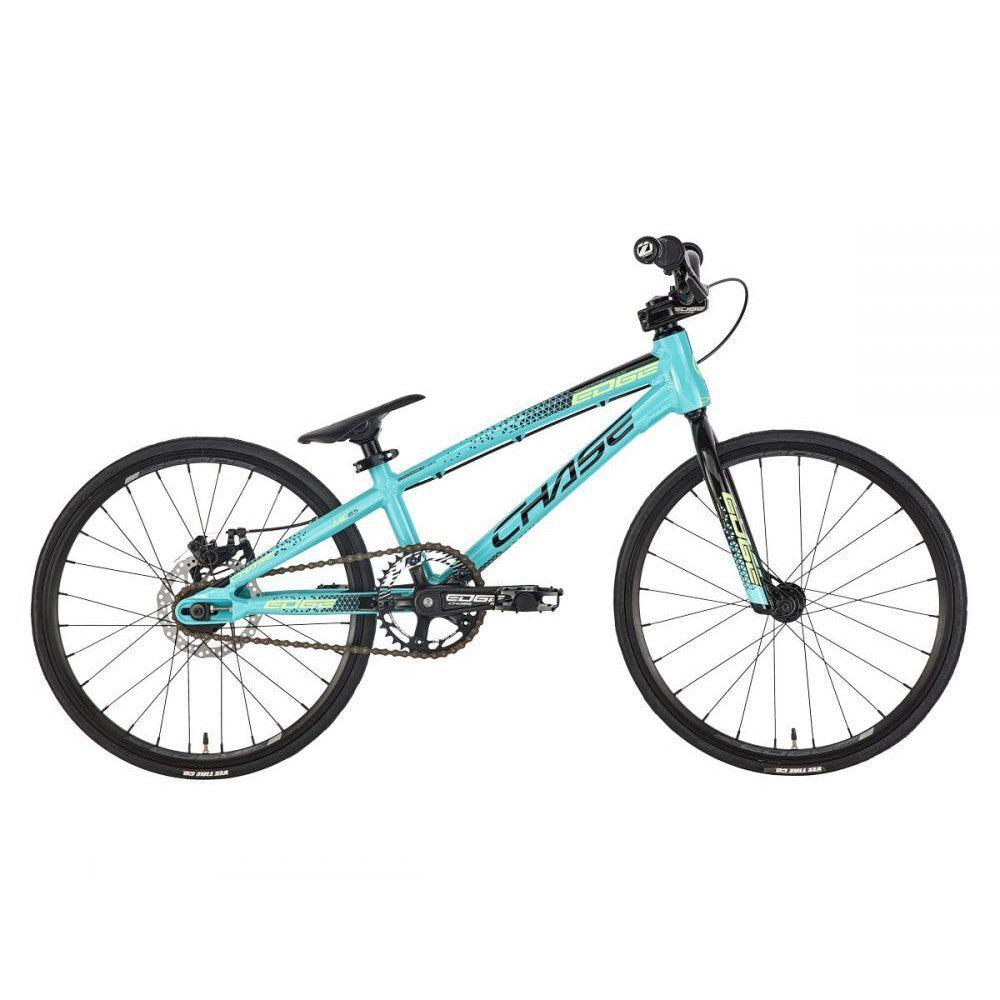

Chase Edge Micro 18 Bike (2023) / Teal / 16.25TT

Description

Chase Bicycles have again knocked it right out of the park with their 2023 Edge range. Starting here with the Chase Edge Micro 18, and offered in two killer colours, even the smallest wheeled bike in the Chase Edge line up is equipped with a disc brake! With what we predict will become the norm for braking, your youngest racer will start out on the very best in performance with the frame on the 18 inch wheeled bike manufactured with the same hydroformed and triple butted tubing as the bigger bikes in the range and includes features like enclosed dropouts. The part's list mirrors quality like that of its bigger brothers as well, with Chase Edge CroMo forks, Vee Rubber tyres and Insight chainring, grips and pivotal mini seat.

With dedicated race geometry and lightweight design, the Chase 18 inch race bike is just the ticket for the racer coming off a balance bike and is ready to send it down the big hill like the older kids. Get ready to be tagging #winwithchase regularly as your racer enters the winning arena. All in all, this is one of the coolest, highest spec'd 18 inch race bikes currently available on the market and will set up your young rider for a life of BMX racing on of the most developed complete Micro race bikes to date.

Features

Disc brake on an 18-inch race bike. Even the smallest Chase Edge gets a mechanical disc with a 140mm rotor and Shimano B01S compatible pads, so your youngest racer starts out on proper braking.
Same frame tech as the big bikes. Triple butted, hydroformed 6061 T6 alloy with enclosed rear dropouts and an integrated chain tensioner, in dedicated race geometry for the racer coming off a balance bike.
Lightweight race build. 6.99kg without pedals, running a full chromoly tapered-blade fork, 40mm alloy stem and 130mm alloy 3-piece cranks.
Sealed hubs with fast engagement. Chase Edge Mini sealed bearing hubs, the rear with a steel cassette body and 3 pawl triple angle engagement on a 24T ratchet for quick pick-up.
Insight and Vee Rubber finishing kit. Insight 35T chainring, C.O.G.S grips and Mini Pivotal seat, Vee Rubber Speedster 18 x 1" tyres on double wall Chase Edge 100 rims, geared 35 x 16.

Specifications

Size: 18" wheels, 16.25" top tube
Frame: Chase Edge Micro triple butted hydroformed 6061 T6 alloy, enclosed rear dropouts, integrated chain tensioner system
Fork: Chase Edge Micro full chromoly, 1" steerer, tapered blades
Headset: Integrated, sealed bearing
Stem: Chase Edge 40mm, 6061 T6 alloy, laser etched logo
Bars: Chase Edge 22.2mm, 2.25" rise, 10" wide, 8° back sweep, 2° up sweep
Grips: Insight C.O.G.S 115mm, alloy clamps with laser etched logo, PVC end plugs
Brakes: Rear mechanical disc calliper, 140mm rotor, Shimano B01S compatible pads
Brake lever: Linear-pull lever
Cranks: Chase Edge 3-piece, 130mm alloy arms with laser etched logo, chromoly chainring bolts and nuts
Bottom bracket: Euro, sealed
Chainring: Insight 35T, 5 bolt, 110mm BCD
Pedals: Alloy, sealed
Front hub: Chase Edge Mini, 3/8" axle, sealed bearings
Rear hub: Chase Edge Mini cassette, 3/8" axle, sealed bearings, steel cassette body, 3 pawl triple angle engagement on a 24T ratchet, ISO disc mount
Rear cog: 16T (40mm cog lock-nut)
Rims: Chase Edge 100 double wall, 18" x 1", 24H front, 28H rear
Tyres: Vee Rubber Speedster 18" x 1" front and rear
Seat: Insight Mini Pivotal seat and post
Seat clamp: Chase Edge QR alloy, 25.4mm
Gearing: 35/16, 38.41" gear ratio
Weight: 6.99kg (without pedals)

Assembly information

Your race bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Spin the rear wheel and check the rotor runs clear of the calliper
Check the brake and tyre pressure before the first ride

Disc brakes: keep your fingers off the rotor and pads, because oil from your skin contaminates the braking surface and takes the bite away. If the rotor rubs, loosen the two calliper bolts, squeeze the lever, then tighten them again with the lever held on. Bed the brake in with a few firm stops before you race it.

Tools: Allen key set and a 15mm spanner for the pedals. Check your axle hardware, since race bikes vary between bolt-on nuts and a thru-axle.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Chase Edge Micro 18 Bike

Name: Chase Edge Micro 18 Bike
Brand: Chase
SKU: 65CB230201MICROTEAL
Price: 1168.99 AUD
Availability: OutOfStock
Rating: 5.0 (1 reviews)

Brand: Chase SKU: Click to copy the SKU and show the pick location

$1,168.99 AUD

Or 4 payments of $292.24 AUD with

Recommended Rider Height:

Under 120cm

Colour - Teal

Top Tube Length - 16.25

Race frames are sized by class, and the class you ride is set by rider height rather than age.

Size	Rider height	Top tube
Micro (18" wheels)	Under 120cm	16.25"
Mini (20" wheels)	110 to 140cm	17 to 18"
Junior	120 to 150cm	18.25 to 18.75"
Expert	130 to 170cm	19.5 to 19.75"
Expert XL	145 to 170cm	20 to 20.75"
Pro	150 to 175cm	20.25 to 20.75"
Pro XL	165 to 180cm	21 to 21.25"
Pro XXL	170 to 185cm and up	21.5 to 21.85"
Pro XXXL	175cm and up	22"
Pro XXXXL	180cm and up	22.5"
Cruiser (24" wheels)	175cm and up	21.5" and up

Heights overlap between classes on purpose. Where you land in two, a growing rider is usually better on the larger, and a rider who wants the bike to turn faster on the smaller. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Between two sizes and still growing? Take the larger size.
Racing gates and wanting the bike to turn faster? Take the smaller size.
Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
