The Chase Edge Pro L Bike (2026) is a white and black BMX featuring a lightweight frame, thick tires, and elevated handlebars, displayed from a front-side angle on a white background.
The Chase Edge Pro L Bike (2026) is a white and black BMX with large handlebars, a padded seat, thick tires, and a single gear, shown from a rear side angle.
The Chase Edge Pro L Bike (2026) features a light blue BMX frame, black handlebars and wheels, with red accents, displayed from a front-side angle on a white background.

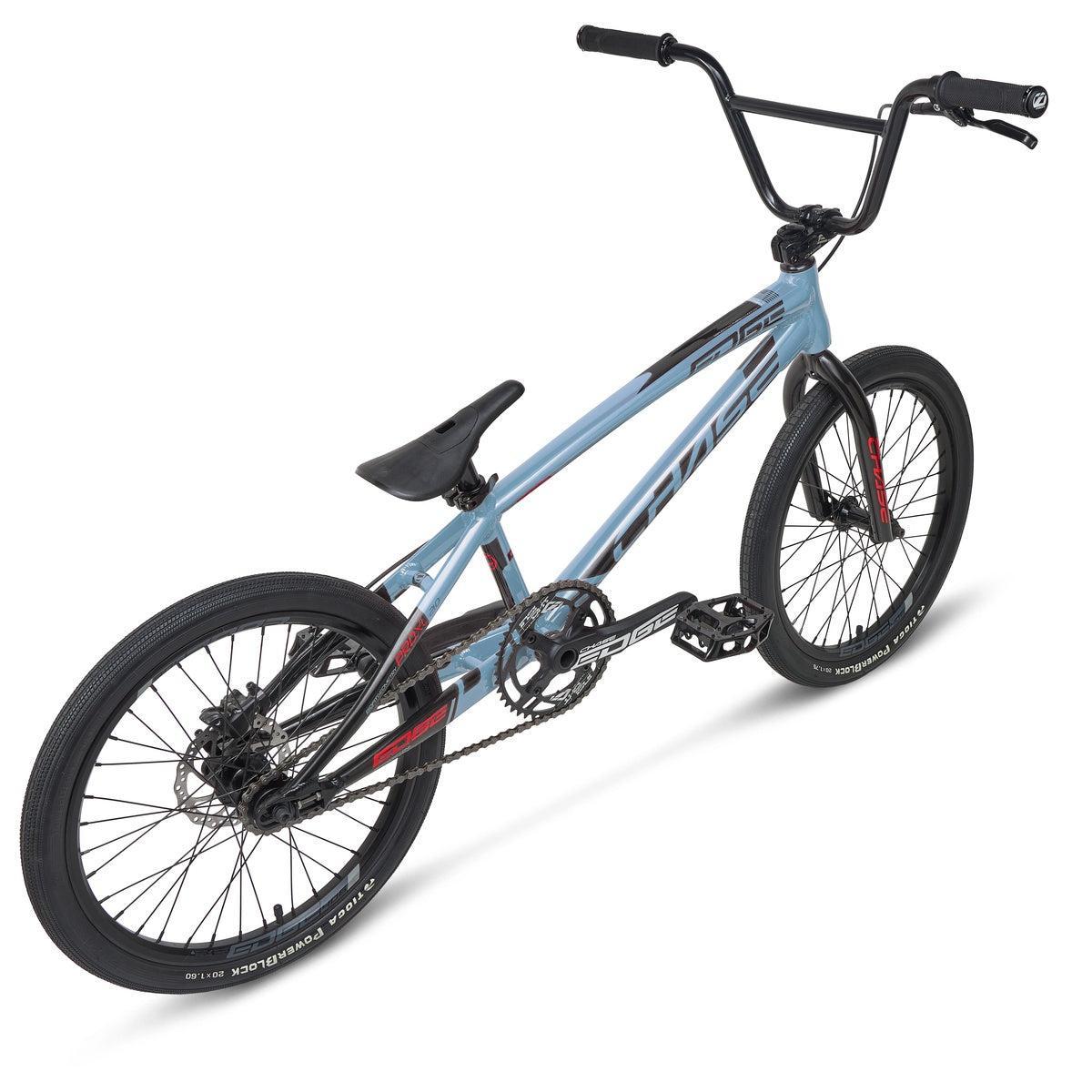

The Chase Edge Pro L Bike (2026) is a blue BMX with black handlebars, seat, and tires, displayed from a rear side angle against a white background.

Description

The all new CHASE Edge is a race ready BMX machine, ideal for riders ready to get serious about BMX racing and take it to the next level.
Just when you didn't think it was possible, the new Edge has been improved, as now it is equipped with Shimano Hydraulic disc brakes (Junior size & above), all new Chase 24mm 2 piece Alloy Cranks (Expert XL & Above) , updated gearing and crank sizes, a 2 tone paint and graphics design, and an closed rear dropout system with integrated chain tensioner system,. The Edge frame also features hydroformed, triple butted, 6061 aluminium tubes with an integrated head tube. Other featured parts on the Edge include 4130 chromoly fork and handlebars, double wall rims with triple engagement rear cassette rear hub, and TIOGA tires. The combination of all these components arguably makes the CHASE Edge one of the most advanced race BMX bikes available today.

The new Edge also features a two tone paint design, along with waterbed decals that are under the clear coat. Using some of the best brands in BMX to build up the Edge, we feature Pro level parts on various sizes of the Edge including Tioga tires, Chase 2 Piece 24mm Cranks, Insight Chain Ring, Shimano Brakes, a Triple Clutch System cassette hub, KMC Chains, and a Pivotal Seat and Seat Post. With 9 bike sizes offered, the Edge line up gives you a full range of size options for just about any size / age racer.

Features
  • 20.5" Pro frame, hydroformed alloy. Triple butted 6061 T6 tubing with an integrated head tube, enclosed rear dropouts and a chain tensioner that keeps the wheel where you set it.
  • Shimano hydraulic disc brakes. A BL-MT200 lever and BR-MT200 calliper on a 140mm rotor with resin pads, so braking stays the same every lap.
  • 175mm cranks, 42 tooth ring. Chase Edge two piece 24mm axle cranks and an Insight ring paired with a 16 tooth cog for pro class gearing.
  • Sealed hubs on double wall rims. Chase Edge Pro sealed bearing hubs with 3/8" axles, laced with 14 gauge steel spokes to 32H Edge 150 rims.
  • Pro cockpit, 27" wide bars. 7.5" rise bars with 11° back sweep and 3.5° up sweep on a 50mm alloy stem, with Insight C.O.G.S grips.

Specifications
  • Size: 20" wheels, 20.5" top tube
  • Frame: Chase Edge Pro 20.5" top tube, 6061 T6 alloy triple butted hydroformed, integrated head tube, enclosed rear dropouts and chain tensioner system
  • Top tube: 20.5"
  • Fork: Chase Edge Pro full Cr-mo, 1-1/8" steer tube with tapered blades
  • Headset: Integrated IS 42/42 1-1/8", sealed bearing
  • Stem: Chase Edge 50mm, 6061 T6 alloy, laser etched logo
  • Bars: Chase Edge 22.2mm, 7.5" rise, 27" wide, 11° back sweep, 3.5° up sweep
  • Grips: Insight C.O.G.S 130mm, alloy clamps, PVC end plug
  • Brakes: Shimano BR-MT200(R) hydraulic disc calliper, resin pads, 140mm rotor and adaptor
  • Brake lever: Shimano BL-MT200(R) hydraulic
  • Cranks: Chase Edge 2 piece, 24mm axle, 175mm alloy arms, Cr-mo chainring bolts and nuts
  • Bottom bracket: Euro external BSA 24mm, sealed bearing
  • Chainring: Insight 42 tooth, 4 bolt 104mm, 1/2"x3/32", 5mm alloy
  • Chain: KMC Z1 narrow 1/2"x3/32"
  • Pedals: Pro platform 9/16", polished barrel with grip nodes, boron steel axle, ball bearing
  • Front hub: Chase Edge Pro, 3/8" axle, 32H, sealed bearing
  • Rear hub: Chase Edge Pro ISO, 3/8" axle, 32H, sealed bearing, steel cassette body with 3 pawls at triple angle engagement for 24T ratchets
  • Rear cog: 16 tooth
  • Spokes: Front 179mm, rear 173/174mm, 14 gauge, steel
  • Rims: Chase Edge 150 double wall 32H, 20"x1.50", Schrader valve
  • Tyres: Tioga PowerBlock
  • Gearing: 42 tooth chainring to 16 tooth cog

Assembly information

Your race bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Spin the rear wheel and check the rotor runs clear of the calliper
  • Check the brake and tyre pressure before the first ride

Disc brakes: keep your fingers off the rotor and pads, because oil from your skin contaminates the braking surface and takes the bite away. If the rotor rubs, loosen the two calliper bolts, squeeze the lever, then tighten them again with the lever held on. Bed the brake in with a few firm stops before you race it.

Tools: Allen key set and a 15mm spanner for the pedals. Check your axle hardware, since race bikes vary between bolt-on nuts and a thru-axle.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Chase Edge Pro L Bike (2026)

Brand: Chase SKU:

From

$1,099.99 AUD

 $1,299.99 AUD

Or 4 payments of $274.99 AUD with

Colour - Cement Grey

Top Tube Length - 20.5

BMX race bike sizing

Race frames are sized by class, and the class you ride is set by rider height rather than age.

SizeRider heightTop tube
Micro (18" wheels)Under 120cm16.25"
Mini (20" wheels)110 to 140cm17 to 18"
Junior120 to 150cm18.25 to 18.75"
Expert130 to 170cm19.5 to 19.75"
Expert XL145 to 170cm20 to 20.75"
Pro150 to 175cm20.25 to 20.75"
Pro XL165 to 180cm21 to 21.25"
Pro XXL170 to 185cm and up21.5 to 21.85"
Pro XXXL175cm and up22"
Pro XXXXL180cm and up22.5"
Cruiser (24" wheels)175cm and up21.5" and up

Heights overlap between classes on purpose. Where you land in two, a growing rider is usually better on the larger, and a rider who wants the bike to turn faster on the smaller. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

  • Between two sizes and still growing? Take the larger size.
  • Racing gates and wanting the bike to turn faster? Take the smaller size.
  • Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

BMX race bike sizing

Race frames are sized by class, and the class you ride is set by rider height rather than age.

SizeRider heightTop tube
Micro (18" wheels)Under 120cm16.25"
Mini (20" wheels)110 to 140cm17 to 18"
Junior120 to 150cm18.25 to 18.75"
Expert130 to 170cm19.5 to 19.75"
Expert XL145 to 170cm20 to 20.75"
Pro150 to 175cm20.25 to 20.75"
Pro XL165 to 180cm21 to 21.25"
Pro XXL170 to 185cm and up21.5 to 21.85"
Pro XXXL175cm and up22"
Pro XXXXL180cm and up22.5"
Cruiser (24" wheels)175cm and up21.5" and up

Heights overlap between classes on purpose. Where you land in two, a growing rider is usually better on the larger, and a rider who wants the bike to turn faster on the smaller. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

  • Between two sizes and still growing? Take the larger size.
  • Racing gates and wanting the bike to turn faster? Take the smaller size.
  • Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
