Description

What makes the Chase Edge race bike range the top selling race bike here at LUX? Read on and find out why our customers love this brand, and in particular, the Edge bike range, with the Pro XXL vying for equal first with the Edge Cruiser.

First off the frame, its two-tone paint scheme is not only classy, the Edge frame is constructed from triple-butted, hydroformed 6061 aluminium tubing and features an integrated head tube. This type of manufacturing process is usually reserved for frames found at much higher price point and brings the benefits of a lighter construction, with thicker tubing found at the points where the frame is under stress for strength. Simply put, the frame's tubing is thin in the areas where it's not under stress, like the middle portion of the tubing, and thicker at the ends where it meets the other parts of the frame. The frame is also clear coated providing a extra layer of protection when the bike is copping a hiding in the back of the car, or in staging.

Top notch components! Every bike in the Edge range benefits from having disc brakes on all models, bringing both superior and precise braking to your race game. For the youngest racers with little hands, disc brakes provides parents the reassurance that your young speedster will be able to pull up at the end of the track, or make that move when there's a big pile up in front of them rather than just plowing into the riders.

Every rolling/turning component has sealed bearings which equates to low maintenance and long lasting. From the hubs, to the headset and down to the bottom bracket you'll find quality sealed bearings keeping the dust and moisture at bay. Less time fixing or adjusting and more time riding.

Each wheel in the Edge range has double-walled alloy rims. What does this mean? Added strength for the wheels, and while the biggest of hits out on the track might still tweak the wheels, in every day racing and training the wheels will stay straight and fast thanks to the double-walled design.

Speaking of strength, the Pro sized 20 inch bikes have 2-piece aluminium cranks with a 24mm axle. This all adds up to a beefier drivetrain that will handle the type of riding that racers from this age up will dish up to these bikes. You'll also find chromoly handlebars on the same range of bikes for extra peace of mind.

Chase's years of race knowledge shines though on the little things as well, like optimised gearing on each model in the range so you don't need to be changing anything up at the track, unless your local is a big ole downhill joint! And if that's the case, lucky the disc brakes work so well.

Experience for yourself why the Chase Edge range has been so popular with Australian racers by grabbing a 2027 model and taking the easy wins next race season.



Specifications

  • Length: 21.5 Inch Frame
  • Frame: Chase Edge Pro 21.5" Top Tube 6061 T6 Alloy, Closed Drop Out, Integrated Head Tube, 1", Water Decals
  • Fork: Chase Edge Full Cr-mo, 1-1/8" Steer Tube With Tapered Blades
  • Headset: Integrated IS 42/42 1-1/8", Sealed Bearing
  • Handlebars: Chase Edge Cr-mo 8.5" Rise, 29" Wide, 11° Back Sweep & 3.5° Up Sweep
  • Grips: Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug
  • Stem: Chase Edge 1-1/8" Steer Tube, Diameter 22.2mm, Length 50mm, 6061 T6 Alloy
  • Bottom Bracket: Euro External BSA 24mm Sealed Bearing
  • Chainring: Insight 43 Tooth 4 Bolt 104mm 1/2"x3/32" 5mm Alloy Ring
  • Cranks: Chase Edge 2 Pieces 24mm Axle Crank 175mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts
  • Pedals: Pro Platform 9/16" Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing
  • Chain: KMC Z1 narrow 1/2″x3/32″
  • Cog: 16 Tooth
  • Front Hub: 36H, Sealed Bearing, 3/8" Bolts
  • Rear Hub: ISO 36H, Sealed Bearing, 3/8" Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets
  • Spokes: 14 Gauge, Steel
  • Nipples: 16mm, 14 Gauge, Brass
  • Front Rim: Chase Edge Alloy 406 Double Wall 36H 20"x1.50" Presta Valve
  • Rear Rim: Chase Edge Alloy 406 Double Wall 36H 20"x1.50" Presta Valve
  • Front Tyre: Vee Rubber SpeedSter 20"x1.75" Wire Bead
  • Rear Tyre: Vee Rubber SpeedSter 20"x1.60" Wire Bead
  • Tubes: 20''*1.75" Presta Valve
  • Brakes: Lever Shimano Disc Brake BL-MT200(R) Hydraulic Lever, Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor
  • Seat: Expert/Pro Combo Alloy Post/Nylon Seat
  • Post: Expert/Pro Combo Alloy Post/Nylon Seat
  • Seat Clamp: Chase Edge QR Alloy 31.8mm
  • Weight: 9.43 Kg (without pedals)

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

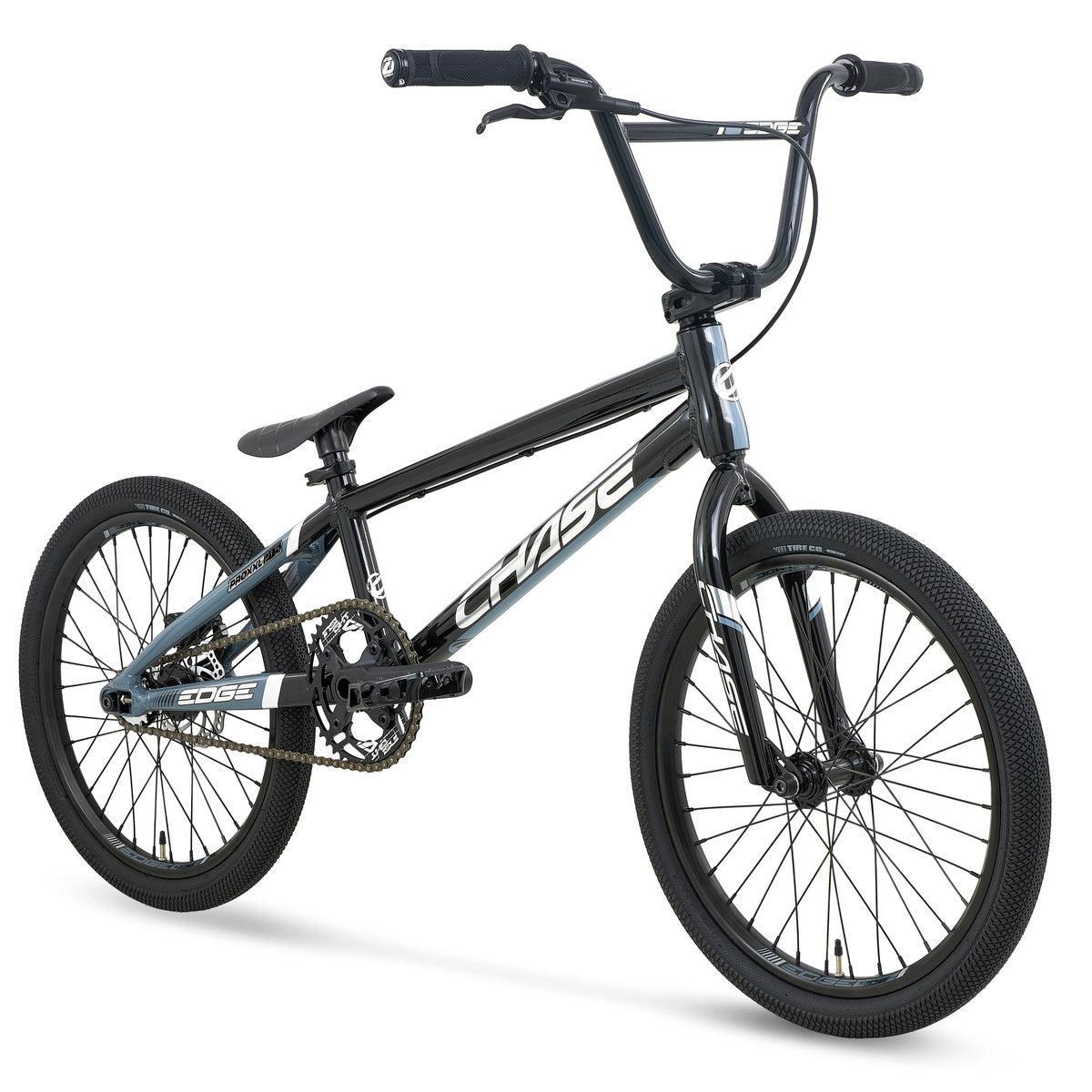

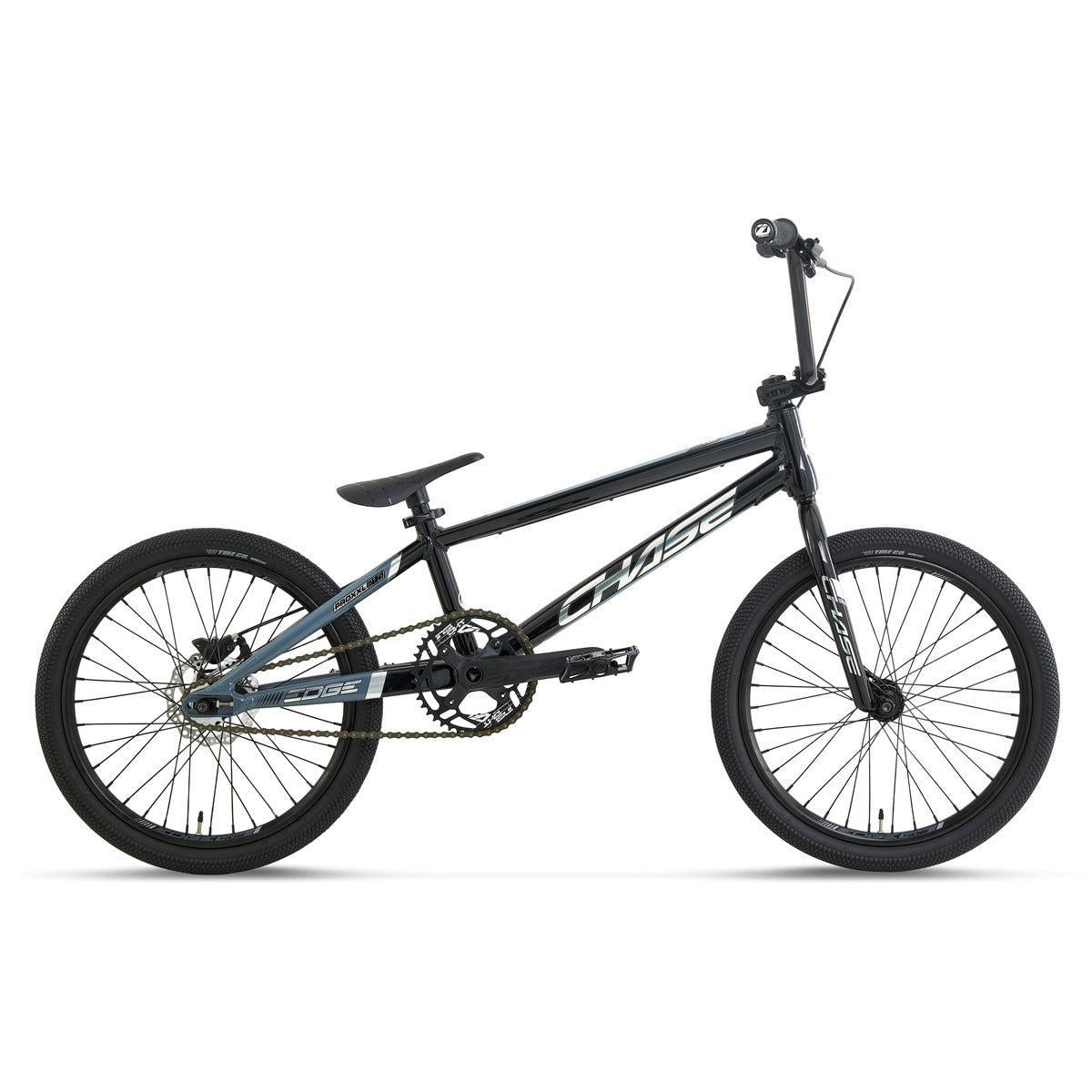

Chase Edge Pro XXL Race Bike (2027)
