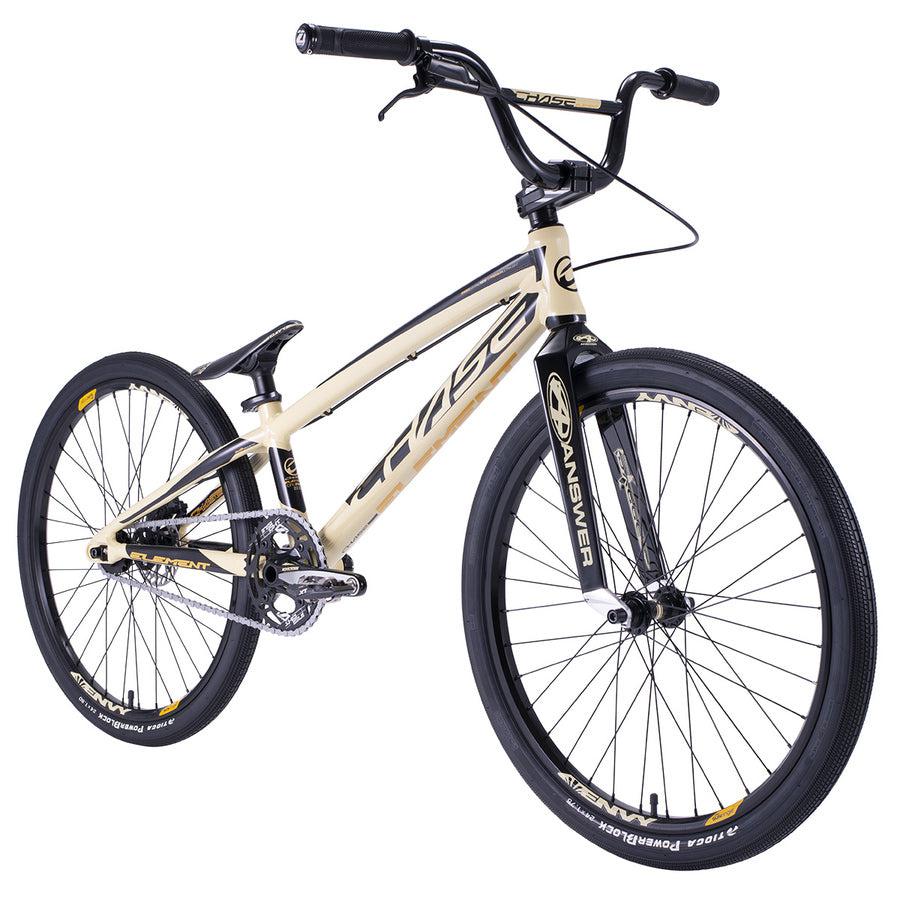

Chase Element Pro 24 Cruiser (2022) / Sand / 21.5TT

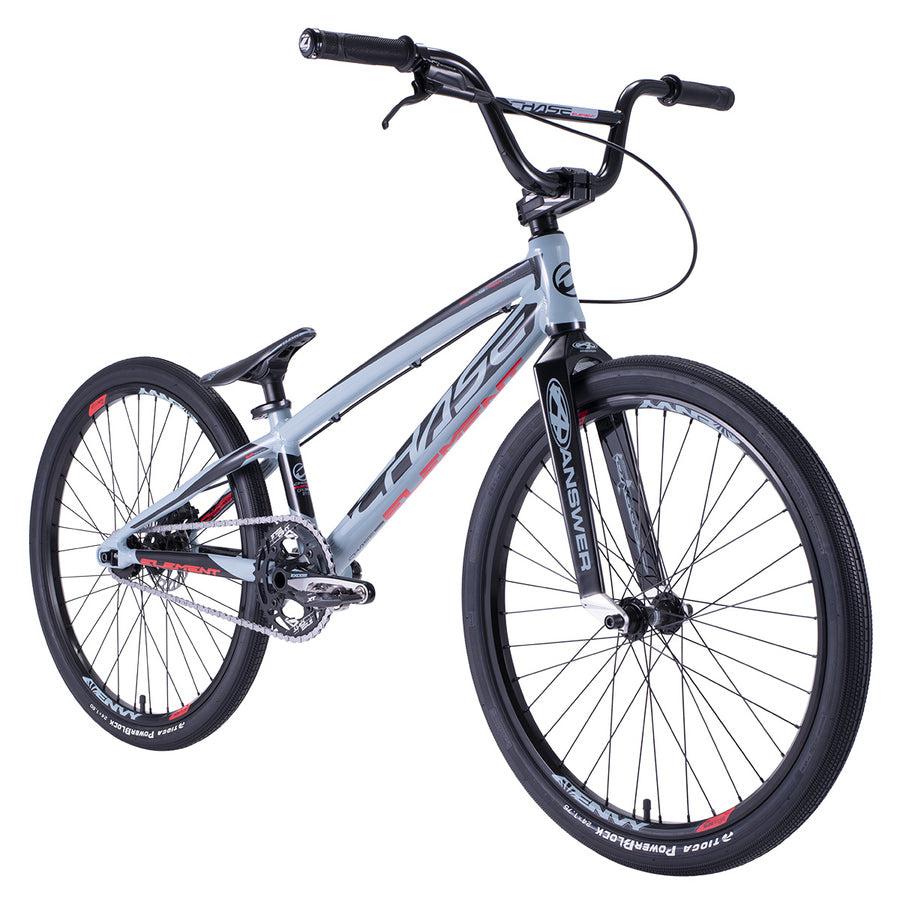

Chase Element Pro 24 Cruiser (2022) / Teal / 21.5TT

Description

For the first time, Chase has introduced a Pro+ Cruiser 24 Element alongside the Pro Cruiser 24 from previous years. We sold more Chase Element cruisers in 2020/21 than any other cruisers in this segment. So this big dawg race rig has been heavily anticipated for 2022 race year, and we expect the 2022 Chase Element Pro Cruiser range to sell fast! The Element range has really established itself as the best value for the racer looking to step up from an entry level race bike. With a part's suite that includes gear like race proven Answer carbon fibre Dagger forks, along with a disc brake system, the first step in the Element Pro range is the perfect race rig for riders coming up through the ranks. The part's list continues with brands like Elevn, Insight and Tioga used for key components

With the cruiser classes being popular with mums and dads, we are stoked that Chase are bringing in a bigger option to the Element range. With a 21.5in TT on the Pro 24, and 22in TT on the Pro 24+, there is really a Chase Element Cruiser for every rider 5'8" and up. The is really a Chase bike for every family member now. Even the tall ones!

With design cues from the Chase RSP frame series, the Element's geometry has input from Chase's two pro riders, Olympic champion Connor Fields, and 4X USABMX title winner Joris Daudet, the boys are definitely eyeing up the cruiser title at the Grands as they age out of Pro. Jump on one of these Element cruisers and we guarantee you'll be bringing home more trophies than the kids along with bragging rights at Maccas after racing.

Features

Two sizes, for riders 5'8" and up. A 21.5" top tube on the Pro 24 and 22" on the Pro 24+, so there is a Chase Element cruiser for every family member, even the tall ones.
Answer Dagger carbon cruiser fork. The race proven Dagger Carbon Pro Cruiser with alloy dropouts, 3/8" axle, 1-1/8" alloy steerer and alloy top cap, fitted as standard.
Hydraulic disc brake. Hydraulic lever and calliper on a 120mm rotor with resin pads and a lock disc adaptor.
Pro rider geometry in 7005 T6 alloy. Design cues from the Chase RSP frames with input from Olympic champion Connor Fields and four-time USABMX title winner Joris Daudet, plus enclosed dropouts and a chain tensioner system.
Tioga PowerBlock tyres, 180mm cranks. 24 x 1.75 front and 24 x 1.60 rear on 36H Sun Ringle Envy Lite rims, with Excess LSP two-piece cranks, an Insight 41T ring and 18T cog.

Specifications

Size: 24" wheels, 21.5" top tube (Pro 24) or 22" top tube (Pro 24+)
Frame: Chase Element Pro Cruiser, 7005 T6 alloy, integrated 1-1/8" head tube, enclosed rear dropouts and chain tensioner system
Top tube: 21.5" (Pro 24) / 22" (Pro 24+)
Bottom bracket height: 12.0"
Fork: Answer Dagger Carbon Pro Cruiser, alloy dropouts, 3/8" axle, 1-1/8" alloy steerer tube, alloy top cap
Headset: Chase integrated sealed bearing
Stem: Chase Element 50mm, 31.8mm bar clamp, 6061 T6 alloy, CNC laser etched logo
Bars: Chase Element 31.8mm, 5.75" rise, 28.5" wide, 10° back sweep, 2° up sweep
Grips: Insight C.O.G.S 145mm, alloy clamps, PVC end plugs
Brakes: Hydraulic lever and calliper, 120mm alloy rotor, resin pads, lock disc adaptor
Cranks: Excess LSP 2-piece, 180mm alloy arms, 4 bolt spider, chromoly pedal inserts, alloy chainring bolts and nuts
Bottom bracket: Press fit 68/73mm, cartridge bearings
Chainring: Insight 41T, 4 bolt, 104mm BCD, 1/2" x 3/32", 5mm alloy ring
Chain: KMC Z1 narrow, 1/2" x 3/32"
Pedals: Nylon platform, 9/16"
Front hub: Chase Element, 3/8" axle, M6 bolts, 36H, sealed bearing
Rear hub: Chase Element ISO, 3/8" axle, M6 bolts, 36H, sealed bearing, steel cassette body, 3 pawls at triple angle engagement for 24T ratchet
Rear cog: 18T
Rims: Sun Ringle Envy Lite, 36H, 24 x 1.50", no brake surface, Schrader valve
Tyres: Tioga PowerBlock 24 x 1.75" front, Tioga PowerBlock X 24 x 1.60" rear
Seat: Elevn PC Pivotal
Seat post: Chase Aero Pivotal 27.2 x 260mm alloy
Seat clamp: Chase Aero QR alloy, 31.8mm
Gearing: 41 x 18 (53.54" gear ratio)
Note: Supplied with flat pedals; the Shimano clip pedals shown are for display purposes only.

Assembly information

Your race bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Spin the rear wheel and check the rotor runs clear of the calliper
Check the brake and tyre pressure before the first ride

Disc brakes: keep your fingers off the rotor and pads, because oil from your skin contaminates the braking surface and takes the bite away. If the rotor rubs, loosen the two calliper bolts, squeeze the lever, then tighten them again with the lever held on. Bed the brake in with a few firm stops before you race it.

Tools: Allen key set and a 15mm spanner for the pedals. Check your axle hardware, since race bikes vary between bolt-on nuts and a thru-axle.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Chase Element Pro 24 Cruiser Bike

Name: Chase Element Pro 24 Cruiser Bike
Brand: Chase
SKU: 65CB220308PRO24SND
Price: 2358.99 AUD
Availability: OutOfStock
Rating: 5.0 (1 reviews)

Brand: Chase SKU: Click to copy the SKU and show the pick location

$2,358.99 AUD

Or 4 payments of $589.74 AUD with

Recommended Rider Height:

175cm+

Colour - Sand

Top Tube Length - 21.5

Race frames are sized by class, and the class you ride is set by rider height rather than age.

Size	Rider height	Top tube
Micro (18" wheels)	Under 120cm	16.25"
Mini (20" wheels)	110 to 140cm	17 to 18"
Junior	120 to 150cm	18.25 to 18.75"
Expert	130 to 170cm	19.5 to 19.75"
Expert XL	145 to 170cm	20 to 20.75"
Pro	150 to 175cm	20.25 to 20.75"
Pro XL	165 to 180cm	21 to 21.25"
Pro XXL	170 to 185cm and up	21.5 to 21.85"
Pro XXXL	175cm and up	22"
Pro XXXXL	180cm and up	22.5"
Cruiser (24" wheels)	175cm and up	21.5" and up

Heights overlap between classes on purpose. Where you land in two, a growing rider is usually better on the larger, and a rider who wants the bike to turn faster on the smaller. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Between two sizes and still growing? Take the larger size.
Racing gates and wanting the bike to turn faster? Take the smaller size.
Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
