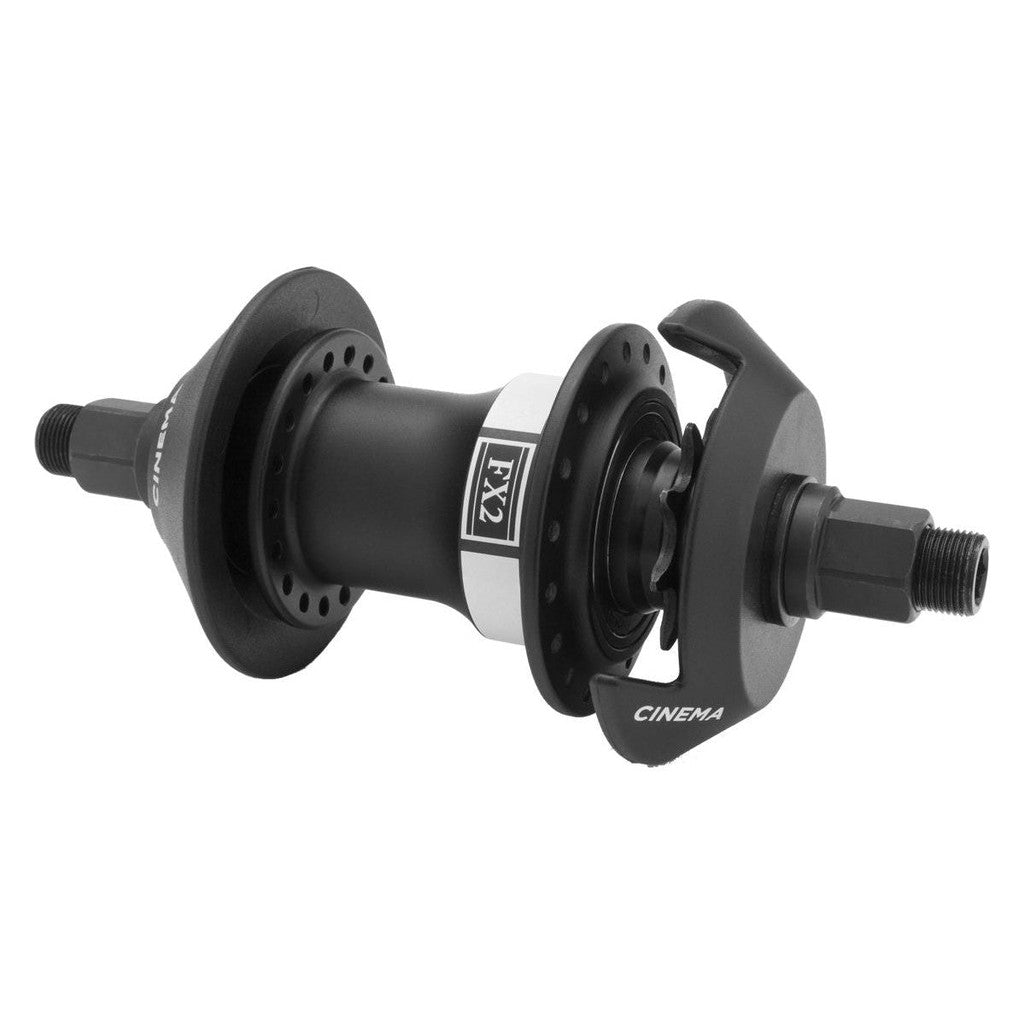

Cinema FX2 Freecoaster Hub / Black / RHD

Highlights

Swap drive side with a driver
Slack from 55 to 180 degrees
Hub guards in the box
14mm hollow chromoly axle

Description

The FX2 is Cinema's updated team freecoaster hub, running proven KHE based internals with a 9 tooth driver on dual sealed bearings and an additional bushing. The 6061-T6 aluminium shell is 36 hole, and the heat-treated chromoly axle is 14mm and hollow with a 6mm internal hex for easier maintenance.

The DTC dual threaded clutch means changing drive side only takes a driver change rather than a whole hub. Slack adjusts from 55 degrees up to 180 degrees and ships at 156 degrees with three slack washers, and the nylon CR and DR hub guards are included.

Features

Swap drive side with a driver. The DTC dual threaded clutch means going from RHD to LHD only needs a driver change instead of a whole hub replacement.
Slack from 55 to 180 degrees. It ships at 156 degrees with three slack washers included, so you can fine tune the coast to your preference.
Hub guards in the box. Nylon CR and DR guards are included, so the hub is protected from grinds straight out of the box.
14mm hollow chromoly axle. Heat-treated with a 6mm internal hex and 17mm chromoly nuts, which makes fitting and servicing easier.
9t driver on sealed bearings. A dual sealed bearing driver with an additional bushing carries the 9 tooth, built on proven KHE based internals.

Specifications

Fits: Frames with 14mm rear dropouts
Width: 110mm locknut to locknut
Material: 6061-T6 aluminium shell
Bearings: 1 x 6002, 1 x 7905, 2 x 6902 plus bushing
Driver: 9 tooth, dual sealed bearing with additional bushing
Hole count: 36 hole
Axle: 14mm hollow heat-treated chromoly with 6mm internal hex, 17mm chromoly axle nuts
Included: Nylon CR and DR hub guards, 3 slack washers
Weight: 717g with guards installed
Note: RHD or LHD via the DTC dual threaded clutch. Slack adjusts from 55 to 180 degrees and ships at 156 degrees. Threaded cones drive side and non-drive side. Drive side flange 58mm, non-drive side 44mm. This hub is installation marked: built and taken apart, never ridden.

Spoke calculator

Display

Pick the part it is laced to and we will give you the lengths to buy.

This hub

Looking up its measurements.

Check or change its figures

Hub spacing locknut to locknut, 100 front or 110 rear on most BMX mm Same both sides front hubs, or matching flanges

Flange diameter/PCD (pitch circle diameter) spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Drive side mm Non-drive side mm

Flange position

Flange to locknut Centre to flange

Drive side mm Non-drive side mm

Laced to which rim?

Find your rim

Or type its figures

ERD effective rim diameter, from the spec sheet mm
