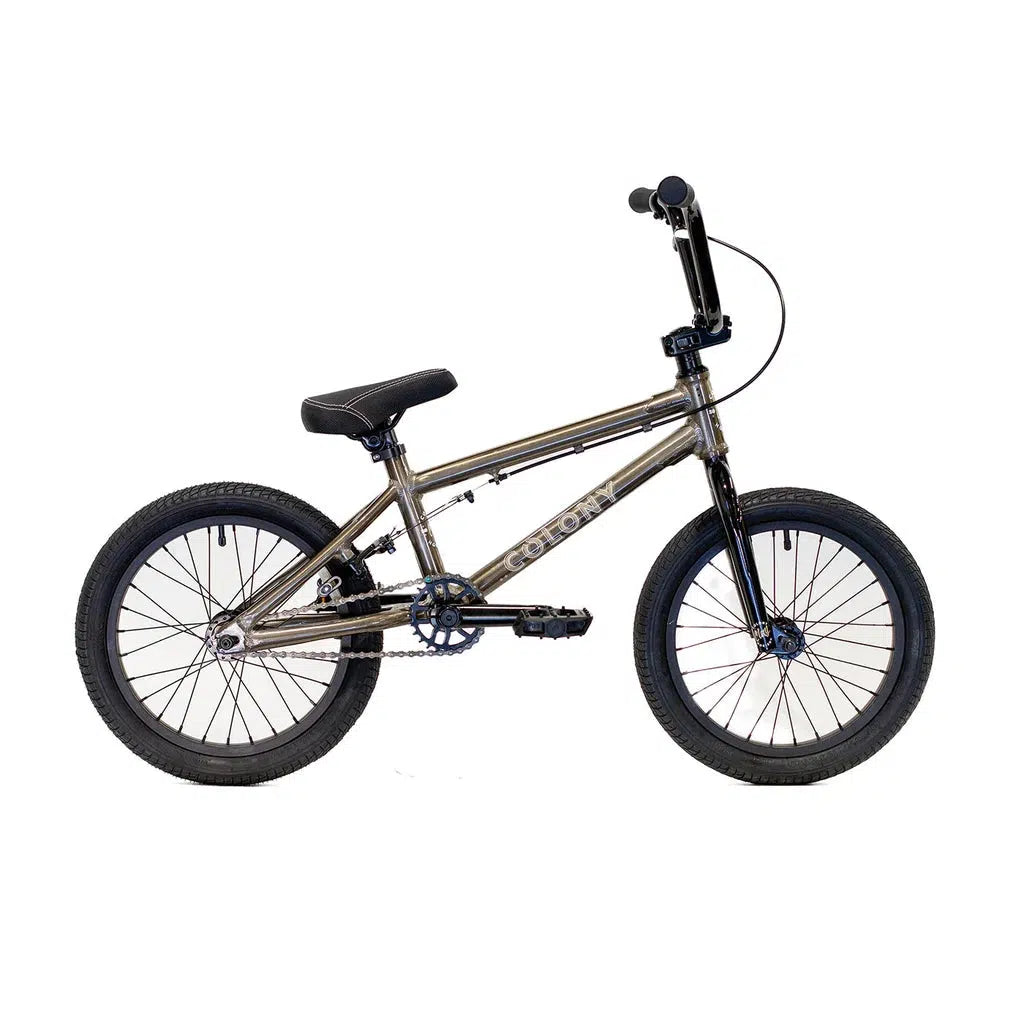

A side view of the Colony Horizon 16 Inch Bike featuring black handlebars, seat, and tires, photographed against a white background.
The Colony Horizon 16 Inch Bike, designed for freestyle, showcases sleek black handlebars and wheels set against a pristine white frame.
The Colony Horizon 16 Inch Bike, a small silver BMX Freestyle model featuring black handlebars, seat, and tires, is elegantly displayed on a white background.
The Colony Horizon 16 Inch Bike catches the eye with its black seat and handlebars, robust tires, and minimalist frame design set against a white background, making it an ideal choice for BMX Freestyle fans.
The Colony Horizon 16 Inch Bike boasts a metallic frame, black handlebars, and sleek black tires.
The Colony Horizon 16 Inch Bike boasts a metallic frame, black seat and handlebars. Its thick tires and compact design are ideal for BMX Freestyle enthusiasts.
The Colony Horizon 16 Inch Bike is a small BMX Freestyle model with a transparent frame and black handlebars, seat, and wheels, displayed on a white background.

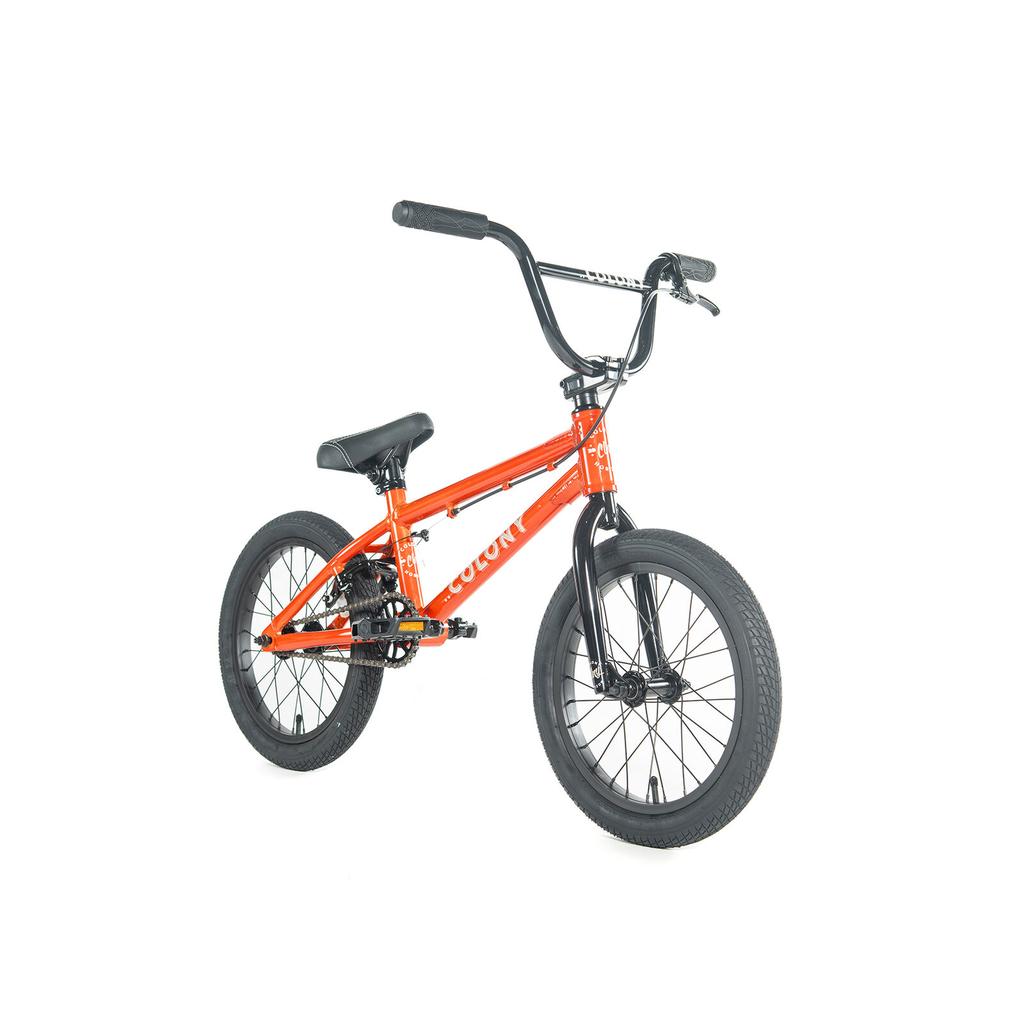

The Colony Horizon 16 Inch Bike is a small orange BMX with black handlebars, seat, and tires, displayed on a white background—ideal for freestyle BMX riders.
Close-up of the front section of a Colony Horizon 16 Inch Bike featuring a lightweight alloy frame, black fork, headset, and front tire against a white background. The "Colony" brand name is visible on the frame.
Close-up of a black pedal, crank arm, chain, and rear wheel on the Colony Horizon 16 Inch Bike’s lightweight alloy frame.
Close-up of the Colony Horizon 16 Inch Bike's rear tire, chain, and brake caliper, showcasing its lightweight alloy frame and detailed mechanical design.
Close-up view of the Colony Horizon 16 Inch Bike’s black stem clamp on black handlebars, showcasing its lightweight alloy frame.
Close-up of the Colony Horizon 16 Inch Bike’s rear wheel hub, displaying black spokes, a metal chain, and axle nuts against a white background.

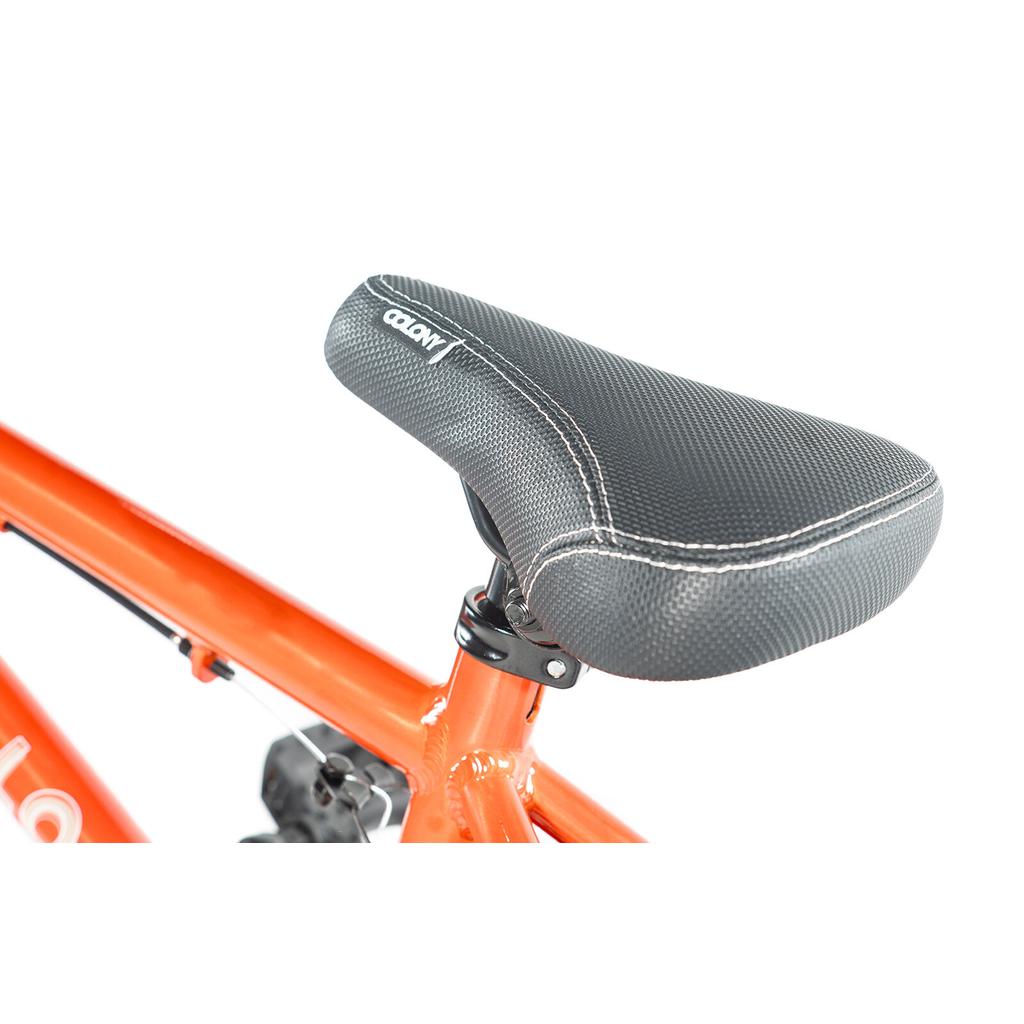

Close-up of a black bike saddle with white stitching on an orange Colony Horizon 16 Inch Bike frame, shown against a white background.

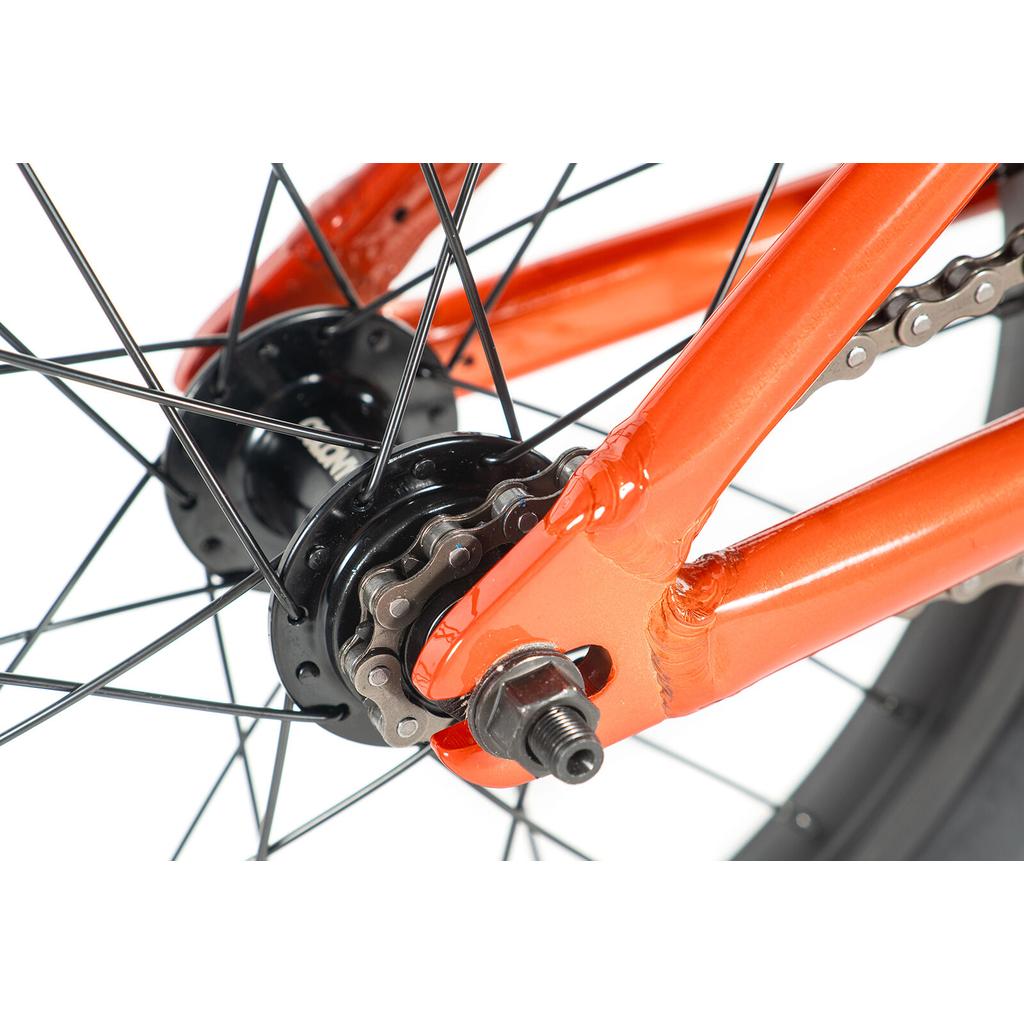

Close-up of the rear wheel hub, chain, and orange frame of the Colony Horizon 16 Inch Bike, showing spokes, axle nut, and tire—ideal for freestyle riders and Colony fans.

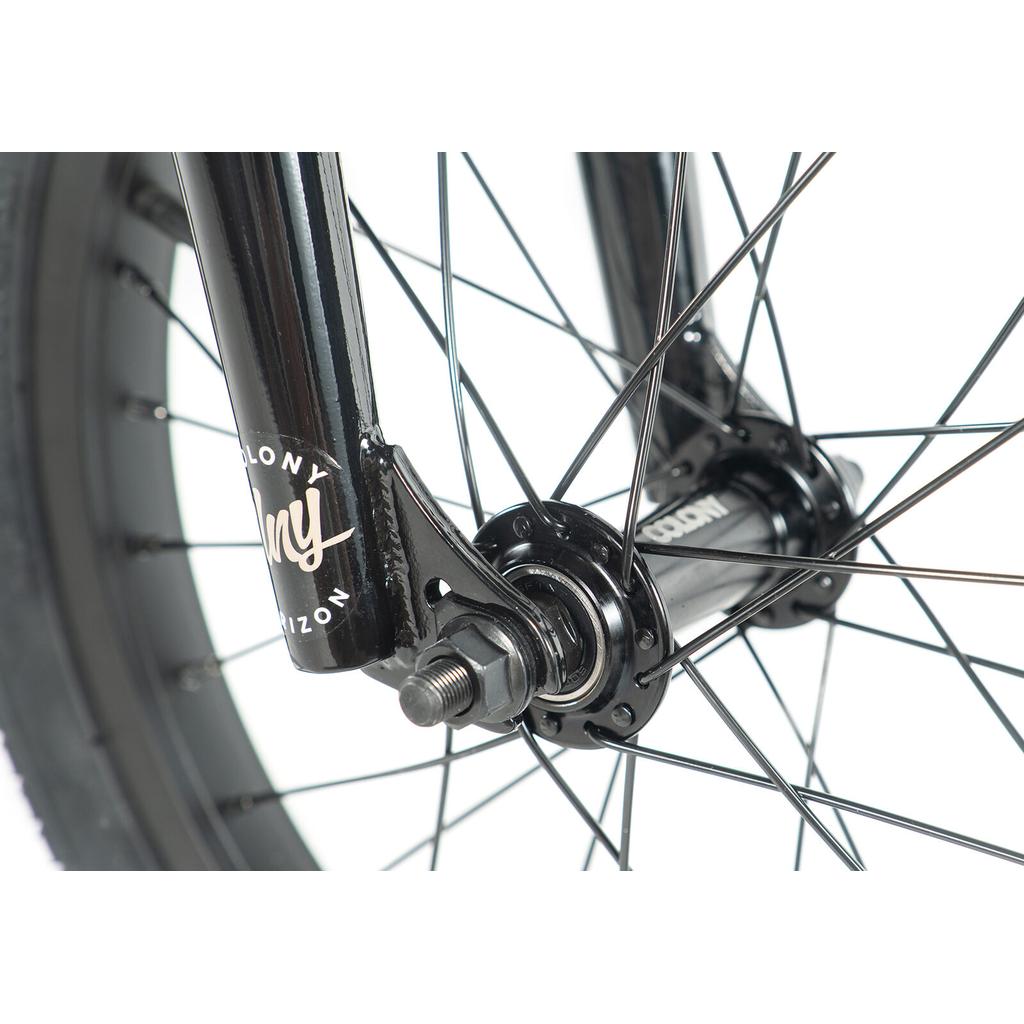

Close-up of the Colony Horizon 16 Inch Bike’s black front wheel hub and fork with spokes, highlighting detailed metal parts and tire—perfect for freestyle riders seeking precision.

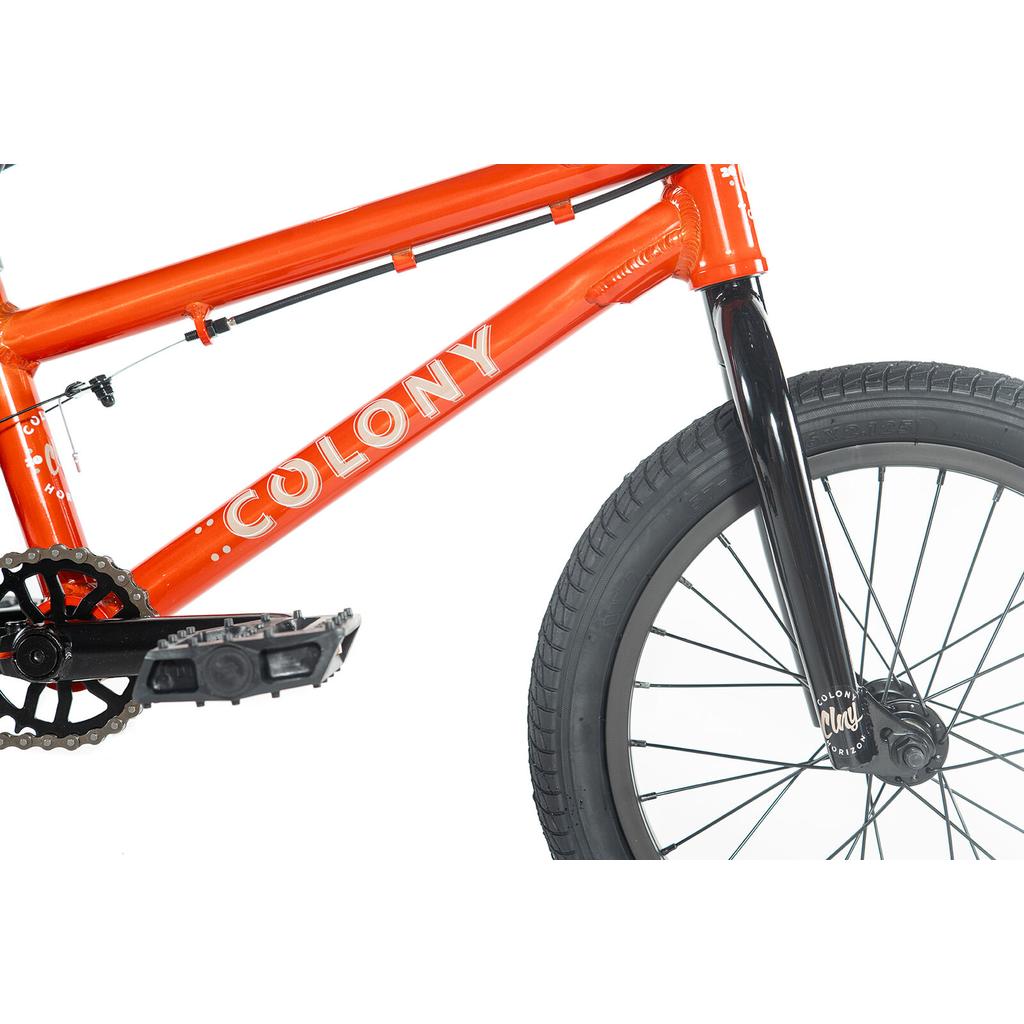

Close-up of the Colony Horizon 16 Inch Bike in orange, showcasing its frame, pedals, black fork, and front wheel—ideal for freestyle riders—set against a white background.

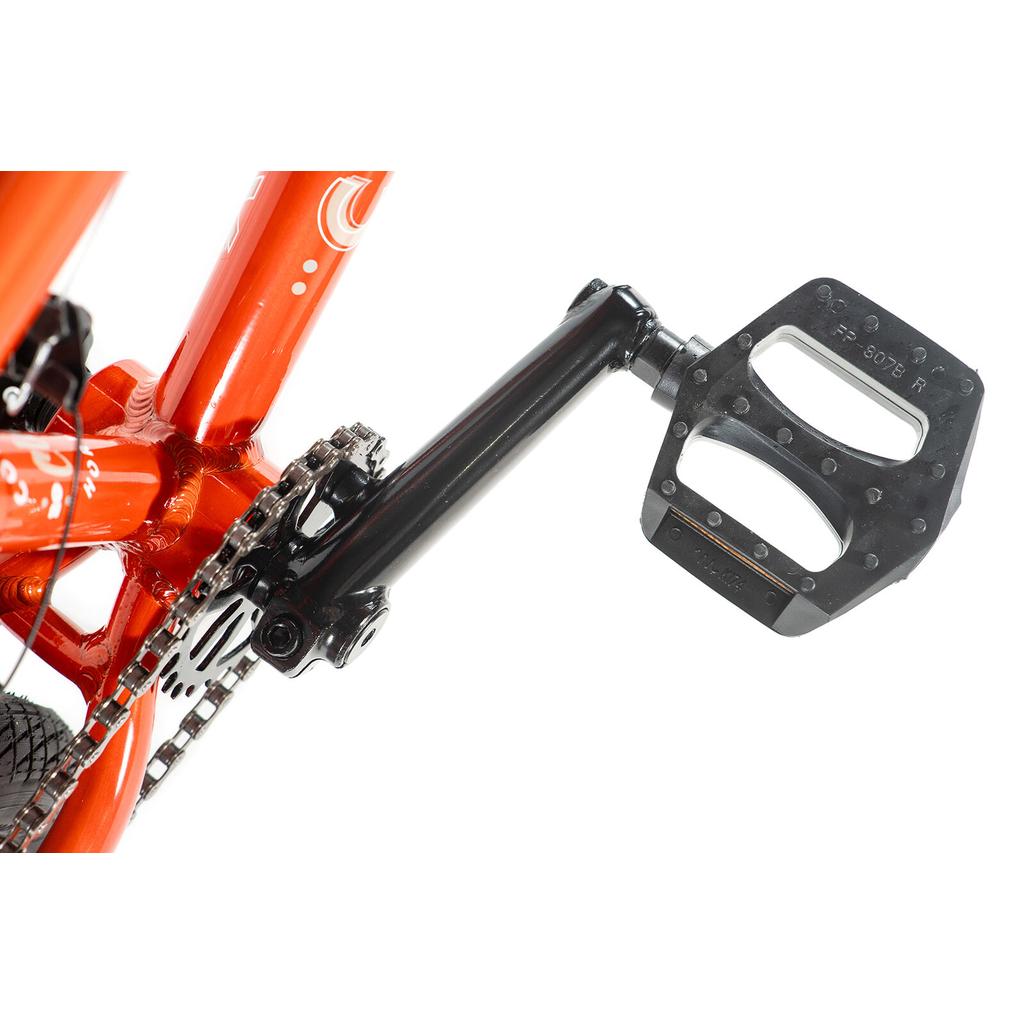

Close-up of a black pedal and crank arm on an orange Colony Horizon 16 Inch Bike, featuring part of the chain and gear system—ideal for freestyle riders.

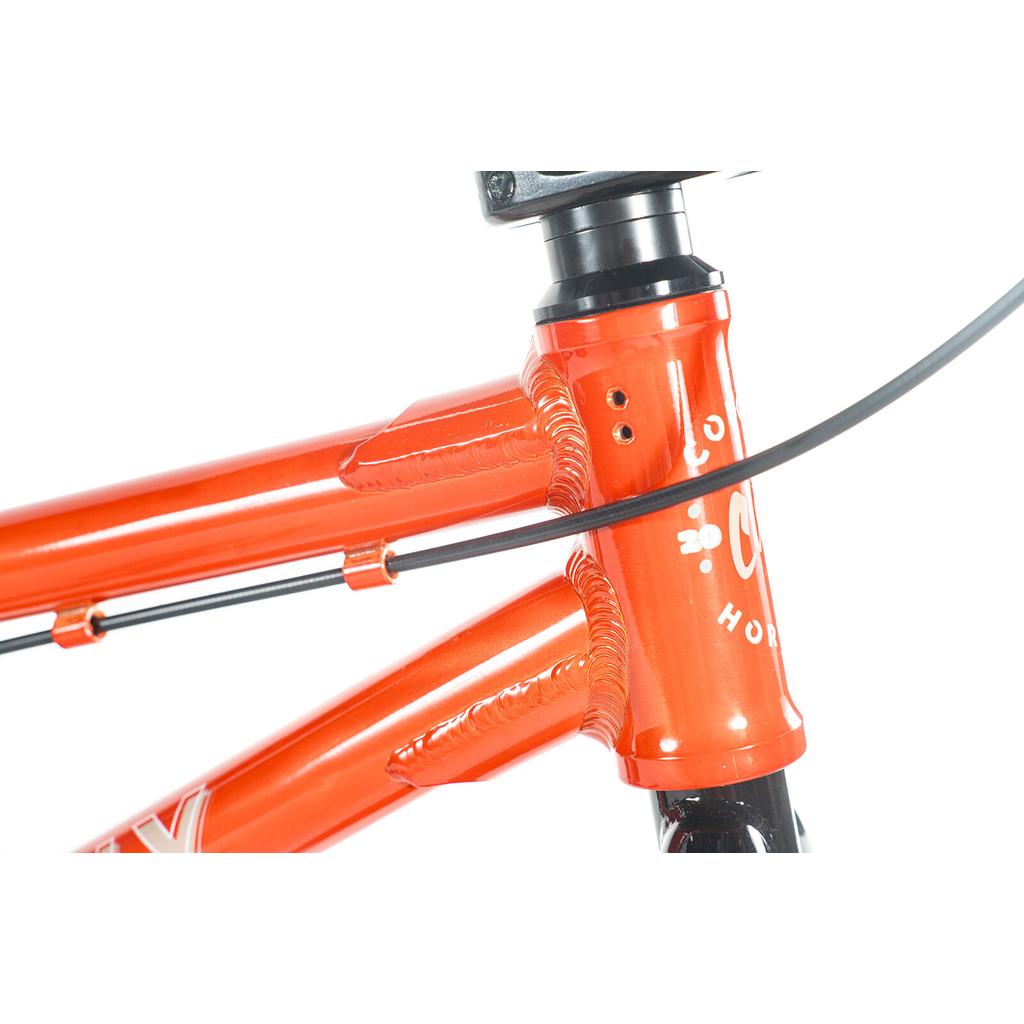

Close-up of the Colony Horizon 16 Inch Bike's orange head tube and frame with visible welds, logo, and a black cable across the front—ideal for freestyle riders.

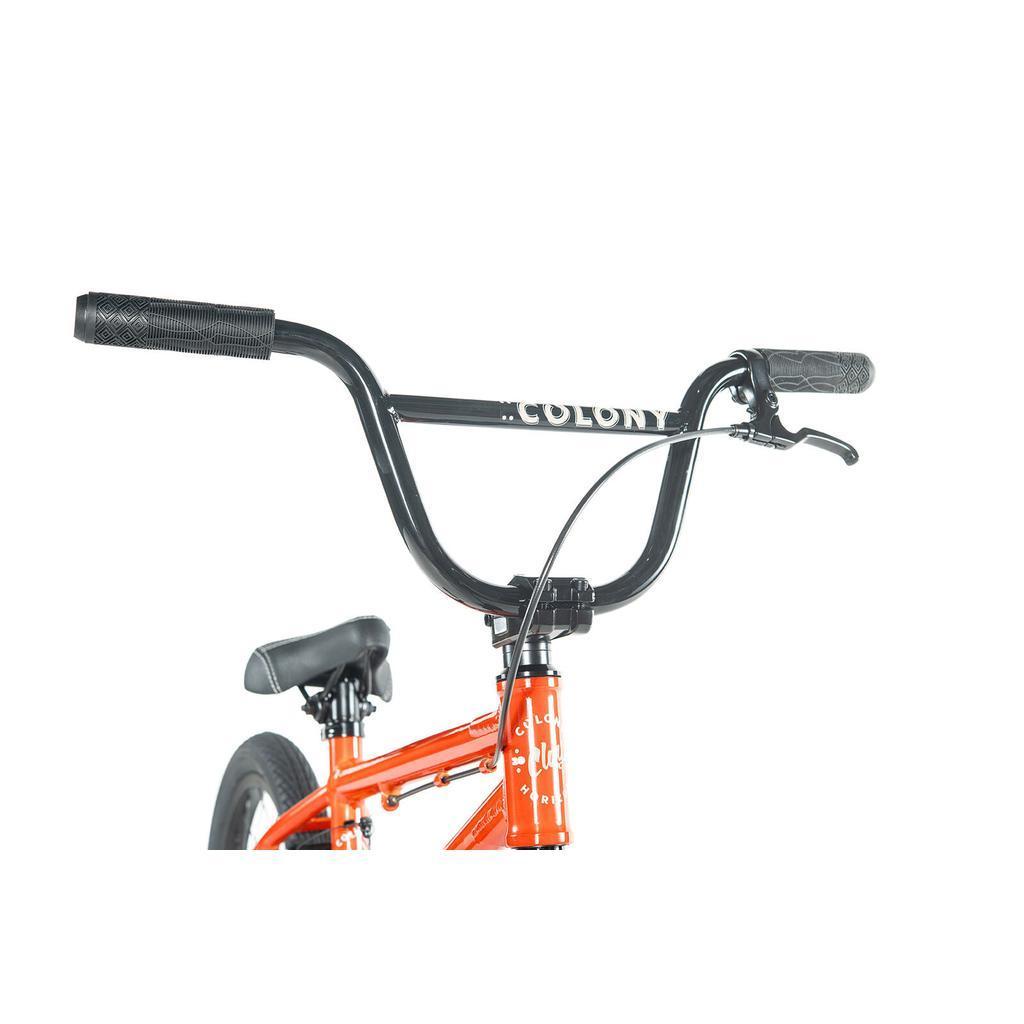

Close-up of the Colony Horizon 16 Inch Bike’s handlebars, brake lever, and red frame with “COLONY” branding—ideal for any freestyle BMX rider.

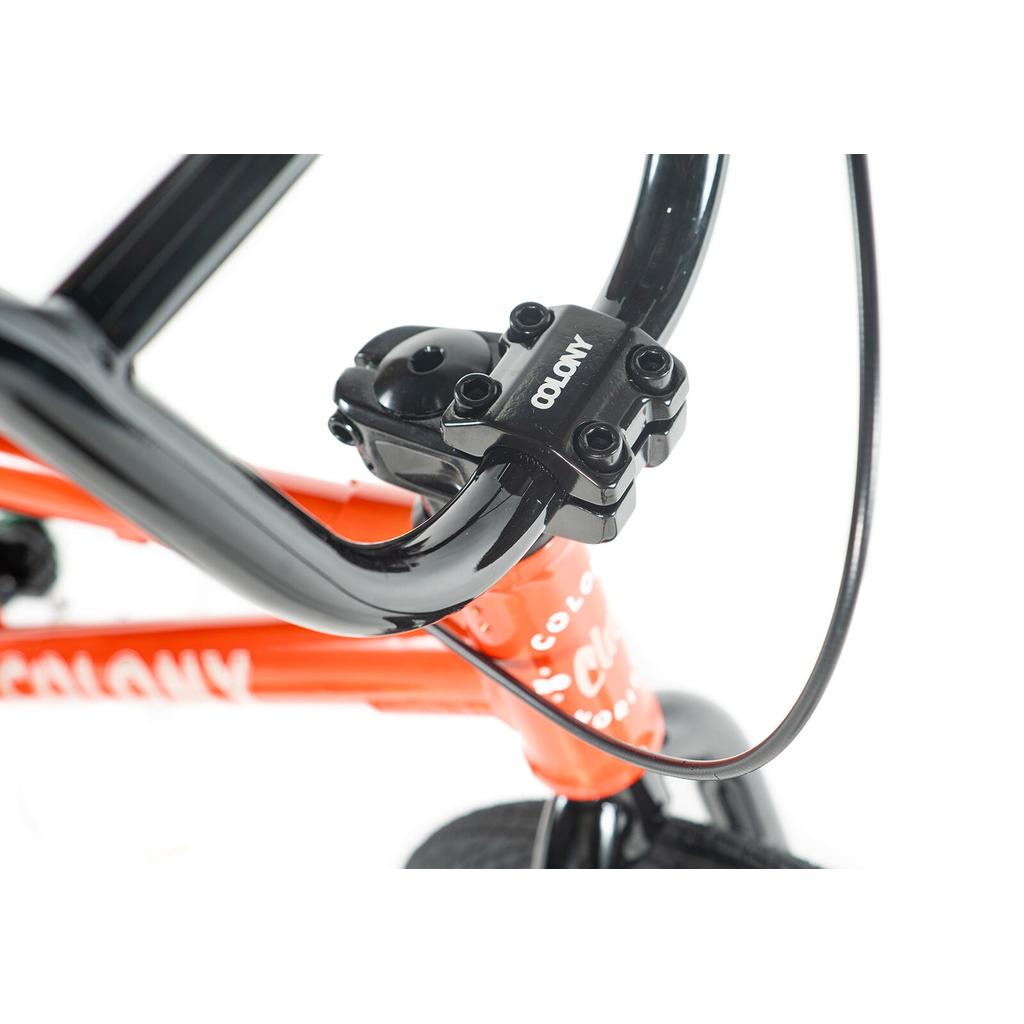

Close-up of a black handlebar and stem on an orange Colony Horizon 16 Inch Bike, a leading freestyle BMX, against a white background.

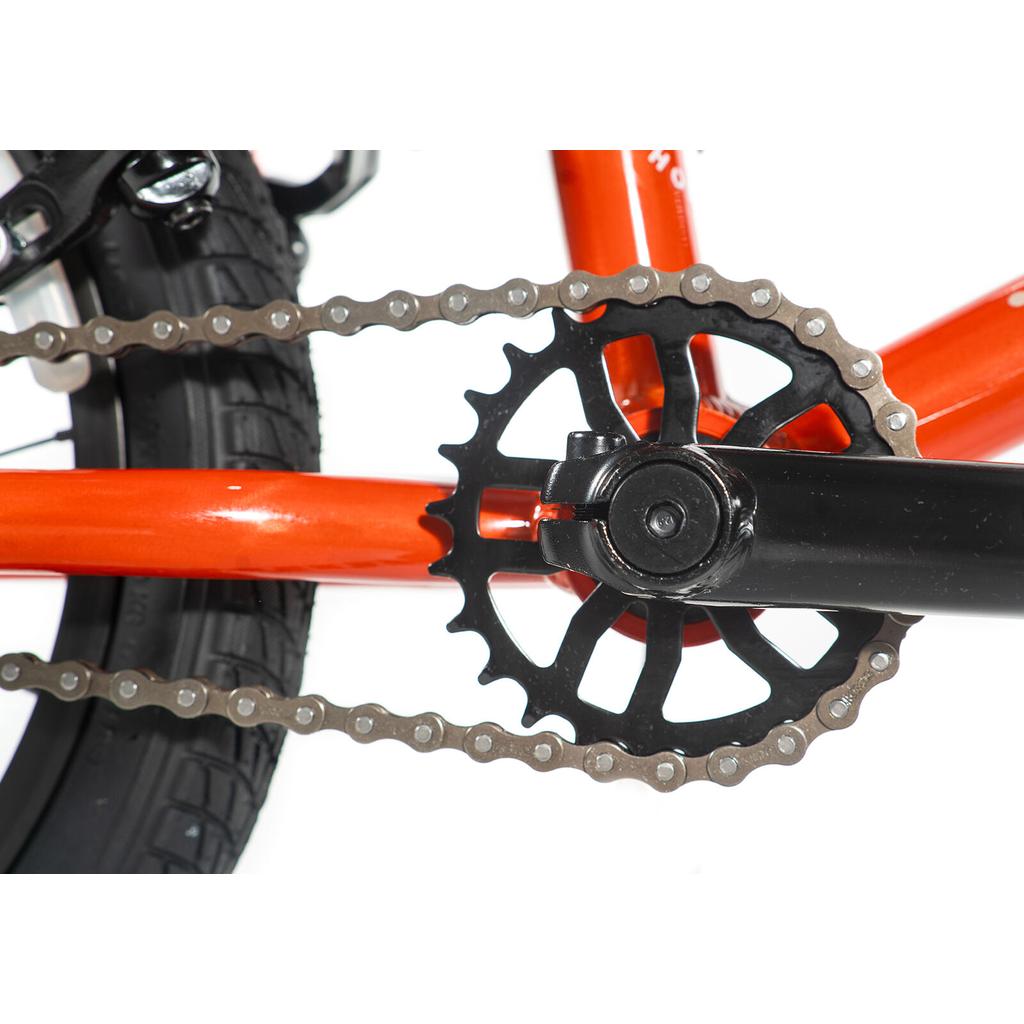

Close-up of a black pedal crank, chainring, and chain on an orange frame with black tire—perfect details found on the Colony Horizon 16 Inch Bike, designed for freestyle BMX riding.
The Colony Horizon 16 Inch Bike is a small BMX Freestyle bicycle with a lightweight alloy frame in purple on the top and blue on the lower section. It features black handlebars, seat, tires, and pedals, and is displayed against a white background.

Description

Built around a lightweight alloy frame, coupled with appropriately sized geometry, makes these the perfect bike for the younger, smaller BMXers starting out. Progression & having fun with BMX will come naturally, for all styles of riding, including those aspiring to be a future BMX Freestyle Olympic athlete. With the Colony Horizon series of BMX bikes, there is no limit to where BMX could be taken.

Features
  • Proper geometry, sized down. A 15.9" top tube, 11.25" rear end and 9.5" bottom bracket height on 16 inch wheels, so a smaller rider gets a bike that fits.
  • Lightweight alloy frame. The 6061-T6 alloy frame holds the bike to 8.8 kg, light enough that progression and having fun come naturally.
  • 990 rear brake with alloy lever. A 990 style rear brake with clear pads runs a slick cable to a short reach alloy lever suited to small hands.
  • Chromoly forks, bars and cranks. Tapered leg chromoly forks, 7.0" rise chromoly bars and 125mm tubular chromoly 3-piece cranks handle the learning crashes.
  • Sealed bearing wheels. 28 hole alloy single wall rims on sealed bearing hubs with a 9T cassette driver, wrapped in Family F2128 16 x 2.1" tyres.

Specifications
  • Size: 16" wheels, 15.9" top tube
  • Frame: Colony Horizon 16", 6061-T6 alloy, mid BB, 1-1/8" integrated headset
  • Top tube: 15.9"
  • Chainstay: 11.25" rear
  • Head tube angle: 75.0°
  • Seat tube angle: 71°
  • Standover: 42cm, ground to top tube
  • Bottom bracket height: 9.5"
  • Fork: Colony Horizon 16", chromoly, tapered legs
  • Headset: 1-1/8" integrated
  • Stem: Colony Horizon alloy top load, short reach
  • Bars: Colony Horizon chromoly, 7.0" rise, 23" wide
  • Grips: Colony Horizon
  • Brakes: 990 style, rear, with clear pads and slick cable
  • Brake lever: Alloy short reach, right hand
  • Cranks: Colony Horizon tubular chromoly 3-piece, 125mm
  • Bottom bracket: MID sealed bearing
  • Sprocket: Colony Horizon, 25T
  • Chain: KMC
  • Pedals: Plastic
  • Front hub: Colony Horizon alloy, sealed bearing, 10mm axle, 28H
  • Rear hub: Colony Horizon alloy, full sealed bearing cassette, 10mm axle, 28H
  • Rear cog: 9T driver
  • Spokes: Black steel
  • Rims: Alloy single wall, 28 hole
  • Tyres: Family F2128, 16" x 2.1", front and rear
  • Seat: Colony Horizon railed
  • Seat post: Alloy, 27.2mm
  • Weight: 8.8 kg
  • Note: Specification and colours are subject to vary slightly, and weld marks will be visible through the clear paint and will vary from bike to bike.

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Colony Horizon 16 Inch Bike

Brand: Colony SKU:

$699.99 AUD

Or 4 payments of $174.99 AUD with

Recommended Rider Height:

96-122cm

Colour - Orange

Top Tube Length - 15.9

16 inch BMX sizing

A 16 inch bike suits a rider of about 96 to 122cm, usually 4 to 7 years old, on a 16 to 16.5 inch top tube. It is the size most kids learn to ride properly on.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. At this wheel size the top tube barely changes the fit: go by height, and check they can stand over the bike flat footed.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

  • Between two wheel sizes? Go up. Kids grow into a bike far faster than they grow out of the fun.
  • They should be able to stand over the top tube with both feet flat on the ground.

Not sure? Send us their height and we will tell you what we would put them on.
