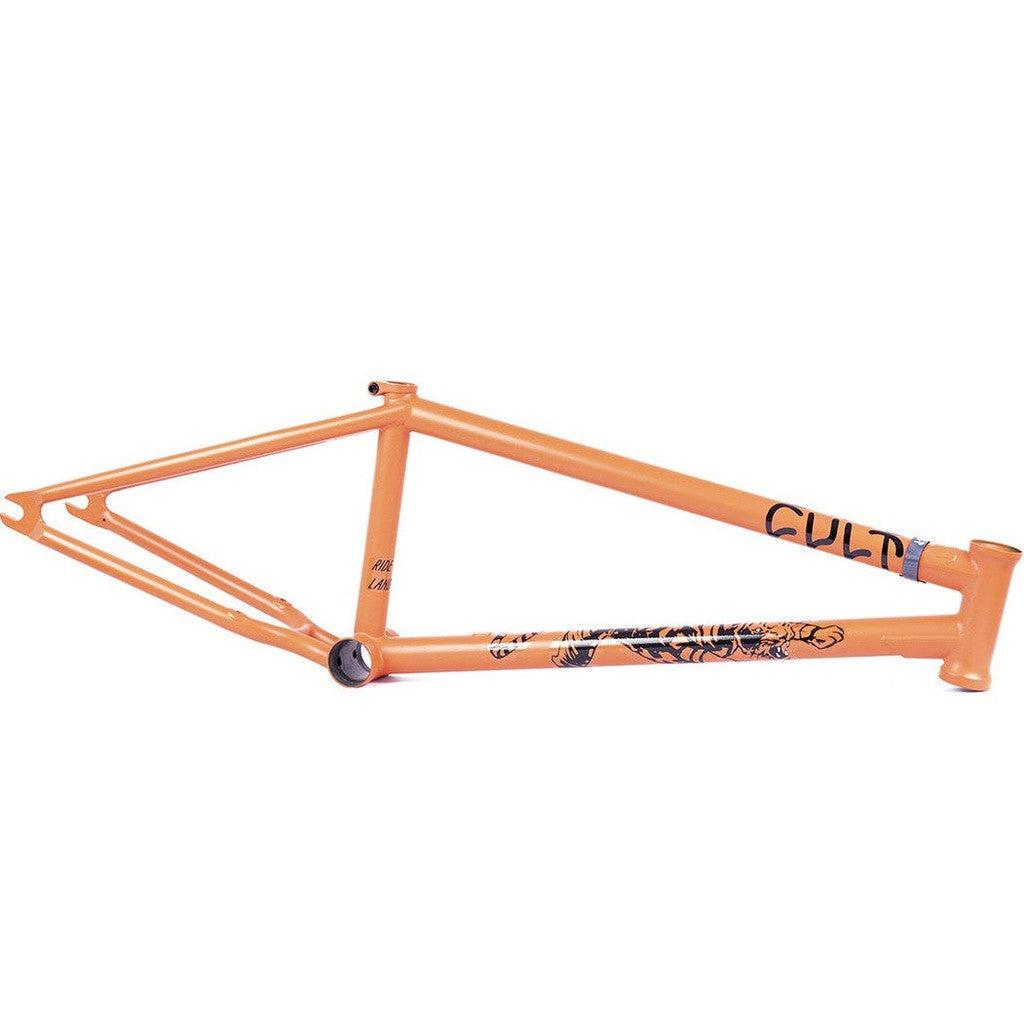

Cult Tom Russell Frame / Orange / 21.00TT

Highlights

Tom Russell signature colourway
Long and low geometry
100% Cult classic tubing
S-bend chainstays, removable mounts

Description

Tom Russell signature colourway Walsh frame...

Features

Tom Russell signature colourway. The Cult Walsh frame done in Tom Russell's own colourway.
Long and low geometry. A 74.5° head angle, 71° seat angle, 13.8 to 14.1” chain stays and an 11.5” bottom bracket, in four top tube lengths.
100% Cult classic tubing. Top and down tube gussets and investment cast heat-treated dropouts back up the spots that take the hardest hits.
S-bend chainstays, removable mounts. Run a rear brake or take the mounts off, and the tapered seat stays leave room for 2.40” tyres.
Investment cast seatpost clamp. The clamp and the seat stay bridge are cast in, so there is no separate clamp to slip or lose.

Specifications

Sizes: 20.75”, 21”, 21.5”, 21.8” top tube
Chainstay: 13.8 to 14.1”
Head tube angle: 74.5°
Seat tube angle: 71°
Standover: 9"
Bottom bracket height: 11.5”
Bottom bracket: Externally machined mid
Material: 100% Cult classic tubing
Tubing: Top and down tube gussets, tapered seat stays, s-bend chain stays
Dropouts: Investment cast, heat-treated
Brake mounts: Removable, on the chain stays
Head tube: Integrated
Seat clamp: Investment cast seatpost clamp, cast seat stay bridge
Tyre clearance: 2.40” tyres

Cult Tom Russell Frame

Name: Cult Tom Russell Frame
Brand: Cult
SKU: C08-172A
Price: 749.99 AUD
Availability: OutOfStock

Brand: Cult SKU: Click to copy the SKU and show the pick location

$749.99 AUD

Or 4 payments of $187.49 AUD with

Colour - Orange

Top Tube Length - 20.75

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.
