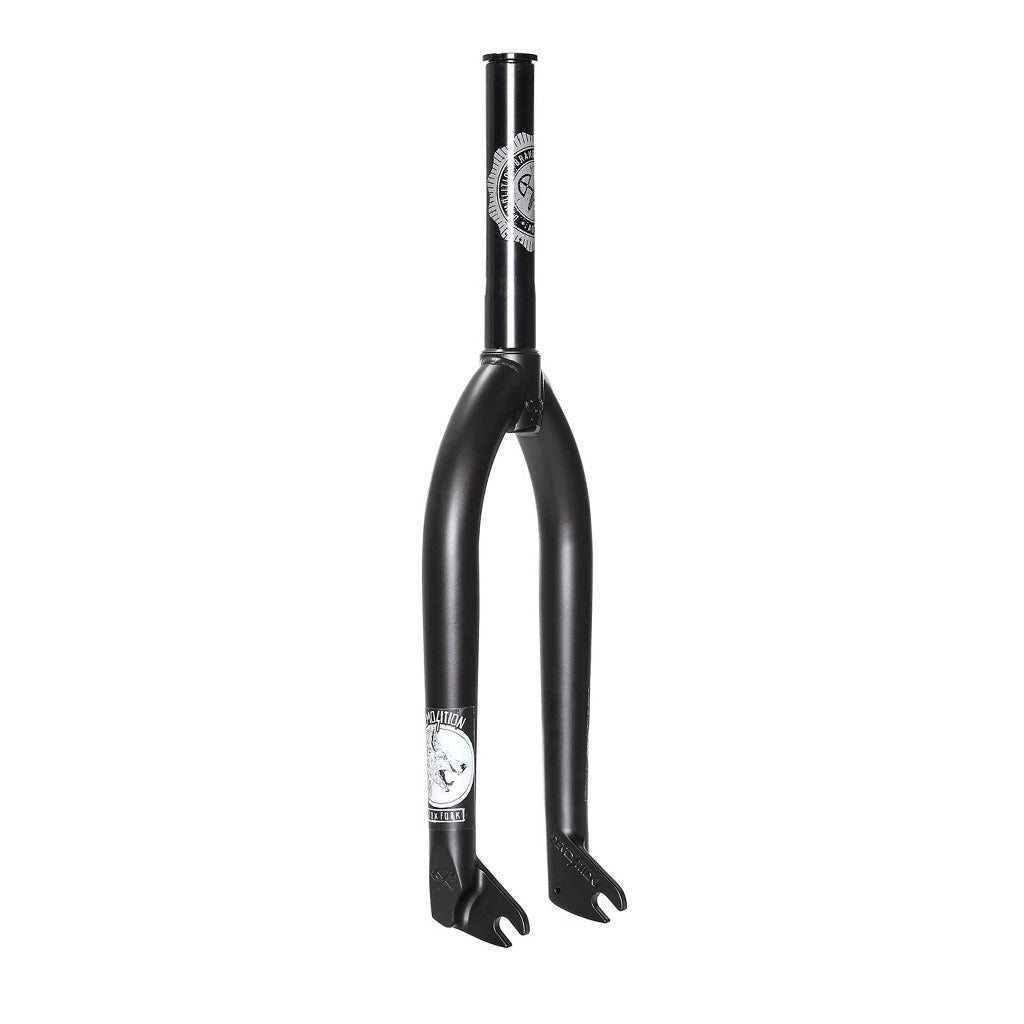

The Demolition Kris Fox Forks come with a sleek black finish adorned with decals, a cylindrical head tube, and two straight heat-treated CRMO tapered legs equipped with dropouts for wheel attachment.

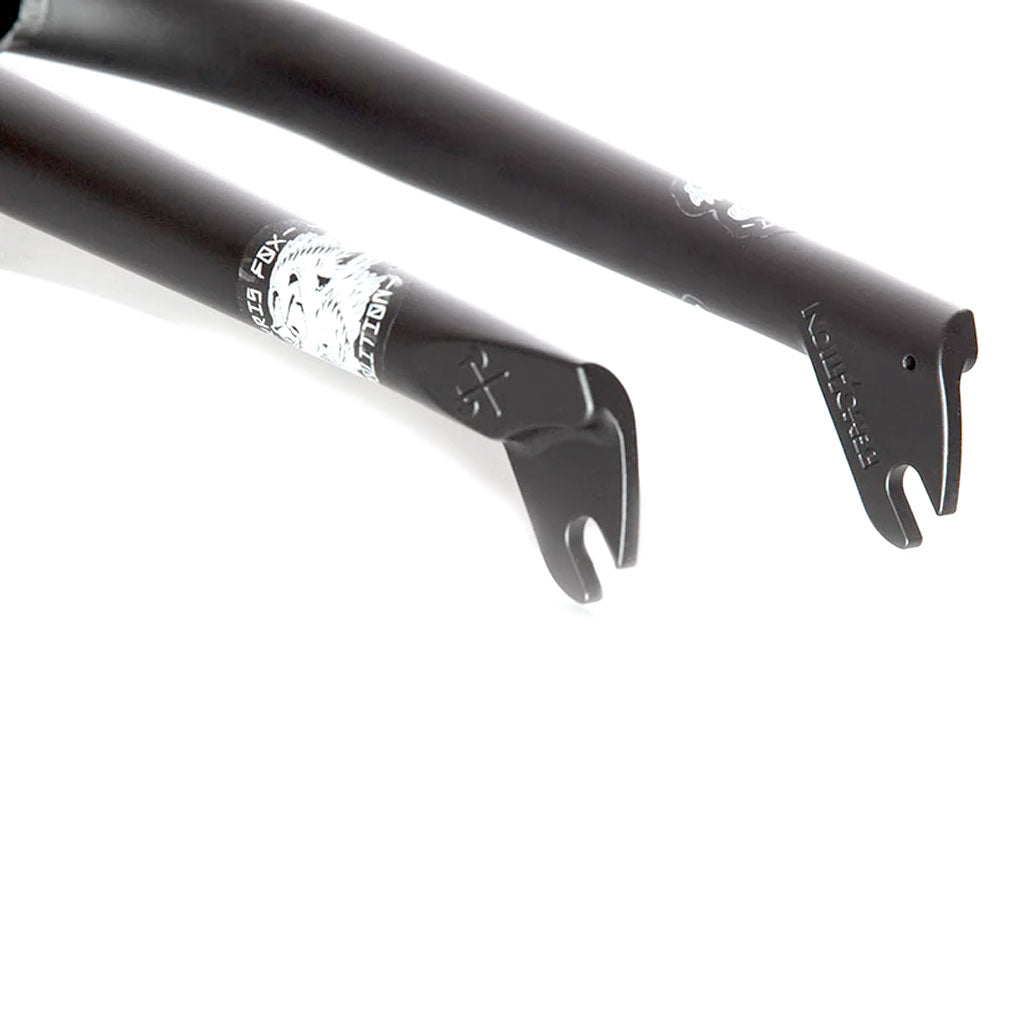

Close-up of the dropouts on the Demolition Kris Fox Forks, featuring heat-treated CRMO and tapered legs.

Description

Kris Fox Signature Fork

All new Kris Fox signature fork, made from 100% heat-treated CRMO tubing. Wider blades to fit bigger tyres. Featuring a 1-pc internally and externally butted steerer tube and tapered legs. 6mm thick investment casted dropouts that flow into the legs.

Features

Built for bigger tyres. Wider blades clear a 2.4 inch tyre and up, so you can run a fatter front tyre without rubbing.
Full heat-treated 4130 chromoly. 100% heat-treated CRMO tubing right through the fork, where the front end takes the biggest hits.
One piece butted steerer tube. Internally and externally butted over a 163mm butted length, with a built-in crown race for 45 by 45 degree bearings.
6mm investment cast dropouts. Thick cast dropouts that flow into the legs, with a 28mm dropout offset and rake.
Legs slotted for pegs. Tapered legs with a slot cut for peg clearance, and an aluminium compression bolt comes with it.

Specifications

Material: 100% heat-treated 4130 CRMO
Butting: Internally and externally butted steerer tube
Dropouts: Full investment cast, 6mm thick
Steerer: One piece with embossed axes logo, built-in crown race for 45° x 45° bearings, 163mm butted length
Fork offset: 28mm dropout offset/rake
Fork legs: Tapered, wider blades
Peg compatible: Yes, fork leg slot for peg clearance
Tyre clearance: 2.4" and up
Weight: 37.5 oz
Note: Height 315mm. Complete with aluminium compression bolt.
