Description

For 2021, the DK Sprinter Series bikes solidify their place as one of Australia's most popular race bikes. This bike is designed for serious BMX racing at prices that will keep your budget on track. All the Sprinter models start with a proven 6061 aluminium frame:

Light, responsive, and sturdy enough to withstand the rigors of BMX. On the front end of each Sprinter, you’ll find chromoly forks that can handle repeated harsh landings and keep you running straight out of the gate. All the Sprinters have sealed bearings throughout, linear braking systems, and alloy cranks in different lengths to accommodate each size in the range.

From the smallest Sprinter, the Micro, sporting an 18 x 1” wheelset, all the way up to the 24” Sprinter Cruiser, each bike in the collection features size specific specifications to accommodate riders for each class of bike. The smaller bikes see narrow tires and aluminum bars, while the Pro size and up Sprinters feature chromoly bars and more tire width to carry the weight of bigger riders, at speed. In terms of performance, quality, and value, you’ll be hard pressed to find better race bikes for the buck than the DK Sprinter series.

Features

Proven 6061 aluminium race frame. Light, responsive and sturdy enough for BMX, with 3D dropouts and internal cable routing keeping the back end clean.
Chromoly forks up front. Tapered legs that handle repeated harsh landings and keep you running straight out of the gate.
Sealed bearings all through. Fully sealed DK hubs, a sealed European bottom bracket and a sealed integrated headset mean less fiddling between race meets.
Sized for the Mini class. A 17.25" top tube, 140mm forged alloy cranks and narrow 20x1-1/8" Arisun XLR8 tyres, all scaled to smaller riders.
Race ready parts kit. Double wall alloy rims, an alloy mini linear V-brake, DUO Brand Mini grips and 37/14 gearing at 52.59in, all up 7.3kg.

Specifications

Size: 20" wheels, 17.25" top tube
Frame: 6061 aluminium with 3D dropouts and internal cable routing
Top tube: 17.25"
Chainstay: 12.125"
Head tube angle: 72°
Seat tube angle: 70°
Fork: 100% chromoly with tapered legs
Headset: Sealed integrated
Stem: Alloy front load, 30mm reach
Bars: 3" rise, alloy
Grips: DUO Brand Mini
Brakes: Alloy Mini linear V-brake
Brake lever: Alloy
Cranks: Forged alloy 3-piece, 140mm
Bottom bracket: Sealed European
Sprocket: 37-tooth, alloy, 5-bolt chainring
Chain: KMC Z-610 3/32"
Pedals: Mini alloy platform
Front hub: DK alloy, fully sealed, 3/8" chromoly axle
Rear hub: DK alloy, fully sealed, 3/8" chromoly axle, 14-tooth cassette
Rear cog: 14T
Rims: Alloy, double wall, 36-hole
Tyres: 20x1-1/8" Arisun XLR8
Seat: DK Mini 1-piece seat/post combo
Seat post: Integrated, 22.2mm, alloy
Seat clamp: Alloy
Gearing: 37/14 (52.59in)
Weight: 7.3kg
Colour: Smoke Chrome

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

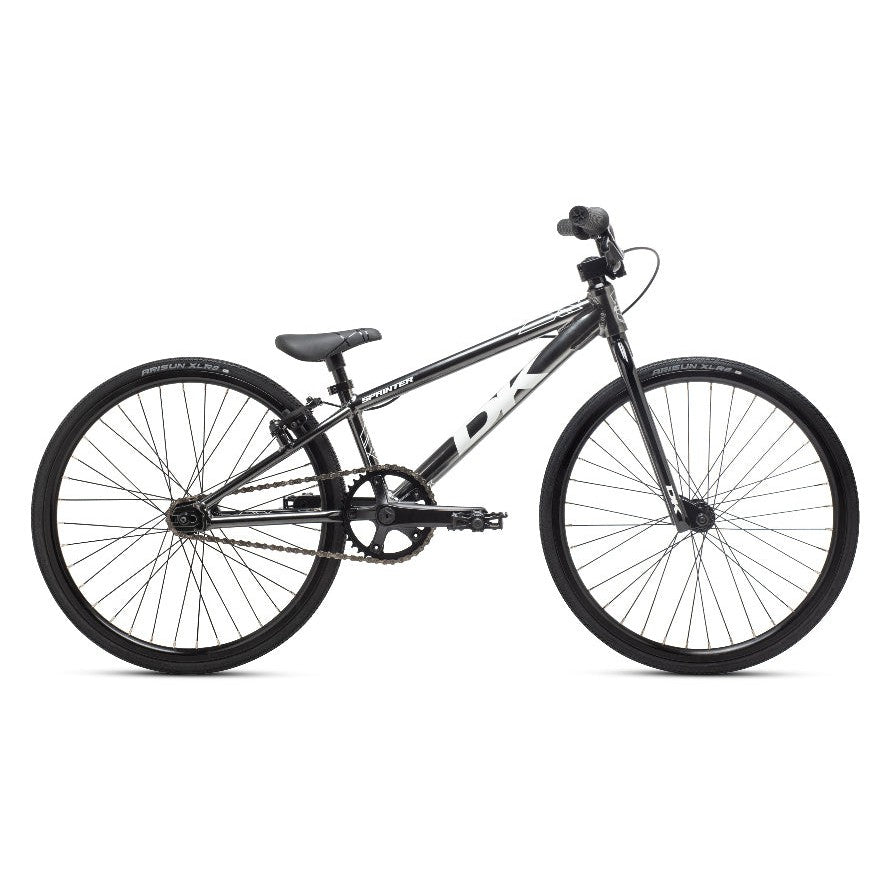

DK Sprinter Mini Bike

Name: DK Sprinter Mini Bike
Brand: DK Bicycles
SKU: DKXR21CB2431A
Price: 799.99 AUD
Availability: OutOfStock
Rating: 5.0 (1 reviews)

Brand: DK Bicycles SKU: Click to copy the SKU and show the pick location

$799.99 AUD

Or 4 payments of $199.99 AUD with

Recommended Rider Height:

110-140cm

Colour - Smoke

Top Tube Length - 17.25

Race frames are sized by class, and the class you ride is set by rider height rather than age.

Size	Rider height	Top tube
Micro (18" wheels)	Under 120cm	16.25"
Mini (20" wheels)	110 to 140cm	17 to 18"
Junior	120 to 150cm	18.25 to 18.75"
Expert	130 to 170cm	19.5 to 19.75"
Expert XL	145 to 170cm	20 to 20.75"
Pro	150 to 175cm	20.25 to 20.75"
Pro XL	165 to 180cm	21 to 21.25"
Pro XXL	170 to 185cm and up	21.5 to 21.85"
Pro XXXL	175cm and up	22"
Pro XXXXL	180cm and up	22.5"
Cruiser (24" wheels)	175cm and up	21.5" and up

Heights overlap between classes on purpose. Where you land in two, a growing rider is usually better on the larger, and a rider who wants the bike to turn faster on the smaller. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Between two sizes and still growing? Take the larger size.
Racing gates and wanting the bike to turn faster? Take the smaller size.
Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Not sure? Send us their height and we will tell you what we would put them on.
