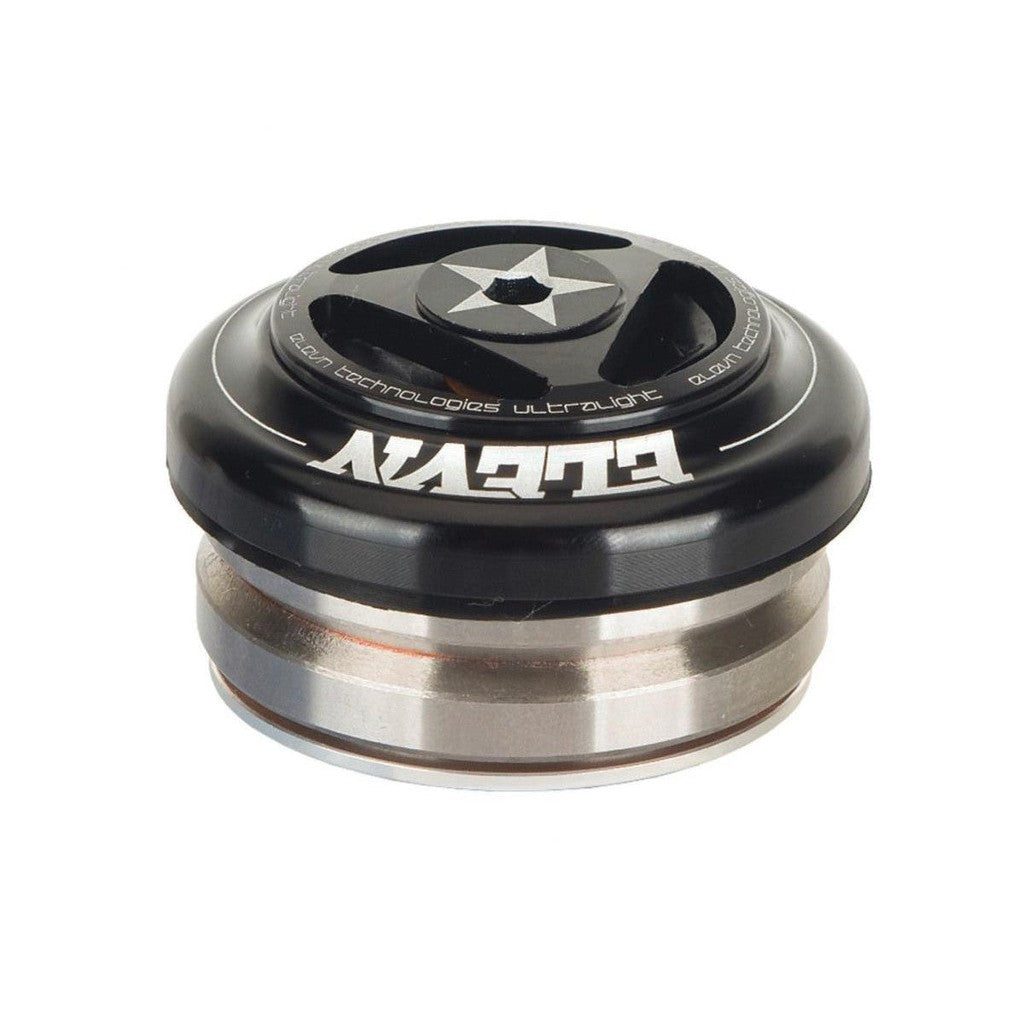

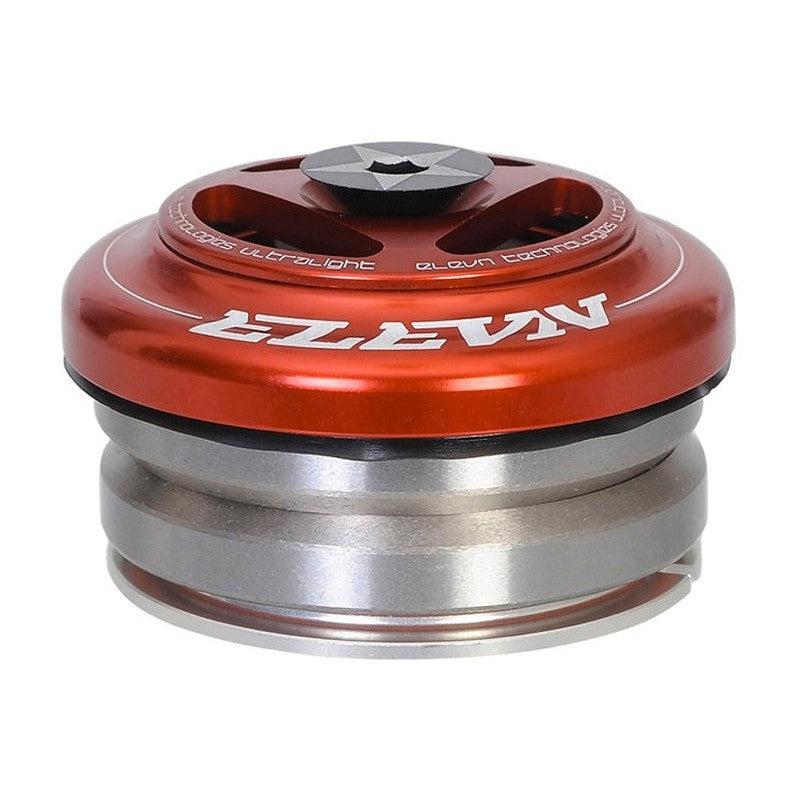

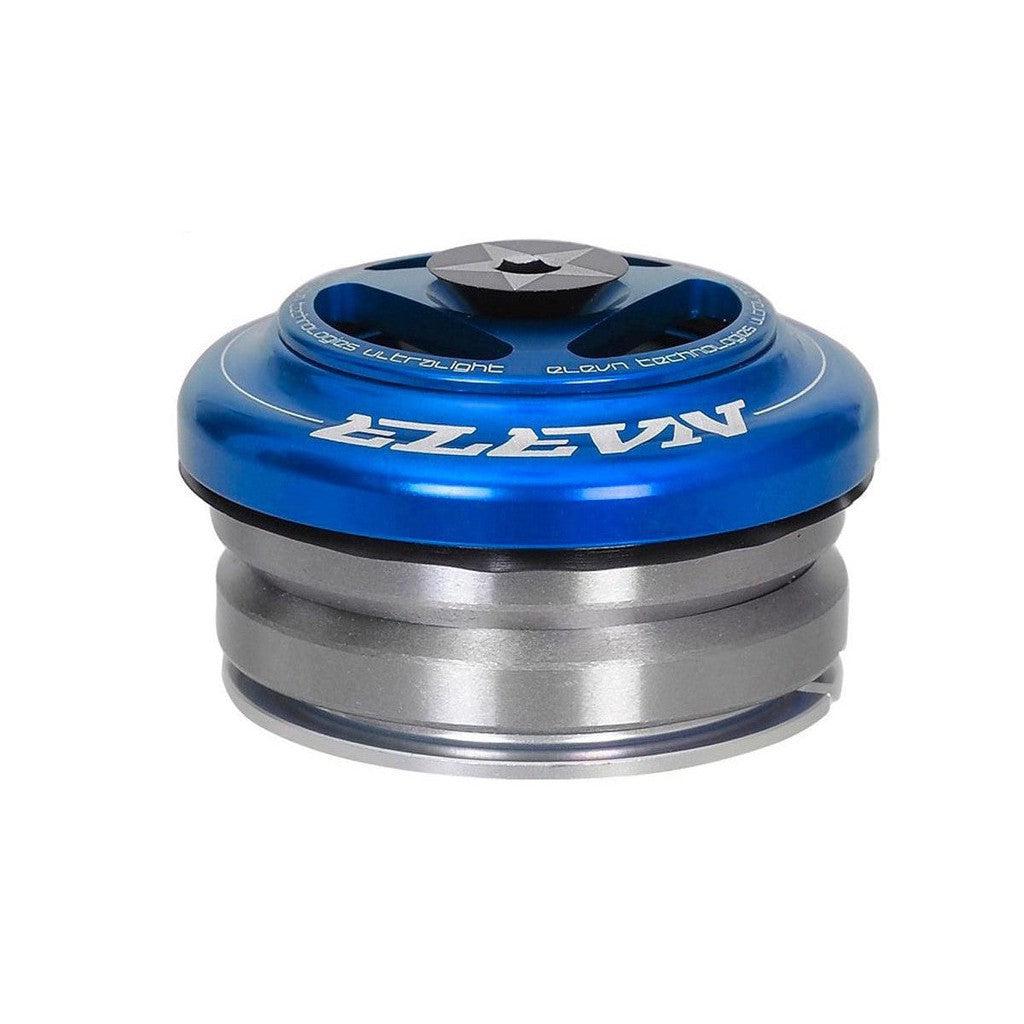

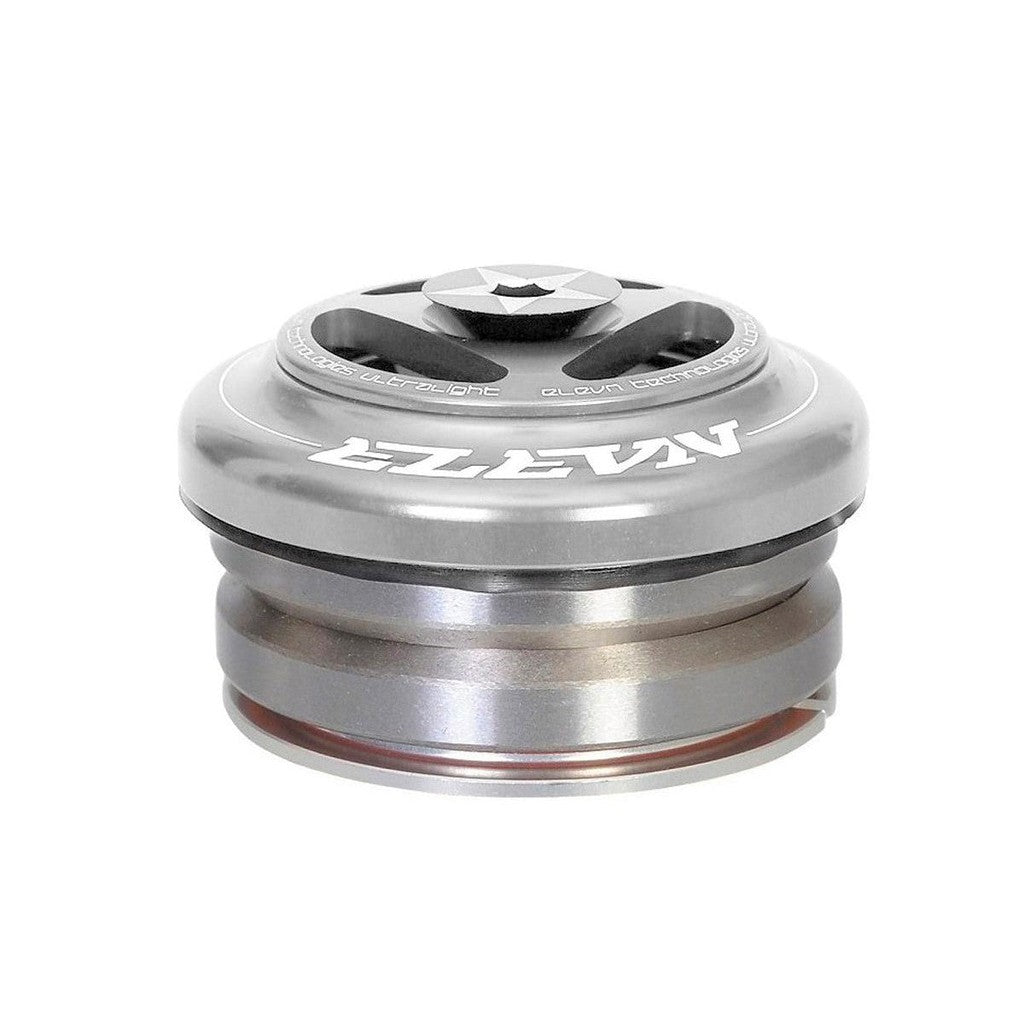

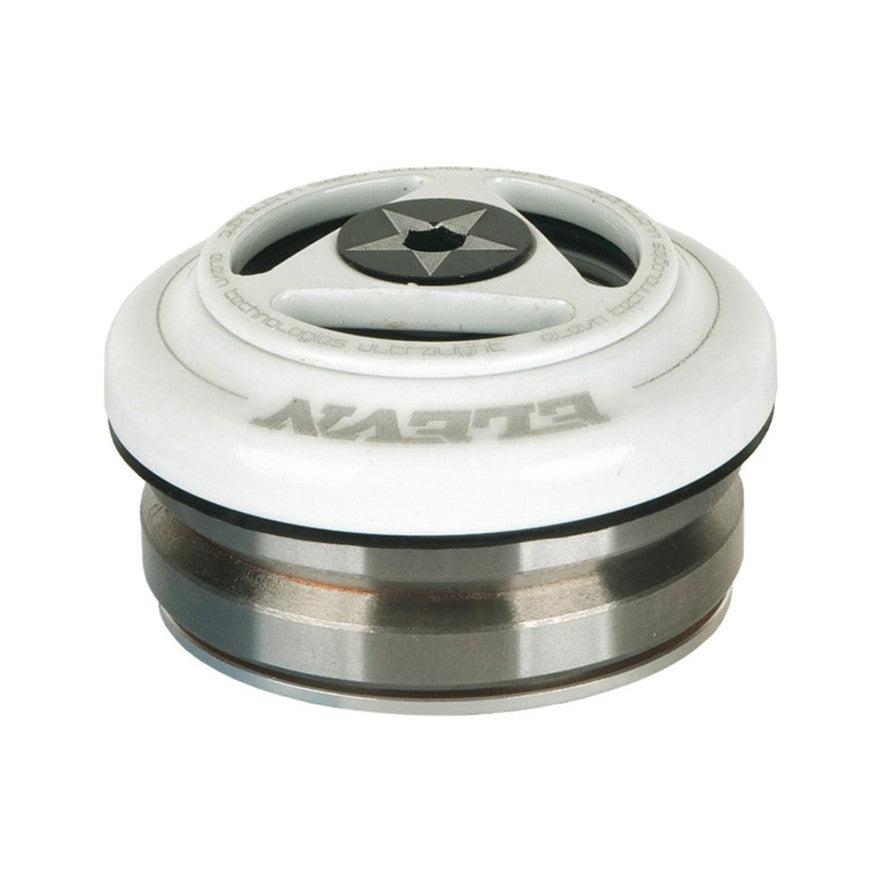

Elevn's Integrated Step-Down (reducer) Headset is designed to work with 1-1/8 integrated headset frames and 1"" threadless forks. made from alloy 6061 with light compressor custom kit with ultra-smooth sealed bearings.
Each headset includes a fully CNC’d alloy top cap, star nut, and compression bolt and features 6061 CNC’ed ultra-light cups & 7075 alloy fork bearing race. Another solid offering from Elevn Racing's catalog.
Today’s modern Mini / Junior BMX frames use 1-1/8’’ head tubes to keep the strength and consistency of tubing used on bigger frames. The Elevn 1’’ converter Integrated headset lets you use a 1’’ fork on any bike with an 1 -1/8’’ integrated head tube, such as the Chase Mini and Junior frames. The 1’’ inner diameter cone will match your 1’’ steerer tube fork while the 1-1/8’’ Angular Contact Bearings will match your frame. This is very practical when a rider goes up one frame size, but doesn’t yet need to jump to the larger fork steerer tube.
- Suits frames that use a 1-1/8” integrated head-tube, but for riders that use a 1” steerer tube fork.
- Uses a 1” compatible bearing race and compression ring and top cover
- Sealed cartridge roller bearings,
- Stainless fork race
- Star nut
- Headset bolt
- Etched alloy top cap
- 72g weight
