The Eclat Cortex EVO CS Rear Cassette Hub, in black, features dual hub guards, a high-engagement 108 POE system, and "Cortex CS" labeling, shown against a white background.

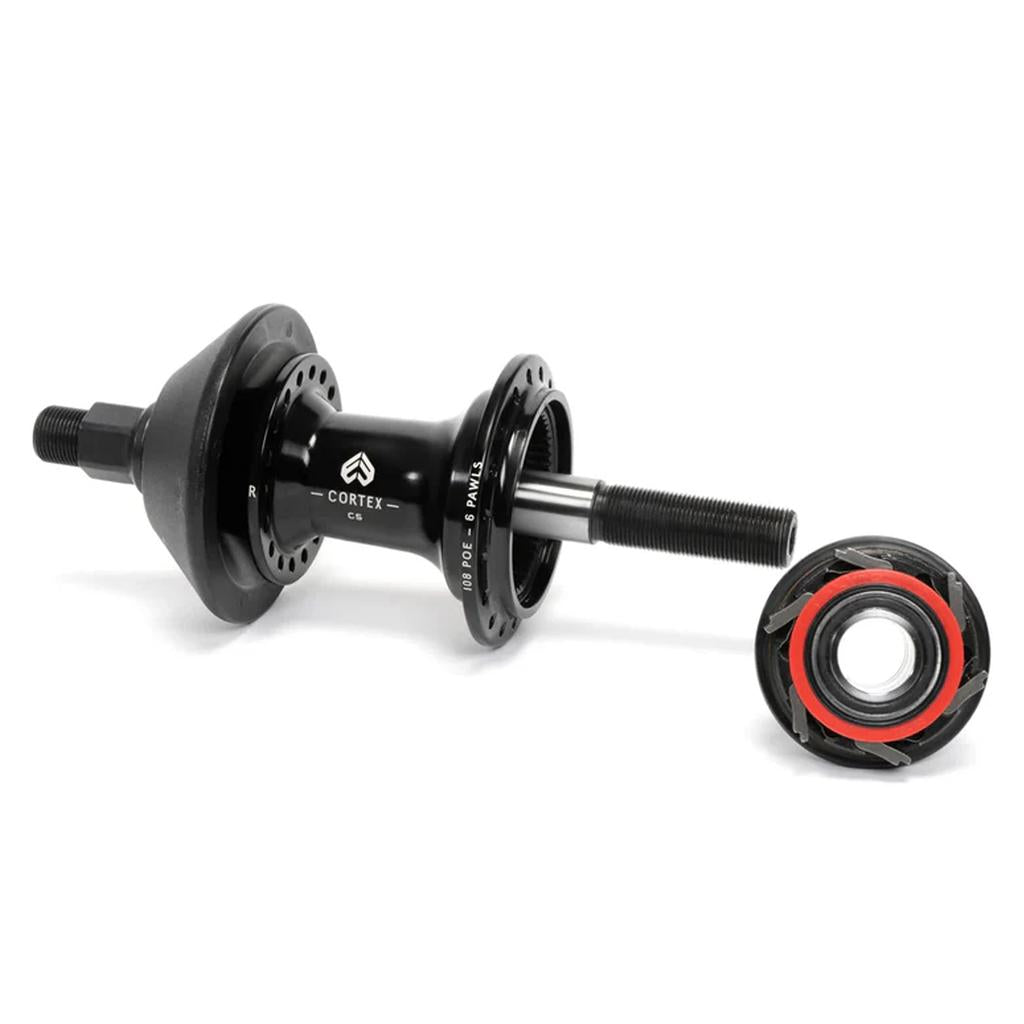

The Eclat Cortex EVO CS Rear Cassette Hub is shown on a white background with its high-engagement freehub body attachment placed beside it.
The Eclat Cortex EVO CS Rear Cassette Hub in black is shown with its axle, driver, and high-engagement bearing components separated on a white background.

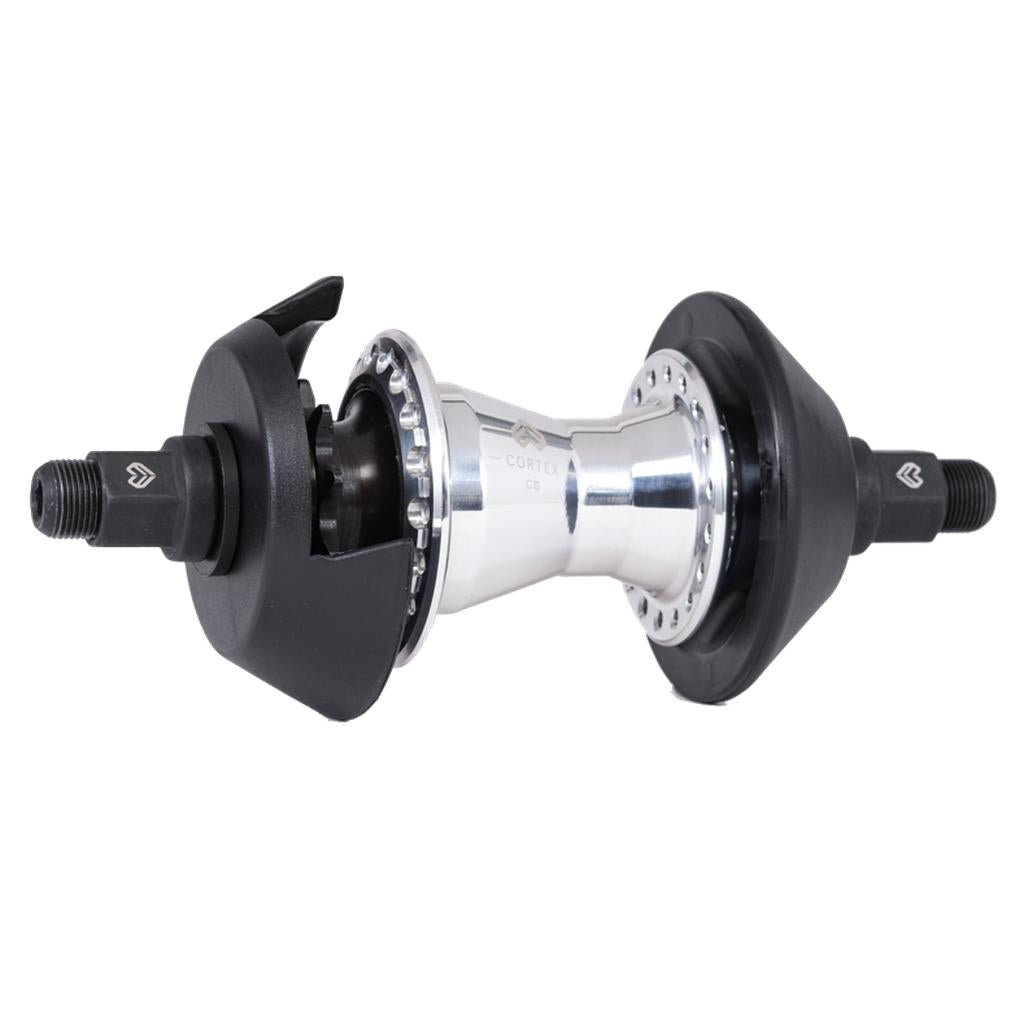

The Eclat Cortex EVO CS Rear Cassette Hub is a metallic BMX street hub featuring black axle bolts and plastic guards on both sides, shown against a plain white background.

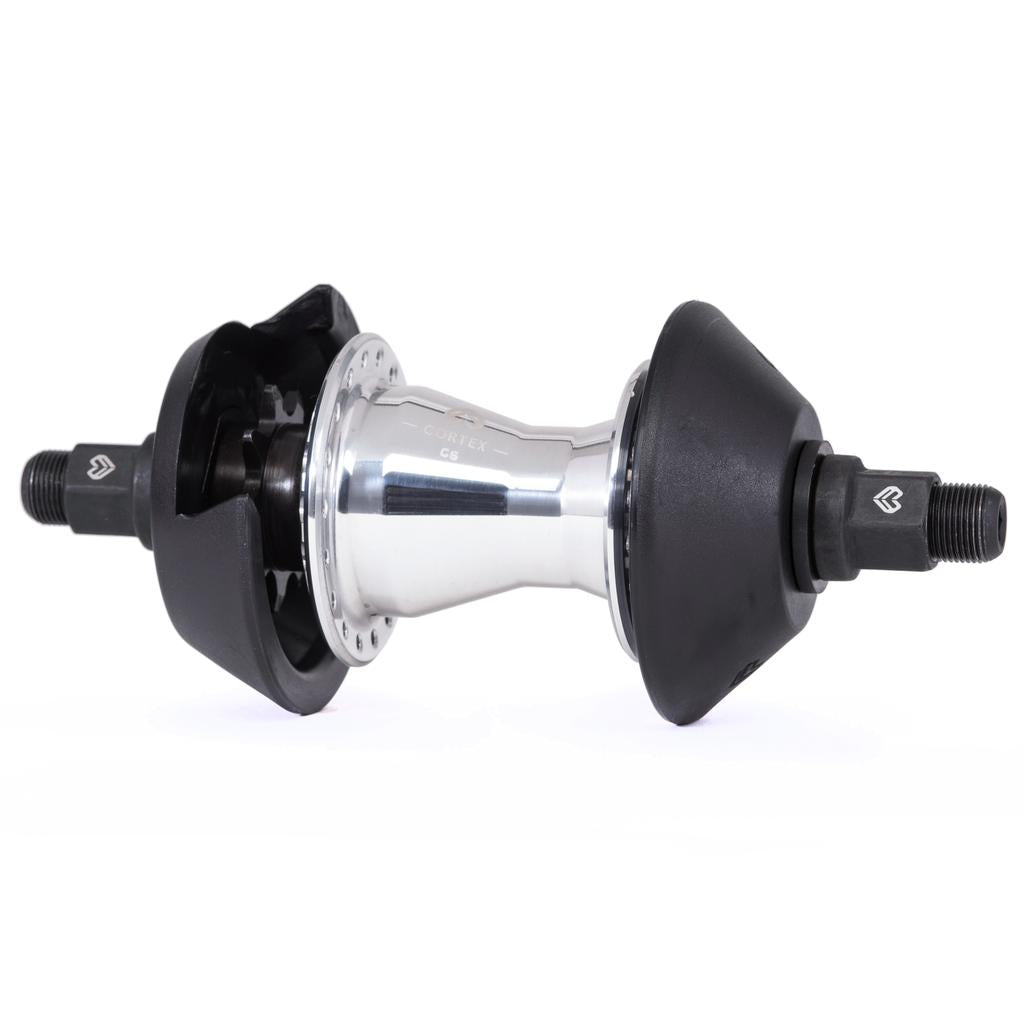

The Eclat Cortex EVO CS Rear Cassette Hub is a chrome BMX street hub with black hub guards on both sides, built for axle pegs and heavy-duty performance.

Description

The Cortex EVO CS is the updated version of Eclat's classic Cortex cassette hub, rebuilt around a high engagement 108 point, six pawl internal mechanism. The internals were tested and developed alongside the Eclat pro team, and the refined 6061-T6 alloy shell keeps it a strong street hub without going overboard.

It runs a 14mm male hollow bore hardened chromoly axle with a hex key inner axle for easy maintenance, a 36 hole flange and a right side drive 9 tooth driver on a three bearing system. The Viper nylon hub guard and Gong driver guard are included, along with a driver side cone washer if you would rather run it without a guard.

Features
  • 108 points of engagement. Six multi tooth pawls pick up quickly, so a small pedal movement gets you moving when you are pumping through a spot.
  • 9T driver, right side drive. A nine tooth RSD driver drops into a standard street setup without adaptors or extra parts.
  • 14mm chromoly axle. Hardened, heat treated and hollow bored, with a hex key inner axle so you can service it with one tool.
  • Hub guards in the box. Comes with the Viper nylon hub guard and the Gong driver guard, so it is street ready straight away.
  • Three bearing driver. Sealed 6902 bearings in the shell and a three bearing driver keep the whole thing spinning through grinds and drops.

Specifications
  • Material: 6061-T6 alloy refined hub shell
  • Bearings: Sealed: 6902 x2 in the hub, 6802 x2 and 15297 in the driver
  • Engagement: 108 points, 6 pawl multi tooth
  • Driver: RSD (right side drive), 9t
  • Hole count: 36
  • Axle: 14mm male hollow bore, hardened heat treated chromoly, hex key inner axle
  • Included: Viper nylon hub guard, Gong driver hub guard, driver side cone washer for running without a guard
  • Note: Measurements: NDSPCD 45mm, DSPCD 58mm. Flange to cone: drive side 31mm, non drive side 29mm.

Eclat Cortex EVO CS Rear Cassette Hub

Brand: Eclat SKU:

From

$289.99 AUD

 $299.99 AUD

Or 4 payments of $72.49 AUD with

Colour - Black

Spoke Holes - 36 Hole

Drive Side - Right Hand Drive

Instead of $299.99

$289.99 AUD
