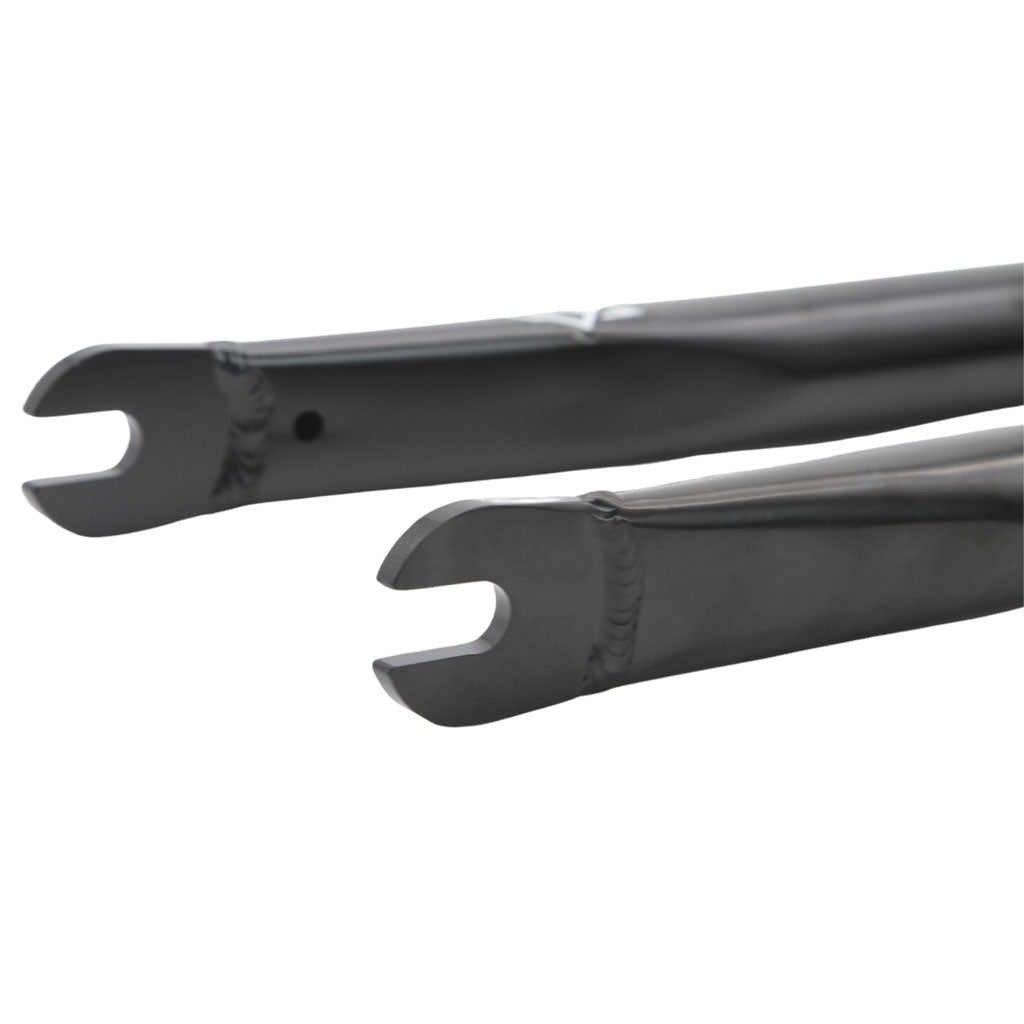

Close-up of two black fork ends with open dropouts, featuring clean welds and a smooth finish. This is part of the lightweight flatland model, the Eclat Coyote Flatland Fork.

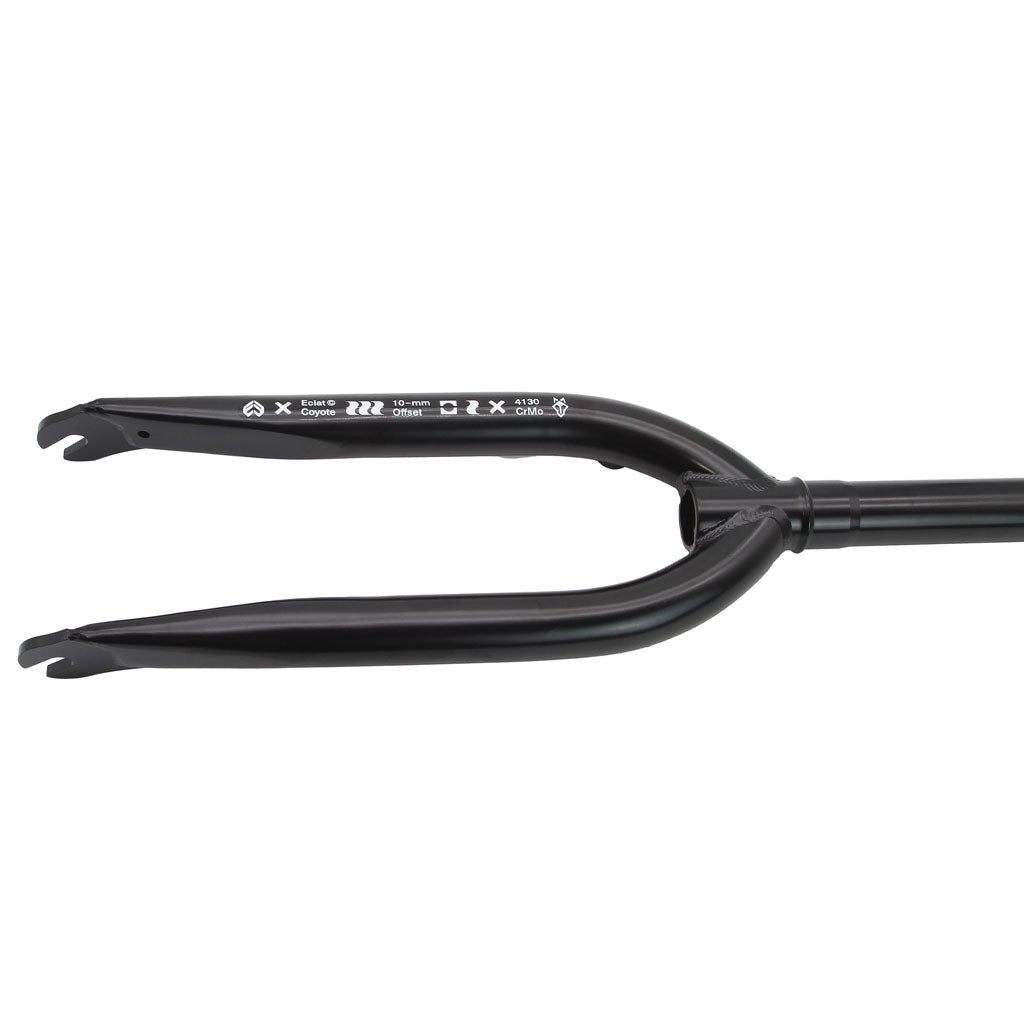

The Eclat Coyote Flatland Fork, a sleek black bicycle fork, features printed specs on top. It's a lightweight flatland model ideal for gravity-defying tricks and smooth urban rides.

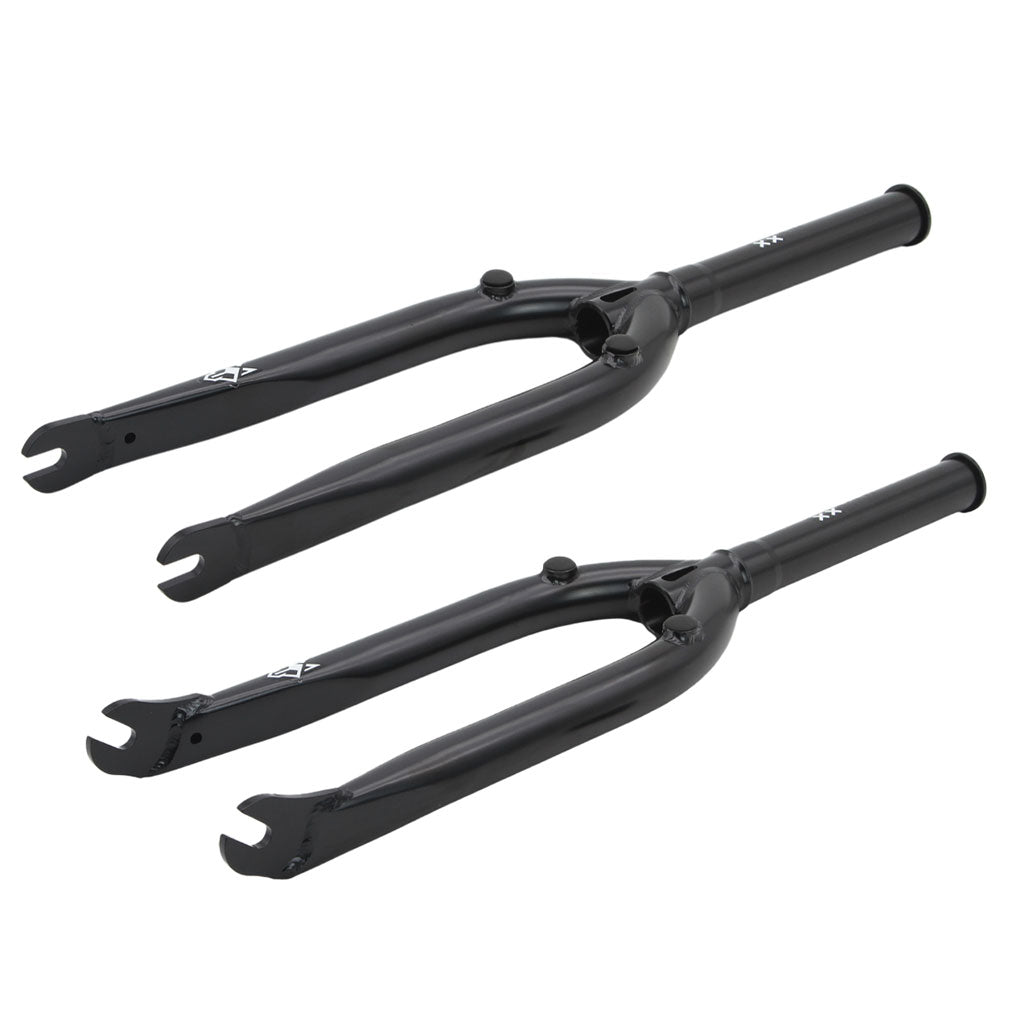

Two Eclat Coyote Flatland Forks in black, each featuring a lightweight design with short steerer tubes and dropouts, elegantly displayed on a white background.

Description

The Coyote is eclat's first flatland fork. It continues the same bombproof construction and heat treatment lineage developed with their Storm fork, then rolls it into a slimmed down, lightweight, flatland specific model.

Designed around 1.75" to 1.95" flatland tyres, with 2.0" the maximum it will take, the tighter bending radius let eclat shed weight where it was not needed while keeping the fork sturdy, stiff and dependable. It is full liquid post heat treated seamless 4130 chromoly with one piece hydroformed legs, a fully CNC machined steerer and butted blades, an integrated crown race for 45° integrated headsets, and a long taper for maximum peg clearance. Offset is 0mm or 10mm, removable 990 mounts are included and it weighs 860g, backed by a lifetime guarantee.

Features

Eclat's first flatland fork. Built on the same construction and heat treatment lineage as their legendary Storm fork, slimmed into a flatland specific model.
Designed for narrow flatland tyres. Sized around 1.75" to 1.95" tyres and fits 2.0" maximum, which let eclat tighten the bending radius and drop weight.
Light at 860g. Slimmed down legs and butted blades shed weight where it is not needed, while keeping the fork sturdy and stiff.
Long taper for peg clearance. One piece hydroformed legs with a long taper give maximum room for pegs, and a clean look with it.

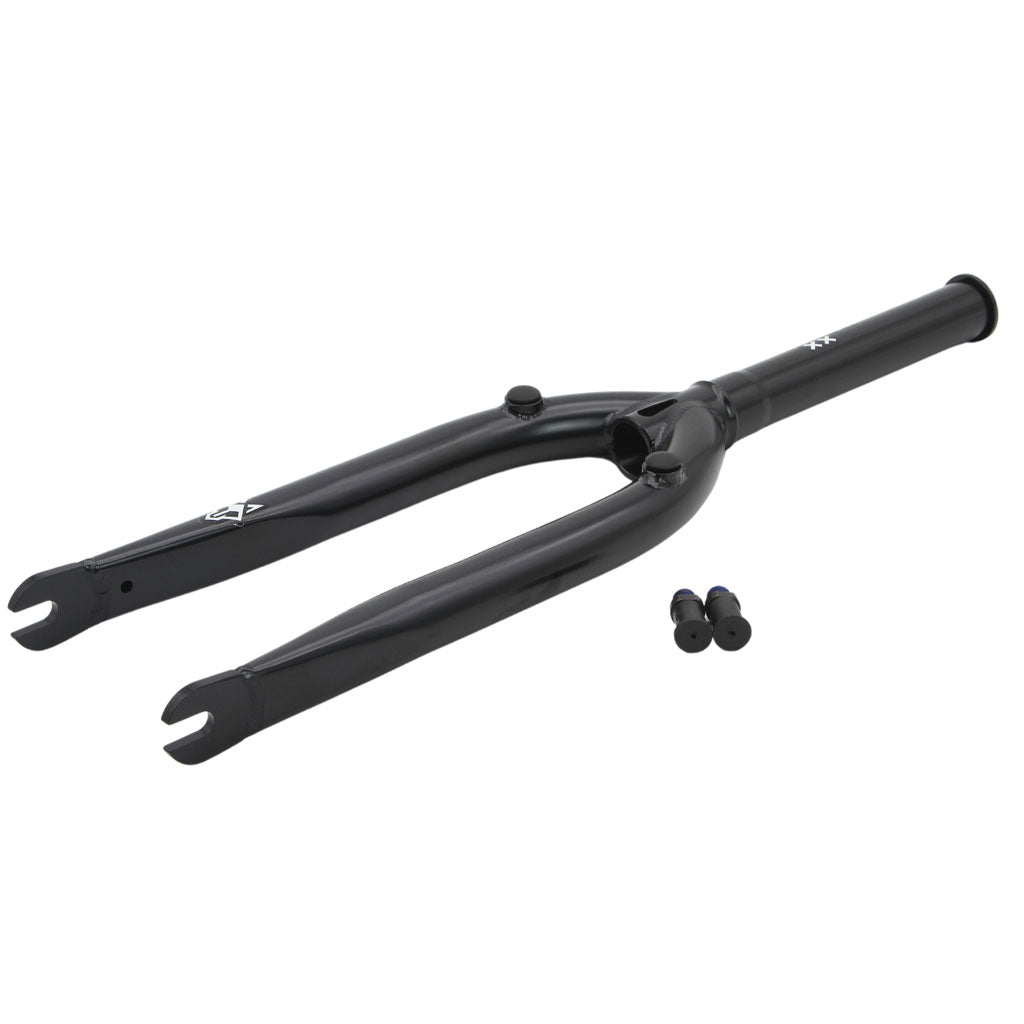

0mm or 10mm offset. Pick your offset. Removable 990 mounts included, a 170mm CNC machined steerer and 5mm laser cut dropouts for 3/8" axles.

Specifications

Material: Full liquid post heat treated seamless 4130 chromoly
Dropouts: CNC machined laser cut 5mm, heat treated 4130 chromoly, 3/8" (10mm)
Brake mounts: Removable 990 mounts included
Steerer: 170mm, for M24 top bolt, CNC cutout on the backside, integrated crown race for 45° integrated headsets
Fork offset: 0mm or 10mm
Fork legs: One piece hydroformed, butted blades, long taper
Axle: 3/8" (10mm)
Peg compatible: Yes, long taper for maximum peg clearance
Tyre clearance: Designed for 1.75" to 1.95", fits 2.0" maximum
Weight: 860g
Note: Top bolt is M24 thread 6061-T6 alloy with a recess for the front brake cable. Lifetime guarantee
