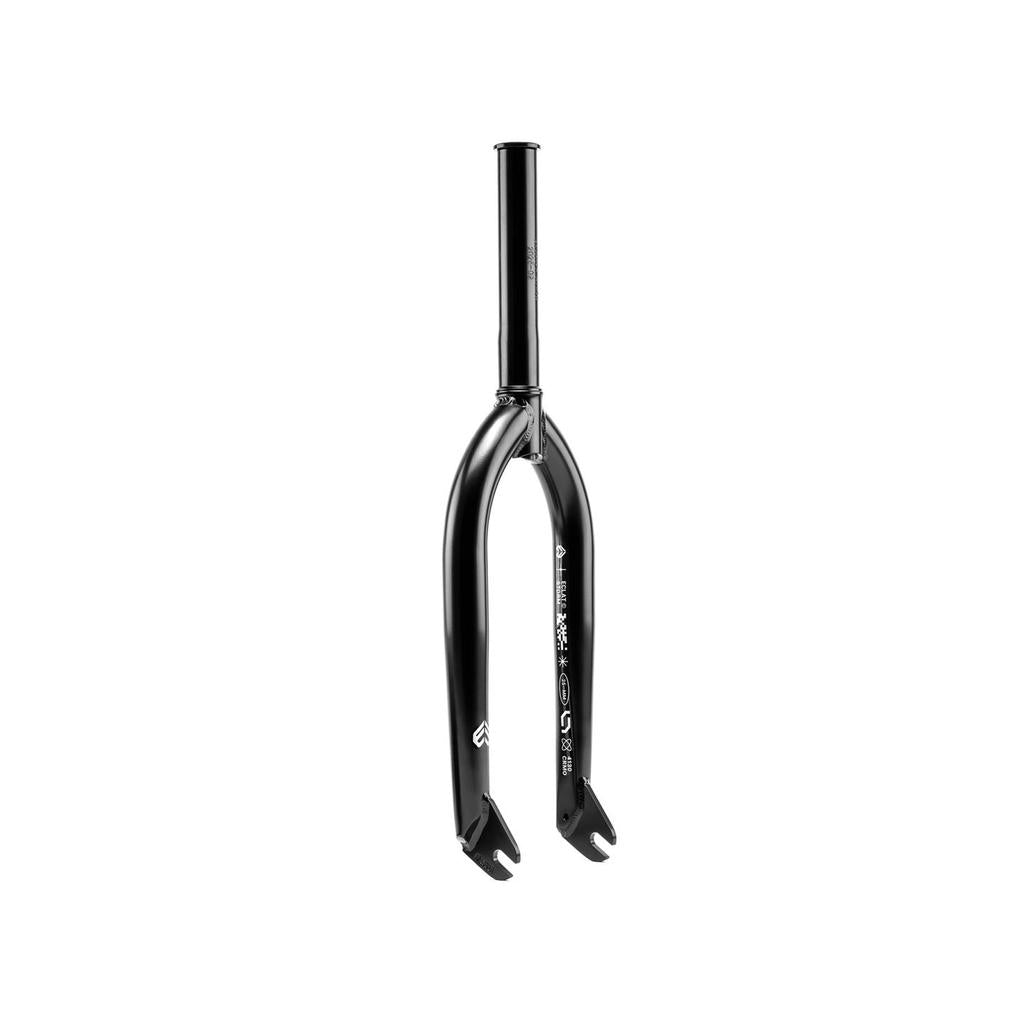

ECFO004-25-BLK

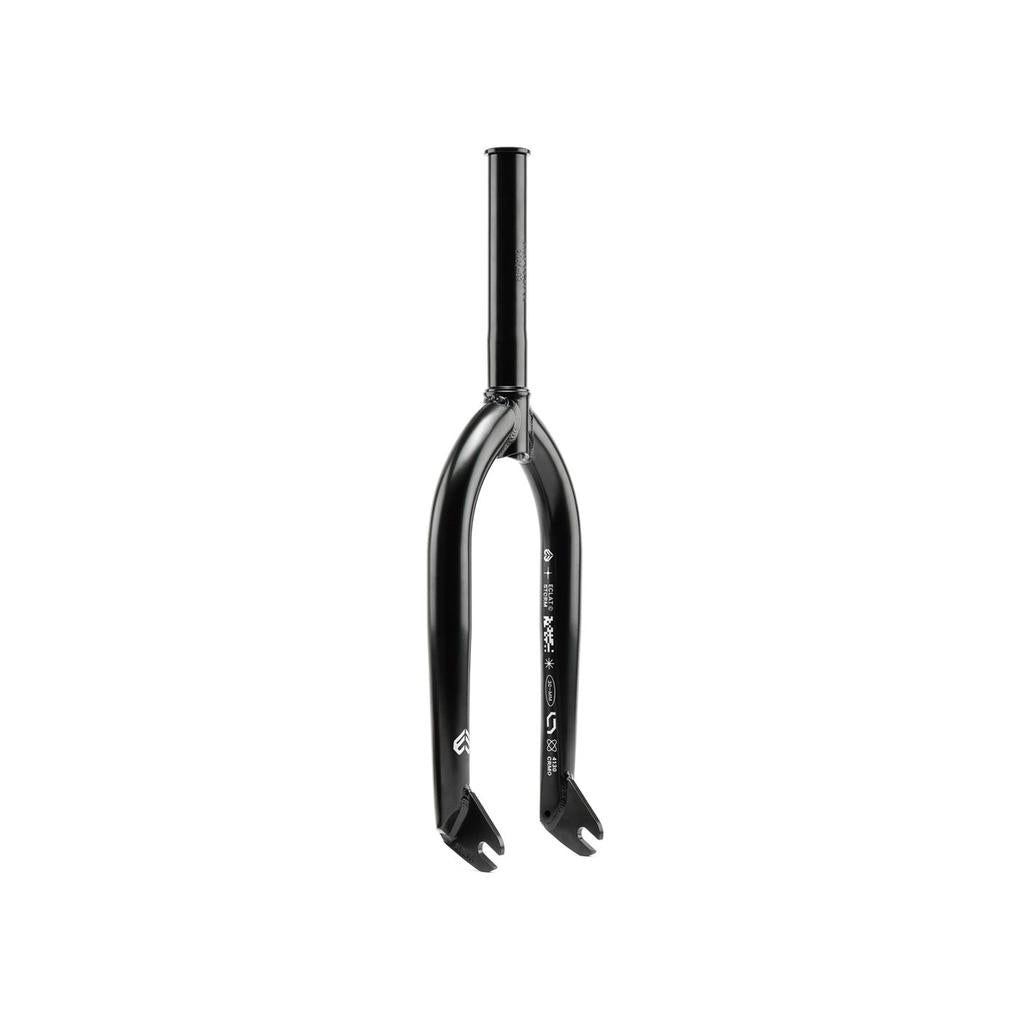

ECFO004-30-BLK

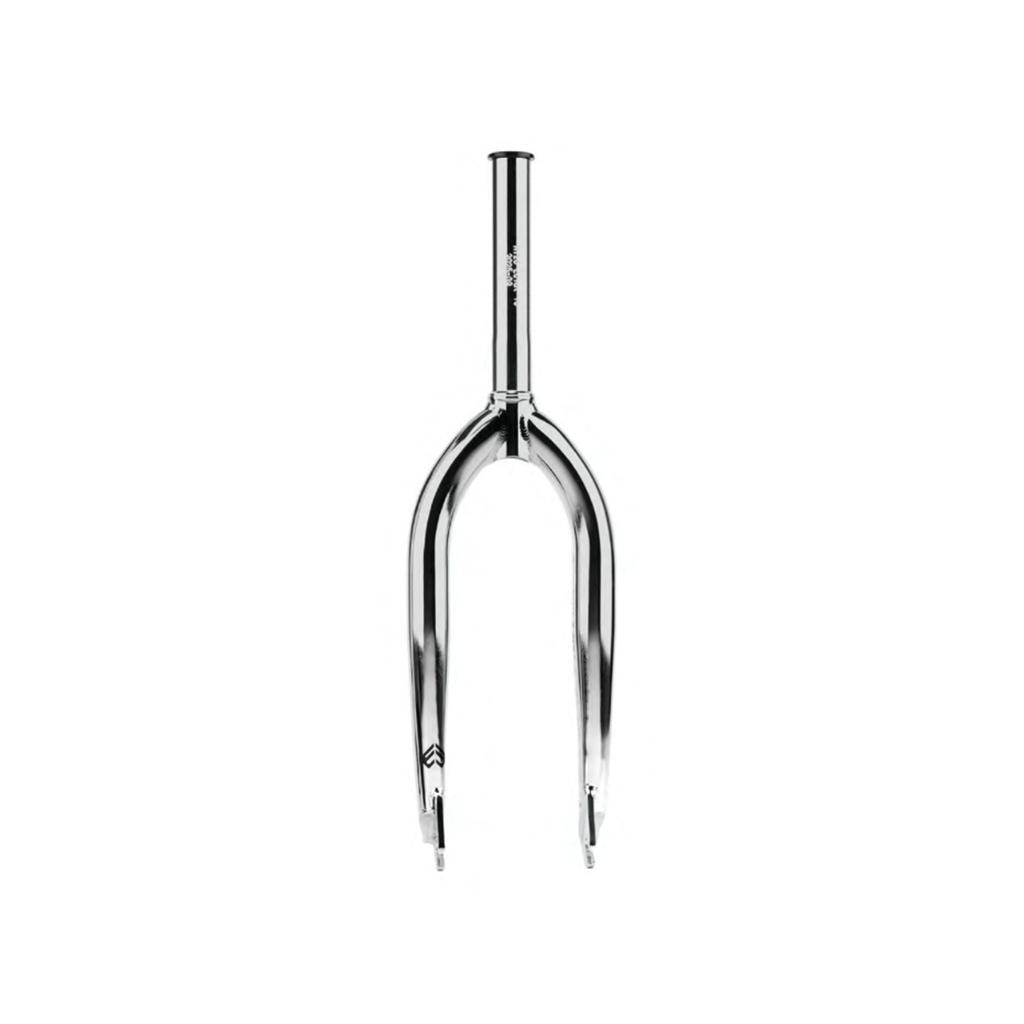

ECFO004-30-CHP
ECFO004
ECFO004
ECFO004
ECFO004
ECFO004
ECFO004

Description

The Storm keeps a clean, simple look, but the detail is in the balance of tubing thickness, material specification and Eclat's own heat treatment process. It is built to hold up to more abuse than any fork they have made before.

Seamless 4130 CrMo with butted blades, a fully CNC machined 170mm steerer with an integrated crown race, 5mm heat treated dropouts and a choice of 25mm or 30mm offset. 1015g in the 30mm offset, backed by Eclat's full lifetime guarantee.

Features
  • Strength you cannot see. Tubing thickness, material spec and Eclat's heat treatment are balanced so the fork takes more abuse than the plain looks suggest.
  • Choice of 25mm or 30mm offset. Two offsets let you set how the front end steers, from quicker and more direct to a steadier feel.
  • Fully CNC machined steerer. 170mm with an integrated crown race, so it goes straight into an integrated headset without a separate race to press on.
  • Heat treated 5mm dropouts. CNC machined and laser cut 4130 CrMo with a 3/8" (10mm) slot, sized for what street riding puts through the front.
  • Clearance for 2.4" tyres. Mechanically formed legs with one piece endings add strength and keep the lines clean, at 1015g in the 30mm offset.

Specifications
  • Material: Full liquid post heat treated seamless 4130 CrMo
  • Butting: Butted fork blades

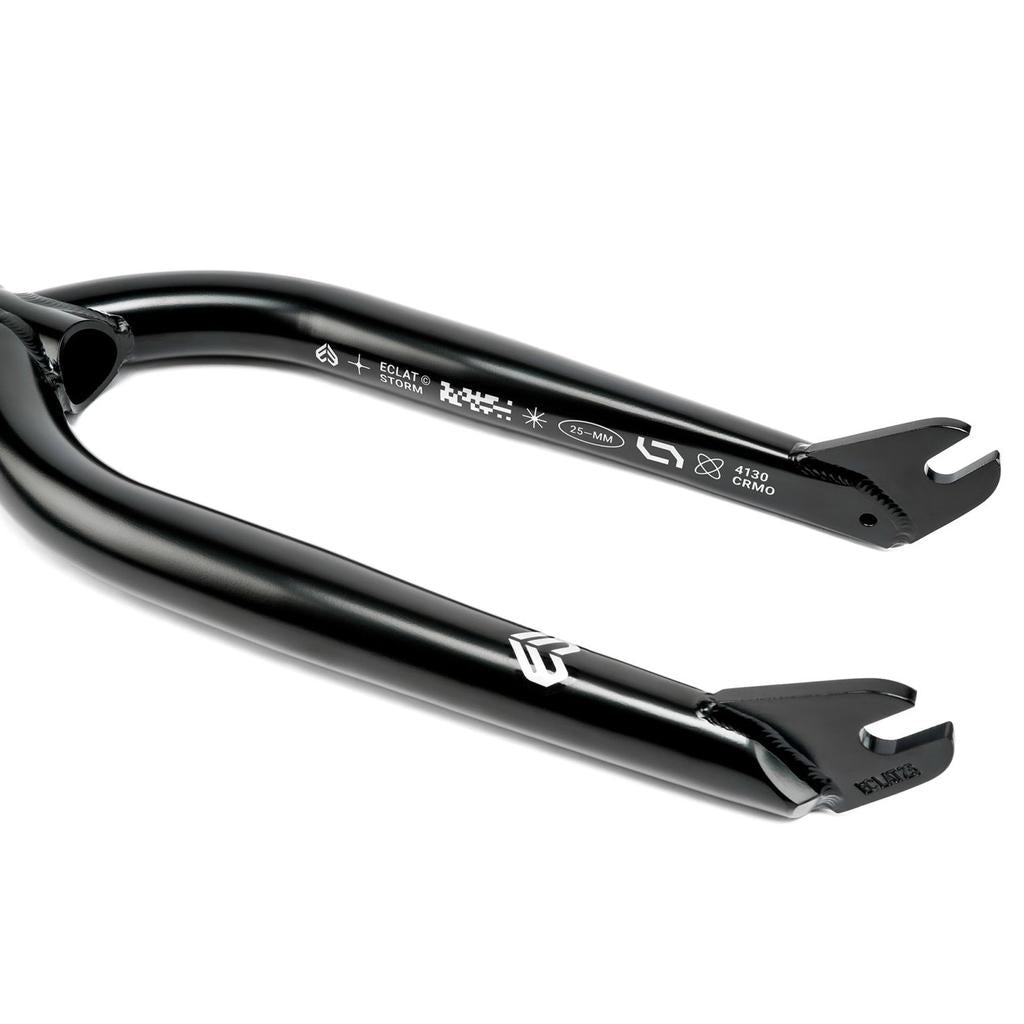

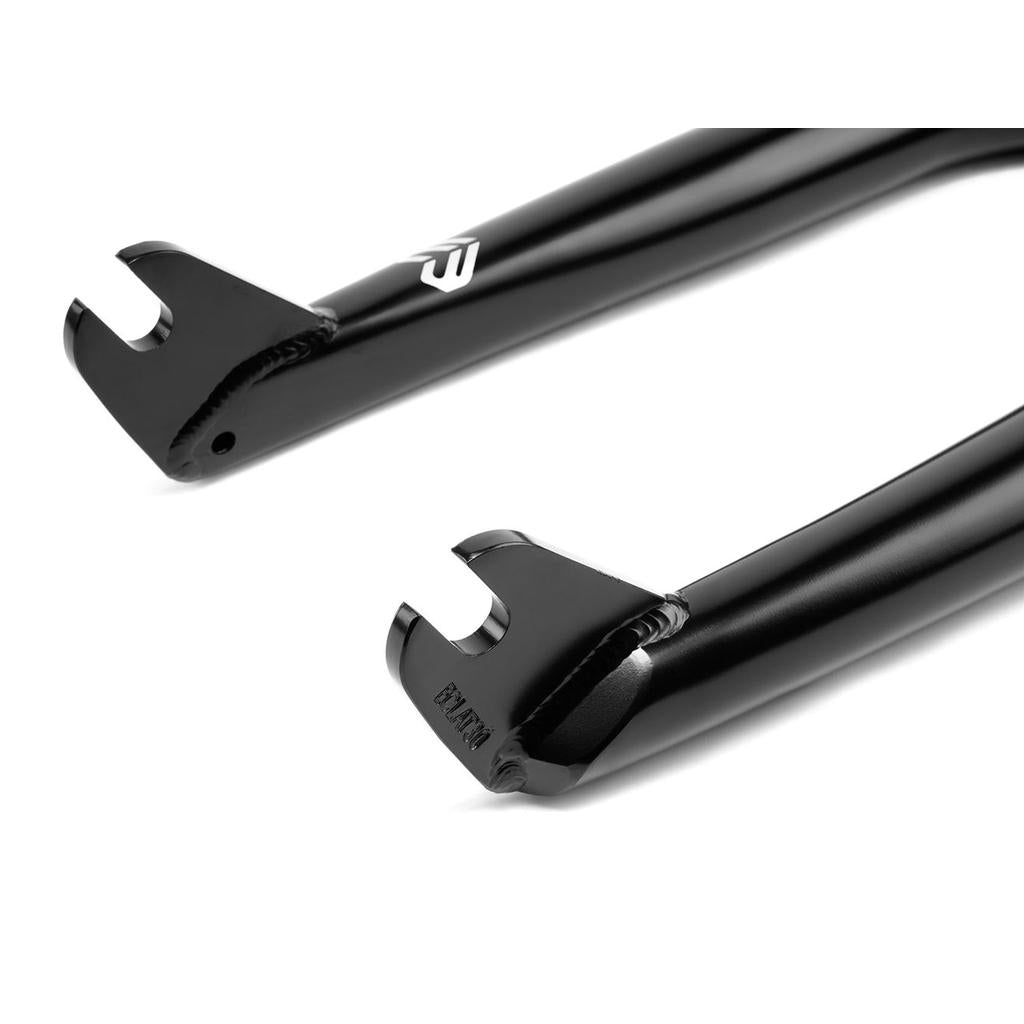

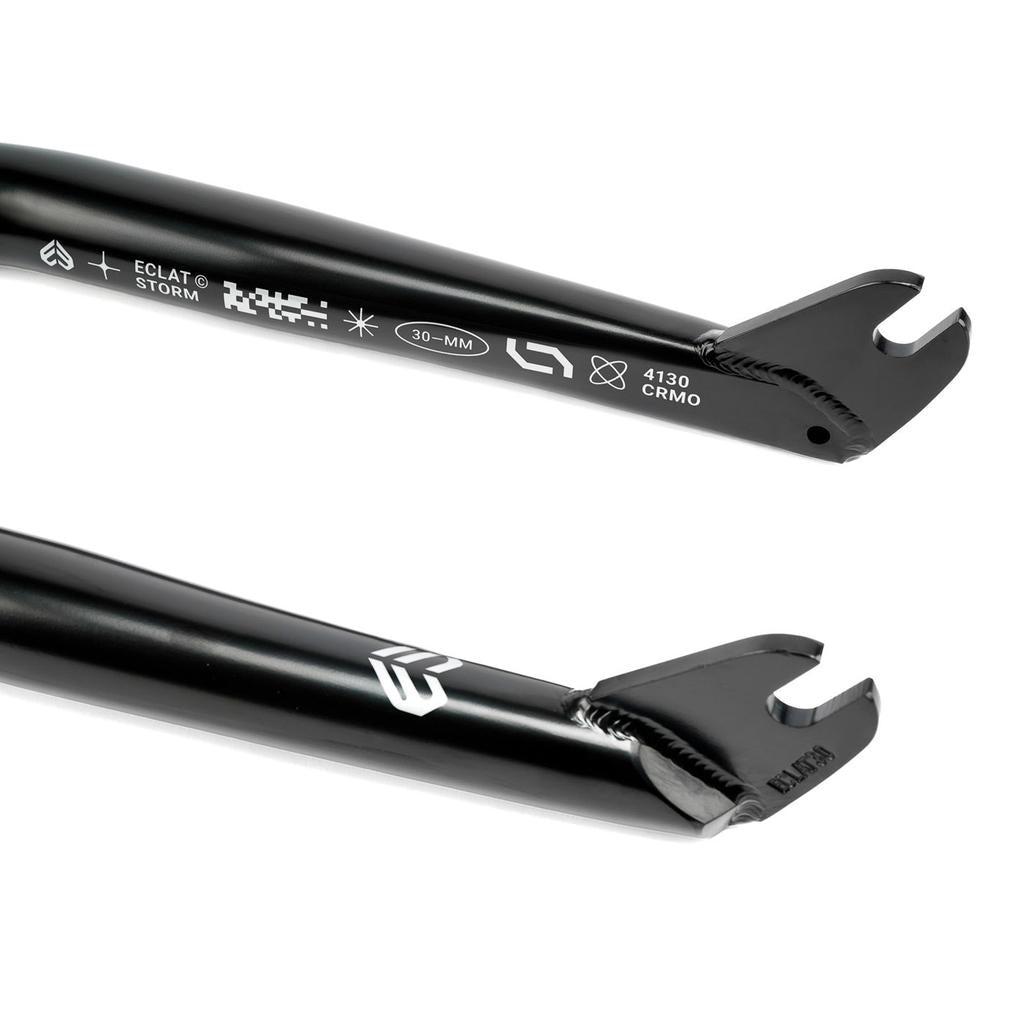

  • Dropouts: CNC machined, laser cut 5mm thick, heat treated 4130 CrMo, 3/8" (10mm) slot
  • Steerer: 170mm, fully CNC machined, with integrated crown race
  • Fork offset: 25mm or 30mm
  • Fork legs: Mechanically formed with one piece endings
  • Axle size: 3/8" (10mm)
  • Tyre clearance: 2.4"
  • Weight: 1015g (30mm offset)

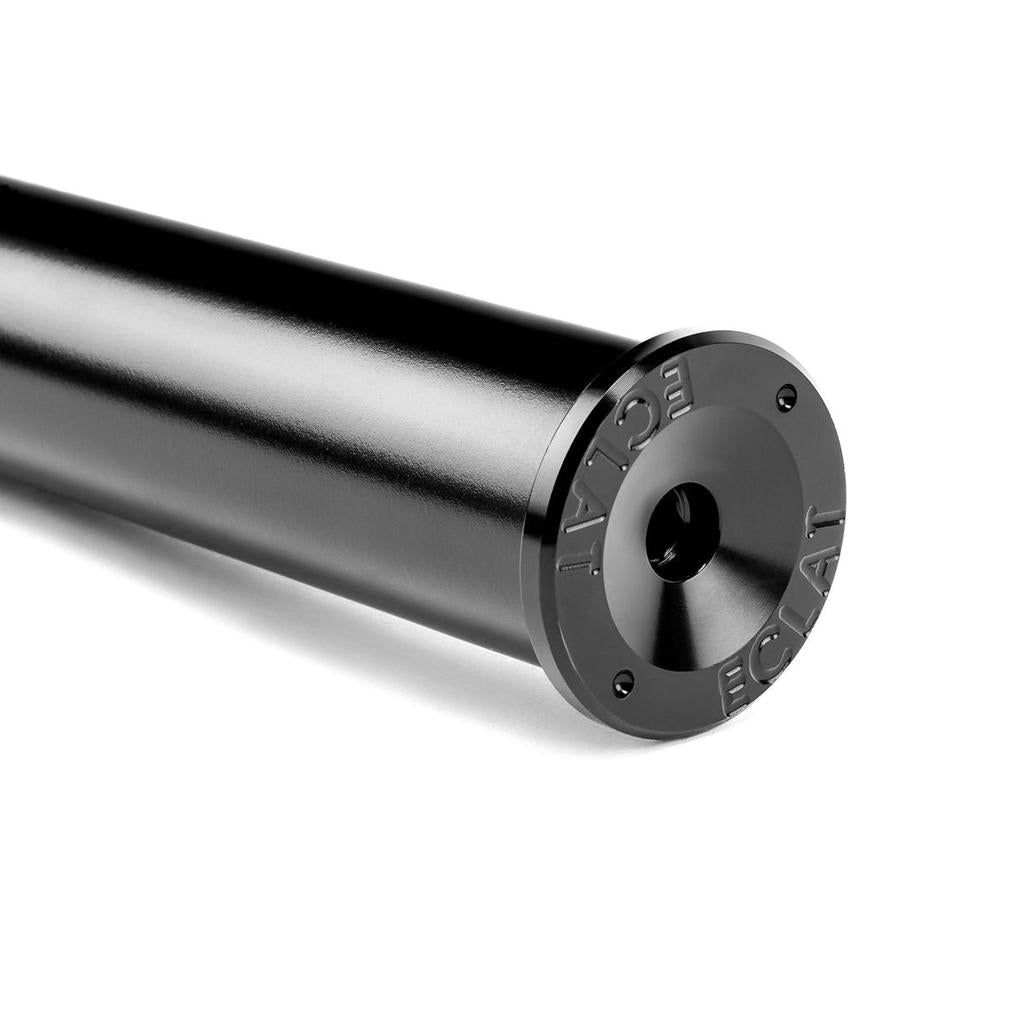

  • Note: M24 thread 6061-T6 alloy top bolt. Backed by Eclat's full lifetime guarantee.

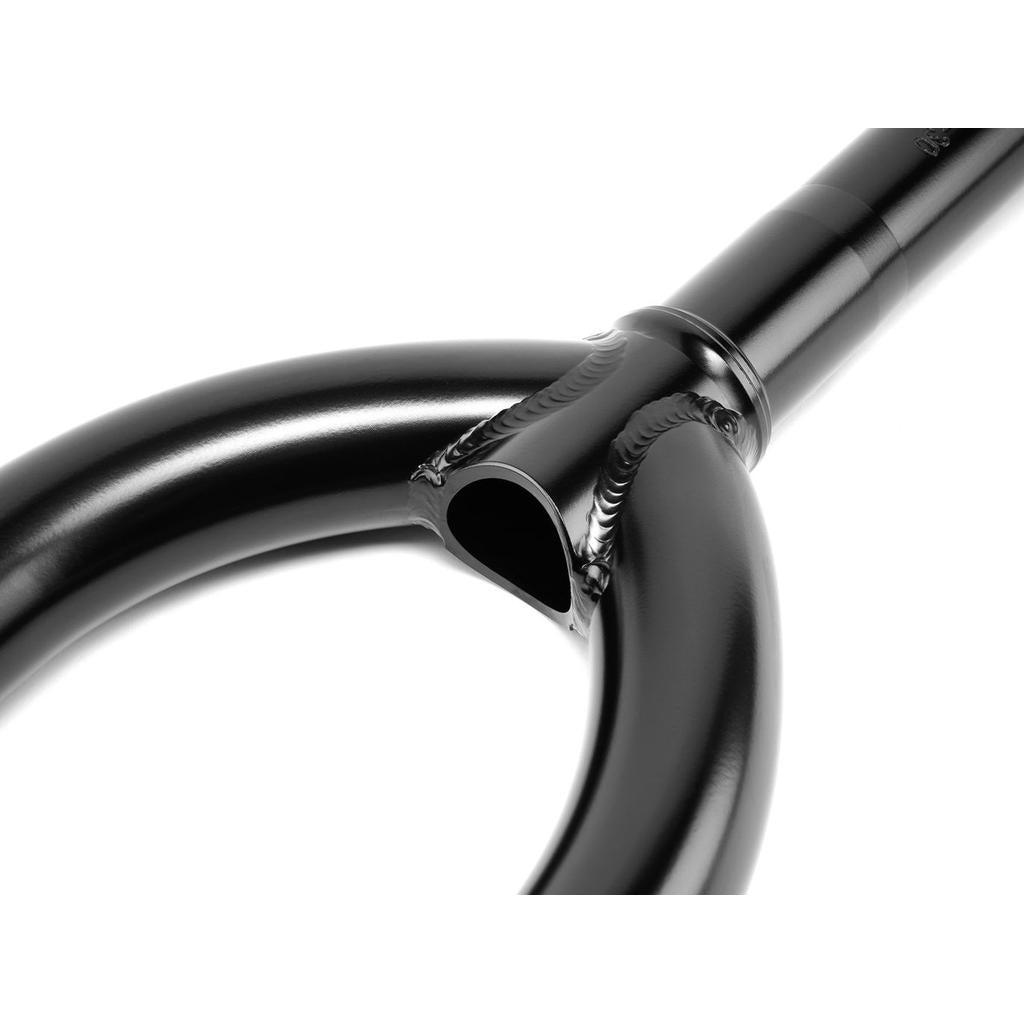

Eclat Storm 20 Inch Fork

Brand: Eclat SKU:

From

$349.99 AUD

 $350.99 AUD

Or 4 payments of $87.49 AUD with

Colour - Black

Offset - 30mm

$349.99 AUD

Price match request

Eclat Storm 20 Inch Fork - Black / 30mm

$12.99 flat-rate shipping Australia-wide

Express from $21.99

Free in-store pickup - Brisbane

Availability

25mm30mm
Black
Chrome

● In stock at LUXBMX ● With supplier ● Preorder ○ Sold out
