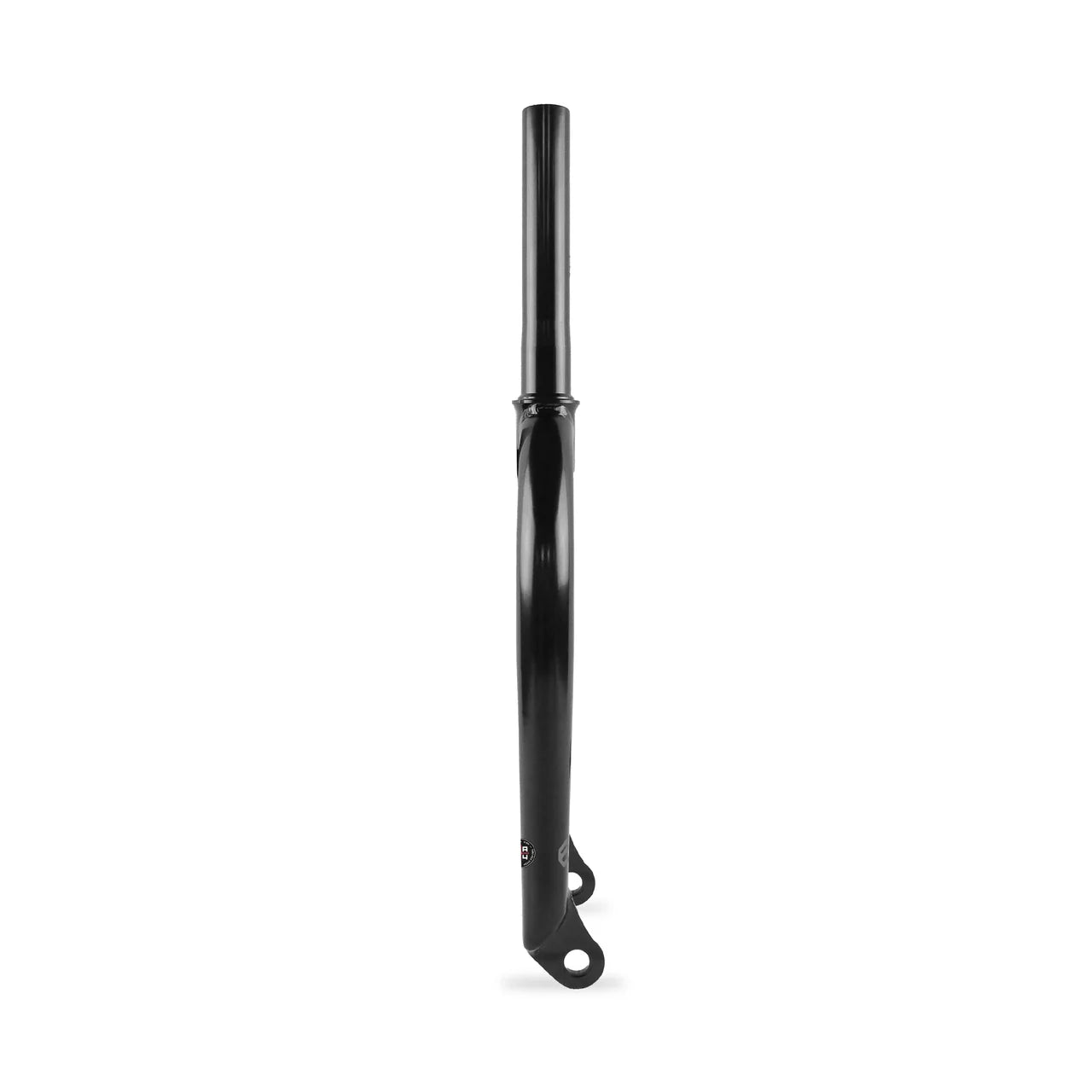

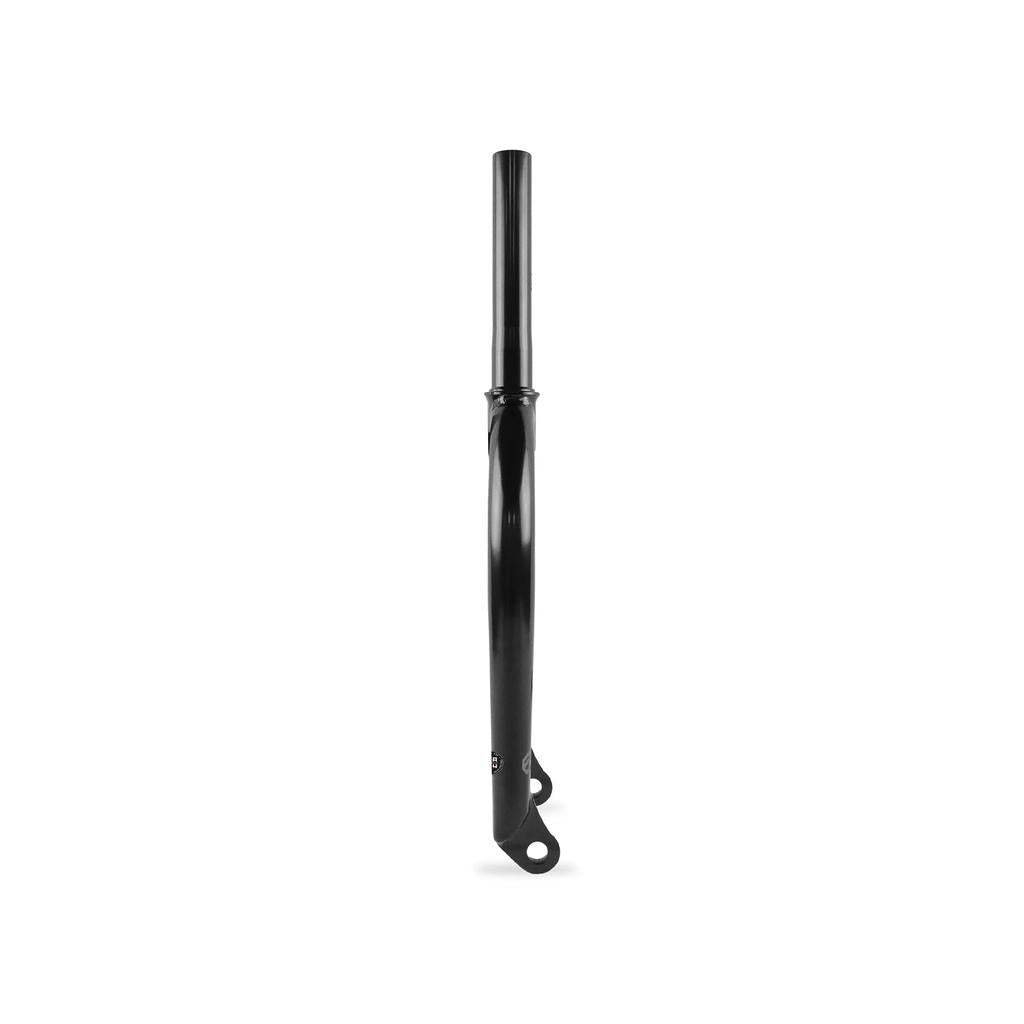

The Eclat Storm TA Forks feature a sleek black design on a white background, showcasing a robust 4130 CrMo construction with closed dropouts for enhanced durability and performance.

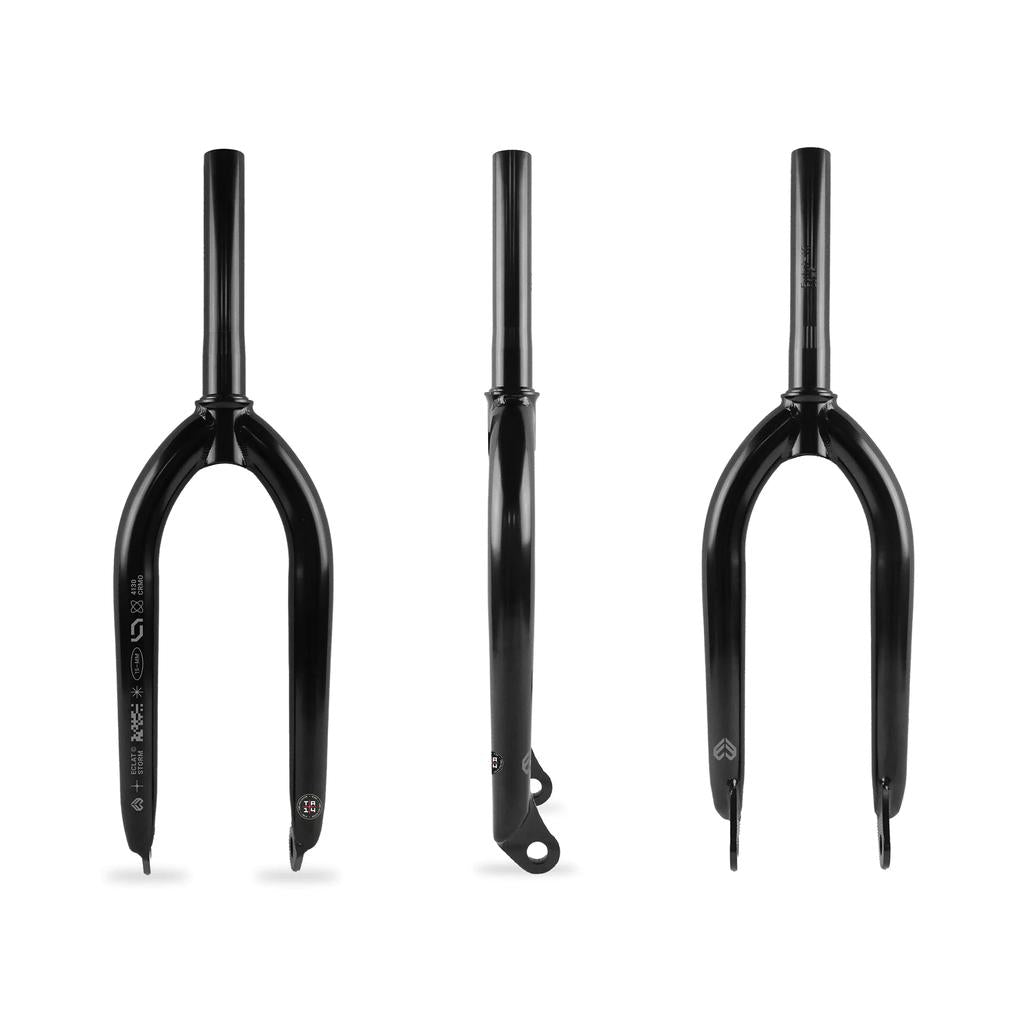

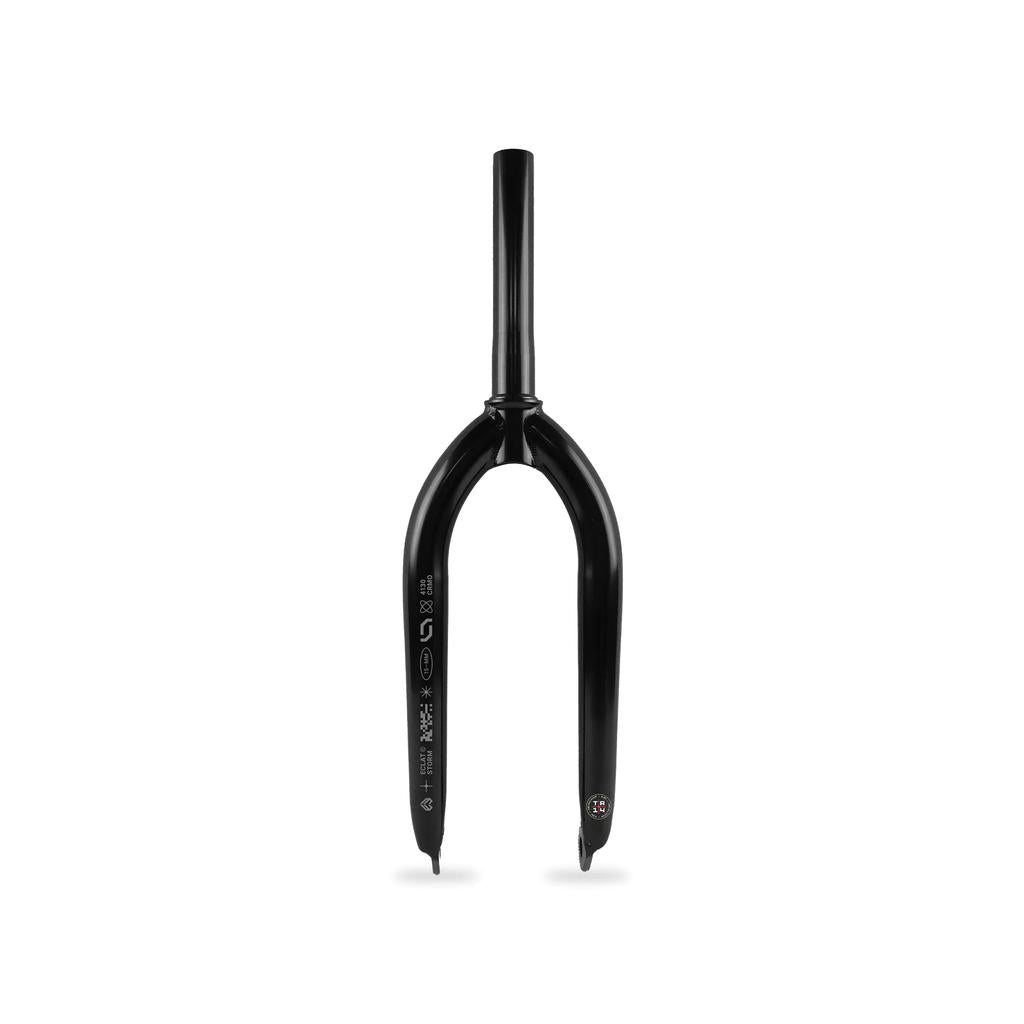

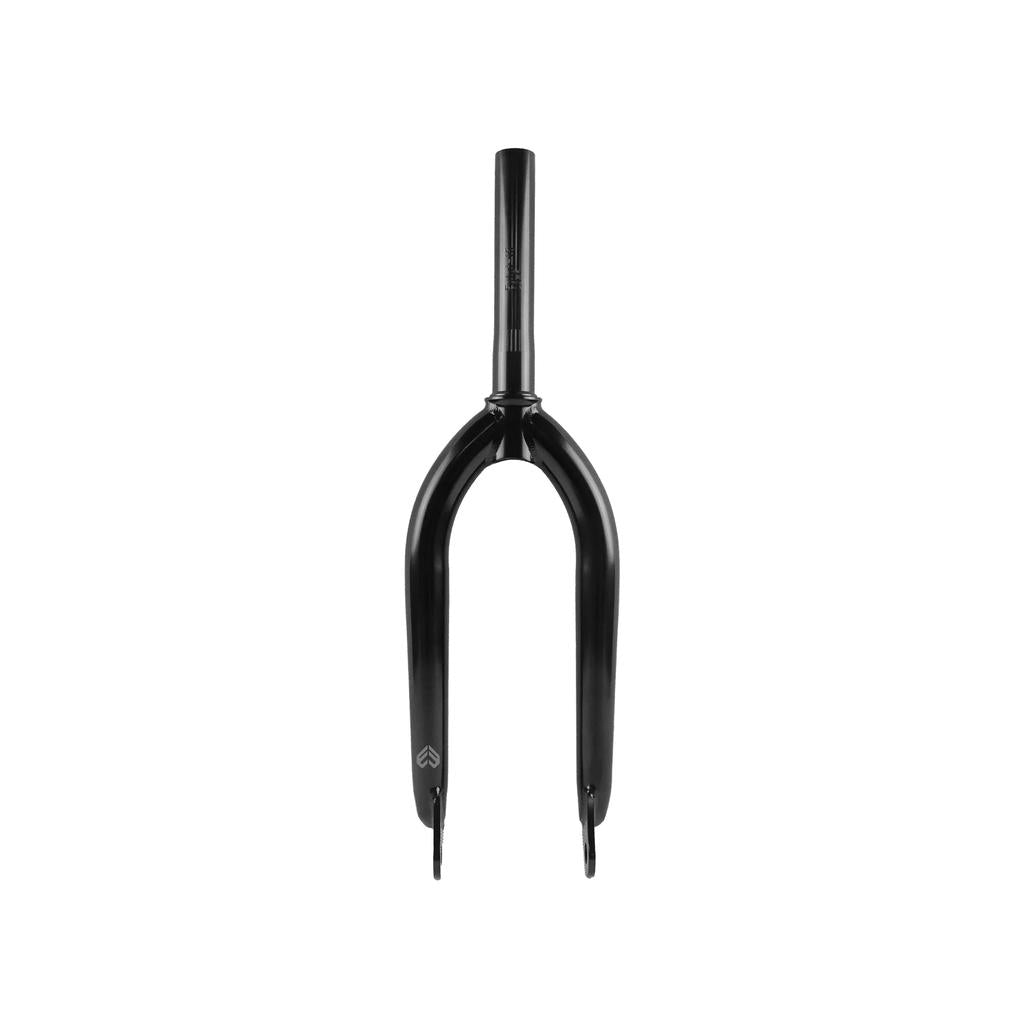

The Eclat Storm TA Forks (Thru-Axle) are black, crafted from seamless 4130 CrMo with a straight steerer tube, curved blades, technical markings, and a new-school closed dropout design.

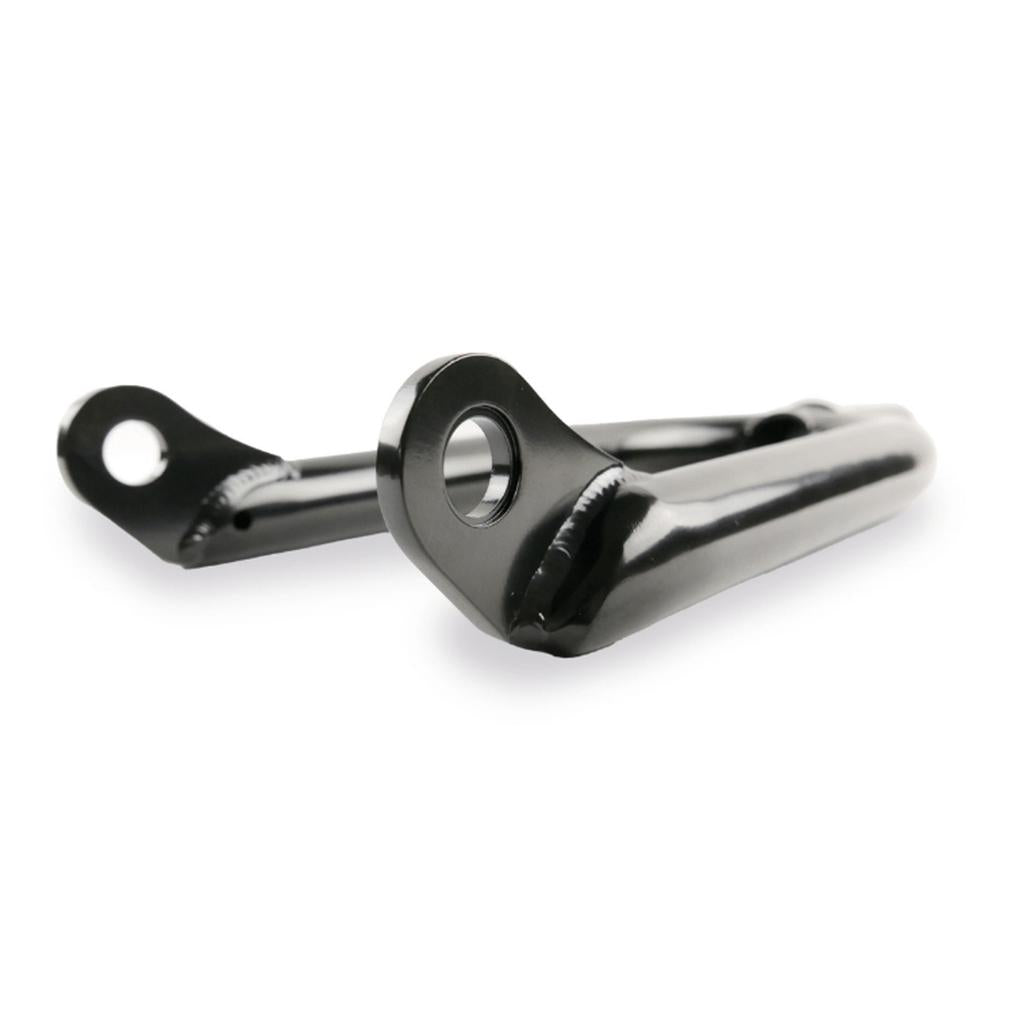

The Eclat Storm TA Forks are black bicycle front forks with a straight steerer, disc brake mounts, a closed CNC-machined dropout design for precision and durability, all displayed on a white background.

The Eclat Storm TA Forks, made from durable 4130 CrMo with CNC machining, feature black metal brackets with circular holes, positioned parallel on a white background.

Description

These forks are designed to be absolutely beefy as and ready for the streets! Ready and raring for the Cortex TA hub!

A stronger, superior modern BMX fork with a fresh look! Taking the legendary éclat Storm Fork as a base, we developed an all-new updated version designed around the introduction of our new thru-axle (TA) hub system. By using a closed style dropout, we were able to create a stiffer and stronger dropout concept which fits the new Cortex 14mm TA front hubs, as well as fitting all of our existing 3/8” bolt female hubs with the supplied adaptors. The fork crown has also been improved upon, by using a larger diameter fork crown with a smooth taper we were able to create a stronger interface between the fork leg and the crown as well as super clean flush transition into the frame head tube. Available in both 15mm and 25mm offsets and covered by our Lifetime Guarantee.

Features

Closed dropout for thru axles. The closed 14mm slot is built around the Cortex TA front hub, giving a stronger axle and a stiffer wheel.
Female bolt hubs still fit. Adaptors for 3/8" female bolt hubs are included and the dropout has a CNC recess for them.
Oversize fork crown. A larger crown with a smooth taper strengthens the leg junction and sits flush against the frame head tube.
Heat-treated 4130 chromoly. Full liquid post heat-treated seamless chromoly with butted blades and 5mm thick laser cut dropouts.
Room for 2.4" tyres. Clearance for a 2.4" tyre, a 25mm offset and a 170mm steerer, all covered by the éclat Lifetime Guarantee.

Specifications

Material: Full liquid post heat-treated seamless 4130 chromoly
Butting: Butted fork blades
Dropouts: Closed thru axle / female axle specific, CNC machined laser cut 5mm thick, heat-treated 4130 chromoly, with CNC recess for the 10mm adaptor
Steerer: 170mm, fully CNC machined, integrated crown race for 45° headsets
Fork offset: 25mm
Fork legs: Mechanically formed, oversize fork crown
Axle: 14mm thru axle (TA) or 3/8" female bolt hubs, adaptors included
Tyre clearance: 2.4"
Weight: 988g (34.1oz / 2.17lbs)
Note: M24 thread 6061-T6 alloy topbolt. Not compatible with male axle front hubs. Covered by the éclat Lifetime Guarantee
