Description

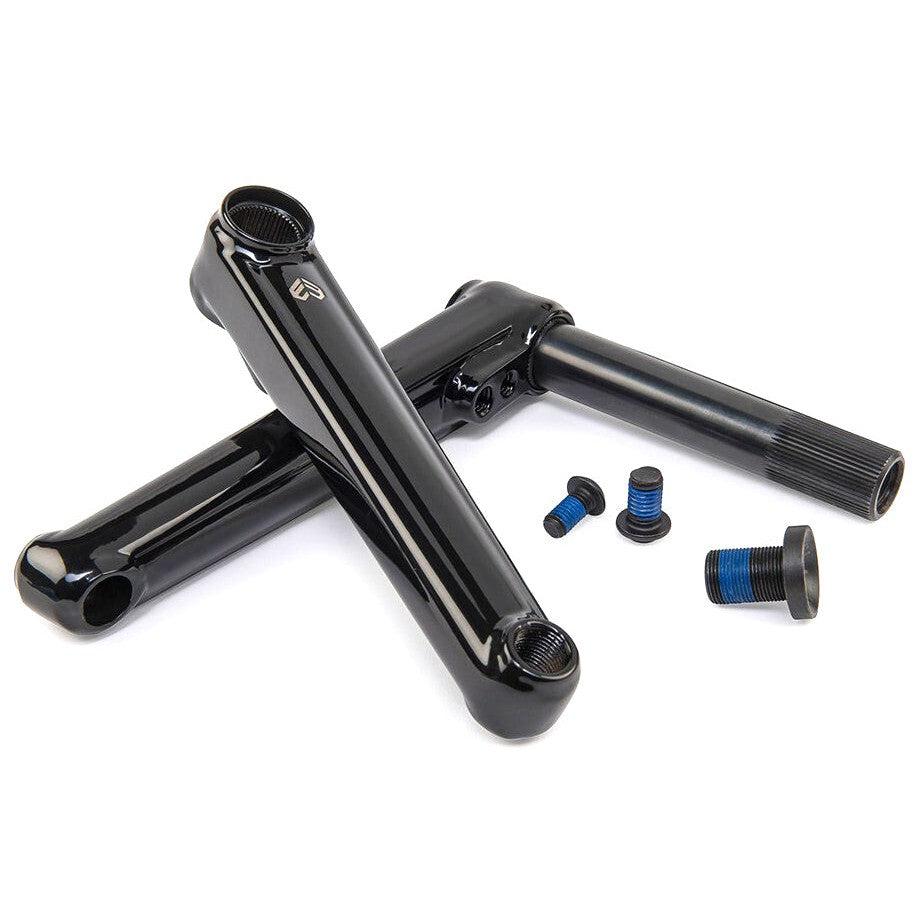

The Eclat Tibia cranks offer the functionality and simplicity of a two piece design while staying true to the proven splined interface of a three piece crank. The arms are slim and tubular, heat treated 4130 chromoly, running on a 22mm ultra hollow chromoly axle, and the complete crankset weighs 934g.

They are compatible with right side drive and left side drive, with two sprocket bolt holes on each side. Spindle thread size is M15 x 1mm and the sprocket bolt size is M10 x 1.5. The installation and removal tool is not included.

Features

22mm ultra hollow spindle. The chromoly axle is 22mm and ultra hollow, so you get strength without carrying the weight of a solid spindle.
4130 chromoly arms. Tubular heat treated 4130 arms stay slim, go together smoothly and stay secure once they are torqued up.
RSD and LSD compatible. Two sprocket bolt holes on each side mean you can run right side drive or left side drive from the one crankset.
934 grams for the pair. That is the complete weight, arms and axle together, for a crank built around fewer headaches.
Tool not included. The installation and removal tool is separate, so make sure you have one before you pull the old cranks out.

Specifications

Spindle: 22mm chromoly, ultra hollow
Bolt pattern: Two sprocket bolt holes on each side
Material: Tubular heat treated 4130 chromoly arms and chromoly axle
Thread: Spindle thread M15 x 1mm, sprocket bolt M10 x 1.5
Weight: 934g complete
Note: RSD and LSD compatible. Does not include the installation and removal tool.
